High efficiency up to 173 lm/W ensuring energy efficiency.
Multipower function – allowing the selection of one of 4 power settings.
IP40 protection rating – suitable for indoor applications in dry rooms.
Luminous flux of up to 5550 lm – enabling effective lighting of various types of rooms.
5-year warranty confirming quality.
Source of light : LED
Luminaire with Multipower function
CE Certification
II protection class
IP40
Ingress Protection
220-240V 50/60Hz power supply
SQlight MP 1.0 is a 60×60 LED panel with a multipower function that allows the luminaire power to be adjusted directly on the driver. The user can choose one of four power levels: 19W, 23W, 28W or 32W, making the same luminaire suitable for different types of rooms and various lighting requirements. This solution makes installation design easier, reduces the number of required product variants and allows energy consumption to be better adapted to the actual needs of the space. The panel provides a luminous flux of up to 5550 lm and high luminous efficacy of up to 173 lm/W, combining energy efficiency with comfortable, uniform lighting.
SQlight MP 1.0 – 60×60 LED panel with multipower function
SQlight MP 1.0 is a modern 60×60 LED panel designed for professional spaces where flexibility, user comfort and energy efficiency are essential. The key feature of the luminaire is the multipower function, which allows the power to be selected directly on the driver. As a result, one luminaire can be adapted to different design and usage requirements without the need to use several separate product variants.
Multipower function – greater flexibility in one luminaire
SQlight MP 1.0 allows the selection of one of four power levels: 19W, 23W, 28W or 32W. This solution makes it easier to adjust the amount of light to a specific room, its height, purpose and the expected lighting intensity. Lower power settings are suitable for auxiliary, social or circulation areas, while higher settings allow more intensive lighting to be achieved in offices, work rooms, shops or public buildings.
High efficiency and luminous flux up to 5500 lm
The panel achieves a luminous flux of up to 5500 lm and luminous efficacy of up to 173 lm/W, combining high efficiency with low energy consumption. Thanks to power adjustment, energy consumption can be better controlled and the luminaire operation can be adapted to the actual needs of a given space. This is particularly practical in projects where the same luminaire model is to be used in many rooms with different functions.
Comfortable, uniform lighting
SQlight MP 1.0 provides uniform and comfortable light suitable for everyday work and long-term occupancy of indoor spaces. The luminaire uses a PMMA lens and a microprismatic PMMA diffuser, which support even light distribution and glare reduction. The neutral 4000K colour temperature and CRI80 colour rendering index make the panel suitable for offices, retail spaces, public buildings and technical areas.
Flexible and simple installation
The SQlight MP 1.0 LED panel can be used in various mounting options, including modular ceilings, suspended installation and plasterboard ceilings using dedicated frames. Its slim and lightweight construction makes installation easier and allows the luminaire to be aesthetically integrated into modern interiors. Thanks to the multipower function, the installer can adjust the operating parameters already at the installation stage, increasing the convenience of project implementation.
Construction and operating parameters
The luminaire is made of powder-coated steel in white RAL 9003, giving it a universal and aesthetic appearance suitable for most commercial interiors. The IP40 protection rating makes the panel suitable for indoor applications in dry rooms, such as offices, conference rooms, corridors, shops and social areas. SQlight MP 1.0 operates within a temperature range from 0°C to +40°C and is equipped with an On-Off driver.
Wide range of applications in professional spaces
SQlight MP 1.0 is suitable for offices, conference rooms, retail spaces, technical rooms, social areas, corridors and public buildings. The ability to set the power to 19W, 23W, 28W or 32W means that one luminaire can perform different functions depending on the place of application. It is a practical solution for designers, installers and investors who want to reduce the number of product variants without giving up the ability to adapt lighting parameters.
Durability and value in long-term use
SQlight MP 1.0 has been designed for reliable performance in everyday use. The L80B50 lifetime at Ta=25°C is 55,000 hours, and the luminaire lifetime at Ta=25°C is 50,000 hours. The energy-efficient design, high luminous efficacy and power optimisation capability help reduce the operating costs of the lighting installation. It is a solution that works well both in new projects and in the modernisation of existing lighting systems.
Summary
SQlight MP 1.0 is a universal 60×60 LED panel with a multipower function that combines configuration flexibility, high performance and comfortable lighting. The ability to select the power on the driver allows the luminaire to be adapted to different spaces and design requirements, while the luminous flux of up to 5550 lm ensures a wide range of applications. A solid steel housing, microprismatic PMMA diffuser, IP40 protection rating and a lifetime of 50,000 hours make it a practical choice for modern offices, public buildings, shops, technical rooms and shared spaces.
SQlight MP 1.0 applications
Office Spaces
SQlight MP 1.0 performs well in modern office spaces where work comfort, uniform lighting and the ability to adjust parameters to the room layout are important. As a multipower luminaire, it allows the power to be selected on the driver: 19W, 23W, 28W or 32W, making it easier to adapt the light level to different office zones. A luminous flux of up to 5550 lm provides suitable conditions both for standard office work and for areas requiring more intensive illumination.
Social Rooms
In social rooms, SQlight MP 1.0 creates pleasant and functional lighting conditions. It works well in kitchens, canteens, break rooms and other shared spaces where everyday convenience matters. The discreet appearance of the luminaire makes it easy to integrate into various interior arrangements while maintaining an aesthetic and orderly character of the space.
Public Buildings
SQlight MP 1.0 is a practical solution for public buildings such as corridors, waiting rooms, service areas, offices or educational facilities. The ability to adjust the power during installation allows the same luminaire to be used in different zones of the building while maintaining a consistent appearance of the installation. Uniform light improves orientation in the space and supports user comfort in everyday use of the facility.

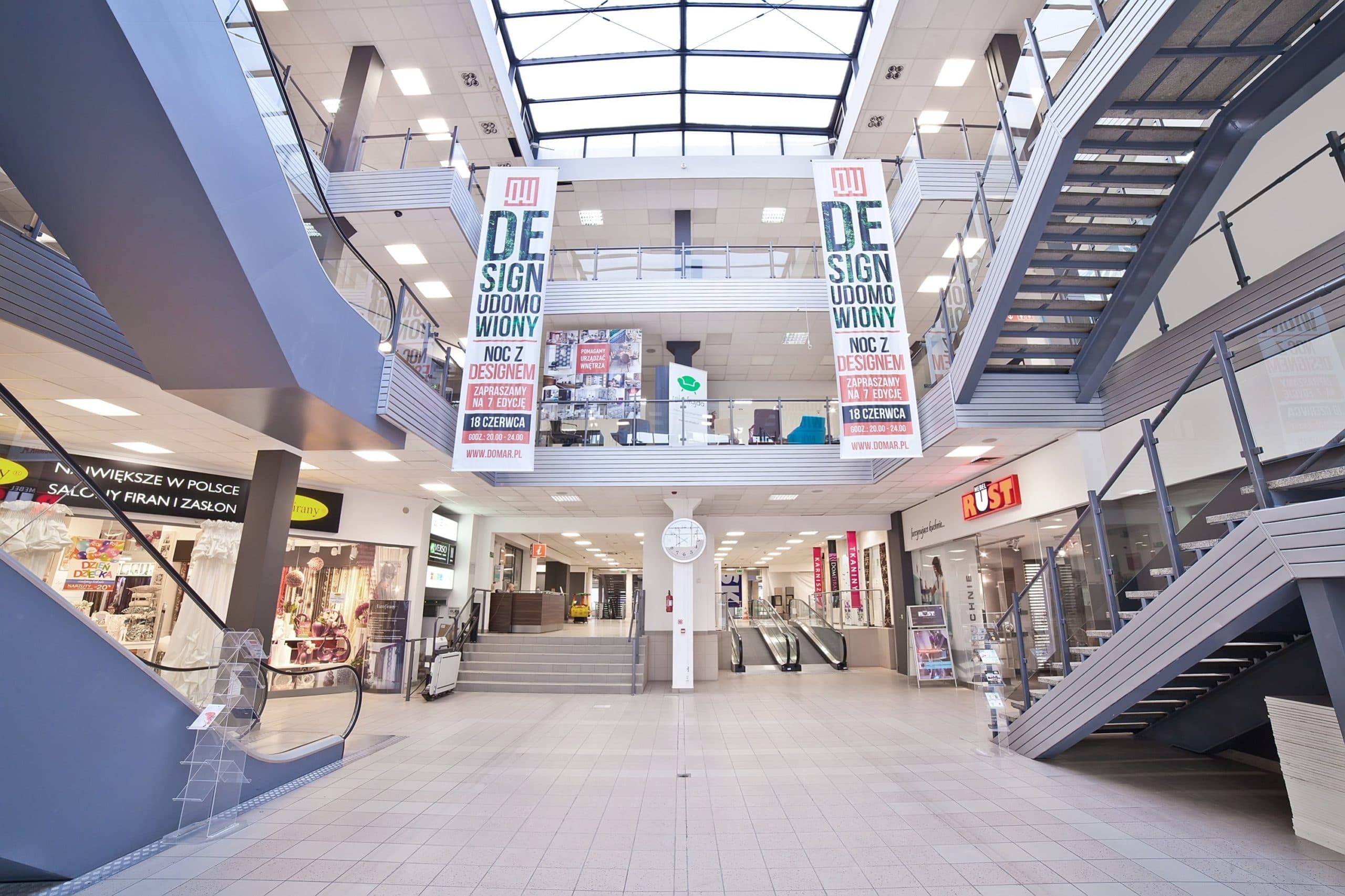

Shops and Retail Areas
In shops and retail areas, SQlight MP 1.0 helps create a bright, aesthetic and comfortable environment for customers. The luminaire works well in sales areas, circulation routes and display zones, providing an appropriate light level without excessive load on the installation. It is a universal solution for spaces where lighting affects both product presentation and the overall perception of the interior.
Technical Rooms
SQlight MP 1.0 is also suitable for technical rooms, back-of-house areas, storage rooms and auxiliary zones. It provides good illumination of the space, supporting safety and convenience during everyday tasks. Its solid, functional construction and flexible operating parameter settings make it a practical choice for areas with varied usage requirements.
