LED Luminaries
SQflat LED 1.1

SQflat LED 1.1

Quick and easy installation
Low UGR coefficients
Possibility of using a wired DALI system
5-year warranty confirming quality
Source of light : LED
CE Certification
III protection class
IP40
Ingress Protection
220-240V 50/60Hz power supply

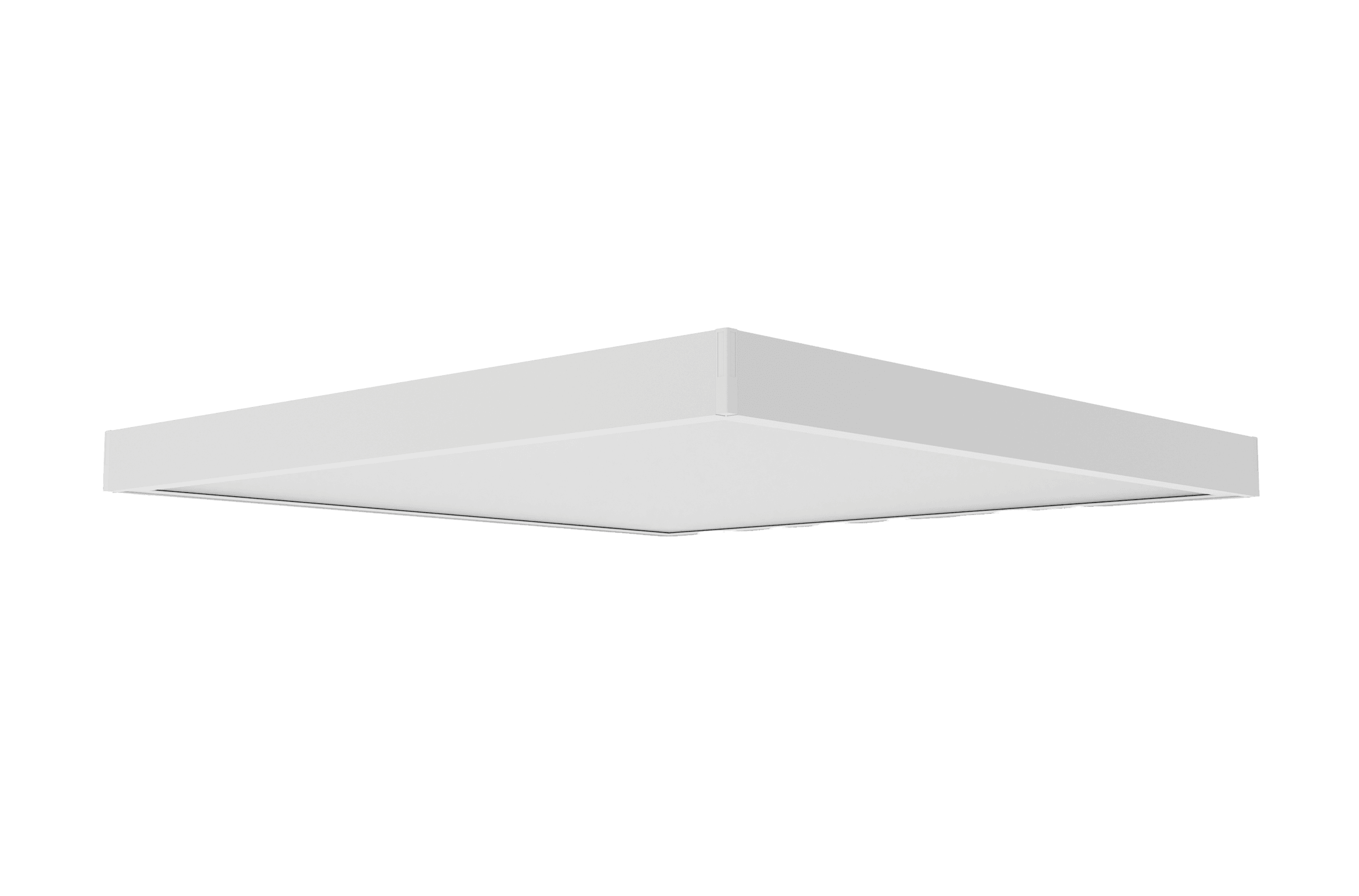

The SQFLAT LED 1.1 is an advanced lighting fixture that combines the latest LED technology, high efficiency, durability, and versatility of applications. This fixture makes it possible to create optimal lighting conditions in various spaces, from modern offices to functional technical rooms and aesthetic public buildings. The operating temperature range from -20°C to +40°C ensures reliability under different environmental conditions.

Innovative Technology and High Efficiency

SQFLAT LED 1.1 is a modern lighting fixture utilizing the latest LED technology. Available in six power versions: 21W, 25W, 29W, 34W, 38W, and 44W, it provides high luminous efficiency reaching up to 5450 lumens. With a high CRI >80, this fixture ensures excellent color rendering, which is crucial in environments where precise light quality matters.



Design and Durability

The SQFLAT LED 1.1 fixture features a solid construction and a matte microprismatic PMMA diffuser, ensuring both aesthetics and durability. The IP40 protection rating guarantees protection against dust and moisture, making it an ideal choice for various interiors, including offices, commercial spaces, technical rooms, social rooms, and public buildings.



Flexibility in Installation and Control

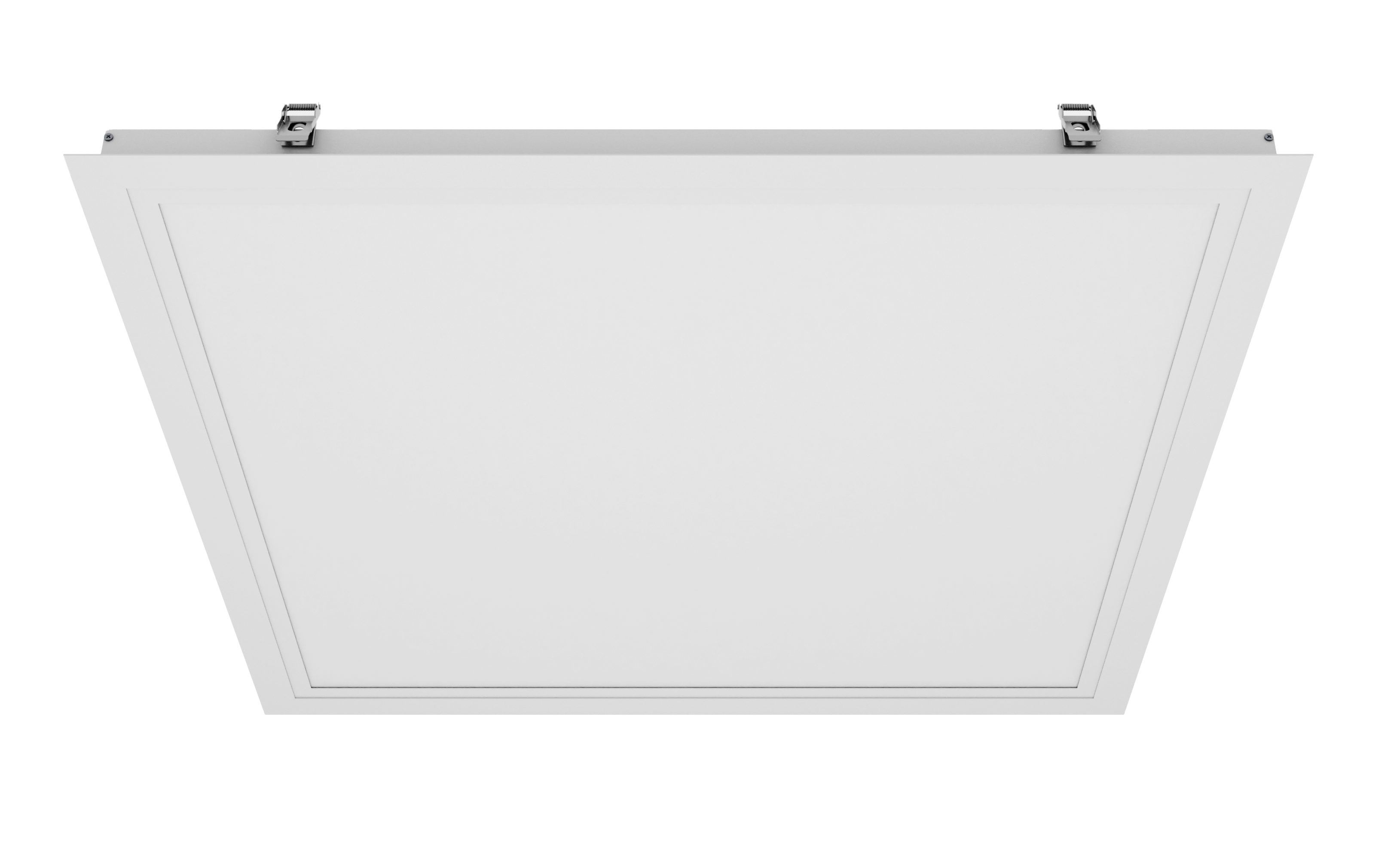

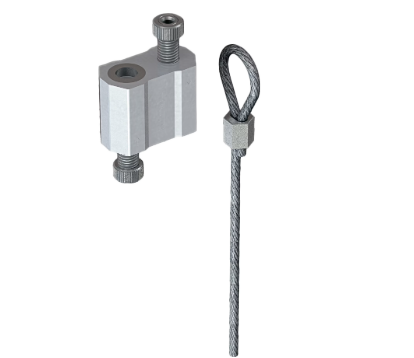

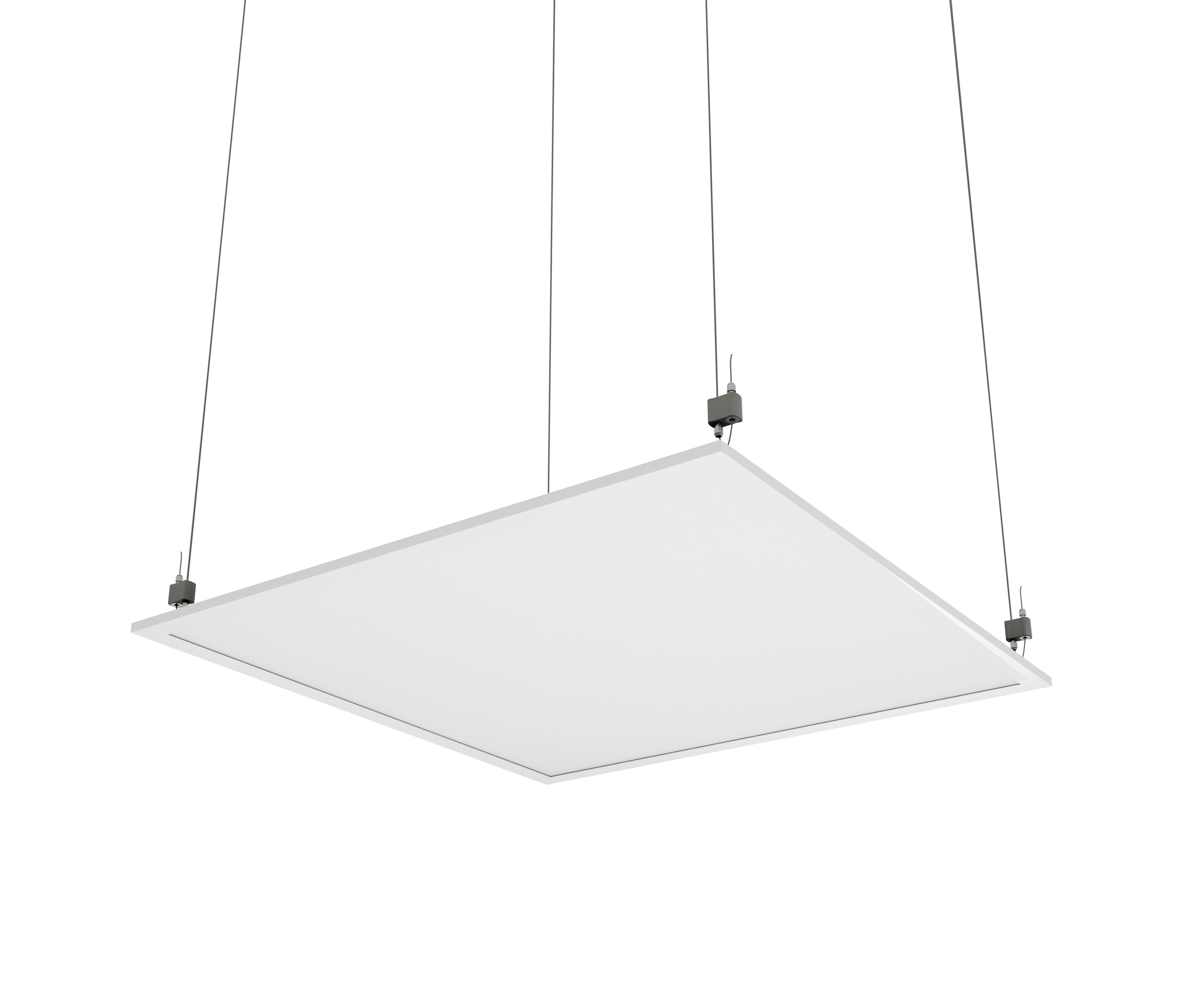

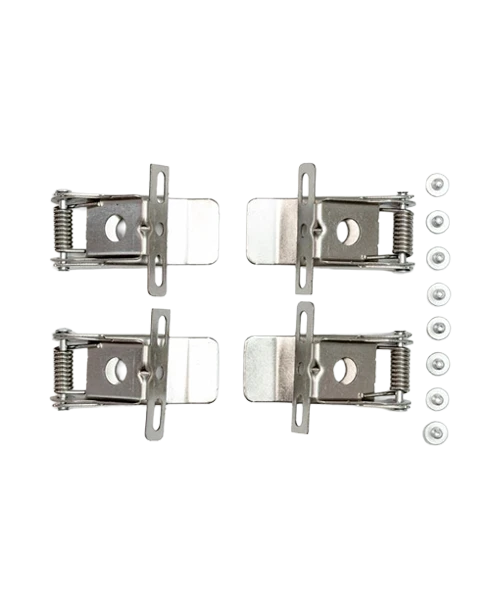

The SQFLAT LED 1.1 offers various mounting options, including surface, recessed, and suspended installation. The ability to control via the DALI system allows for lighting adjustments to meet the specific needs of each space, providing flexibility in planning and managing lighting projects. With its ultra-slim design, these panels can be easily installed in various types of ceilings.



Performance and Light Quality

The SQFLAT LED panels offer excellent performance (126 lm/W at 4000K CRI80), reliability (50,000 hours), and high light quality. They are designed to meet office lighting standards (UGR).



Dimensions and Weight

The fixture is available in different dimensions, suited to the power versions. Its dimensions are 595mm x 595mm, allowing for easy integration with various ceiling types. The fixture weighs 2.2 kg, making installation and handling easier.



Warranty

The SQFLAT LED 1.1 is covered by a 5-year warranty, providing users with additional security and assurance of high quality for years of use.

SQflat LED 1.1 Applications
Office spaces

The SQFLAT LED 1.1 fixture is the perfect solution for modern offices. With a high luminous efficiency of up to 126 lm/W and excellent color rendering (CRI >80), it provides comfortable and efficient lighting. The DALI control capability and low UGR make it ideal for office workspaces where light quality is crucial.

Retail facilities

SQFLAT LED 1.1 is excellent for commercial spaces. Its solid construction and even light distribution thanks to the matte PMMA diffuser guarantee a welcoming and attractive shopping environment. The ultra-slim design allows for easy installation, which is essential in dynamic commercial spaces.

Public Facilities

With high efficiency and reliability, the SQFLAT LED 1.1 fixture is an excellent choice for technical rooms. Its solid construction and IP40 protection ensure durability and safety in challenging conditions. The fixture offers installation flexibility, making it easy to use in various technical configurations.

Social spaces

SQFLAT LED 1.1 is also suitable for social rooms, providing comfortable and efficient lighting. The options for surface, recessed, and suspended mounting, along with high light quality (126 lm/W), create a friendly environment in cafeterias, relaxation rooms, and other social spaces.

Public facilities

In public buildings, such as schools, hospitals, and government offices, the SQFLAT LED 1.1 fixture provides reliable and durable lighting. Its solid construction and elegant appearance blend seamlessly with modern architecture. The DALI control capability and various mounting options make it an ideal choice for corridors, lobbies, and conference rooms.

Product available in multiple configurations
NameProduct-CodeDimensions H x W x L [mm]Power [W].Luminosity [lm]Efficiency [lm/W]Color temperature [K]CRI/RaProtection Rating [IP]Light distribution
SQFLAT LED 1.1 1 SQF1ST.11.021.8A3000
SQF1ST.11.021.8A4000
 595/10/595
595/10/595
 21
21
 2500
2650
 119
126
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFLAT LED 1.1 2 SQF1ST.21.025.8A3000
SQF1ST.21.025.8A4000
 595/10/595
595/10/595
 25
25
 3000
3150
 120
126
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFLAT LED 1.1 3 SQF1ST.31.029.8A3000
SQF1ST.31.029.8A4000
 595/10/595
595/10/595
 29
29
 3500
3650
 120
125
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFLAT LED 1.1 4 SQF1ST.41.034.8A3000
SQF1ST.41.034.8A4000
 595/10/595
595/10/595
 34
34
 4000
4200
 117
123
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFLAT LED 1.1 5 SQF1ST.51.038.8A3000
SQF1ST.51.038.8A4000
 595/10/595
595/10/595
 38
38
 4500
4700
 118
123
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFLAT LED 1.1 6 SQF1ST.61.044.8A3000
SQF1ST.61.044.8A4000
 595/10/595
595/10/595
 44
44
 5200
5450
 118
123
 3000
4000
 >80
>80
 40
40
90°X90°
90°X90°

90°X90°
90°X90°
SQFlat LED 1.1 Files
Catalog card SQFlat LED 1.1
pdf
Declaration of Conformity SQFlat LED 1.1
pdf
Installation instructions SQFlat LED 1.1
pdf
Photometric files SQFLAT LED 1.1
zip
Product photos – SQFlat LED 1.1
rar
