VoltAdapt LED MultiPower 1.0

VoltAdapt LED MultiPower 1.0

MultiPower (Power Adjustment Function)
High IK08 impact resistance
Robust housing made of aluminum
High Luminous Efficacy (up to 150 lm/W)
High Ingress Protection (IP66)
Source of light : LED
Power select option
CE Certification
Klasa odporności 0
I protection class
IK08 IP66
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

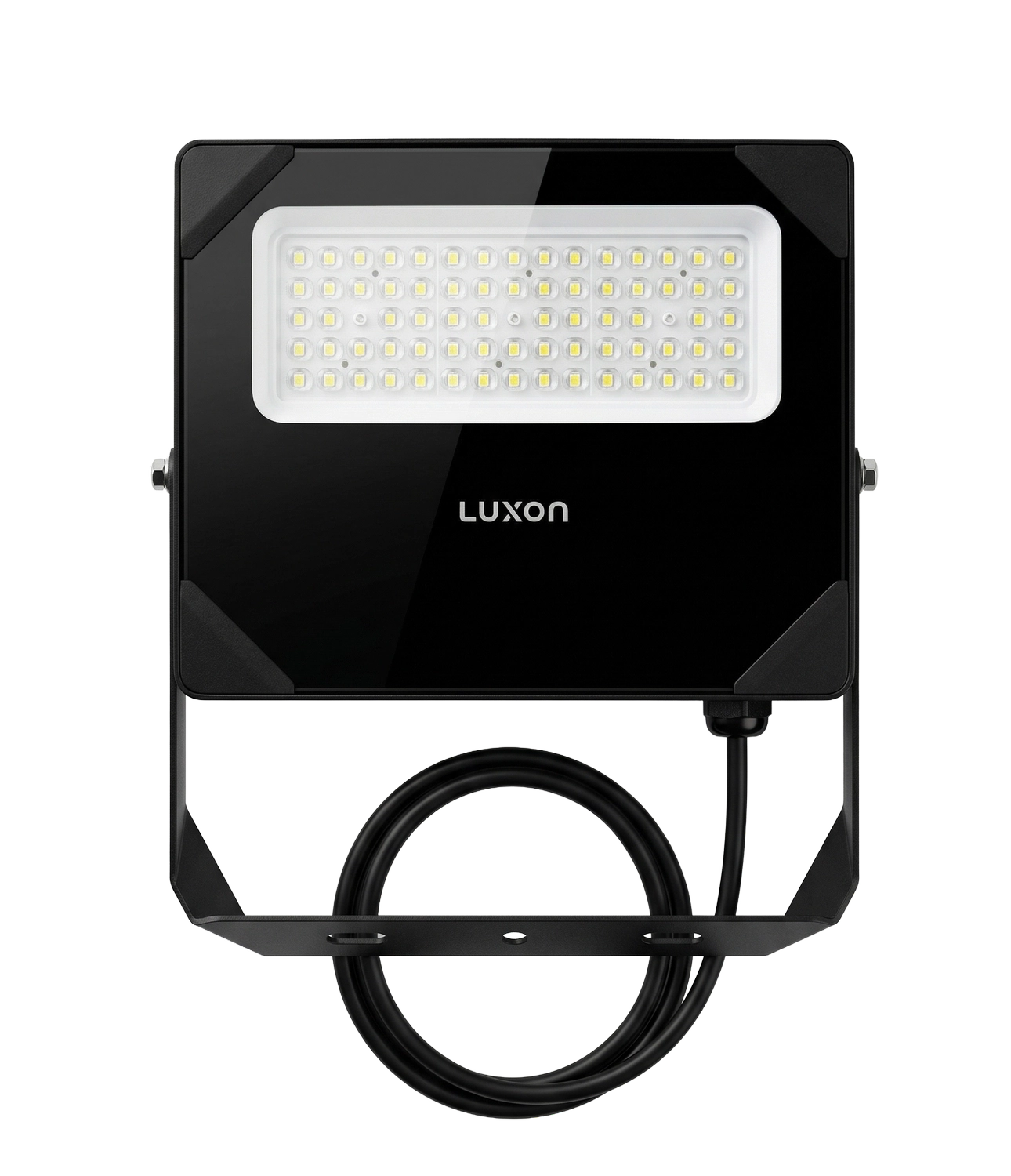

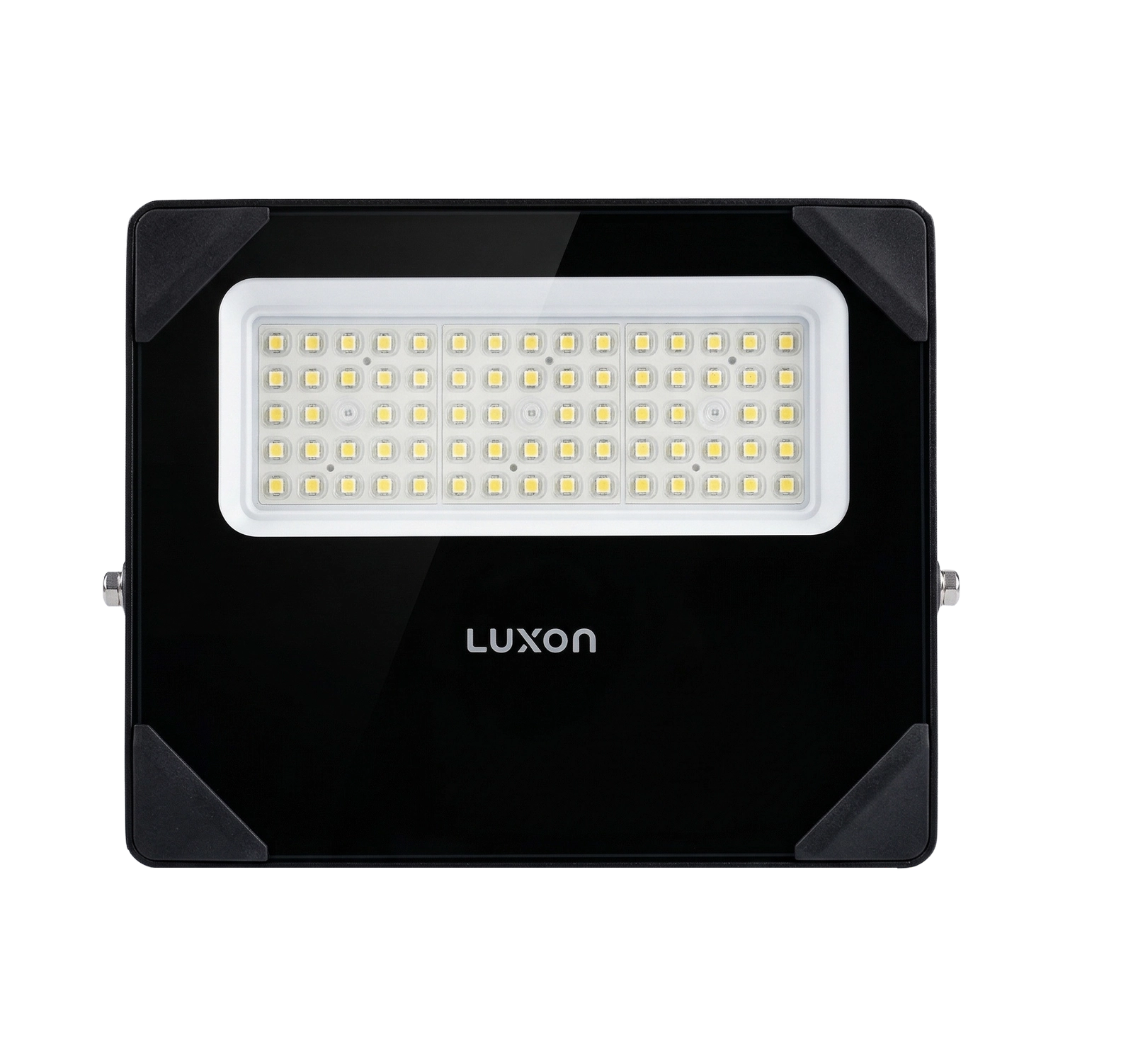

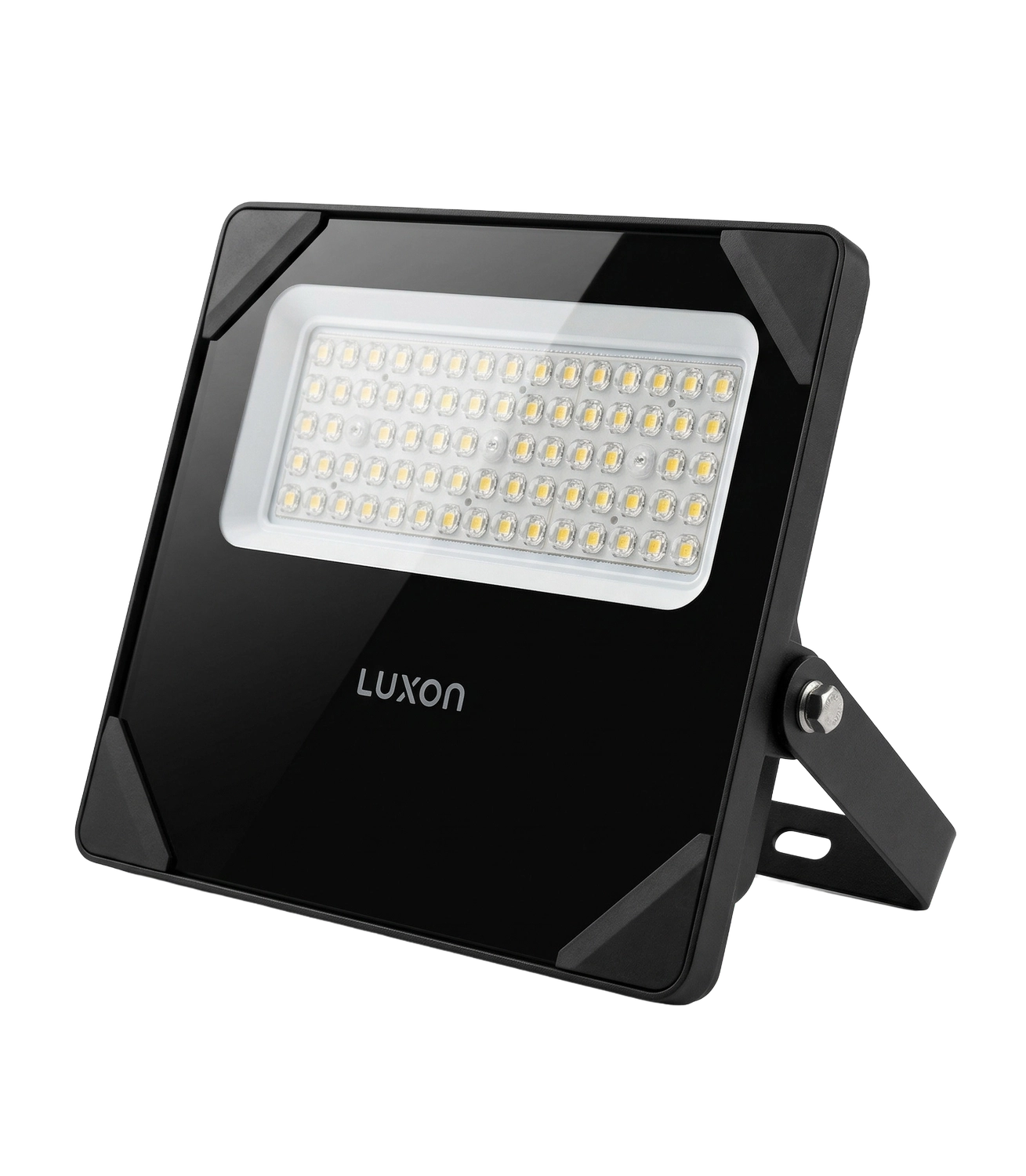

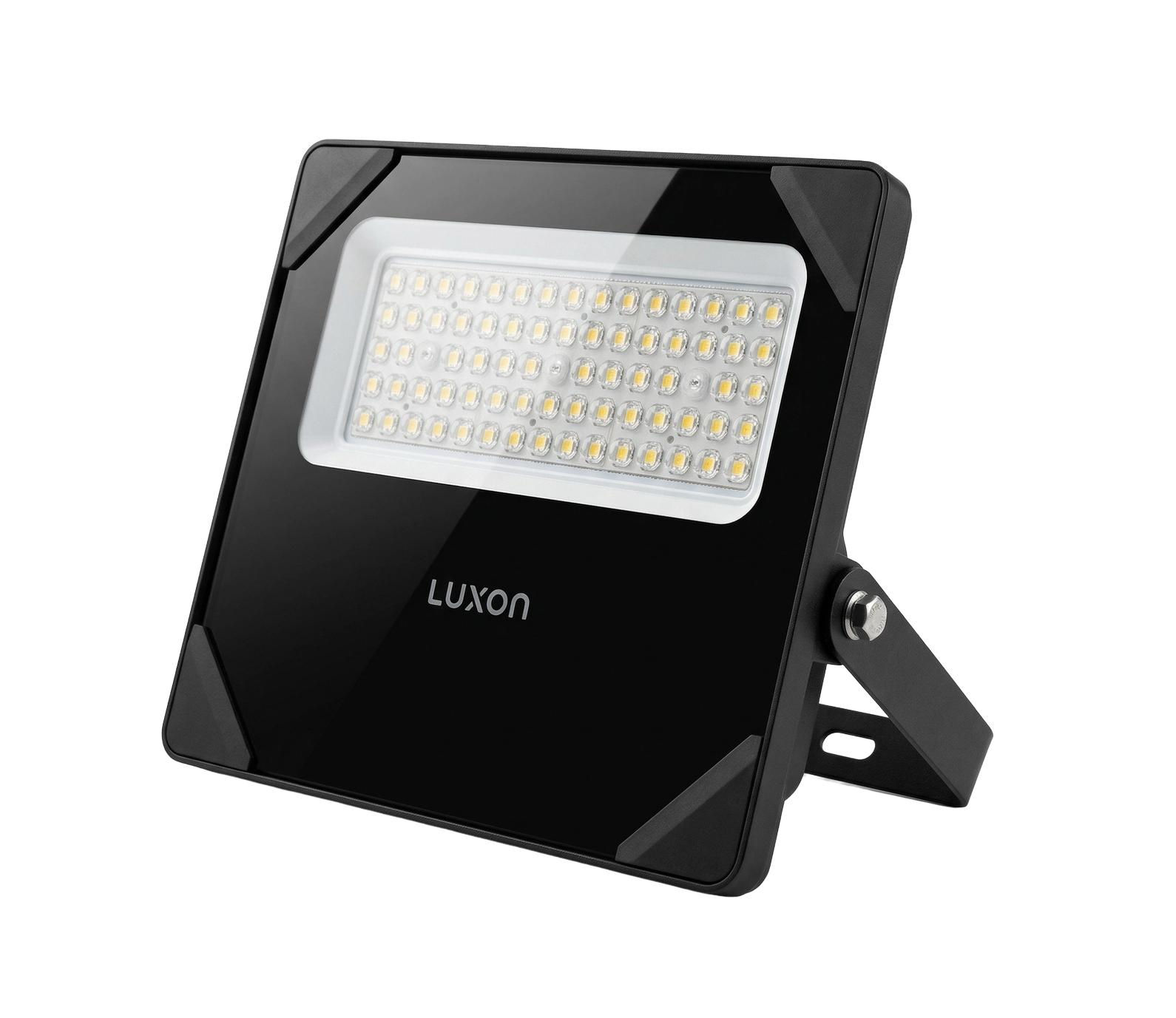

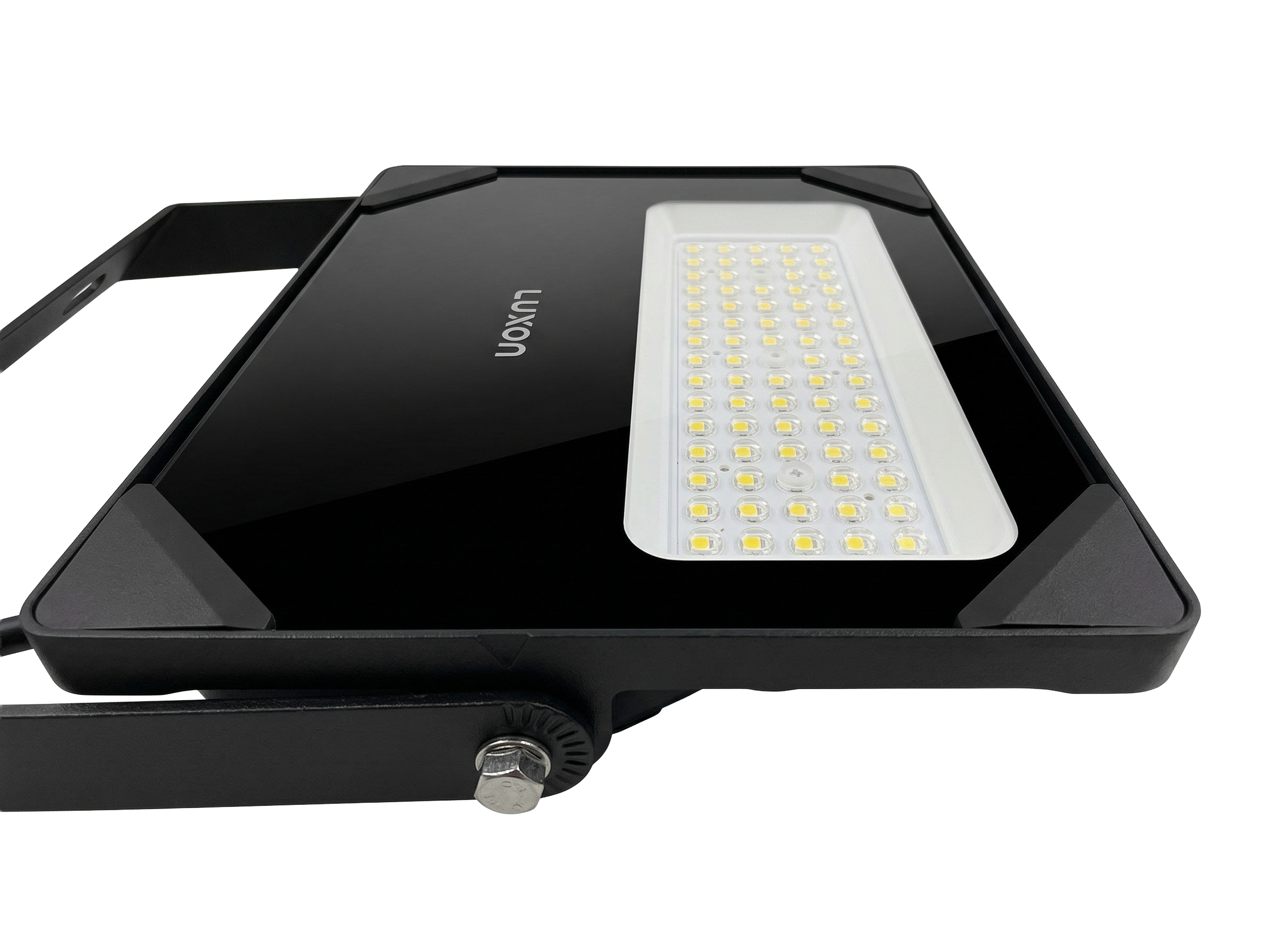

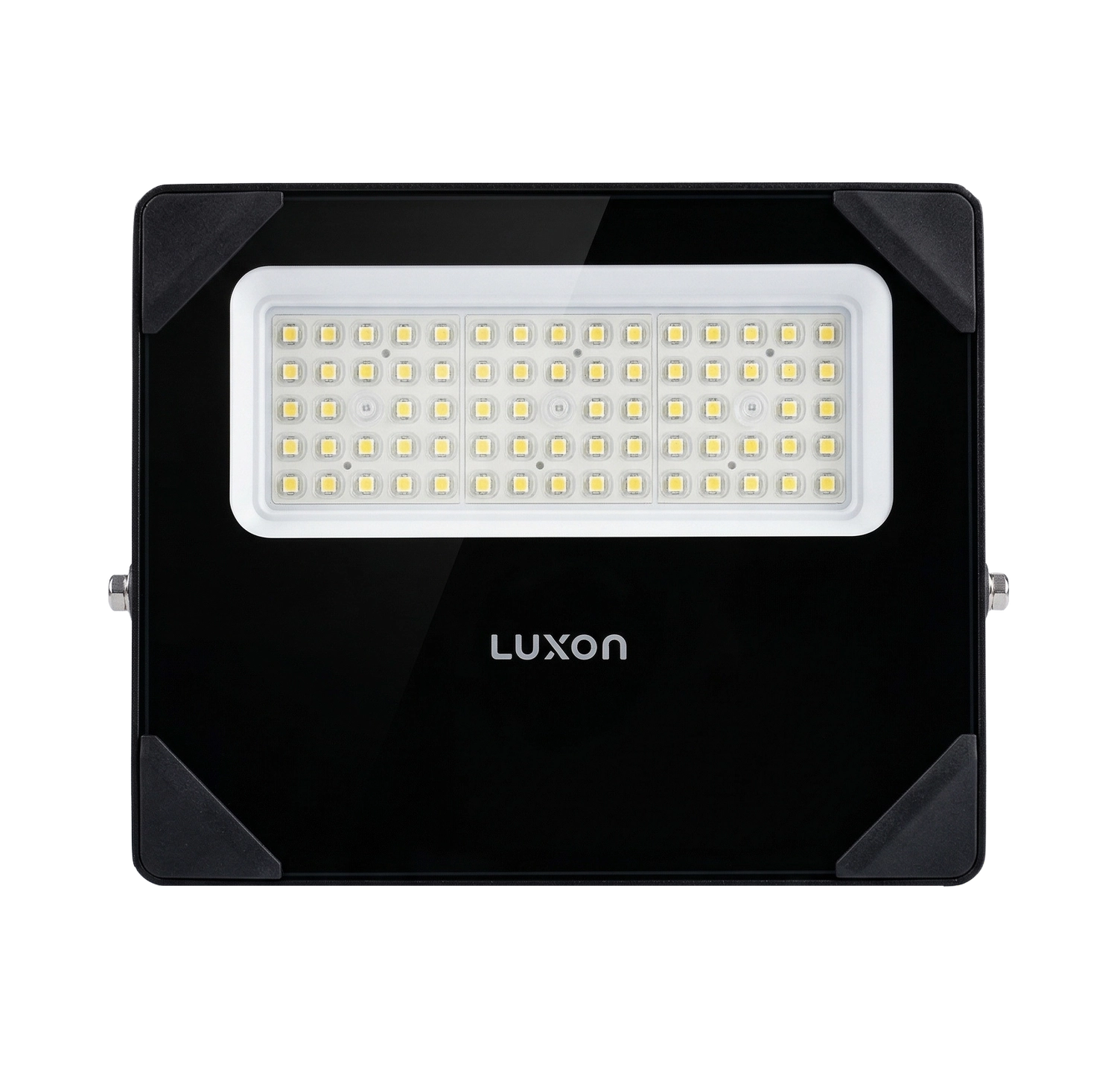

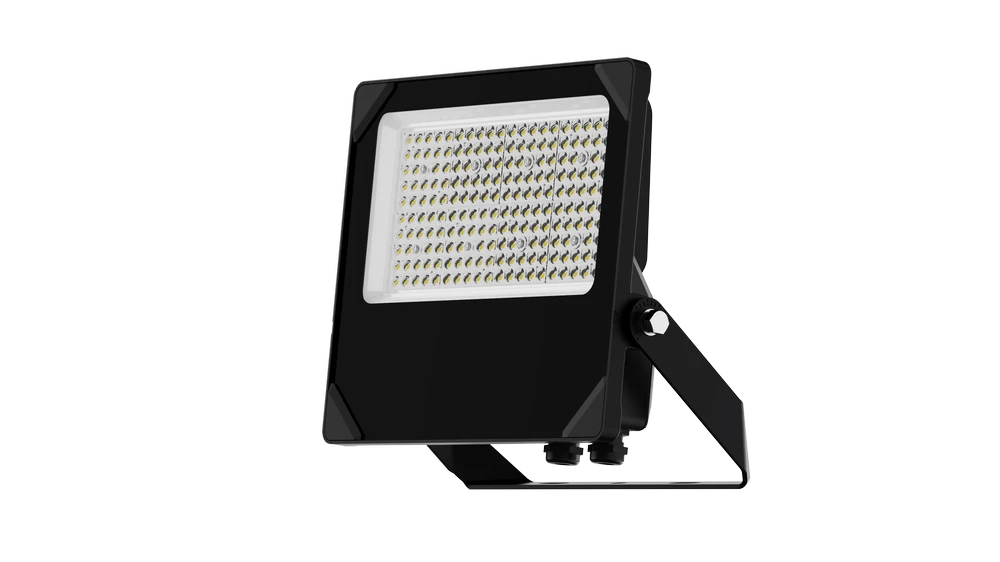

VoltAdapt LED MultiPower 1.0 is a versatile floodlight equipped with a power adjustment function, available in two range variants: 20/30/50 W and 60/80/100 W. It offers high luminous efficacy up to 150 lm/W and a wide selection of optics, allowing for precise lighting customization. Thanks to its robust IP66/IK08 construction, it is ideal for parking lots, tunnels, and public utility facilities.

MultiPower Technology: One Luminaire, Many Possibilities

VoltAdapt LED MultiPower 1.0 stands out for its flexibility thanks to built-in power adjustment. The user has two device variants at their disposal, each offering three lighting intensity levels selectable during installation:

  • Version 1: Wattages 20 W, 30 W, or 50 W (generating 3000 lm, 4500 lm, or 7500 lm respectively).
  • Version 2: Wattages 60 W, 80 W, or 100 W (generating 9000 lm, 12000 lm, or 15000 lm respectively).

This solution allows for a uniform appearance of luminaires across the investment site while differentiating brightness levels depending on the zone.



Efficiency and Precision Optics

The floodlight is characterized by high energy efficiency reaching 150 lm/W and a natural light color of 4000K (CRI >80), ensuring visual comfort. A wide range of available beam angles (30°, 60°, 90°, 120°, 150°x80°) is available for both versions.



Durability in All Conditions

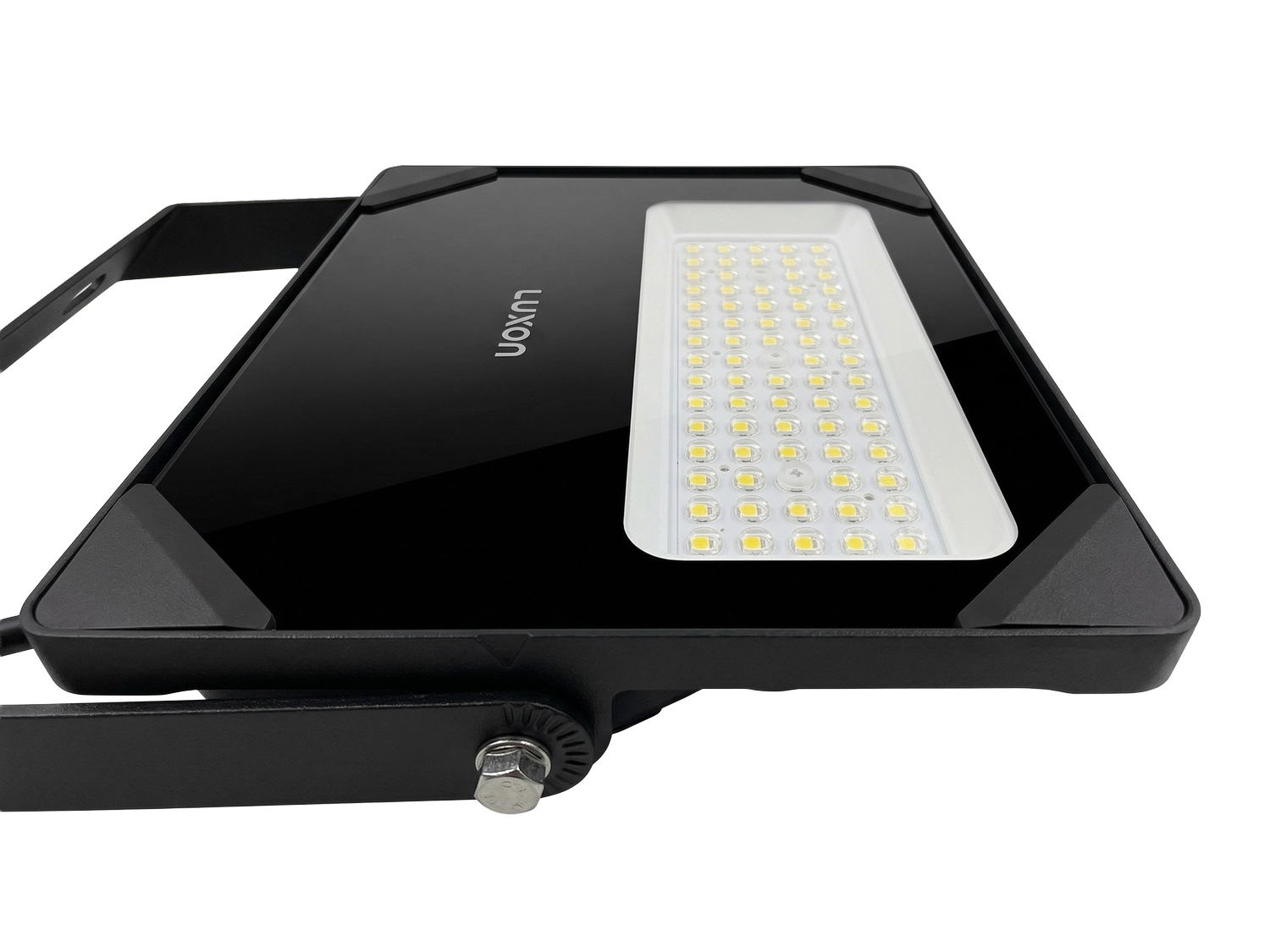

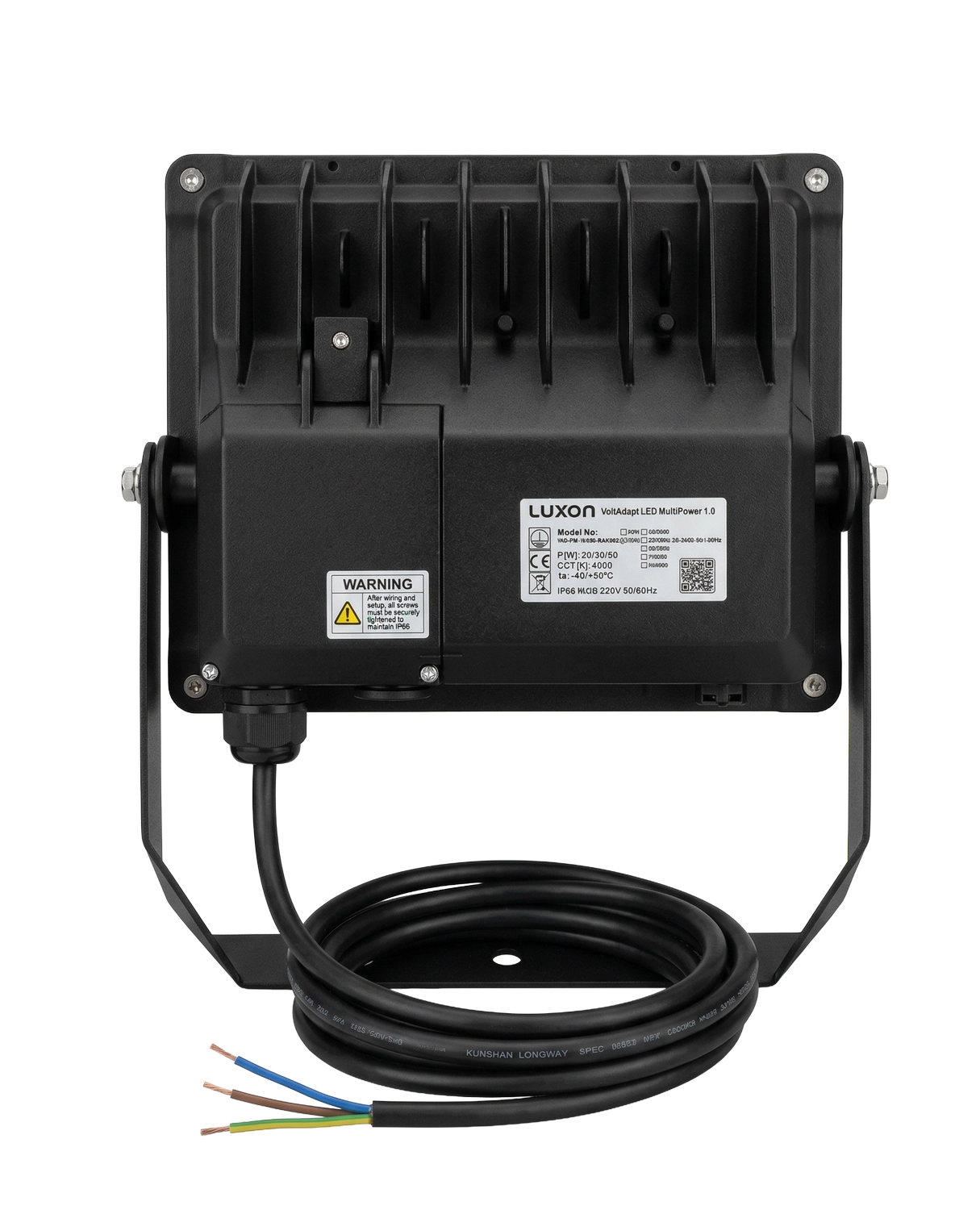

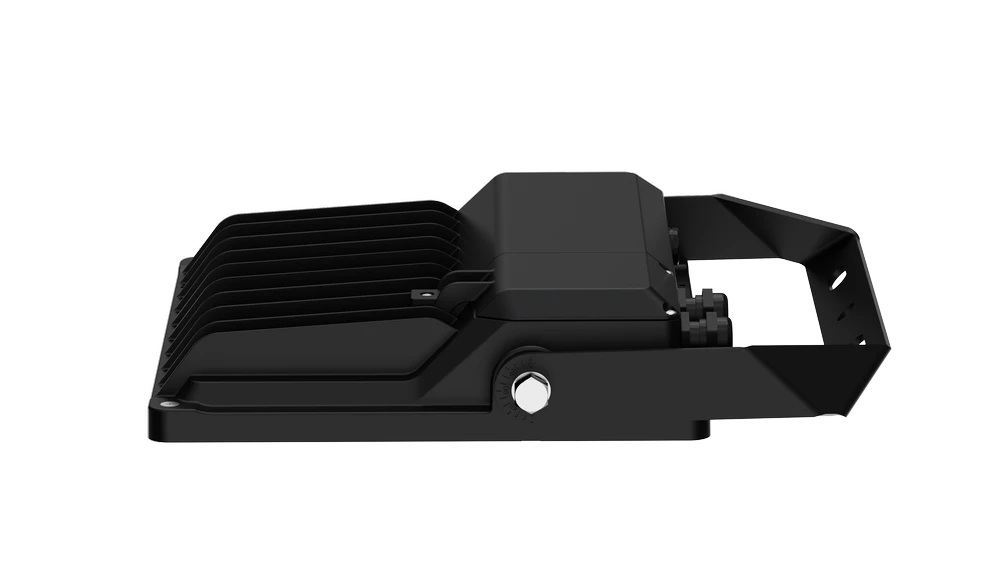

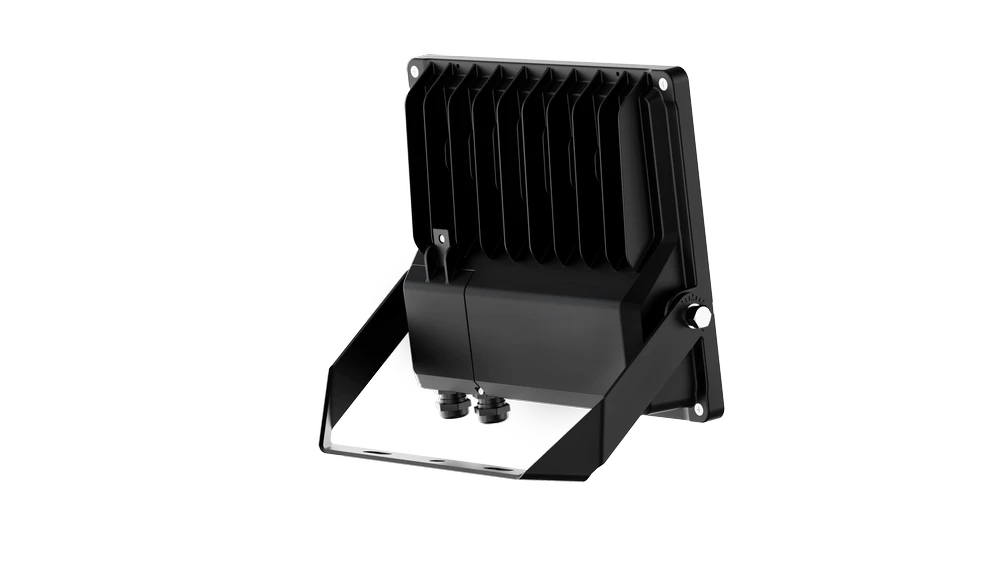

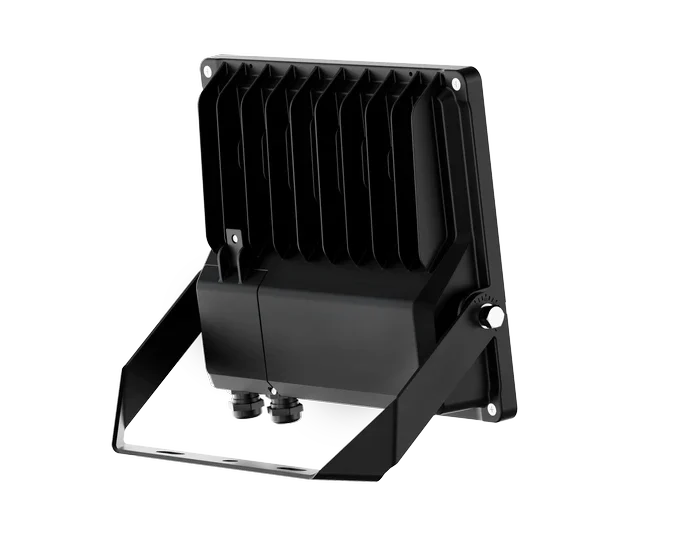

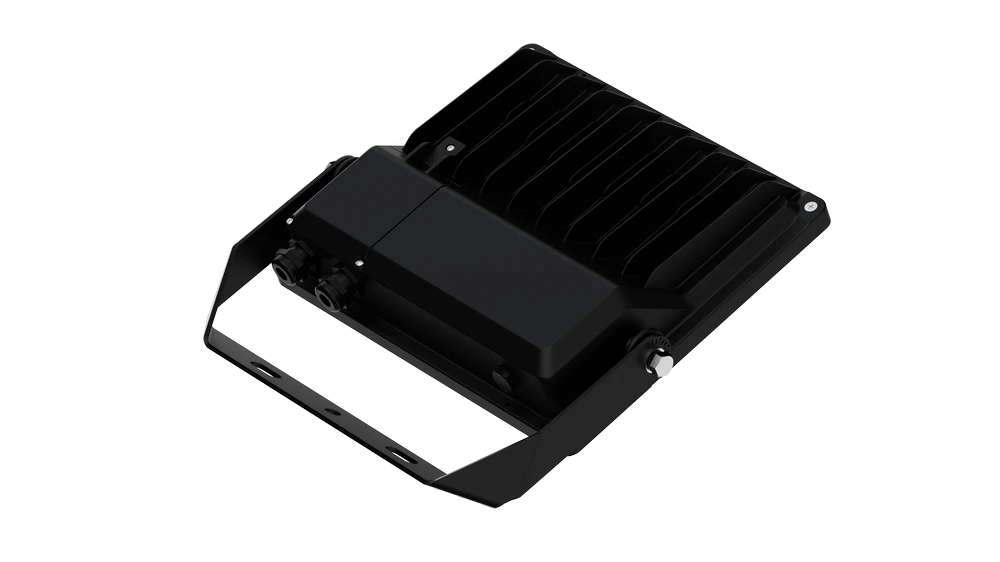

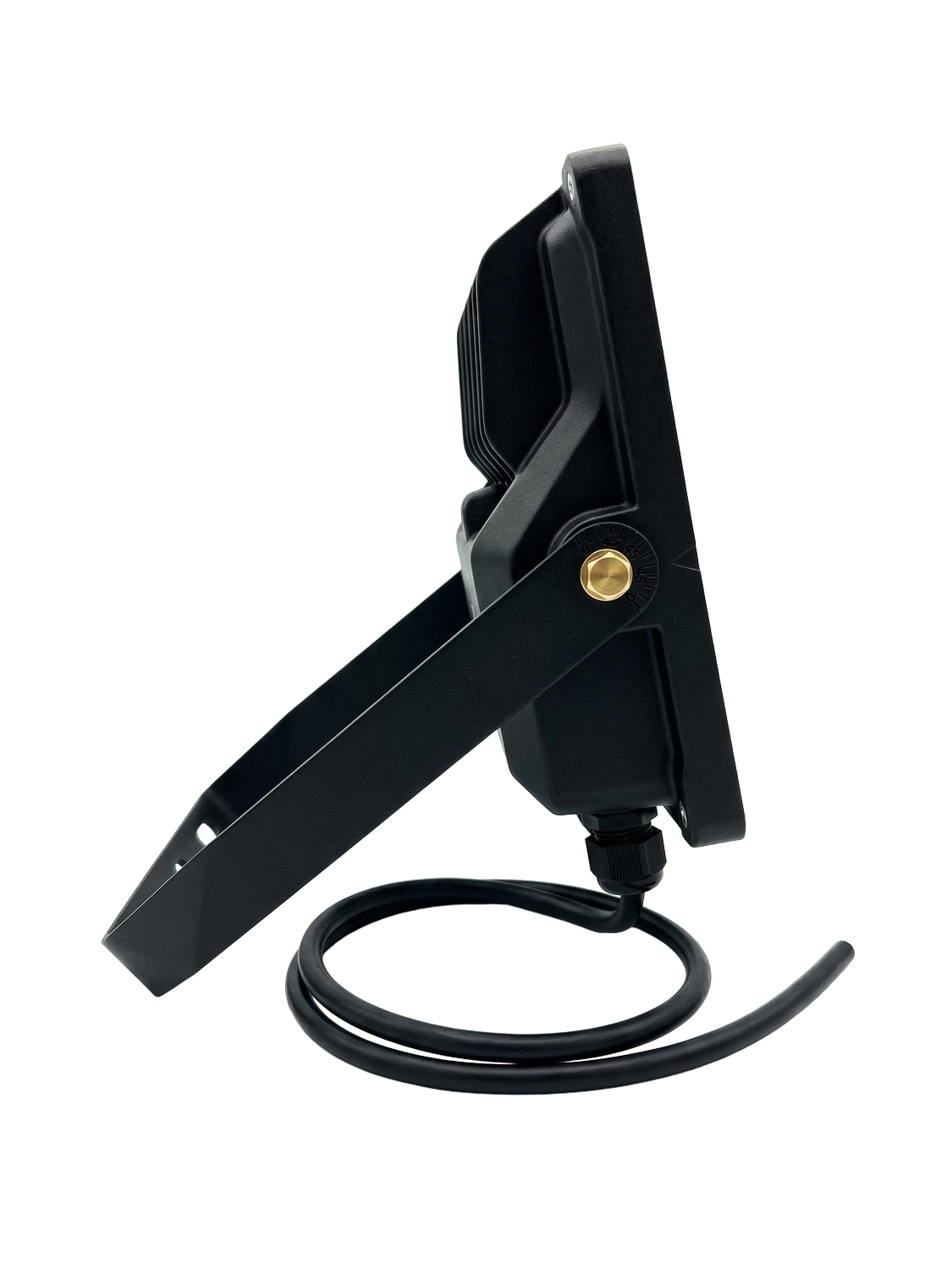

The luminaire’s construction is designed for operation in harsh outdoor environments. The high-pressure die-cast aluminum housing (powder-coated in black) and tempered glass diffuser provide IP66 ingress protection and IK08 mechanical resistance. The device operates reliably in extreme temperatures from -40°C to +50°C and features surge protection (6kV), guaranteeing a long lifespan backed by a 5-year warranty.

VoltAdapt LED MultiPower 1.0 applications

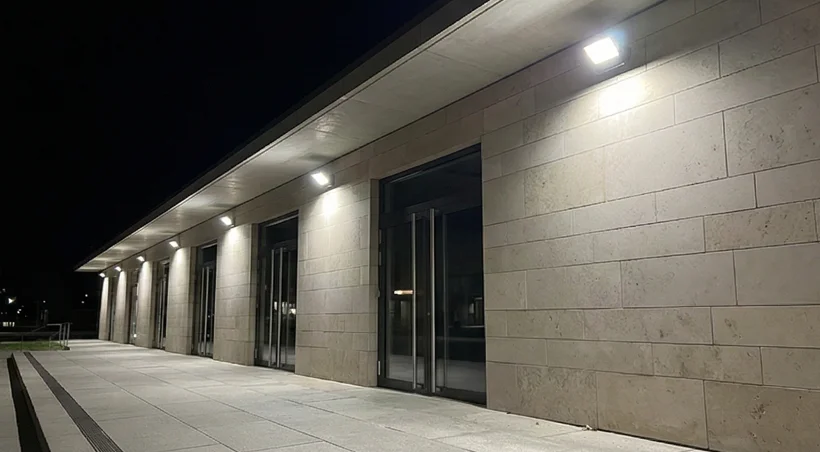

Public Facilities:

The aesthetic black housing and compact dimensions allow the VoltAdapt to blend seamlessly with the architecture of schools and administrative buildings. With a high efficacy of 150 lm/W, the luminaire generates real energy savings, which is crucial for institutional budgets. Power adjustment allows a single luminaire model to be used in various parts of the facility.

Parking Lots

The luminaire ensures safety in parking lots thanks to wide beam angles that effectively eliminate dark zones. The MultiPower adjustment function allows the light intensity to be perfectly matched to the traffic volume in a given zone. The robust IK08 construction protects the device against accidental mechanical damage.

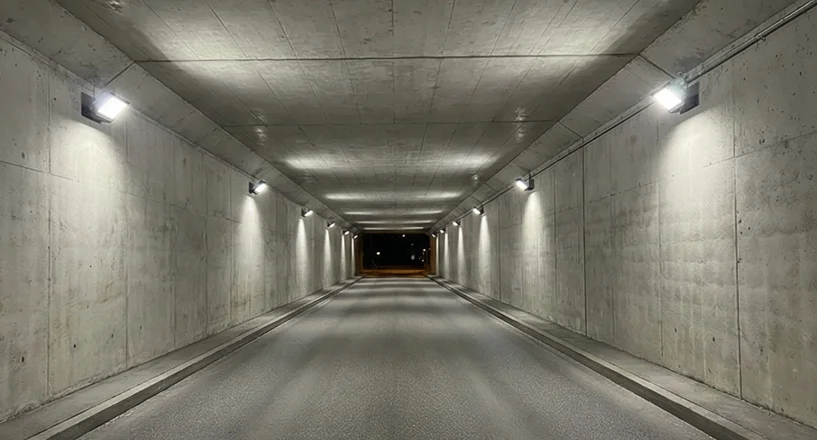

Tunnels

High IP66 ingress protection and resistance to extreme temperatures (-40°C to +50°C) guarantee the luminaire’s reliability in harsh tunnel conditions. The neutral 4000K light color improves visibility and driver concentration, increasing transit safety. The compact design facilitates installation in limited technical spaces.

VoltAdapt LED MultiPower 1.0 – 50W Version
Name Product Code Power [W] Luminous Flux [lm] Efficacy [lm/W] Color Temperature [K] CRI/Ra IP Rating Beam Angle
VoltAdapt LED MultiPower 1.0 VAP1MP.10.050.8A4000… 20 3000 150 4000K >80 IP66 30°x30°, 60°x60°, 90°x90°, 120°x120°, 150°x80°
30 4500 150 4000K >80 IP66
50 7500 150 4000K >80 IP66
VoltAdapt LED MultiPower 1.0 – 100W Version
Name Product Code Power [W] Luminous Flux [lm] Efficacy [lm/W] Color Temperature [K] CRI/Ra IP Rating Beam Angle
VoltAdapt LED MultiPower 1.0 VAP1MP.20.100.8A4000… 60 9600 160 4000K >80 IP66 30°x30°, 60°x60°, 90°x90°, 120°x120°, 150°x80°
80 12000 150 4000K >80 IP66
100 15000 150 4000K >80 IP66
VoltAdapt LED MultiPower 1.0 files
Data sheet VoltAdapt LED MultiPower 1.0
pdf
Declaration of Conformity VoltAdapt LED MultiPower 1.0
pdf
Installation instructions VoltAdapt LED MultiPower 1.0
pdf
Photometric files VoltAdapt LED MultiPower 1.0
zip
Product photos VoltAdapt LED MultiPower 1.0
zip
