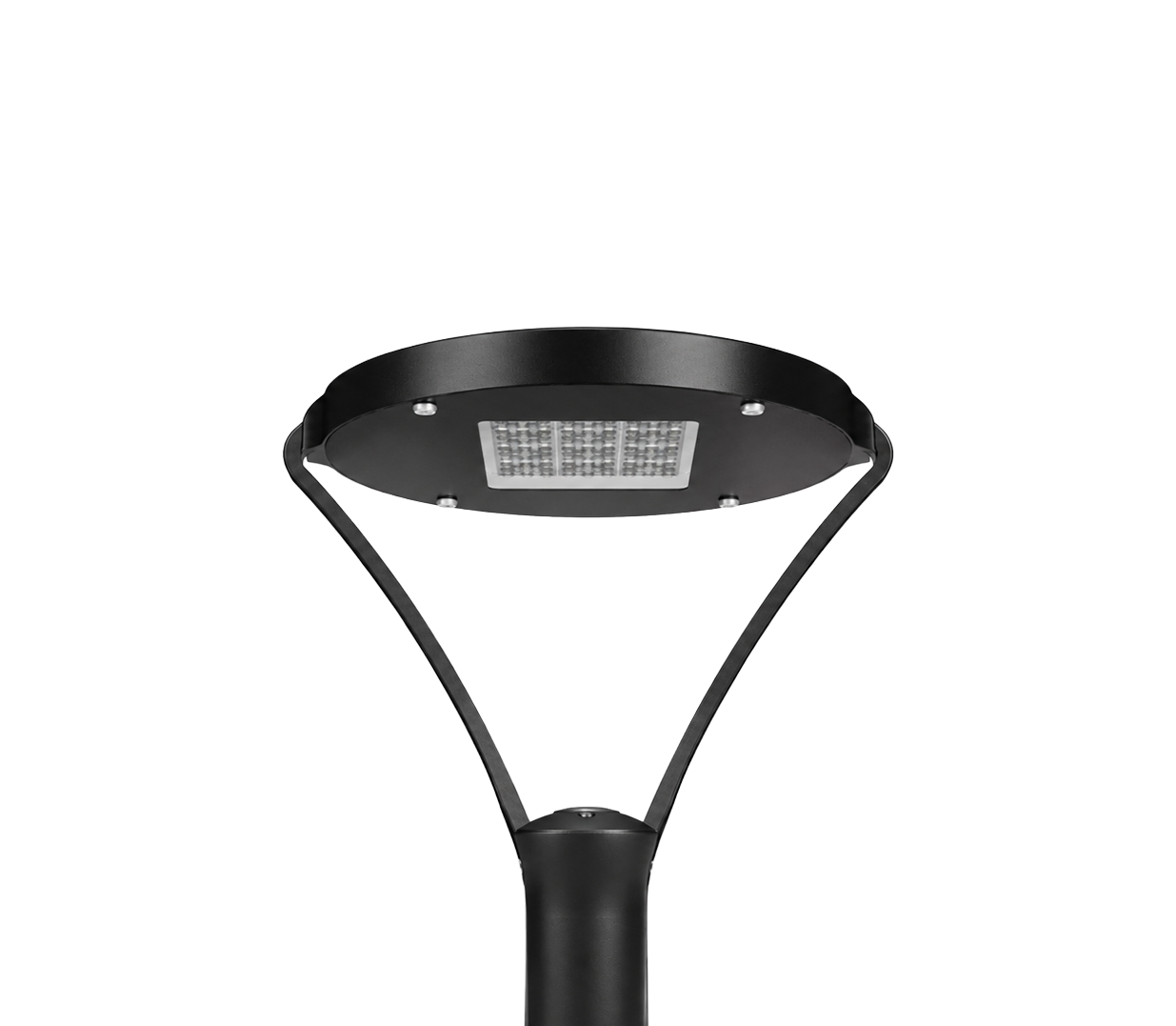

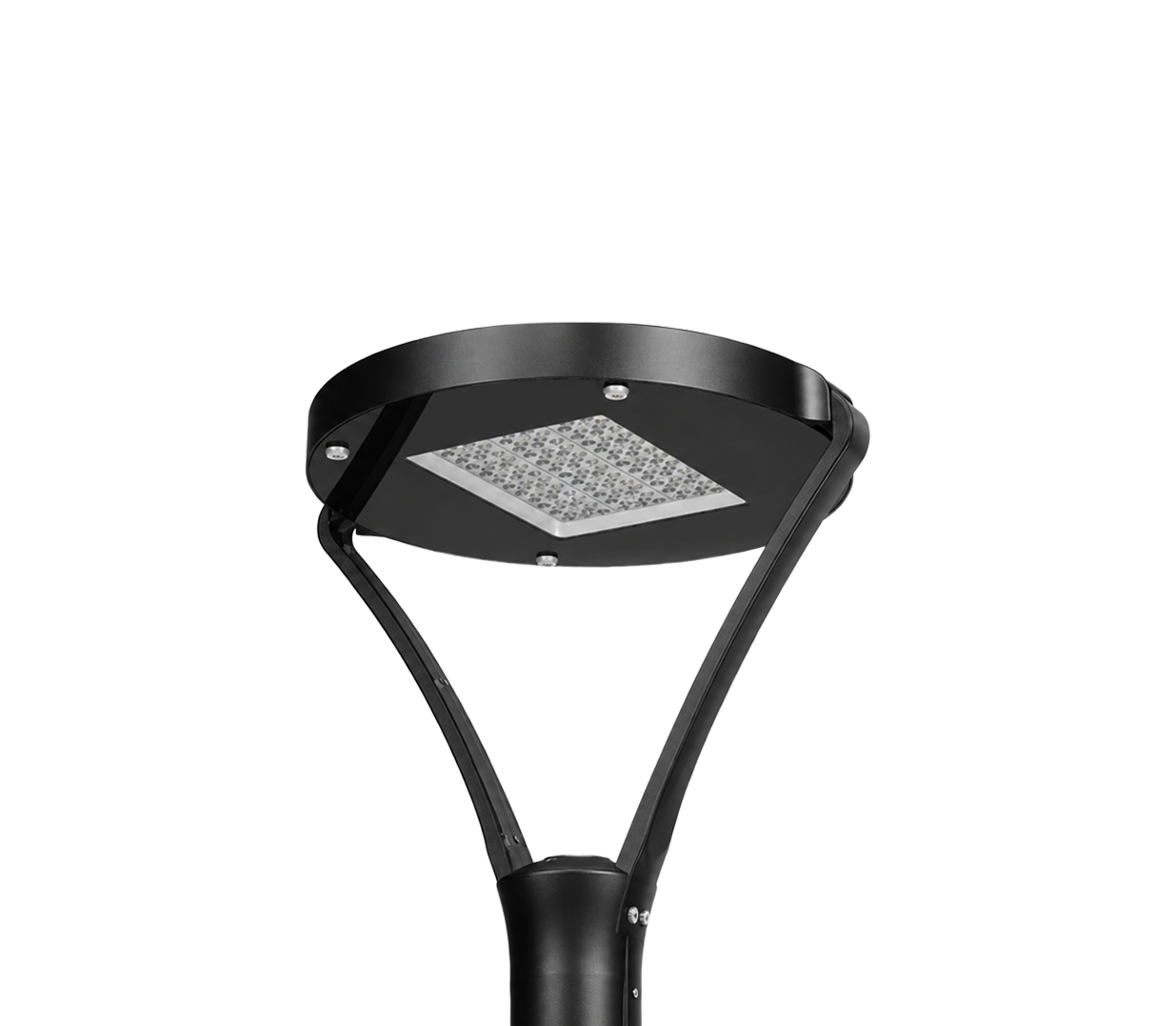

Madrid LED A 2.0 is an outdoor LED luminaire designed for lighting outdoor areas, car parks and parks. It is available in 30W, 40W, 50W and 60W power variants, with a luminous flux from 4450 lm to 9400 lm and efficiency up to 156 lm/W. The luminaire is available in 3000K and 4000K colour temperatures and with three light distribution options: 120°x120°, 105°x140° and 150°x80°. The housing is made of high-pressure die-cast aluminium, powder-coated in anthracite RAL 7016. IP66 ingress protection and IK08 impact resistance allow the luminaire to operate in outdoor conditions. The luminaire is suitable for installation on a fi60 pole and is equipped with a top Zhaga socket.
Madrid LED A 2 is an LED luminaire designed for outdoor applications. According to the product parameter database, it is intended for outdoor areas, car parks and parks. The luminaire is adapted for installation on a fi60 pole, making it suitable for area lighting installations.
The luminaire is available in 30W, 40W, 50W and 60W variants. Depending on the version, it provides a luminous flux from 4450 lm to 9400 lm, with efficiency up to 156 lm/W. Available colour temperatures of 3000K and 4000K allow the lighting to be matched to the character of the illuminated space.
Madrid LED A 2 is available with three light distribution options: 120°x120°, 105°x140° and 150°x80°. The PC lens and transparent tempered glass diffuser protect the optical system and support proper light distribution depending on the selected configuration.
The luminaire housing is made of high-pressure die-cast aluminium, powder-coated in anthracite RAL 7016. IP66 ingress protection provides resistance to dust and water, while IK08 impact resistance increases durability in outdoor spaces. The operating temperature range is from -30°C to +50°C.

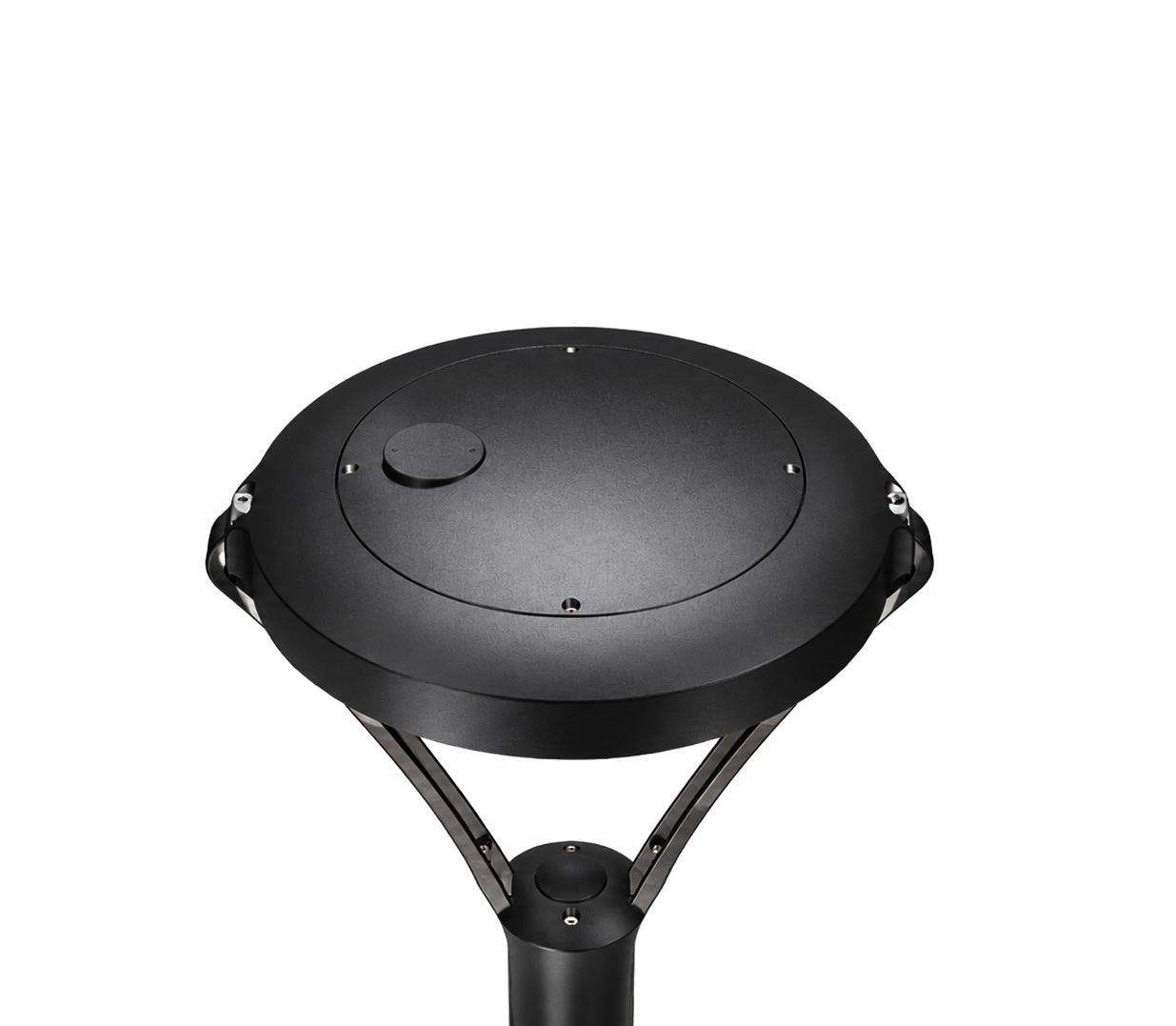

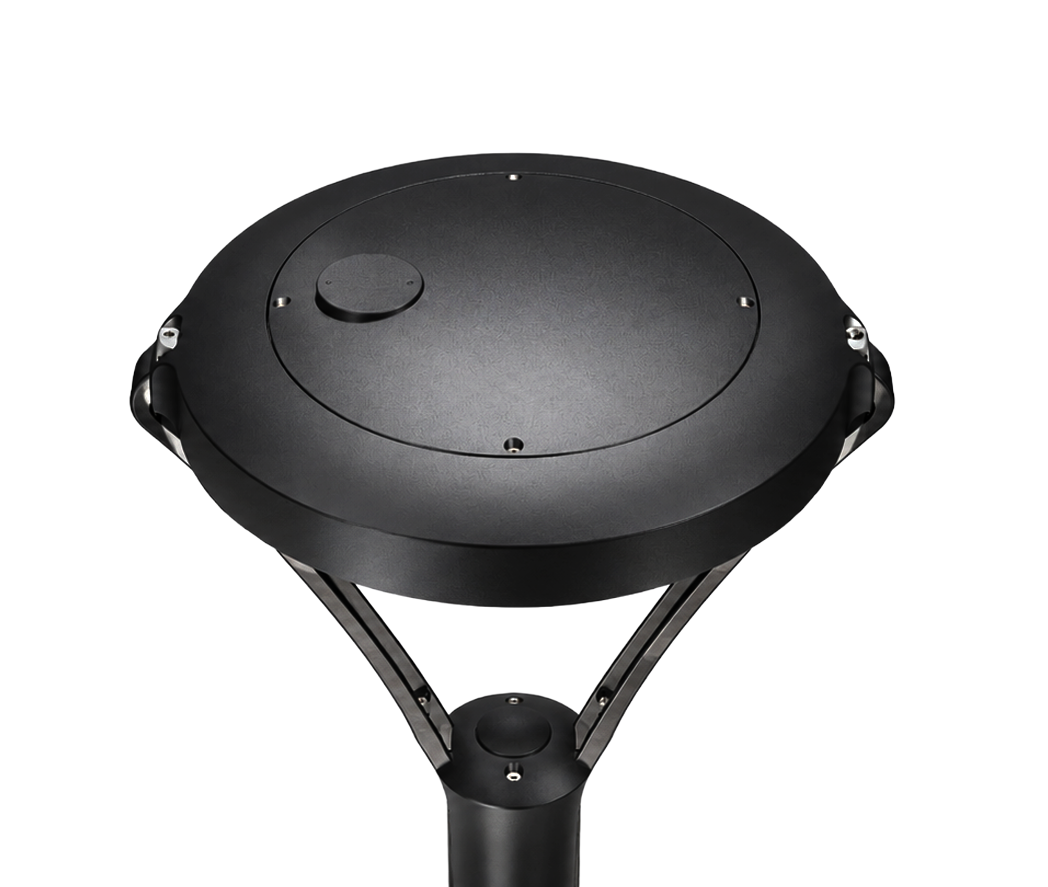

The luminaire is equipped with a top Zhaga socket. The expected lifetime of the luminaire is 100,000 hours, and the product is covered by a 5-year warranty. Madrid LED A 2 has electrical protection class I and a quick connector for easier installation.
Madrid LED A 2 is a technical outdoor LED luminaire for outdoor areas, car parks and parks. It combines a 30-60W power range, luminous flux up to 9400 lm, efficiency up to 156 lm/W, IP66 ingress protection, IK08 impact resistance and the option of control integration via a Zhaga socket.
Madrid LED A 2 can be used for lighting open outdoor spaces. IP66 ingress protection, IK08 impact resistance and an operating temperature range from -30°C to +50°C allow the luminaire to be used in changing weather conditions.
The 30-60W power range and luminous flux up to 9400 lm make it possible to select the appropriate luminaire variant for car park lighting requirements. Available light distributions of 120°x120°, 105°x140° and 150°x80° allow the lighting layout to be adapted to the project.
Madrid LED A 2 is suitable for parks where durable outdoor LED lighting is required. The 3000K and 4000K versions allow the colour temperature to be matched to the character of the space, while the die-cast aluminium housing in RAL 9005 provides mechanical resistance and a clean finish.
