Lumitrack Spot LED 1.0

High luminous efficacy up to 158 lm/W
Ability to direct the light beam
Elegant design, powder-coated aluminum housing
Several diffuser and lens variants available
5-year warranty

Source of light : LED

CE Certification

II protection class

IK03 IP20

Impact Protection/Ingress Protection

220-240V 50/60Hz power supply

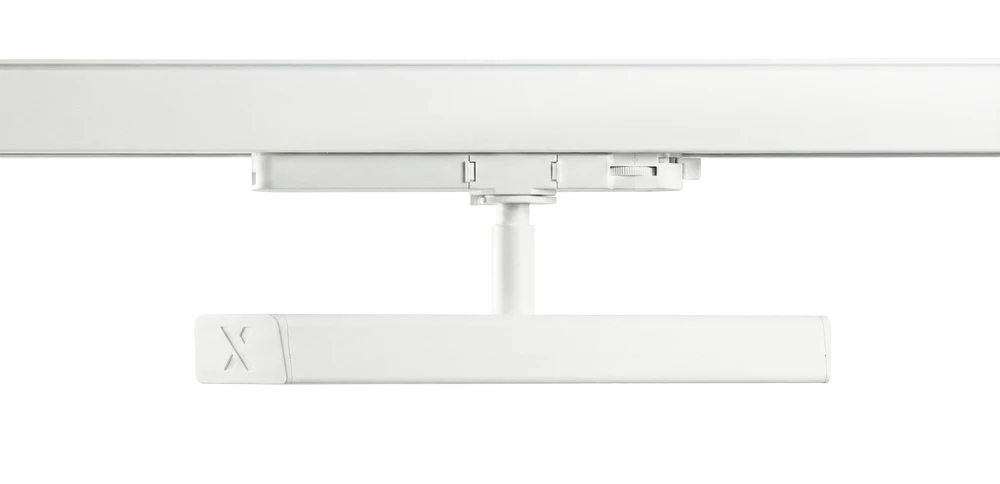

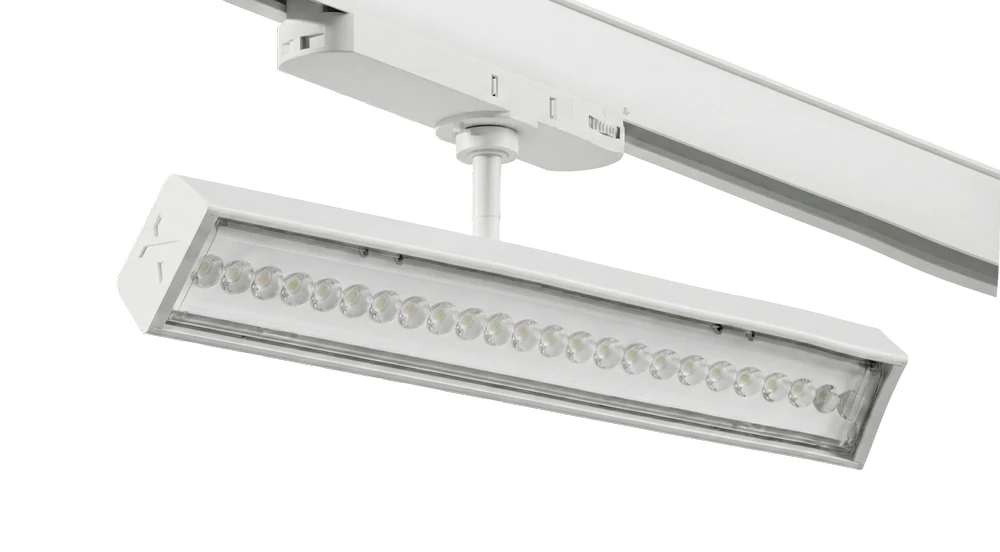

LUMITRACK SPOT LED 1.0 is a modern tracklight fixture enabling precise beam steering, being part of the LUMITRACK family of linear solutions. The model stands out with a unique shape that departs from the form of traditional track spotlights, allowing for aesthetic consistency with other elements of the system of the same name. The fixture is available in power ratings from 17W to 20W, generating a luminous flux in the range of 1950 to 2900 lm with a lifespan of 100 000 hours. Choice of ON/OFF version or with DALI wired control. Intended for accent lighting in galleries, museums, and retail facilities.

LUMITRACK SPOT LED 1.0: Design and System Consistency

LUMITRACK SPOT LED 1.0 is a modern, adjustable tracklight fixture, part of the family of linear solutions from the series of the same name. The use of consistent styling across the entire system allows for maintaining uniform lighting aesthetics throughout the facility.

Construction and Unique Design

The fixture features a modern shape that clearly departs from the form of traditional track spotlights. The housing, available in black or white, provides an IP20 protection rating and IK03 impact resistance. The construction, made in protection class II, and a wide operating temperature range from -20°C to +35°C allow for safe installation in various commercial and public utility buildings.

Technical Parameters and Efficiency

At the heart of the spotlight are high-efficiency LEDs providing a luminous flux in the range of 1950 to 2900 lm. The fixture is offered in power ratings of 17W, 18W and 20W, enabling optimal adjustment of light intensity to the requirements of a specific space. A lifespan reaching 100000 hours guarantees many years of maintenance-free system operation.

Professional Optics and Control

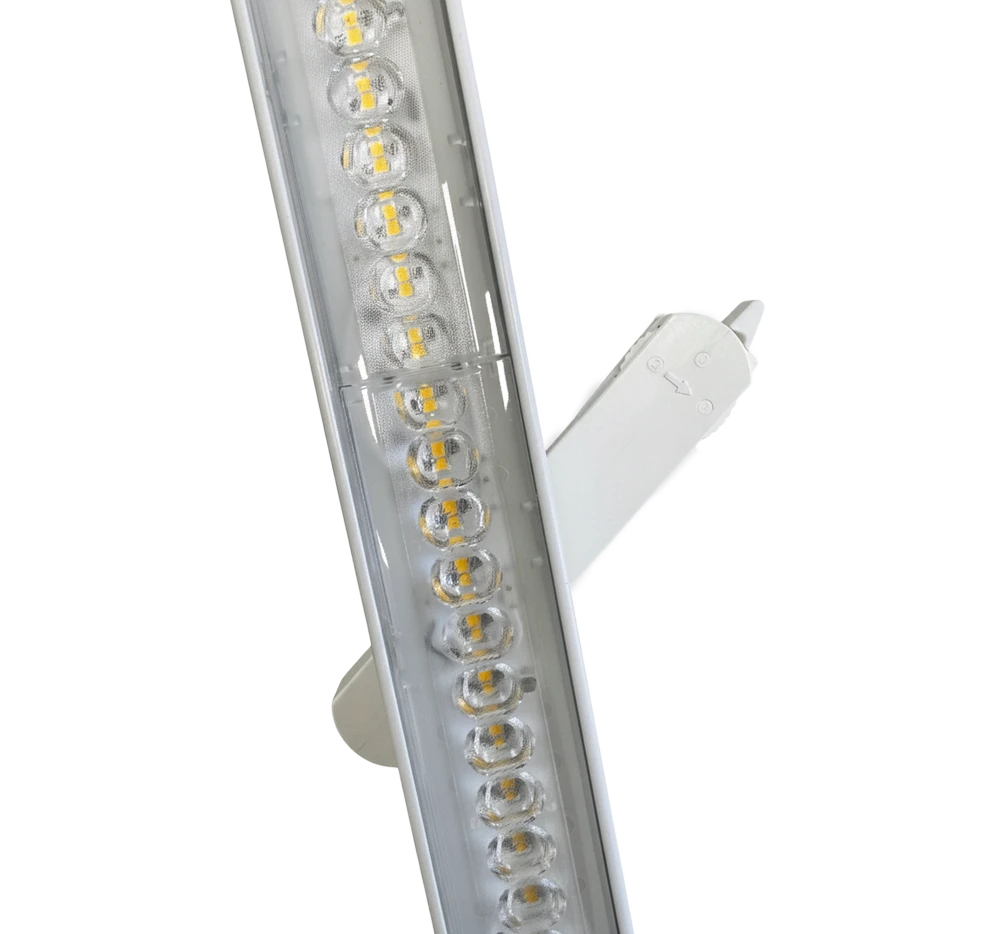

LUMITRACK SPOT LED 1.0 enables precise beam steering and shaping thanks to the use of specialized lenses: PC FX, PC HE, PC PF and PMMA. This allows for effective accenting of selected zones in museums, galleries and retail facilities. The fixture is available in a standard ON/OFF version and with a DALI wired control system, allowing for integration with modern lighting management systems.

Purpose and Application

Thanks to compatibility with three-phase tracks, the fixture offers great freedom in placement and directing the light beam. It is a solution dedicated to facilities where, alongside lighting efficiency, a modern appearance of the fixture matters, distinguishing it from standard spot-tracklight products.

Modernization of LED lighting in the sales halls of BAT Sp. z o.o., increasing light intensity and reducing energy consumption.

Large-scale Retail

Thanks to its mounting on a universal three-phase track, the Lumitrack Spot LED 1.0 is an ideal tool for creating dynamic lighting scenes in expansive retail environments. With power up to 20W and a luminous flux reaching 2900 lm, it effectively highlights promotions and product islands against the ambient lighting. Its precision-aiming capability ensures that changing the shelf layout does not require a new installation—simply adjusting the spotlight is sufficient.

Corridors and Walkways

In corridors and transition zones, reliability is key; therefore, the Lumitrack Spot LED 1.0 offers an impressive lifespan of up to 100,000 hours. Its Protection Class II rating and DALI control option enable intelligent energy management by dimming light levels during periods of lower traffic. This cost-effective solution ensures safety and operational stability for years to come.

Retail Spaces

The aesthetic of the fixture, available in white or black, seamlessly integrates into modern commercial interiors. Thanks to a broad selection of optics (PC FX, PC HE, PC PF, PMMA lenses), the Lumitrack Spot enables the creation of an atmosphere conducive to shopping. High-quality illumination draws the customer’s eye to the merchandise, while the compact housing ensures the luminaire does not overpower the store’s interior design.

Modernization of LED lighting in the production halls of Dong Yang Electronics.

Warehouses & Logistics

Despite being a spotlight, the Lumitrack Spot LED 1.0 performs exceptionally well in specific warehouse zones, such as order picking areas, where focused lighting is essential. It features a wide operating temperature range (from -20°C to +35°C). Its robust technical specifications and easy track-rail mounting facilitate quick lighting reconfiguration whenever shelving logistics or layouts change.

Museums

In exhibition spaces, precision is paramount. The Lumitrack Spot LED 1.0 enables precise illumination of artworks without the risk of damage, while the DALI system allows for smooth adjustment of light intensity based on the sensitivity of each exhibit. Available specialized lenses guarantee that light is directed exactly onto the painting or sculpture, highlighting its artistic qualities while maintaining safety standards (IP20, IK03).

Accent Lighting

This is the natural element for the Lumitrack Spot LED 1.0. Its adjustable head allows the light beam to be precisely directed exactly where it is needed most—onto architectural details, wall textures, or displays. With a range of wattage options (17W, 18W, 20W), lighting designers have full control over contrast and atmospheric creation, masterfully utilizing the interplay of light and shadow.

Catalog card LUMITRACK SPOT LED 1.0

link

Declaration of Conformity LUMITRACK SPOT LED 1.0

pdf

Installation instructions LUMITRACK SPOT LED 1.0

pdf

Photometric files LUMITRACK SPOT LED 1.0

zip

3-phase Trackline rail 1 / 2 / 3 / 4 m, on/off or DALI, white AKC.TK.EL.SZY

3-phase Trackline rail with on/off or DALI function, available in lengths of 1 m, 2 m, 3 m or 4 m, white.

3-phase Trackline rail 1 / 2 / 3 / 4 m, on/off or DALI, black AKC.TK.EL.SZY

3-phase Trackline rail with on/off or DALI function, available in lengths of 1 m, 2 m, 3 m or 4 m, black.

3-phase Trackline power feed, on/off or DALI, black AKC.TK.EL.ZAS

Power feed for 3-phase Trackline rail, on/off or DALI version, left, black.

3-phase Trackline power feed, on/off or DALI, white AKC.TK.EL.ZAS

Power feed for 3-phase Trackline rail, on/off or DALI version, left, white.

3-phase Trackline connector, on/off or DALI, white AKC.TK.EL.LAC

3-phase Trackline connector, on/off or DALI version, white.

3-phase Trackline connector, on/off or DALI, black AKC.TK.EL.LAC

3-phase Trackline connector, on/off or DALI version, black.

3-phase Trackline end cap, on/off and DALI, white AKC.TK.EL.ZSL

3-phase Trackline end cap, on/off and DALI version, white.

3-phase Trackline end cap, on/off and DALI, black AKC.TK.EL.ZSL

3-phase Trackline end cap, on/off and DALI version, black.

3-phase Trackline clamp for rod or wire, on/off and DALI, white AKC.TK.EL.UCH

3-phase Trackline clamp for rod or wire mounting, on/off and DALI version, white.

3-phase Trackline clamp for rod or wire, on/off and DALI, black AKC.TK.EL.UCH

3-phase Trackline clamp for rod or wire mounting, on/off and DALI version, black.

Cable with plug 1.8 m 3×1.5 mm² AKC.UN.EL.ZLA.001

3×1.5 mm² grey cable with plug (1.8 m).

Cable with plug 3 m 3×1.5 mm² AKC.UN.EL.ZLA.002

3×1.5 mm² grey cable with plug (3 m).

Surface-mounted electrical adapter GA70 (black) for tracklight systems.AKC.TC.EL.ADN.0B1

A GA70 black surface-mounted adapter engineered for tracklight installations, ensuring secure mounting and dependable electrical connections.

Surface-mounted electrical adapter GA70 (gray) for tracklight systems.AKC.TC.EL.ADN.0G1

A GA70 gray surface-mounted adapter engineered for tracklight installations, ensuring secure mounting and dependable electrical connections.

Surface-mounted electrical adapter GA70 (white) for tracklight systems.AKC.TC.EL.ADN.0W1

A GA70 white surface-mounted adapter engineered for tracklight installations, ensuring secure mounting and dependable electrical connections.
