LED lighting in the Geberit production area improving efficiency.

LED Luminaries
Trunking LED 1.0

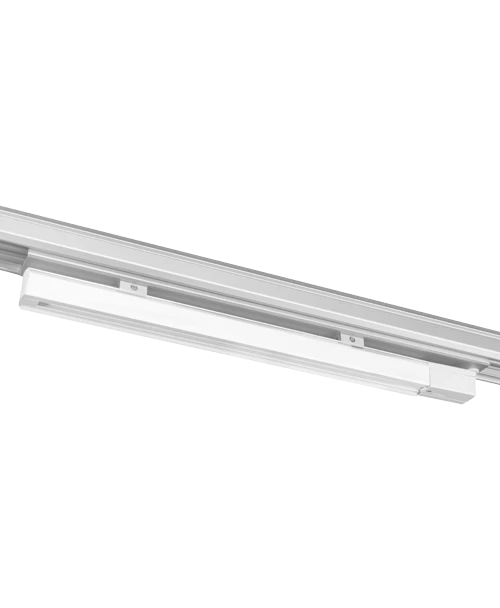

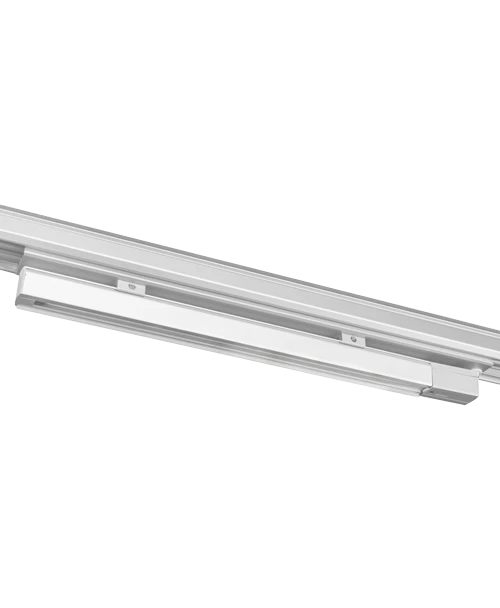

Trunking LED luminaire

Trunking LED 1.0

High luminous efficiency up to 176Lm/W
Lifespan of up to 95,000 hours of illumination
Possible warranty up to 10 years
Solid housing made of aluminum

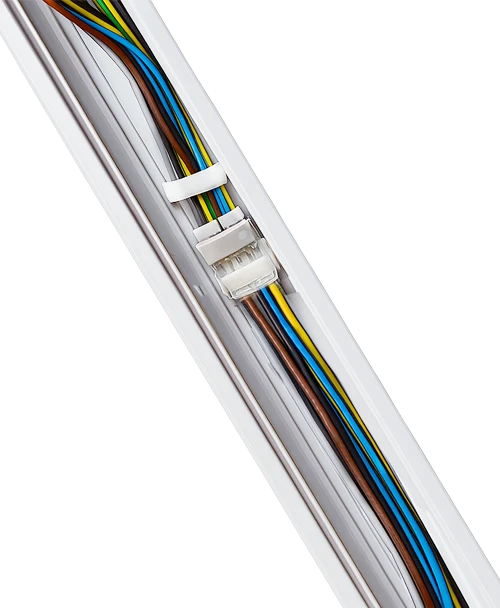

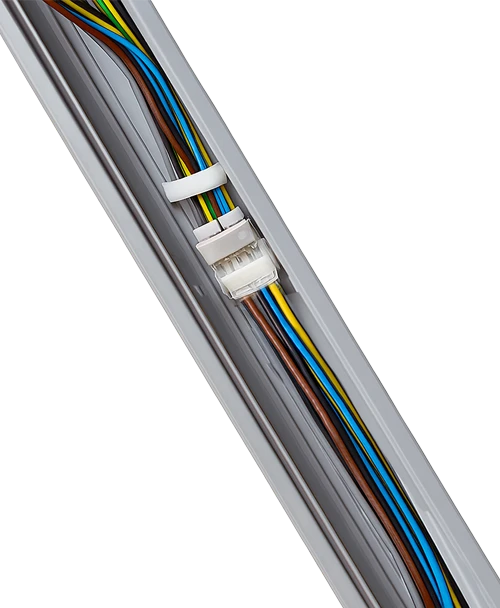

The fixture base replaces cable trays
Source of light : LED
CE Certification
Klasa odporności 0
I protection class
IK08 IP20
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

The Trunking LED fixture is a modern linear system that combines high-quality features with easy installation. It’s perfect for new projects and upgrades of logistics, industrial, and commercial buildings. What’s special about it? The fixture consists of a sturdy aluminum base available in sizes of 225 cm or 450 cm and lighting modules of various powers tailored to each building’s needs. But there’s more. The Trunking LED offers a range of accessories, including motion sensors, emergency lighting modules, and special seals that increase its tightness to IP44. This system also replaces cable trays, making it cost-effective. Technically, it boasts an impressive light efficiency of up to 176 lm/W. There are 9 modules ranging from 38W to 116W. For those who want advanced features, it offers DALI control options and a 10-year warranty.

Trunking LED: Innovation in Industrial and Commercial Lighting



Advanced Technologies for Efficient Lighting
The Trunking LED luminaire represents a breakthrough in industrial and commercial lighting, combining modern technologies with ease of installation. With its modular design, featuring a solid aluminum base in lengths of 225 cm or 450 cm, this luminaire can be tailored to the specific requirements of any facility, from warehouses and production halls to retail spaces.



Modularity and Application Flexibility
With lighting modules ranging from 38W to 116W, the Trunking LED luminaire delivers precisely tailored lighting, providing an impressive luminous efficacy of up to 176 lm/W. This makes it ideal not only for new projects but also for the modernization of existing installations, offering significant energy savings and operational cost reduction.



Adaptation to Demanding Environments
The high degree of IP44 sealing and solid aluminum housing ensure that the Trunking LED luminaire is resistant to challenging industrial conditions, including dust and moisture, making it an excellent choice for logistics and industrial facilities. Additionally, the integration capability with motion sensors and emergency modules enhances the functionality and safety of the lighting.



Innovation and User Comfort
Low UGR provides high user comfort, which is particularly important in places where employees spend many hours. The DALI control option allows full control over the lighting, which is crucial for modern facilities aiming to maximize energy efficiency.



Ease of Installation and Long-Term Reliability
The quick and easy installation of the Trunking LED luminaire, without the need for additional cable trays, is a significant advantage that reduces installation time and costs. Long-term reliability is further confirmed by the possibility of extending the standard warranty from 5 to up to 10 years, demonstrating confidence in the quality and durability of the product.



Summary
By choosing the Trunking LED luminaire, you are investing in the future of your business, benefiting from the latest solutions in industrial and commercial lighting. It offers not only savings and efficiency but also flexibility and innovation tailored to the specific needs of each facility, providing the best working conditions and product presentation.

Trunking LED 1.0 Applications
LED luminaires in Prettl Electronics offices enhancing employee comfort.
Production Halls

In production halls, where precision and continuity of work are essential, Trunking LED luminaire with power versions from 38W to 116W allows for precise adjustment of lighting to specific tasks. A low glare UGR index below 23, it provides comfort for employees, and by its solid construction and DALI control options enhance the functionality and efficiency of the lighting.

High Storage Warehouses

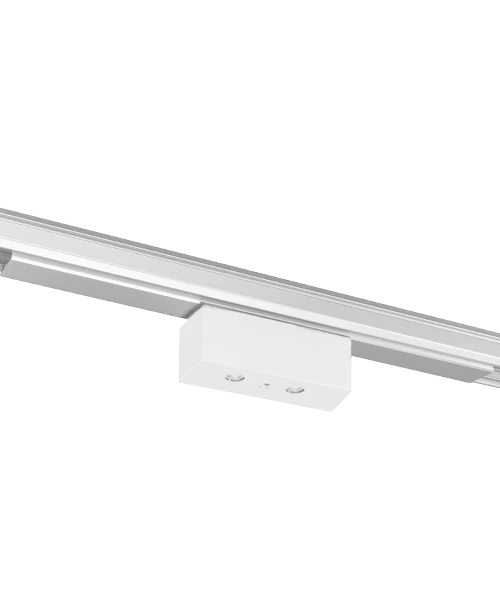

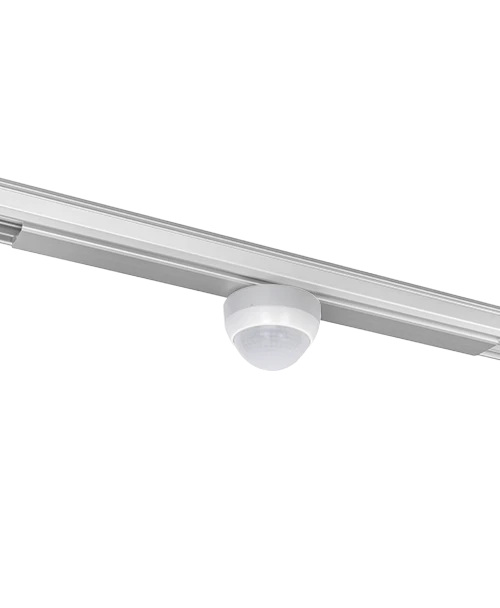

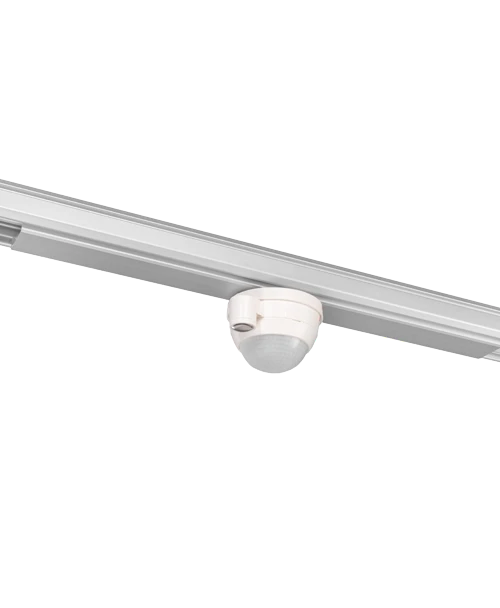

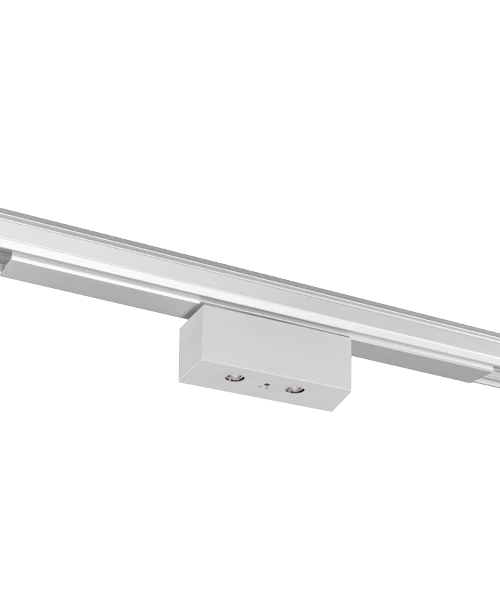

High-storage warehouses utilize the Trunking LED luminaire to illuminate large spaces. It’s the perfect choice due to its high light efficiency and long lifespan. Emergency modules and motion sensors ensure safety and efficiency, while the scalability of the lighting allows for flexible adaptation to changing warehouse needs. The IP44 sealing degree protects the luminaire from dust and moisture, which is crucial in dynamic warehouse environments.

Distribution Centers

Distribution centers, crucial for supply chain efficiency, benefit from the Trunking LED luminaire due to its high light efficiency of up to 176 lm/W, meaning more light with lower energy consumption. The ability to add emergency modules ensures operational continuity even during power outages, while motion sensors further optimize energy consumption. Easy installation and long lifespan of up to 90,000 hours reduce downtime and operational costs.

Commercial Facilities

In retail spaces, the Trunking LED luminaire creates a welcoming and aesthetically pleasing environment for customers, thanks to high-quality light and low glare. Additional accessories, such as motion sensors, enhance shopping comfort by automatically adjusting lighting, while emergency modules ensure safety in case of power outages. Long lifespan and DALI control options are further advantages that translate into lower maintenance costs and greater flexibility in lighting management.

Office Facilities

The Trunking LED luminaire is the perfect solution for office spaces, combining high modern design, lighting efficiency up to 176 lm/W, and user comfort thanks to a low glare index (UGR below 23). Available in elegant color options: black and white, it seamlessly blends into any office style, adding a professional look. The ability to adjust the power of lighting modules and integrate with motion sensors and DALI systems ensures energy efficiency and adaptation to user needs, making it the optimal choice for modern workspaces.

Product available in multiple configurations
NameProduct-CodeDimensions H x W x L [mm]Power [W].Luminosity [lm]Efficiency [lm/W]Color temperature [K]CRI/RaProtection Rating [IP]Light distribution
TRUNKING LED 1.0 1 TRU1ST.10.038.8A3000
TRU1ST.10.038.8A4000
TRU1ST.10.038.8A5000
 60/40/1130
60/40/1130
60/40/1130
 38
38
38
 5800 – 6300
5950 – 6500
6000 – 6550
 152 – 165
156 – 171
157 – 172
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 2 TRU1ST.20.048.8A3000
TRU1ST.20.048.8A4000
TRU1ST.20.048.8A5000
 60/40/1130
60/40/1130
60/40/1130
 48
48
48
 7150 – 7750
7350 – 8000
7400 – 8050
 148 – 161
153 – 166
154 – 167
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 3 TRU1ST.30.059.8A3000
TRU1ST.30.059.8A4000
TRU1ST.30.059.8A5000
 60/40/1130
60/40/1130
60/40/1130
 59
59
59
 8450 – 9200
8700 – 9500
8750 – 9550
 143 – 155
147 – 161
148 – 161
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 4 TRU1ST.40.056.8A3000
TRU1ST.40.056.8A4000
TRU1ST.40.056.8A5000
 60/40/1690
60/40/1690
60/40/1690
 56
56
56
 8650 – 9450
8950 – 9750
9000 – 9800
 154 – 168
159 – 174
160 – 175
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 5 TRU1ST.50.071.8A3000
TRU1ST.50.071.8A4000
TRU1ST.50.071.8A5000
 60/40/1690
60/40/1690
60/40/1690
 71
71
71
 10650 – 11600
11000 – 12000
11050 – 12050
 150 – 163
154 – 169
155 – 169
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 6 TRU1ST.60.087.8A3000
TRU1ST.60.087.8A4000
TRU1ST.60.087.8A5000
 60/40/1690
60/40/1690
60/40/1690
 87
87
87
 12650 – 13800
13050 – 14250
13100 – 14300
 145 – 158
150 – 163
150 – 164
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 7 TRU1ST.70.074.8A3000
TRU1ST.70.074.8A4000
TRU1ST.70.074.8A5000
 60/40/2250
60/40/2250
60/40/2250
 74
74
74
 11550 – 12600
11900 – 13000
11950 – 13050
 156 – 170
160 – 175
161 – 176
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 8 TRU1ST.80.094.8A3000
TRU1ST.80.094.8A4000
TRU1ST.80.094.8A5000
 60/40/2250
60/40/2250
60/40/2250
 94
94
94
 14200 – 15500
14650 – 16000
14700 – 16050
 151 – 164
155 – 170
156 – 170
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
TRUNKING LED 1.0 9 TRU1ST.90.116.8A3000
TRU1ST.90.116.8A4000
TRU1ST.90.116.8A5000
 60/40/2250
60/40/2250
60/40/2250
 116
116
116
 16850 – 18400
17400 – 19000
17450 – 19050
 145 – 158
150 – 163
150 – 164
 3000
4000
5000
 >80
>80
>80
 20
20
20
30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°

30°X30° 35°X85° 55°X55°
30°X30° 35°X85° 55°X55° 80°X80° 90°X90° 105°X100°
Trunking LED 1.0 Files
Catalog card Trunking LED 1.0
pdf
Declaration of Conformity Trunking LED 1.0
pdf
Hygienic certificate TRUNKING LED 1.0
pdf
HACCP certificate TRUNKING LED 1.0
pdf
Diode catalog card Trunking LED 1.0
pdf
Installation instructions Trunking LED 1.0
pdf
Photometric files TRUNKING LED 1.0
zip
Technical Specification Trunking LED 1.0
pdf
Product photos – Trunking LED 1.0
zip

Customize your product variant and download the dedicated technical specification sheet

Already have a quote? Select the product family and then the product code that interests you to download an individual product sheet

BAZA-FORM-Kubatura

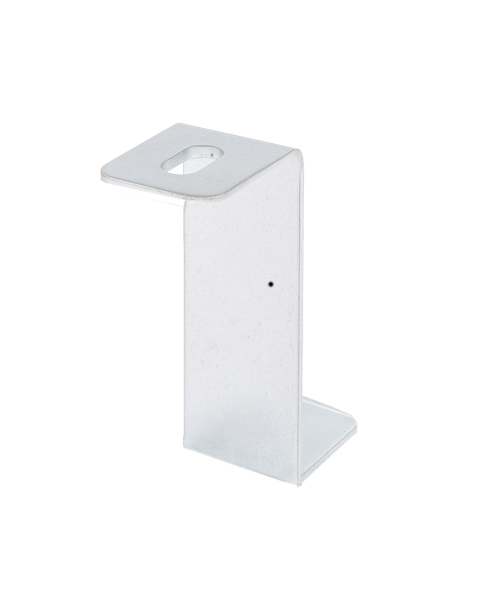

Trunking components matching

Download
Trunking linear LED luminaries
See the results of the Trunking LED 1.0 implementation for our clients
