LED lighting in the Geberit production area improving efficiency.

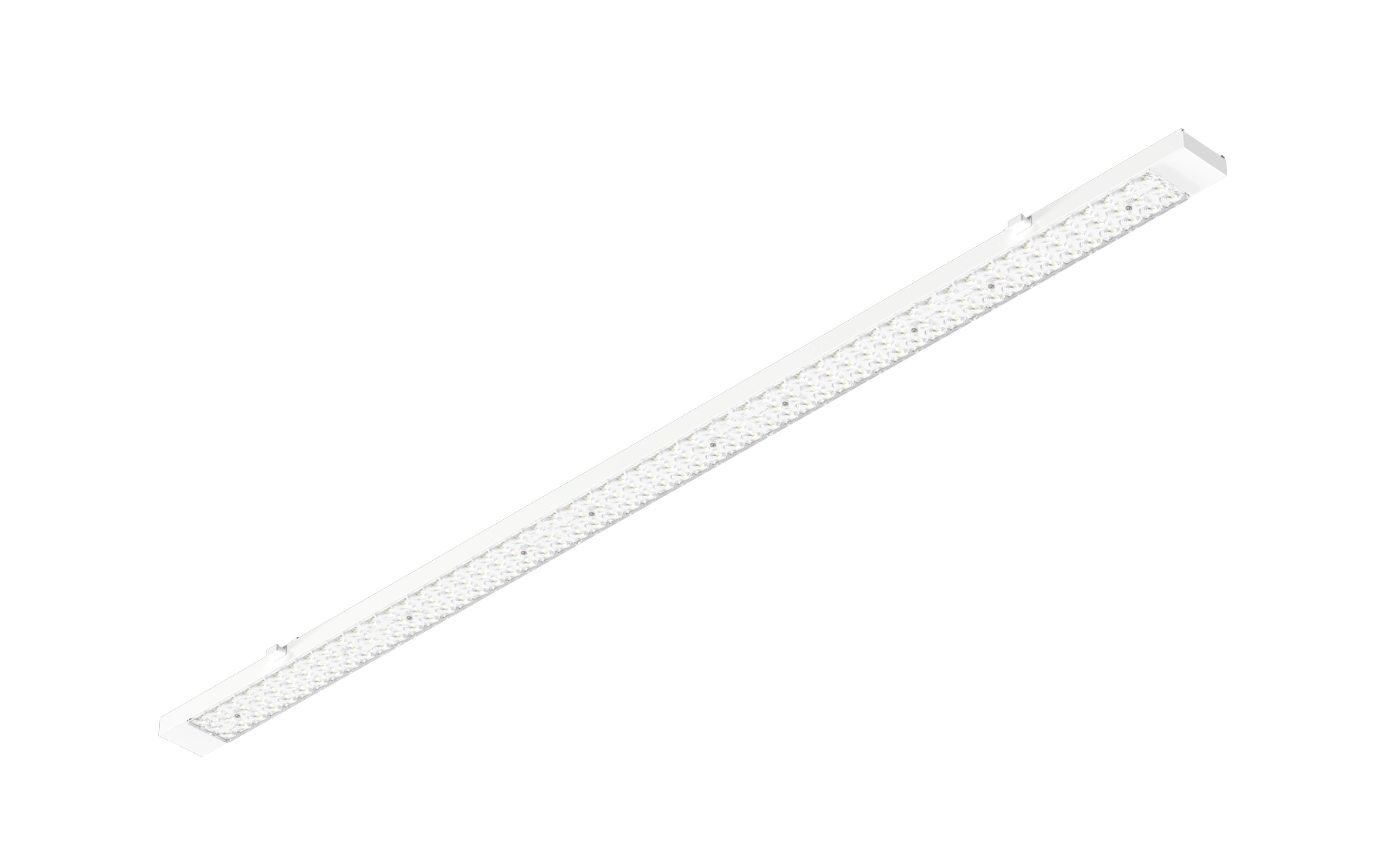

Supertrunk LED MT 1.0

High luminous efficiency up to 174 lm/W
Flexible power adjustment with MultiPower
Tool-free "click-in" installation for fast mounting
Compatible with T5/T8 trunking systems from leading manufacturers
5 years warranty

Source of light : LED

CE Certification

I protection class

IK02 IP20

Impact Protection/Ingress Protection

220-240V 50/60Hz power supply

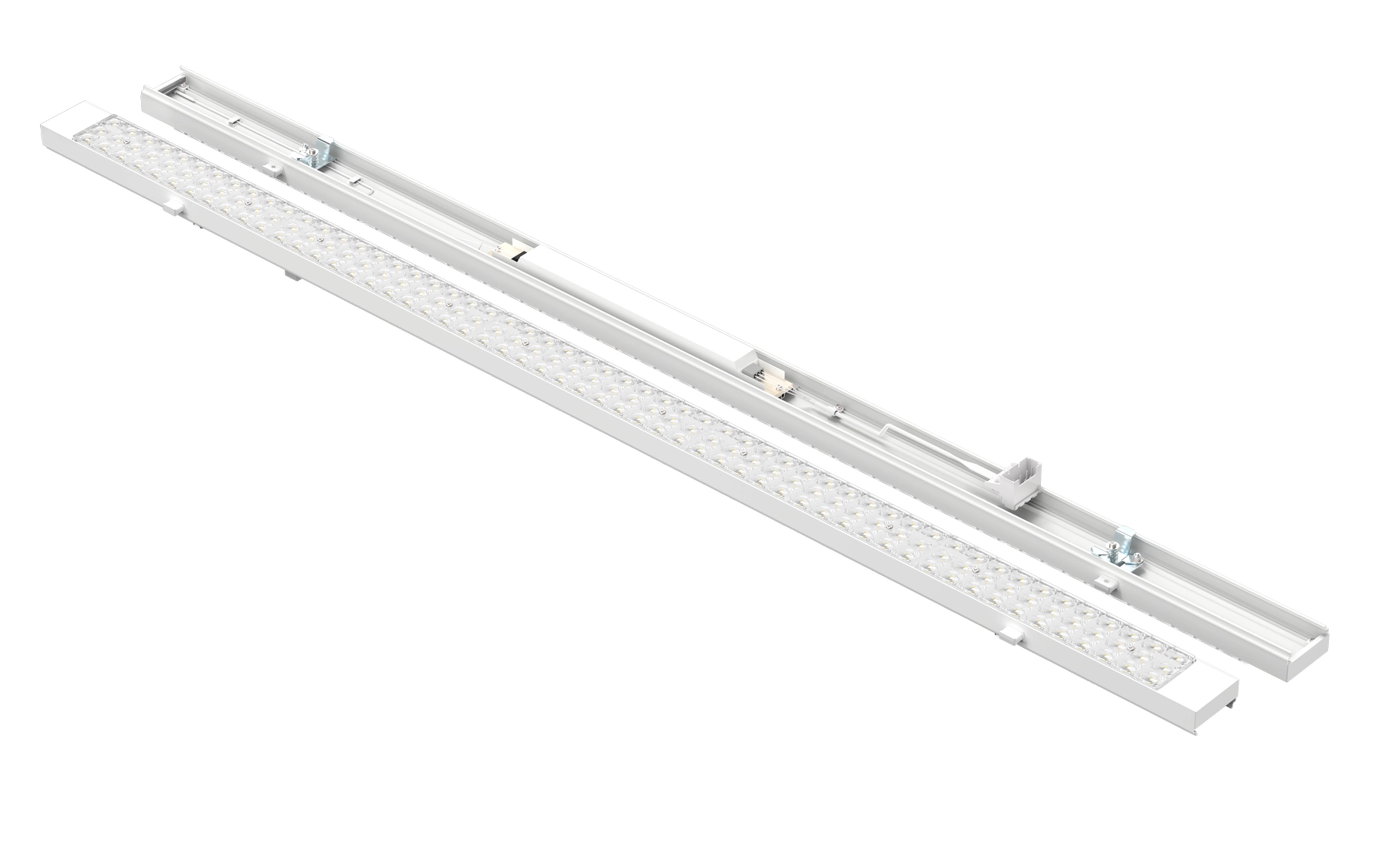

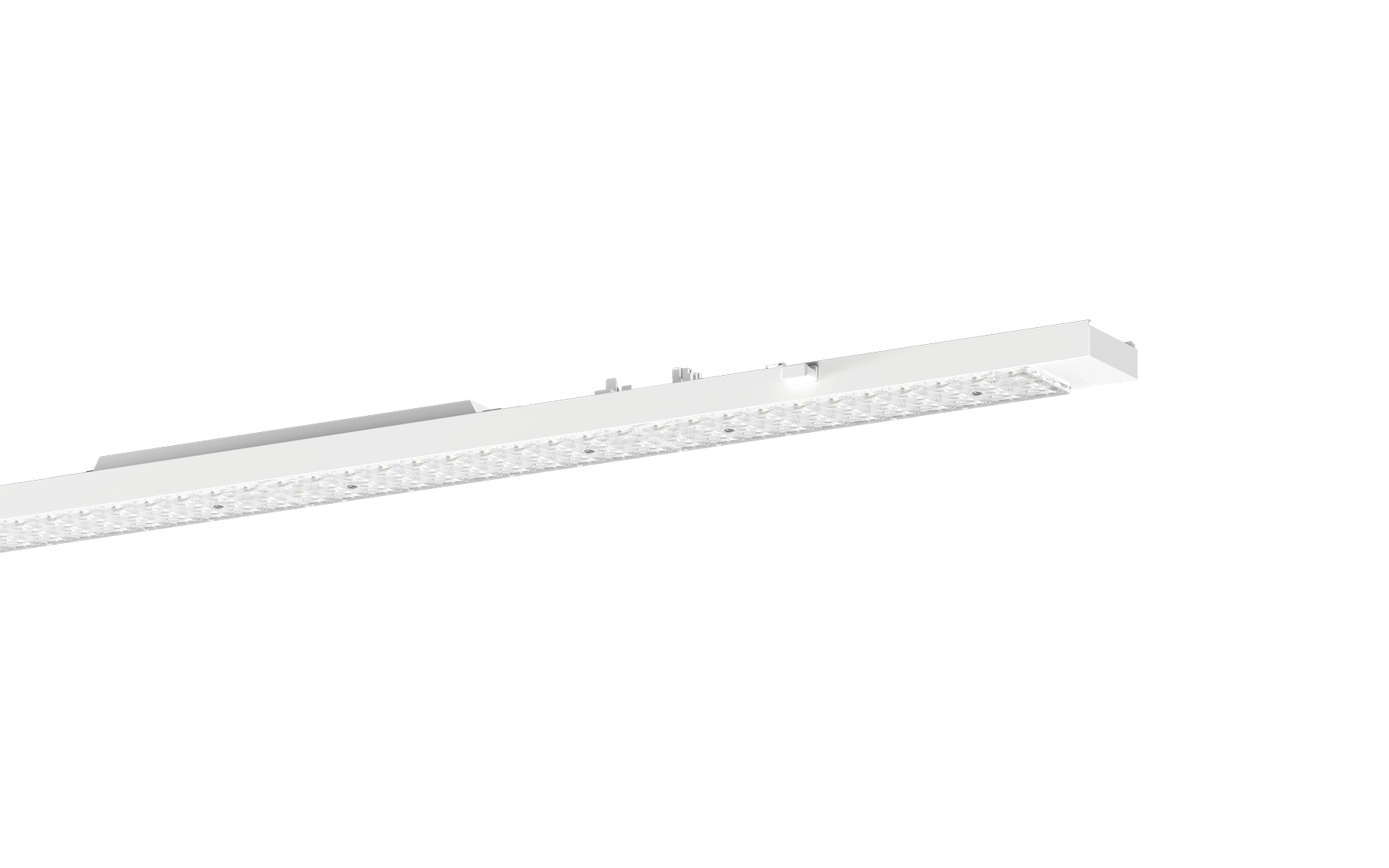

Supertrunk LED MT 1.0 is a modern LED module available in two versions: Supertrunk – for retrofit installations without modifying existing wiring, and MT – with its own gear and wiring, ideal when a full replacement is required. Both versions are compatible with T5, T8, and LED trunking systems. Thanks to MultiSelect technology, users can choose one of four power settings (46W, 52W, 65W, 72W) directly on the driver. A luminous efficacy of up to 174 lm/W ensures high efficiency, while DALI support enables smart control and integration with BMS. Tool-free “click-in” installation ensures quick and hassle-free deployment.

Supertrunk – Modern solution for trunking system upgrades

Supertrunk is an advanced LED module designed for upgrading existing trunking systems based on T5, T8, and LED lamps – without replacing the entire infrastructure. Full compatibility with popular trunking systems enables fast modernization without interfering with electrical installation. A version with cabling is also available if replacement is required.

Two versions available – with or without cabling

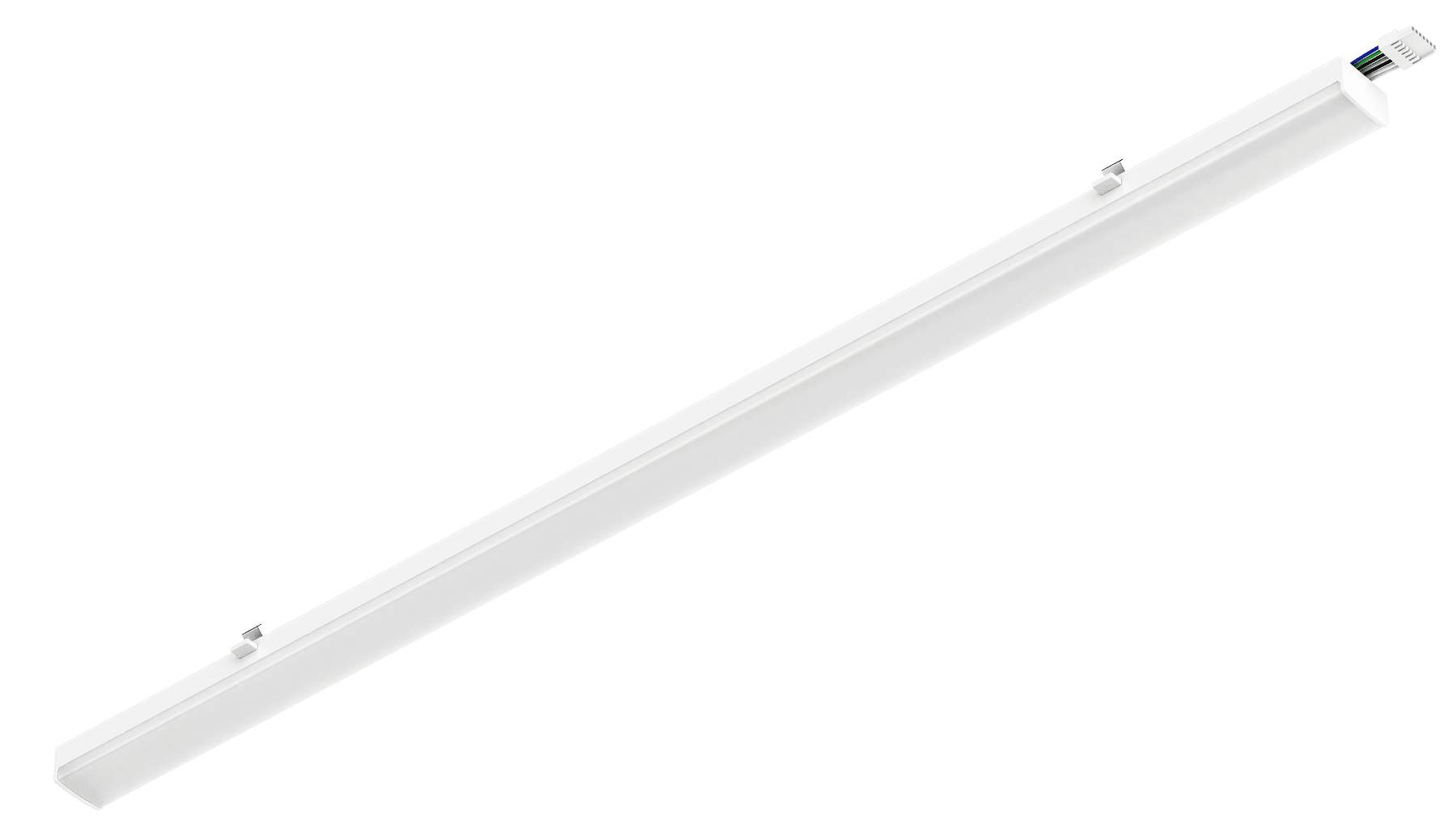

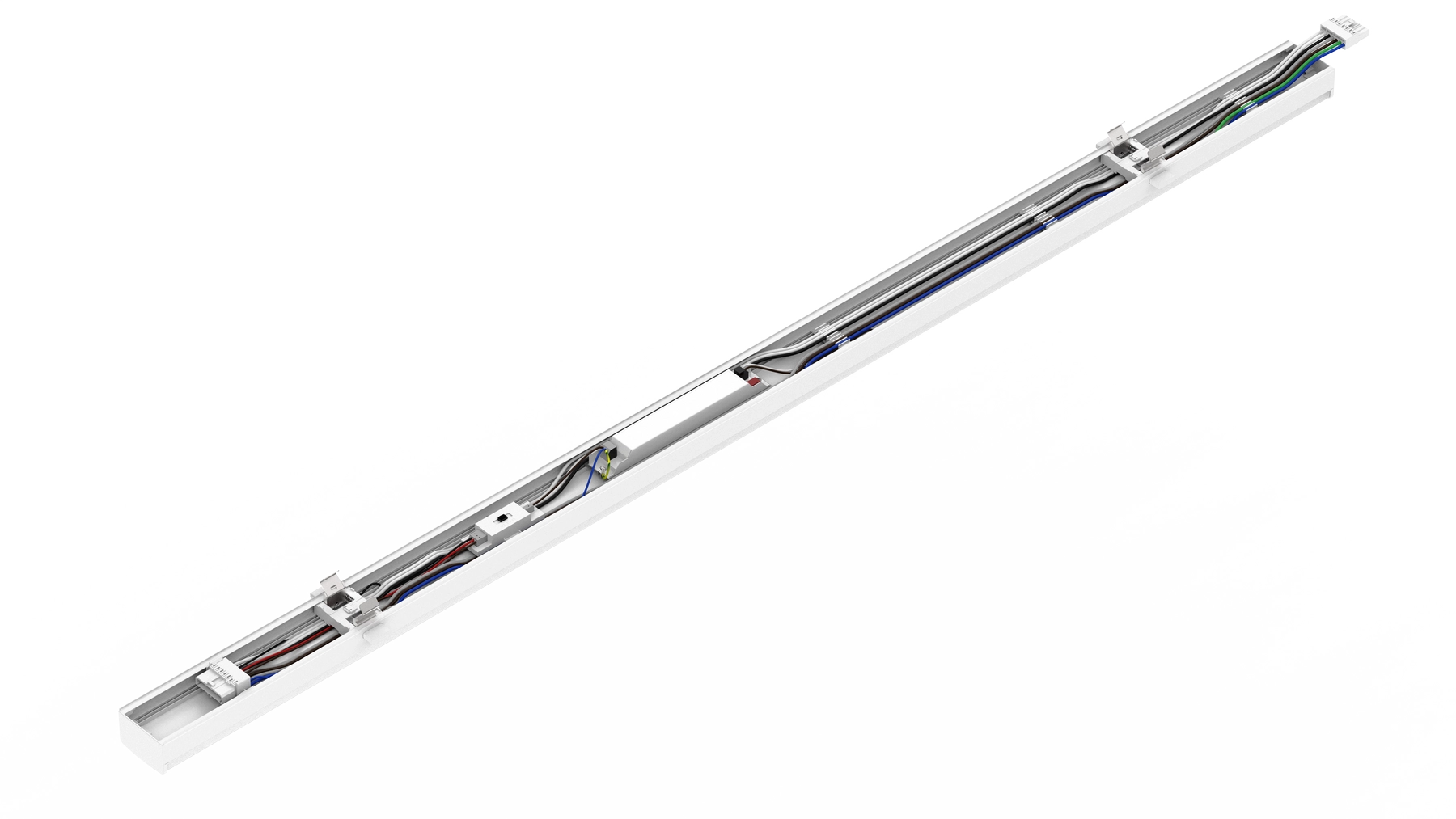

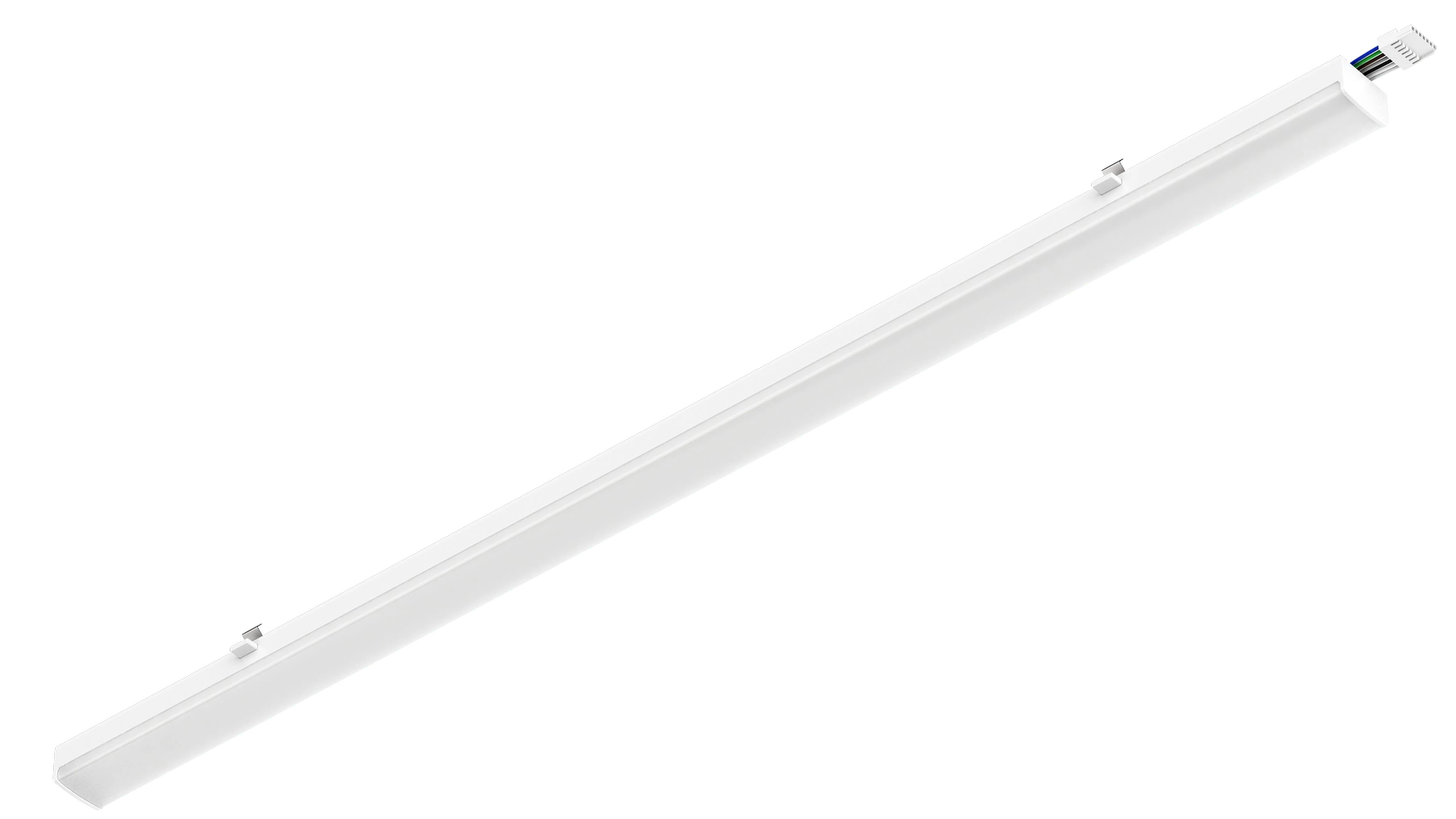

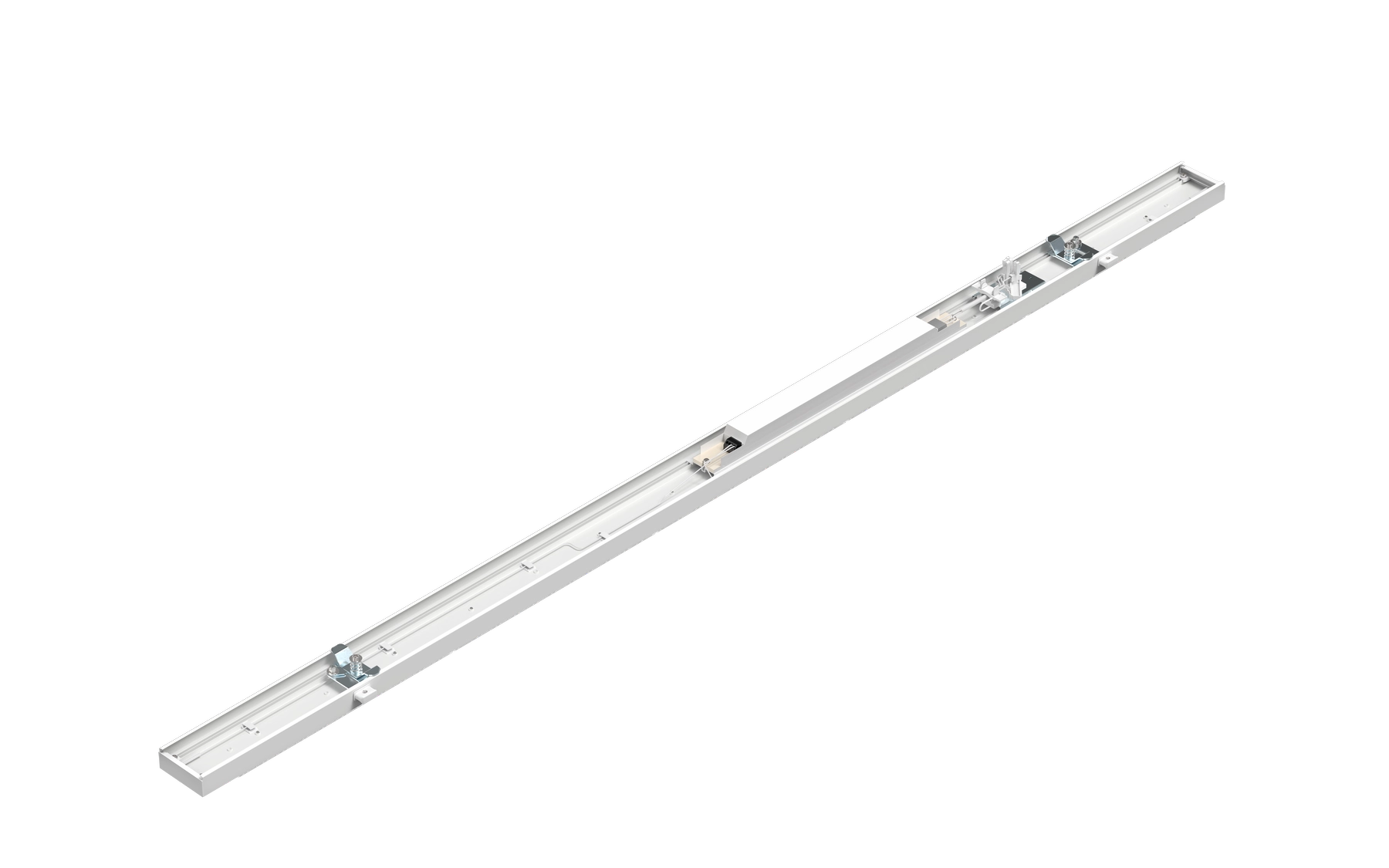

The luminaire is available in two variants: Supertrunk (without gear, for non-invasive retrofit installations) and MT (with complete cabling and gear), intended for full system replacement.

Full compatibility with trunking systems

The module is compatible with popular T5/T8 systems from renowned manufacturers such as Trilux, Siteco, Ridi, Regiolux, AEG/Philips, Philips/Signify, Ludwig, Zumtobel, Thorn, Fluolite, Veko, Lite Licht, Siemens, Antaris, Kandem, OMS, Newlec, and Norton, making it a universal solution for many retrofit projects.

4 selectable power levels via MultiSelect driver

The luminaire is equipped with a MultiSelect driver allowing selection of four power levels: 46W, 52W, 65W, and 72W. The selection is made mechanically on the driver, allowing easy adaptation to specific installation requirements and offering great design flexibility. Each power level has a corresponding luminous flux, making it easy to compare with other products on the market.

Easy and fast installation

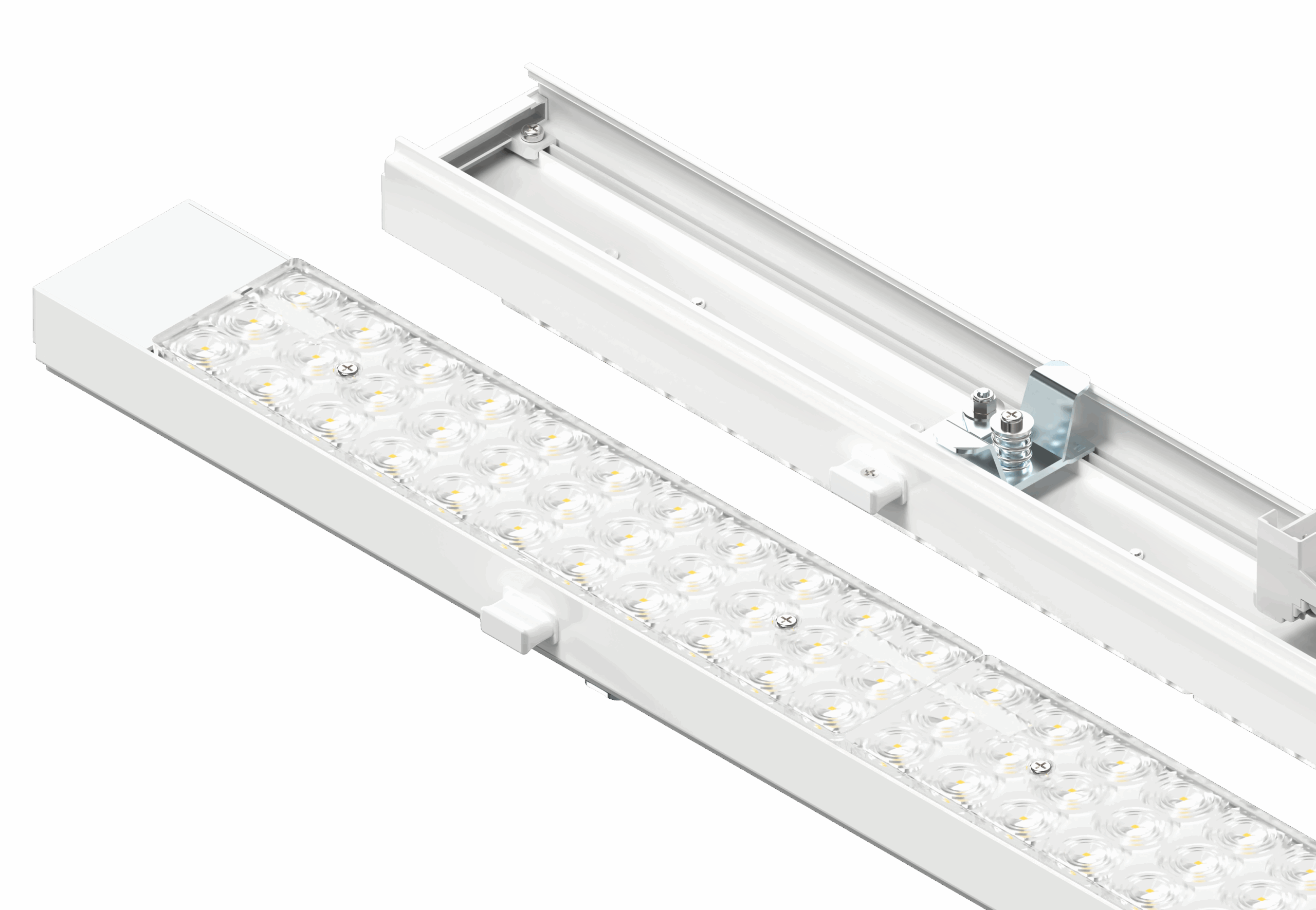

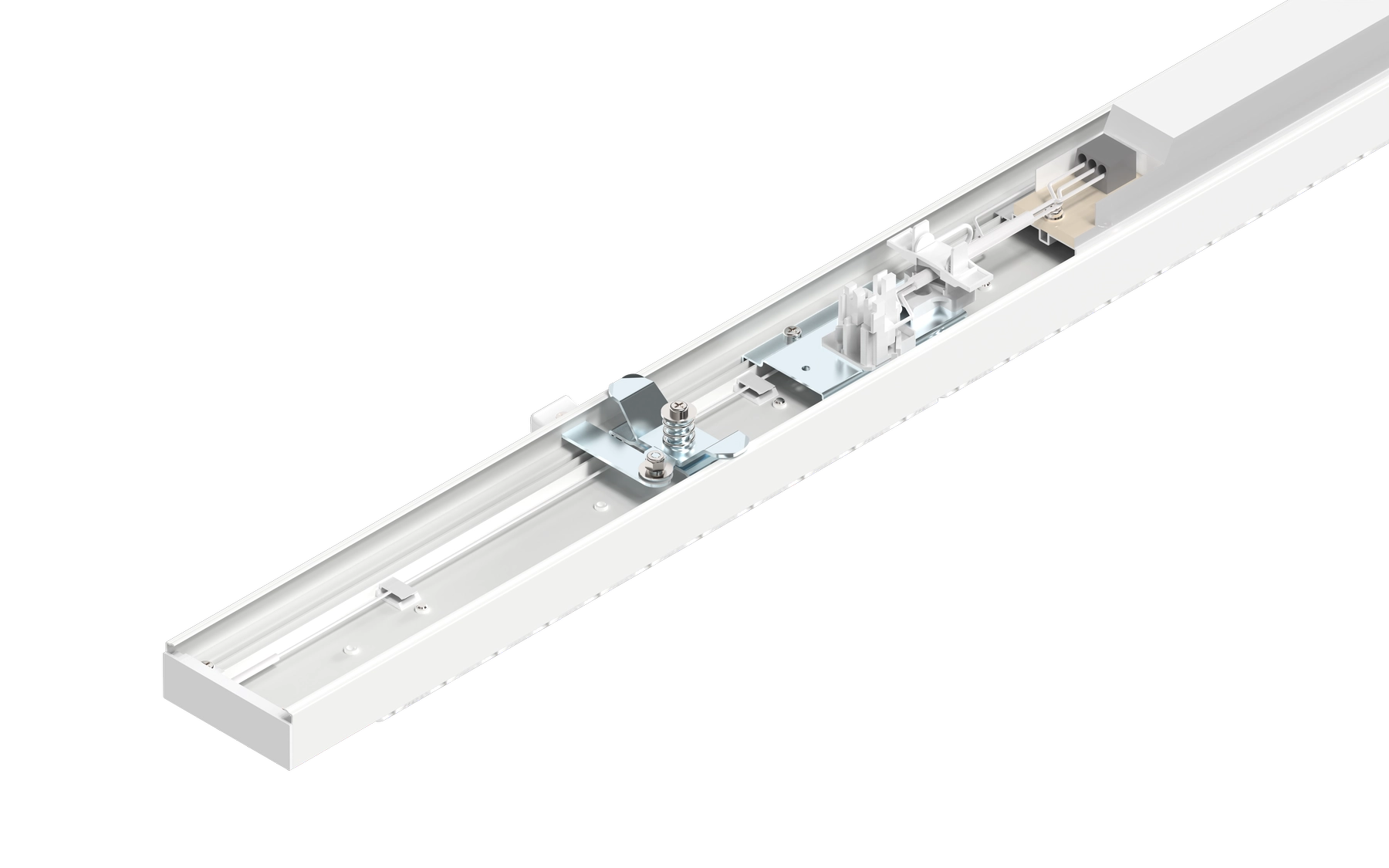

The innovative click-in mechanism allows tool-free installation, while additional safety elements such as a spring clip and steel cable ensure stability. The luminaire is connected via quick connectors, simplifying electrical installation. Once mounted, it can be started and tested immediately, including DALI integration.

High luminous efficacy

Supertrunk achieves a luminous efficacy of up to 174 lm/W, helping reduce energy consumption and operating costs. It is ideal for areas where both light quality and energy savings matter.

Smart lighting control (DALI)

Thanks to DALI support, the luminaire enables precise light control, scene programming, and integration with BMS systems. Two-way communication allows for real-time diagnostics and lighting management.

Wide range of applications

Supertrunk is ideal for industrial facilities, logistics centers, warehouses, retail spaces, offices, parking lots, and garages. No matter the environment, it delivers efficient and reliable lighting tailored to user needs.

Summary

Supertrunk is an intelligent, energy-efficient, and flexible solution for trunking lighting modernization. With options both with and without gear, a MultiSelect driver with 4 power settings, and DALI compatibility, it’s the perfect choice for companies seeking durable, modern solutions.

Production Halls

In industry, where precision and reliability matter, Supertrunk provides optimal lighting above assembly lines and work areas. Its high luminous efficacy of 174 lm/W ensures excellent visibility of details, while DALI compatibility allows adjusting the light intensity to changing working conditions.

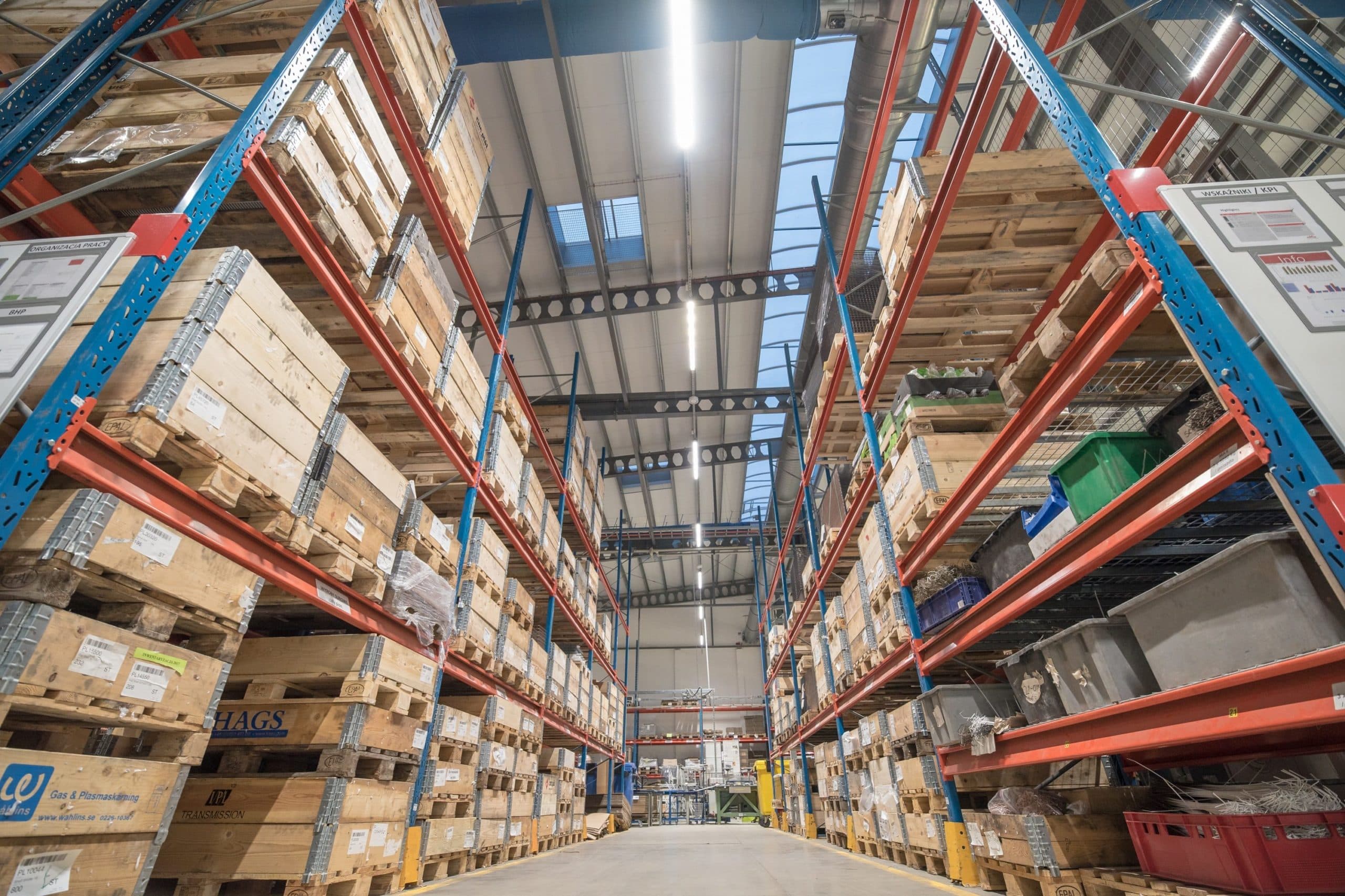

Oświetlenie przemysłowe Ultima w Magazynie firmy Elfa Manufacturing - Luxon LED

High Storage Warehouses

In high-storage warehouses, even and intense lighting of shelves and transport aisles is crucial. Supertrunk offers high lighting efficiency and adjustable power (MultiPower), ensuring excellent visibility while reducing the risk of errors and accidents.

część sprzOprawy handlowe Lumline w Neonecie - Luxon LEDedażowa sklepu Neonet

Large-Scale Retail Stores

Good lighting in retail spaces enhances shopping comfort and product presentation. Supertrunk provides uniform, high-quality light that highlights colors and details, while its DALI control allows dynamic adjustment of lighting to time of day or promotional events.

Oprawy Lumiline w sklepie Leclerc - Luxon LED

Commercial Spaces

In shopping malls and service points, Supertrunk combines energy efficiency with flexibility. The ability to select color temperature and adjust light intensity makes commercial spaces more attractive and comfortable for customers while lowering operational costs.

Public Facilities

Schools, offices, and medical facilities require lighting that ensures user comfort and safety. Supertrunk offers modern, eye-friendly light and long lifespan, minimizing the need for maintenance and fixture replacement in public buildings.

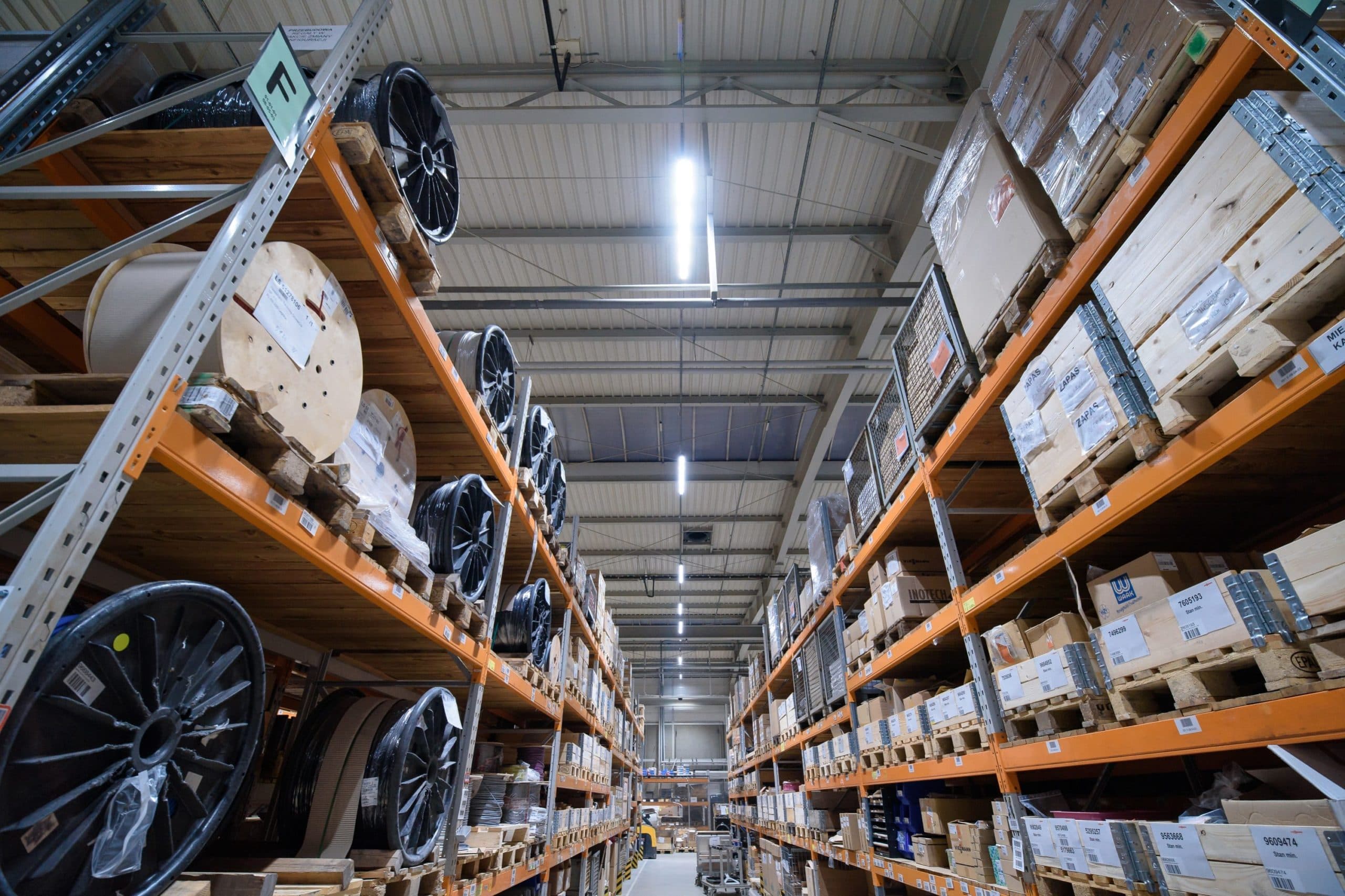

Oprawy przemysłowe Industrial w hali magazynowej zmodernizowanej firmy Broen - Luxon LED

Warehouse Halls

Efficient warehouse lighting enables safe and smooth space management. With MultiPower technology, power can be adjusted to the required light intensity, and the simple ‘click’ mounting system allows for quick modernization of existing track lighting systems without disrupting facility operations.

Name	Product code	Power [W]	Luminous flux [lm]	Luminous efficacy [lm/W]	Color temperature [K]	CRI/Ra	Ingress protection [IP]	Beam angle	Weight [kg]
Supertrunk LED MT 1.0	STR1MT.10.072.8A3000	46 – 72	6700 – 11300	144 – 159	3000K	80	IP20	30°, 60°, 90°, 120°x105°	1.9kg
Supertrunk LED MT 1.0	STR1MT.10.072.8A4000	46 – 72	7300 – 12400	158 – 174	4000K	80	IP20	30°, 60°, 90°, 120°x105°	1.9kg
Supertrunk LED MT 1.0	STR1MT.10.072.8A5000	46 – 72	7350 – 12450	158 – 174	5000K	80	IP20	30°, 60°, 90°, 120°x105°	1.9kg

Installation instructions SUPERTRUNK LED 1.0

pdf

Catalog card SUPERTRUNK LED MT 1.0

pdf

Declaration of Conformity SUPERTRUNK LED MT 1.0

pdf

Diode catalog card SUPERTRUNK LED MT 1.0

link

Photometric files SUPERTRUNK LED MT 1.0

zip

Supertrunk blind cover (1528 mm) with 5×2.5 mm² cable and plugs.AKC.ST.EL.BLI.002

An electrical accessory for Supertrunk MT systems, this 1528 mm blind cover includes a prewired 5×2.5 mm² cable with male and female plugs—sealing unused channels while enabling seamless power continuity.

Supertrunk blind cover (1528 mm) with 7×2.5 mm² cable and plugs.AKC.ST.EL.BLI.012

An electrical accessory for Supertrunk MT systems, this 1528 mm blind cover includes a prewired 7×2.5 mm² cable with male and female plugs—sealing unused channels while enabling seamless power continuity.

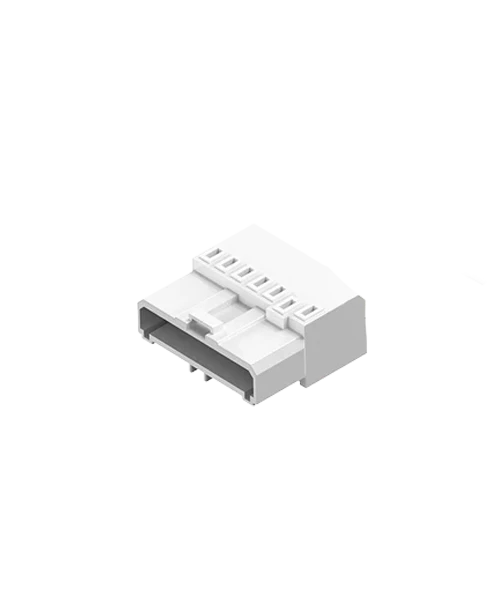

Supertrunk male power supply connector.AKC.ST.EL.ZLA.001

An electrical connector module for Supertrunk MT systems, providing a male power inlet for seamless, reliable power integration.

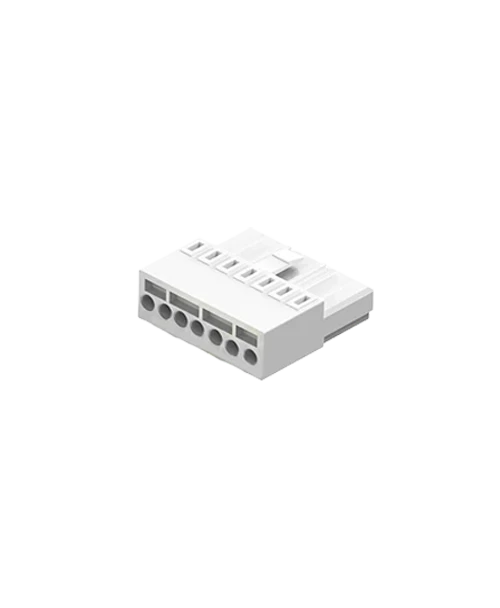

Supertrunk female power supply connector.AKC.ST.EL.ZLA.002

An electrical connector module for Supertrunk MT systems, providing female power inlet for seamless, reliable power integration.

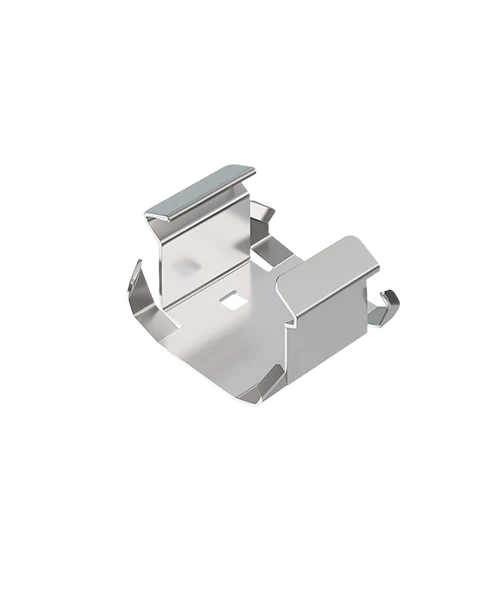

Unhooking protection for Supertrunk systems.AKC.MT.ME.ODP.001

A mechanical safeguard designed to secure LED modules in Supertrunk MT profiles, preventing accidental disengagement during installation and maintenance.
