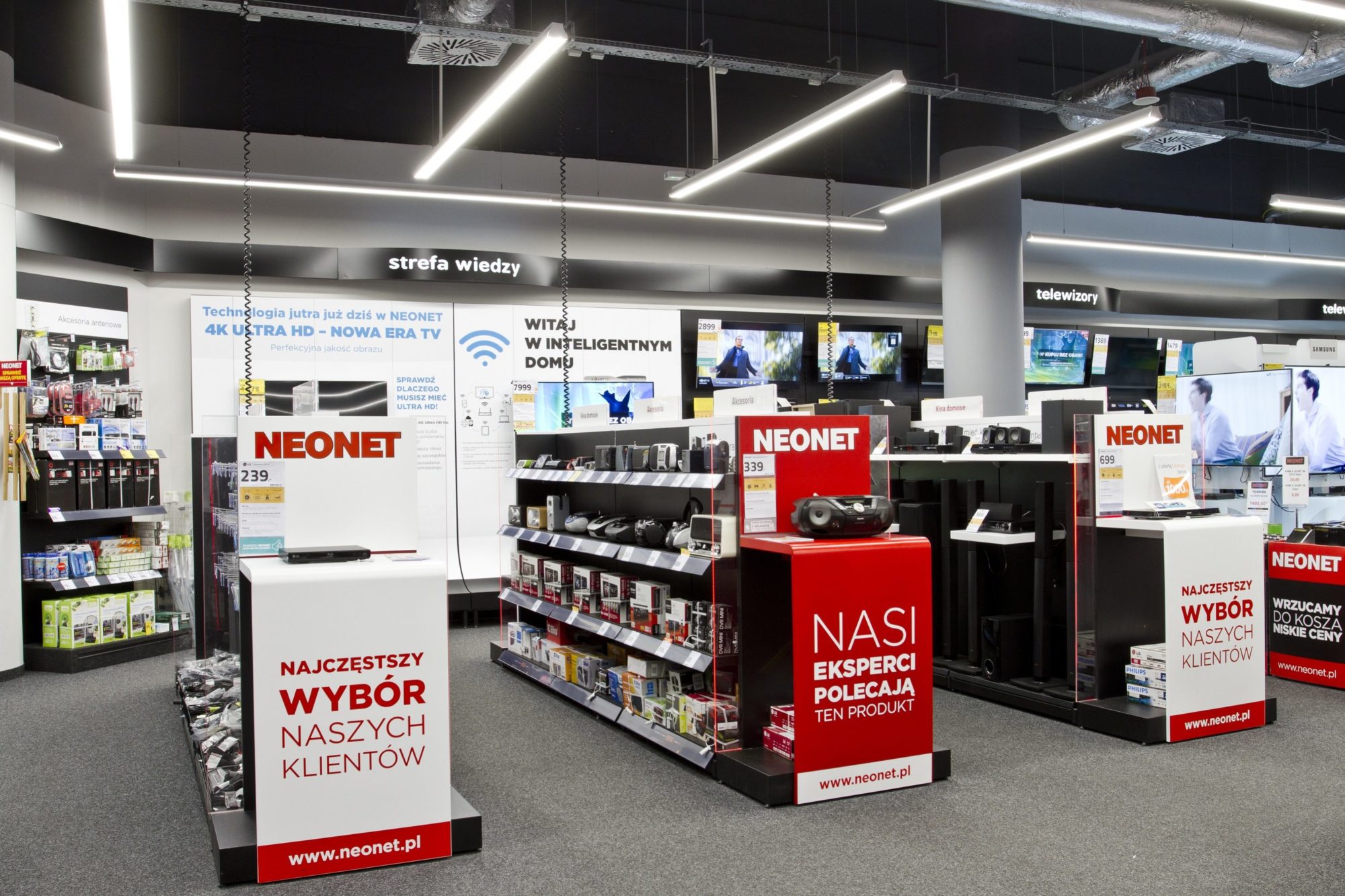

część sprzOprawy handlowe Lumline w Neonecie - Luxon LEDedażowa sklepu Neonet

LED Luminaries
Trunkline LED 1.0

Trunkline LED 1.0

  • High luminous efficacy up to 176Lm/W
  • Impact resistance IK08
  • Protection rating IP42
  • Lifetime up to 100,000 operating hours
  • 5-year warranty
Source of light : LED
CE Certification
Klasa odporności 0
I protection class
IK08 IP42
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

Trunkline is an industrial LED light line designed for production halls, warehouses, and commercial facilities. Available in power variants from 62–152 W and luminous flux from 4,700–24,000 lm, it offers luminous efficacy up to 176 lm/W. A robust steel housing in RAL 9003 color, quick connector, and four light distributions ensure easy installation and versatile applications. The IP42 protection rating, IK08 impact resistance, operating range of -25…+40°C, and a 5-year warranty guarantee reliable performance.

Read more

Trunkline: Reliability and Efficiency in Industrial Lighting



Durable Construction and Modern Design

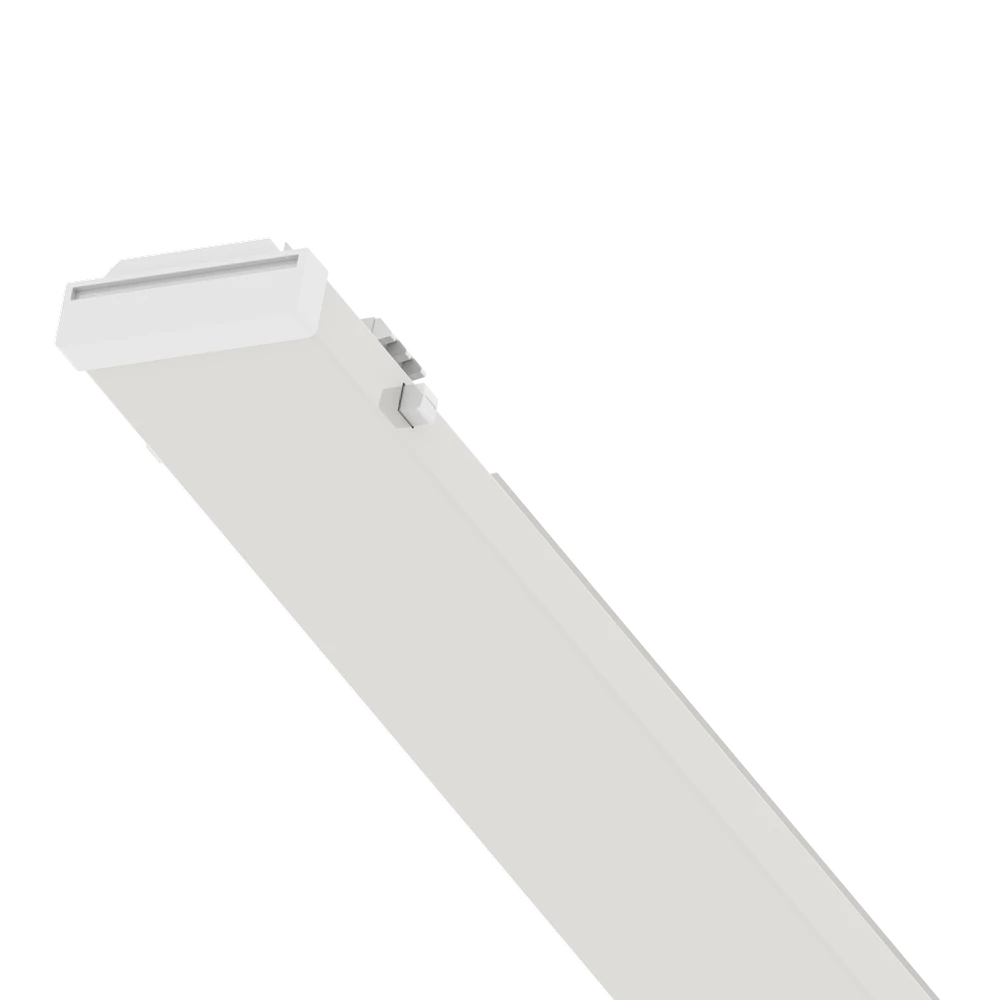

Trunkline is an LED light line designed for demanding industrial and commercial facilities. The steel sheet housing coated in white (RAL 9003) ensures durability, while the compact dimensions of 1177×70×55 mm and 2350×70×55 mm allow easy adaptation to various spaces. Thanks to the quick connector, installation is fast and effortless.



Efficiency and Lighting Performance

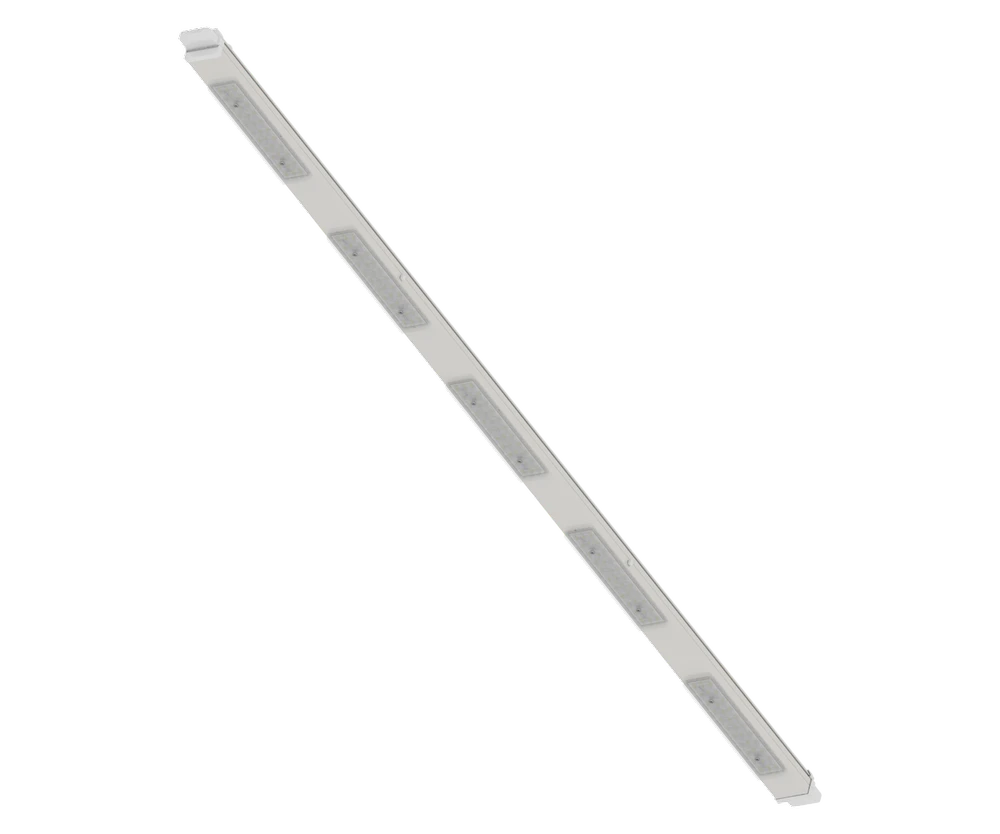

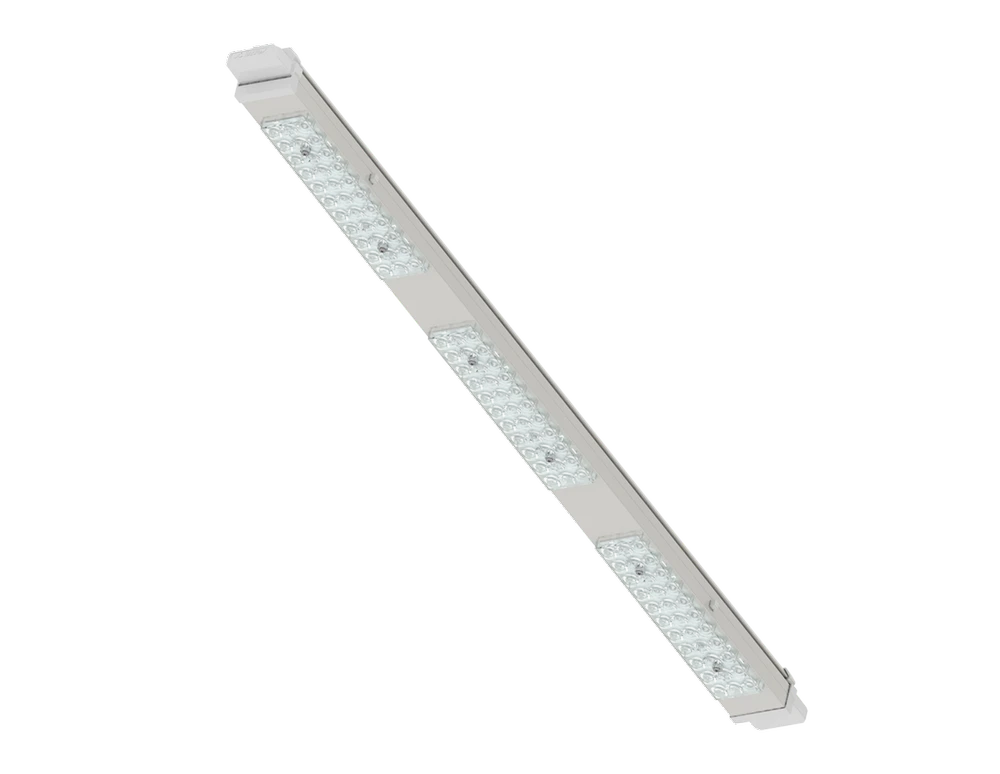

The luminaire is available in versions with 2 to 5 LED panels, offering a power range of 62–152 W and a luminous flux of 4700–24,000 lm. The high luminous efficacy of up to 176 lm/W significantly reduces energy costs. The 4000 K color temperature and CRI ≥80 provide comfortable and natural lighting conditions.



Flexible Control and Optics

Trunkline offers ON/OFF and DALI wired control options, allowing integration with lighting management systems. Four light distributions are available: 20°×70°, 90°×90°, 60°×60°, and 40°×80°, enabling customization for various applications – from high-bay storage to retail areas.



Durability and Safety

The luminaire features a IP42 protection rating, IK08 mechanical resistance, and stable operation in temperatures from -25°C to +40°C. LED lifetime of 100,000 h (L80B10) and a 5-year warranty confirm the system’s reliability and longevity.



Versatile Applications

Thanks to its high efficiency, multiple optical options, and easy installation, Trunkline is ideal for production halls, high-bay warehouses, large retail stores, and commercial or public buildings. It’s the perfect choice wherever reliability and energy efficiency are essential.



Summary

Trunkline is a professional LED light line that combines high performance, flexibility, and durability. It provides energy-efficient illumination, simple installation, and modern design, making it an excellent choice for demanding industrial and commercial environments.

Trunkline LED 1.0 applications

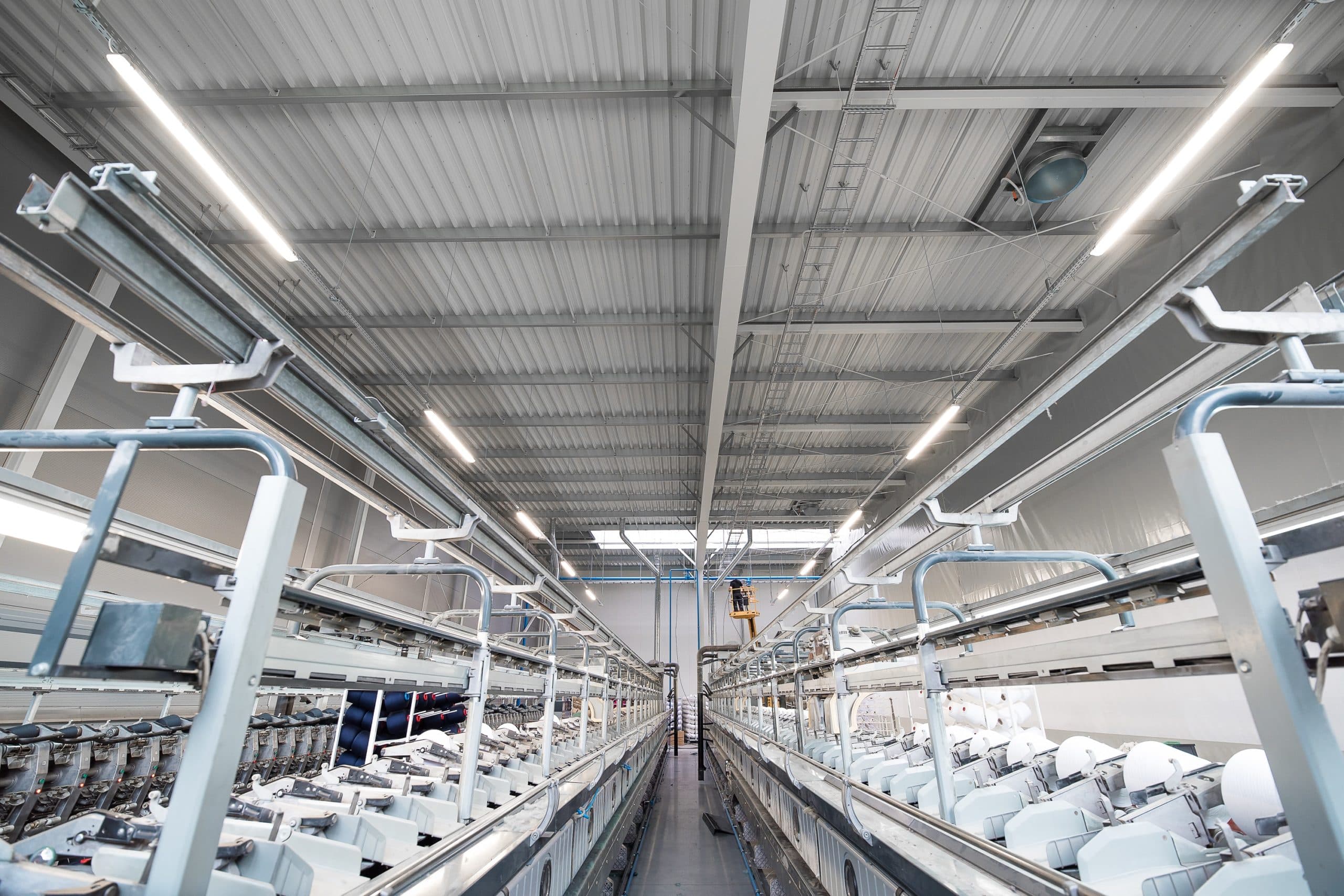

Hala przemysłowa firmy Legs po modernizacji oświetlenia na led - Luxon LED
Production halls

Trunkline LED 1.0 is an industrial LED trunking system designed for production halls. High efficacy up to 176 lm/W, durable steel housing and quick connectors ensure reliability and easy installation in demanding industrial environments.

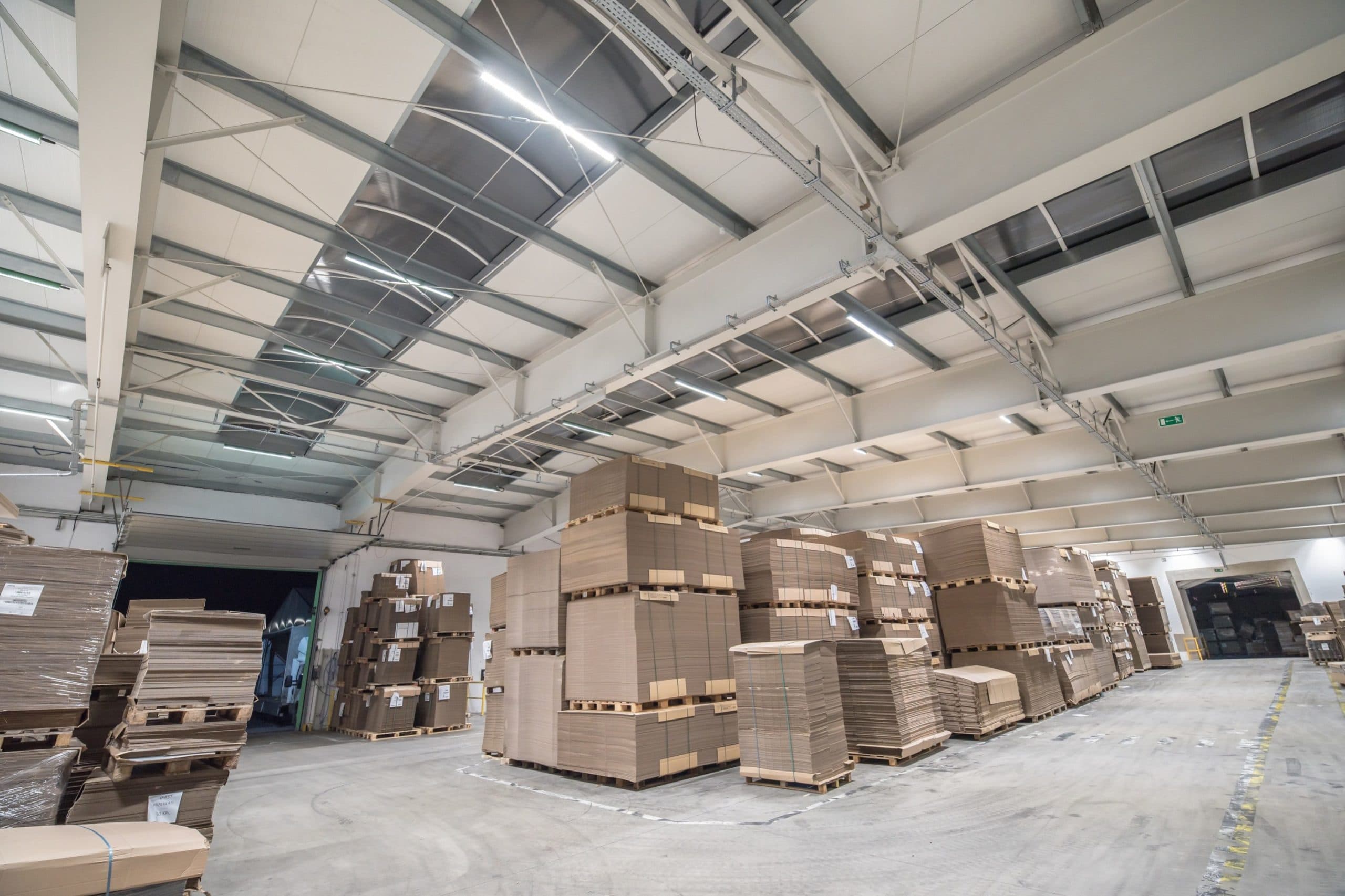

Oświetlenie przemysłowe w hali produkcyjnej firmy Jarpak - Luxon LED
Warehouses and high-bay storage

With beam distributions of 20×70° and 40×80°, Trunkline LED 1.0 is perfect for warehouses and high-bay storage zones. It offers power from 62W to 152W (4700–24 000 lm) and stable operation in a temperature range of -25…+40°C.

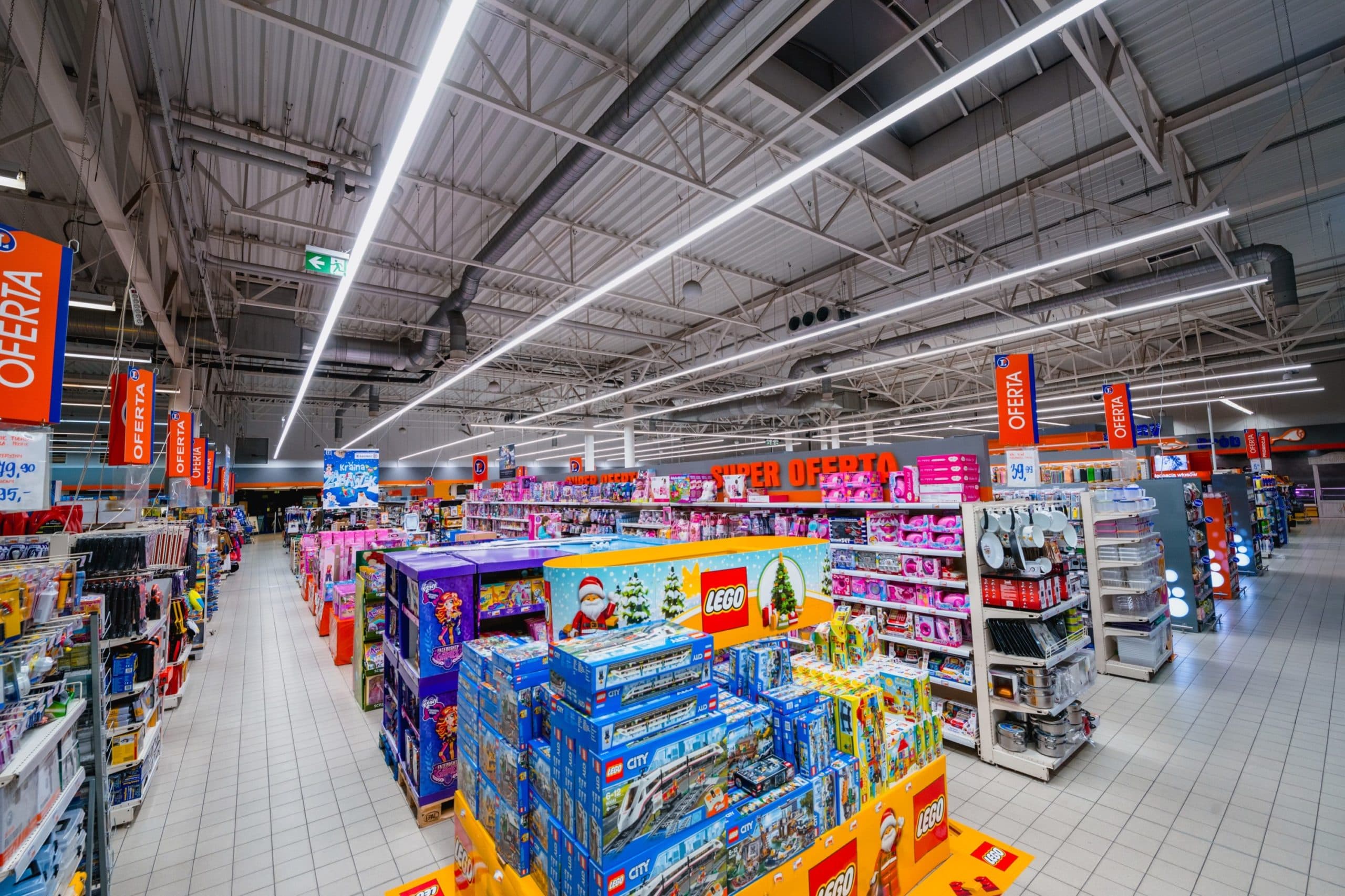

Oprawy Lumiline w sklepie Leclerc - Luxon LED
Large-area retail stores

Trunkline LED 1.0 performs well in large retail stores, providing uniform lighting and energy efficiency. With a long lifetime up to 100 000 h and a 5-year warranty, the system ensures long-term reliability.

wie kann die richtige beleuchtung den umsatz steigern
Commercial facilities

Elegant design and optional ON/OFF or DALI control make Trunkline LED 1.0 an excellent solution for commercial spaces where both functionality and aesthetics matter.

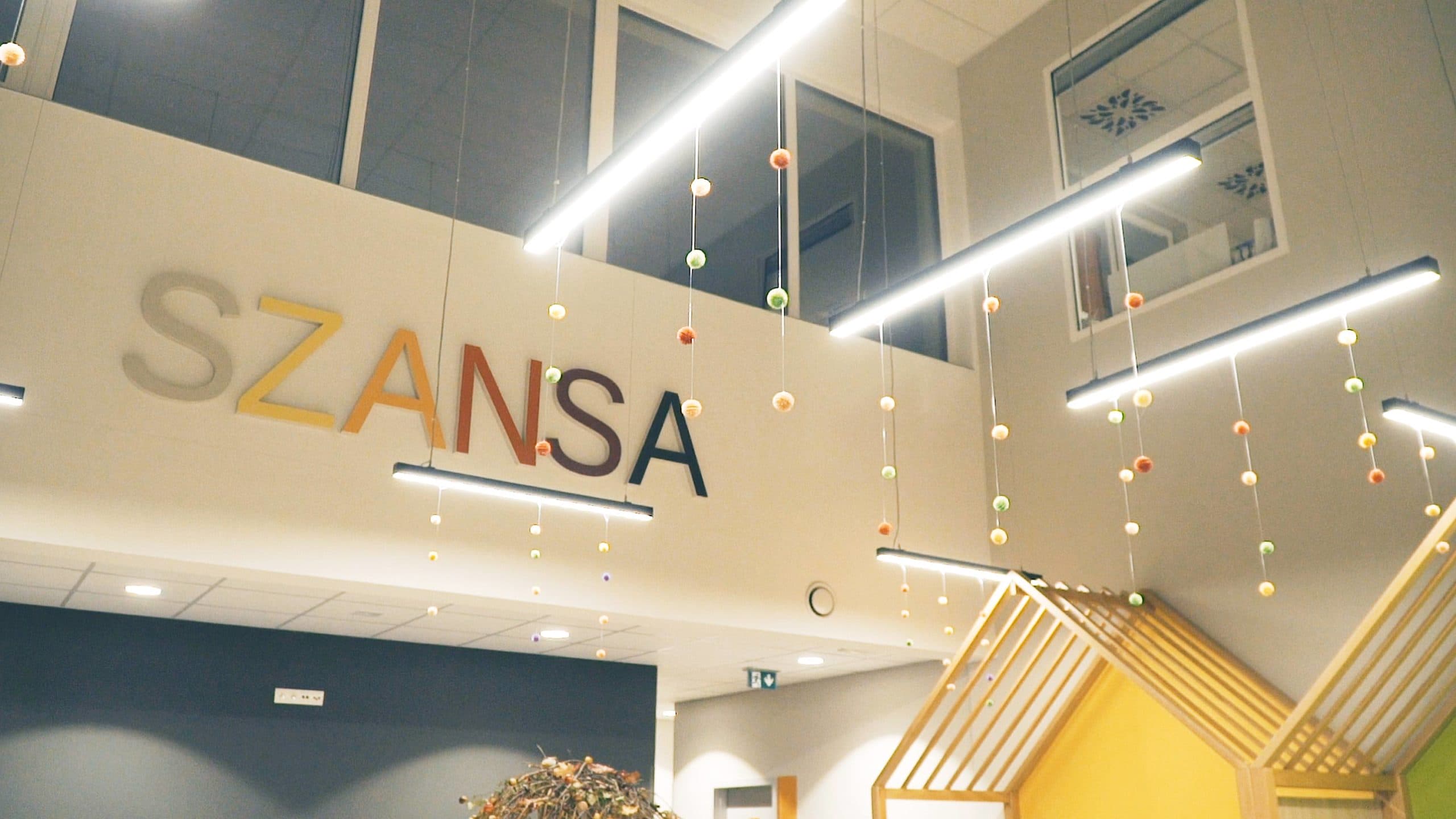

Public buildings

With IK08 impact resistance, IP42 protection rating, and stable performance in a wide temperature range, Trunkline LED 1.0 is suitable for public facilities, providing safe and comfortable lighting.

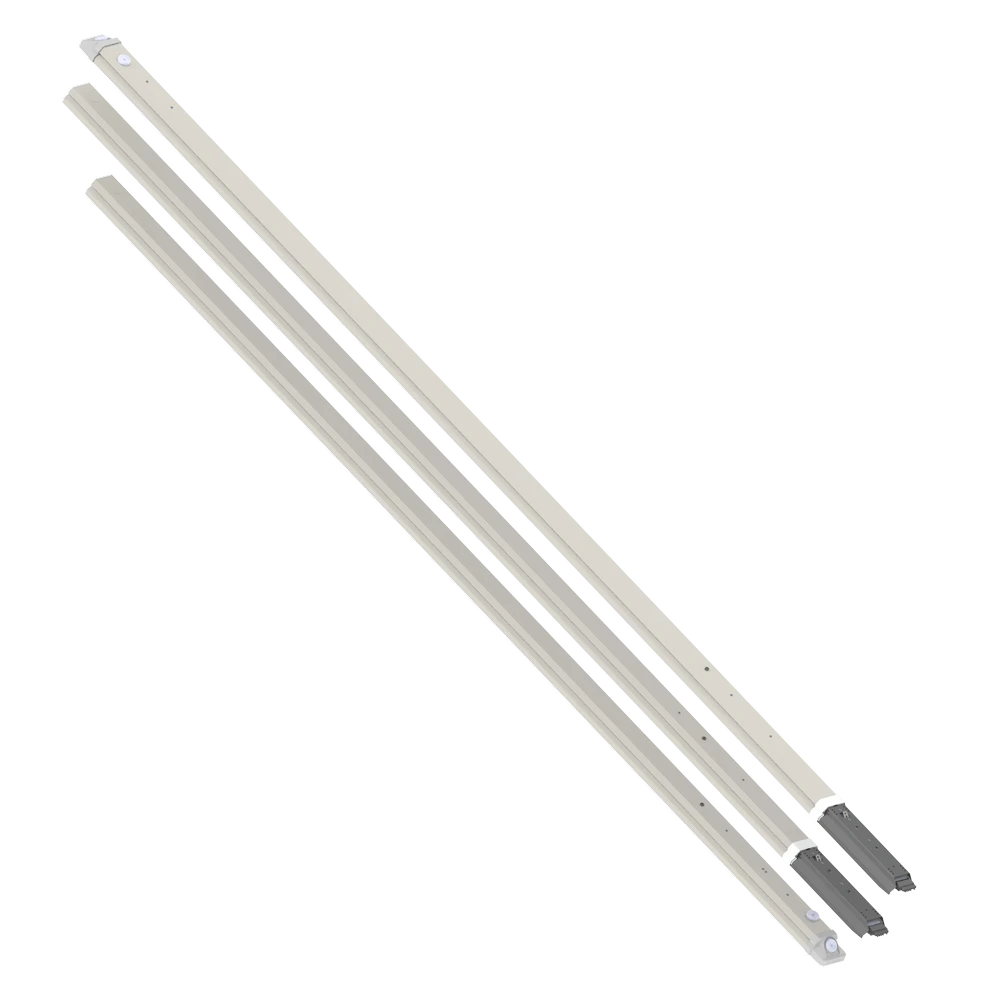

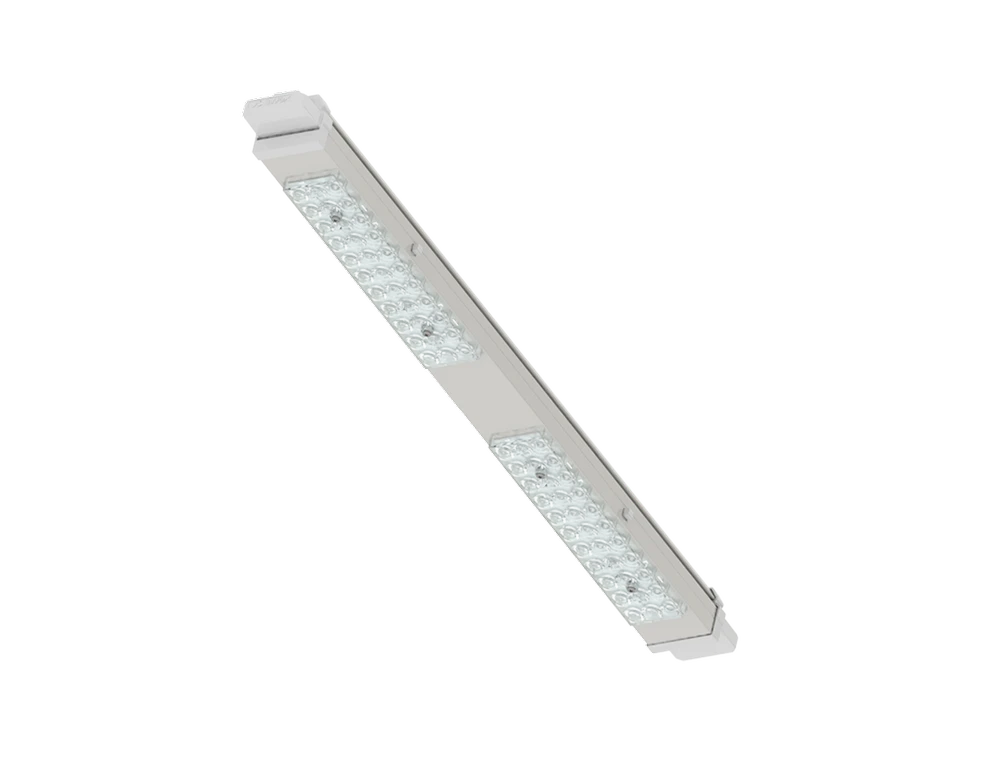

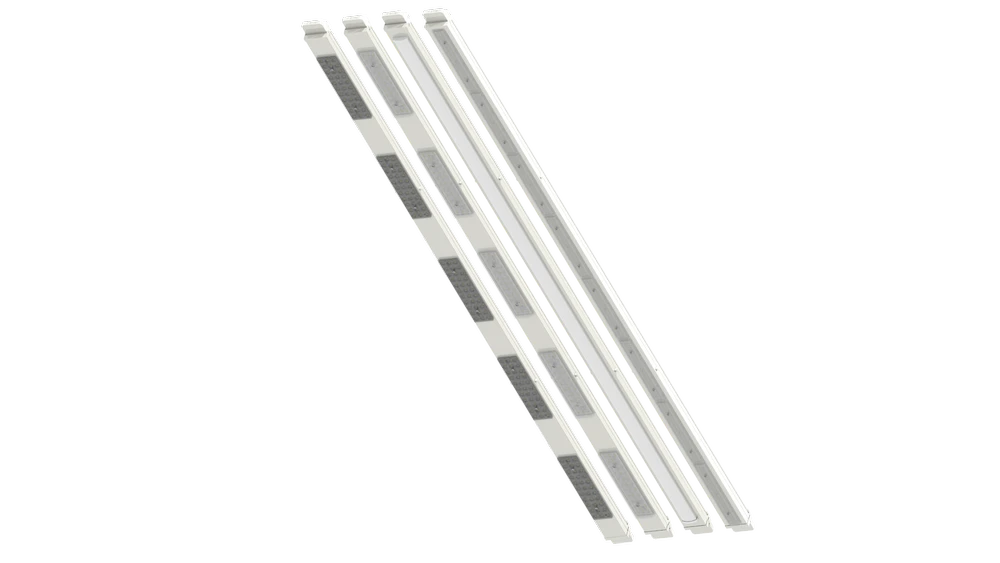

Trunkline LED lighting system

Trunkline schematic
Trunkline LED 1.0 files
Catalog card Trunkline LED 1.0
pdf
Declaration of Conformity Trunkline LED 1.0
pdf
Installation instructions Trunkline LED 1.0
pdf
Photometric files TRUNKLINE LED 1.0
zip
Product photos – Trunkline LED 1.0
zip
Available accessories

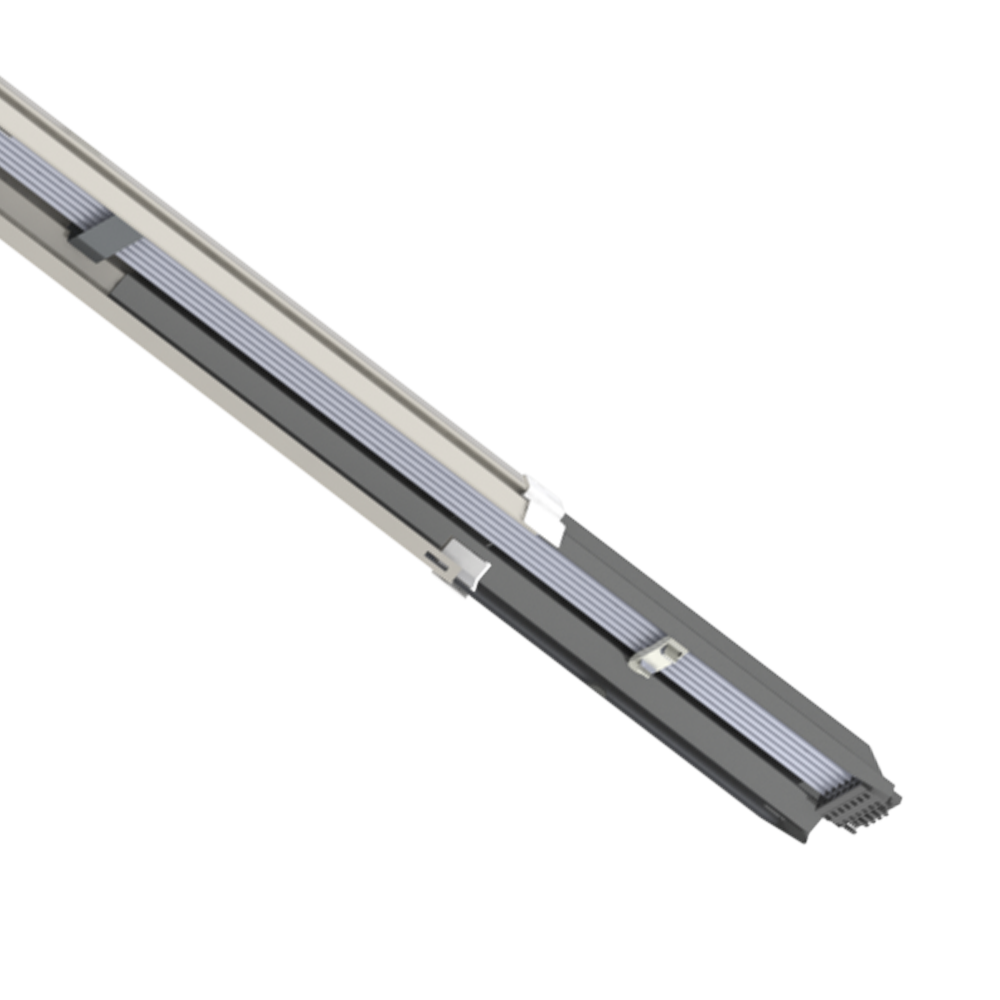

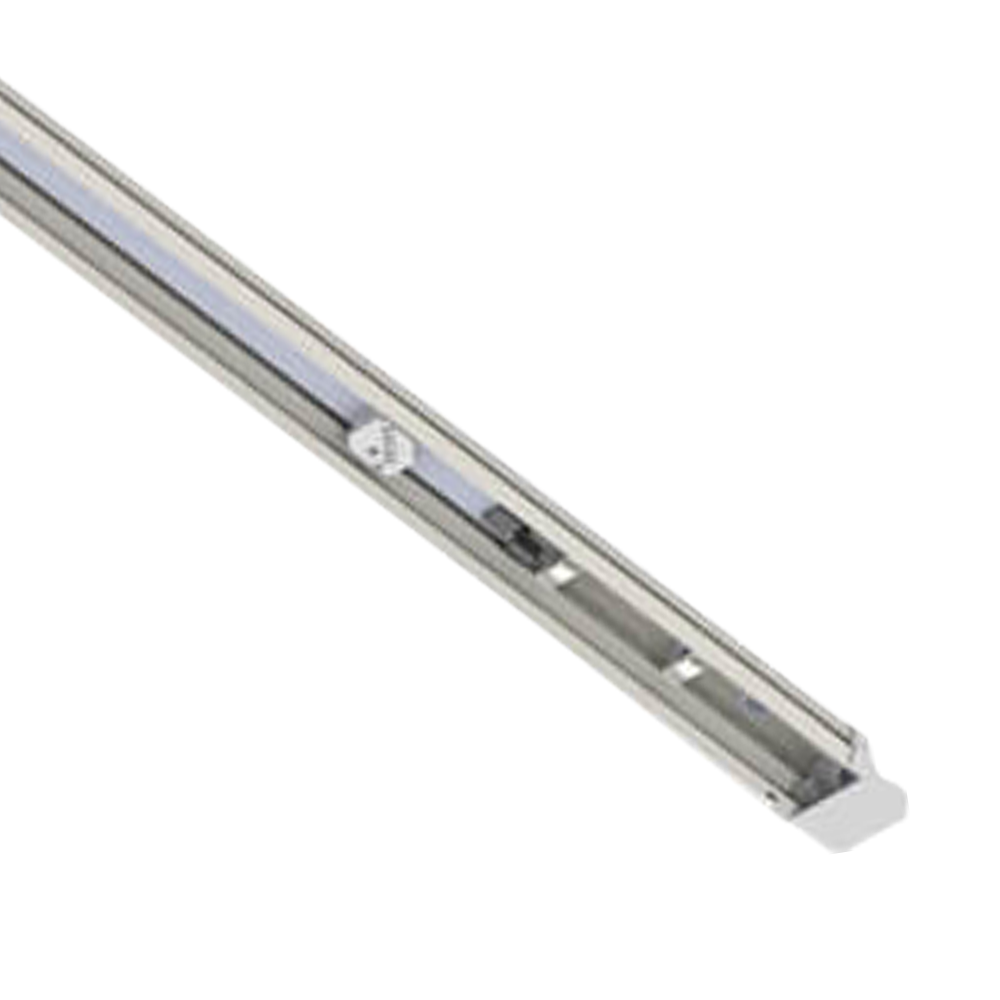

End base Trunkline 2350 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.003
Electrical accessory Trunkline – end base with a length of 2350 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
End base Trunkline 4700 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.013
Electrical accessory Trunkline – end base with a length of 4700 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
Middle base Trunkline 2350 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.002
Electrical accessory Trunkline – middle base with a length of 2350 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
Middle base Trunkline 4700 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.012
Electrical accessory Trunkline – middle base with a length of 4700 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
Starting base Trunkline 2350 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.001
Electrical accessory Trunkline – starting base with a length of 2350 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
Starting base Trunkline 2350 mm, 7×1.5 mm², white. AKC.TL.EL.PTL.001
Electrical accessory Trunkline – starting base with a length of 2350 mm, equipped with 7 cores of 1.5 mm². White version, designed for installation in the Trunkline system.
White cover Trunkline 2350 mm, for emergency luminaires. AKC.TL.ME.BLI.012
Mechanical accessory Trunkline – cover with a length of 2350 mm, made of sheet metal. White version, designed for mounting emergency luminaires in the Trunkline system.
White cover Trunkline 587 mm, for emergency luminaires. AKC.TL.ME.BLI.011
Mechanical accessory Trunkline – cover with a length of 587 mm, made of sheet metal. White version, designed for mounting emergency luminaires in the Trunkline system.
White cover Trunkline 587 mm, for B.E.G. sensor. AKC.TL.ME.BLI.021
Mechanical accessory Trunkline – cover with a length of 587 mm, made of sheet metal. White version, designed for mounting a B.E.G. sensor in the Trunkline system.
White cover Trunkline 2350 mm, for B.E.G. sensor. AKC.TL.ME.BLI.022
Mechanical accessory Trunkline – cover with a length of 2350 mm, made of sheet metal. White version, designed for mounting a B.E.G. sensor in the Trunkline system.

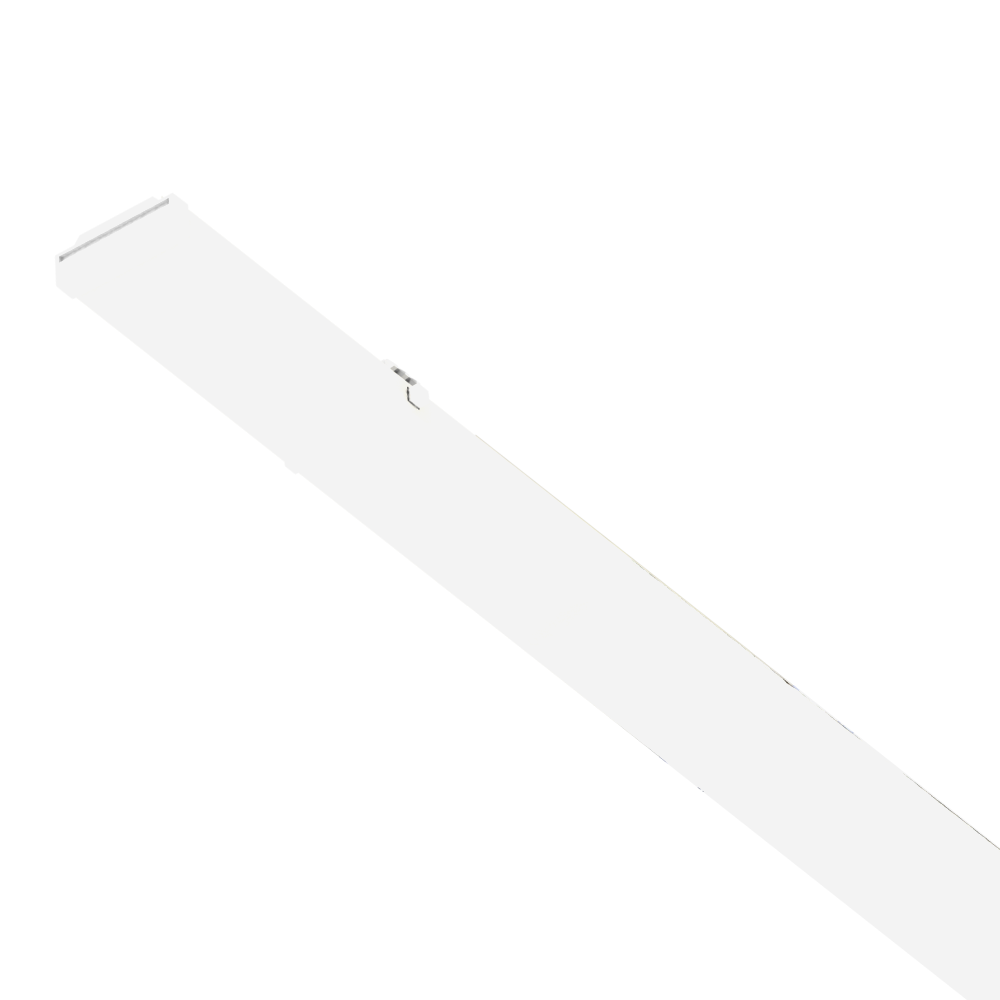

White cover Trunkline 2350 mm, PVC. AKC.TL.ME.BLI.001
Mechanical accessory Trunkline – cover with a length of 2350 mm, made of PVC. White version, designed for the Trunkline system.

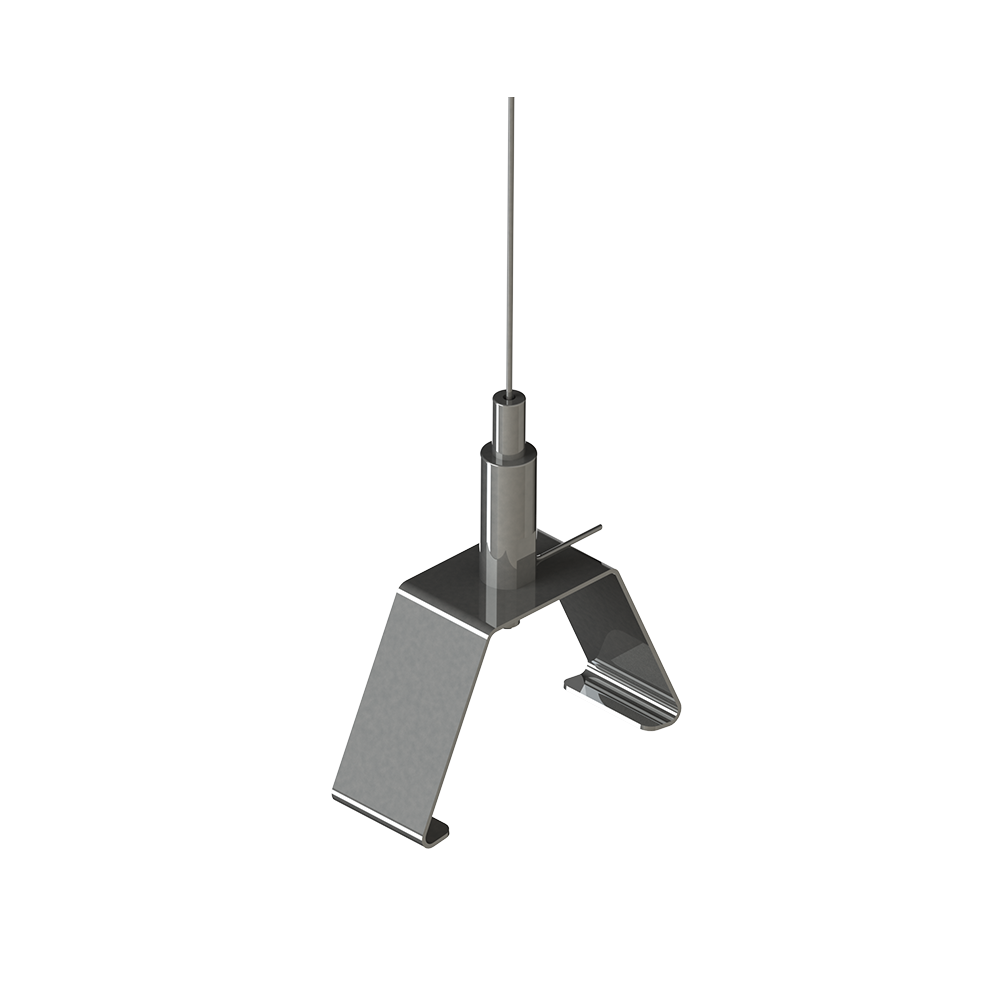

Adjustable suspended bracket Trunkline, 2 m cable. AKC.TL.ME.UCR.001
Mechanical accessory Trunkline – adjustable bracket for bases, designed for suspended mounting. Equipped with a 2 m cable.
