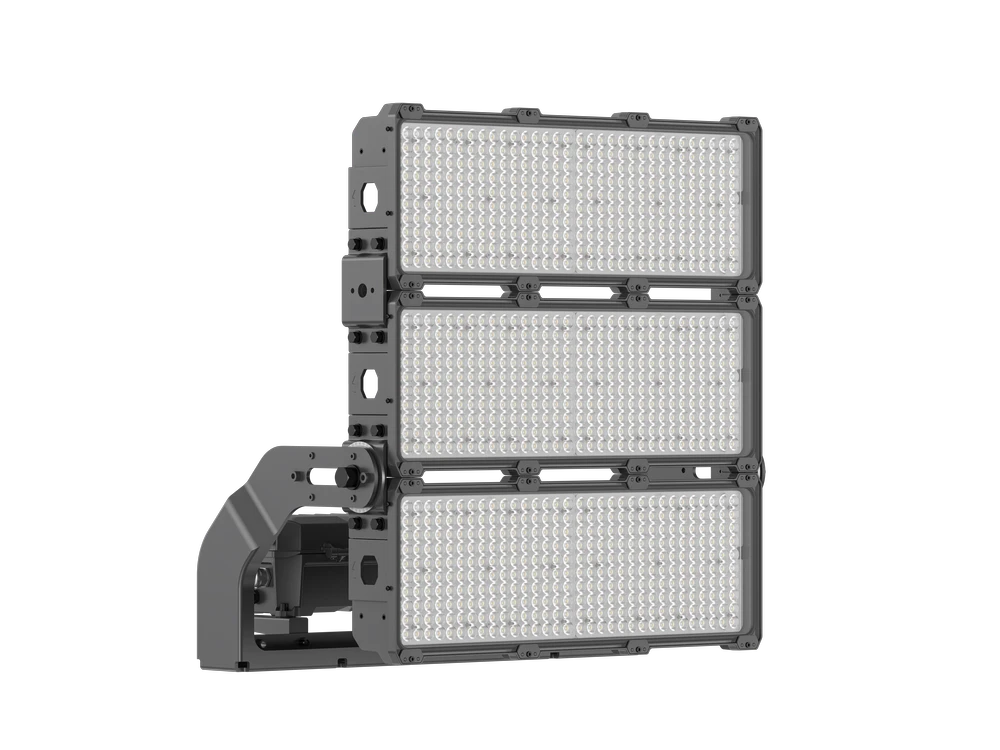

Modulux LED C5 1.0 is a specialized luminaire with enhanced corrosion resistance (C5 class), dedicated to operating in aggressive marine and industrial environments. It offers scalable power from 600 W to 1800 W and an impressive efficacy of up to 183 lm/W, generating a luminous flux of up to 330,500 lm. The fixture is available in color temperatures of 3000K, 4000K, 5000K, and 5700K, allowing for precise light adjustment to the specific requirements of the facility. Its IP66/IK08 construction with 20kV surge protection guarantees reliability in shipyards and ports.

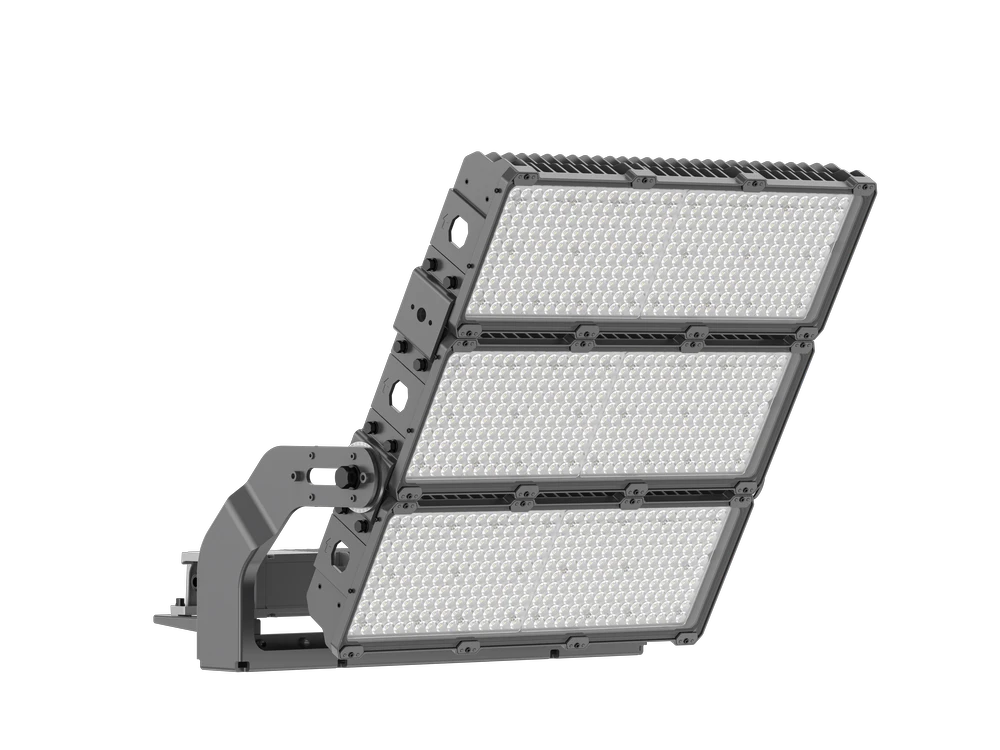

Modulux LED C5 1.0 is a High Power floodlight designed for operation in the most demanding environments with high salinity and humidity. The luminaire features certified C5-class corrosion resistance (in accordance with the ISO 12944 standard). This solution is dedicated to shipyards, seaports, oil rigs, and coastal infrastructure, where standard devices do not guarantee the required durability. It is available in color temperatures of 3000K, 4000K, 5000K, and 5700K.

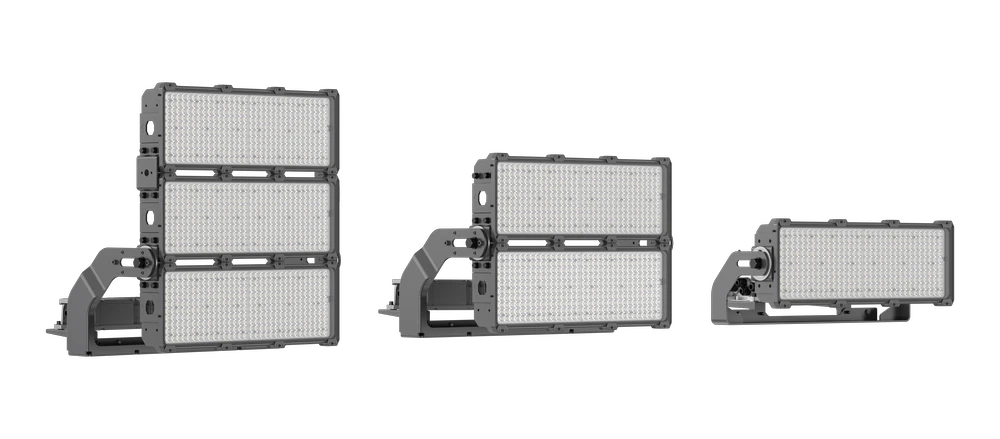

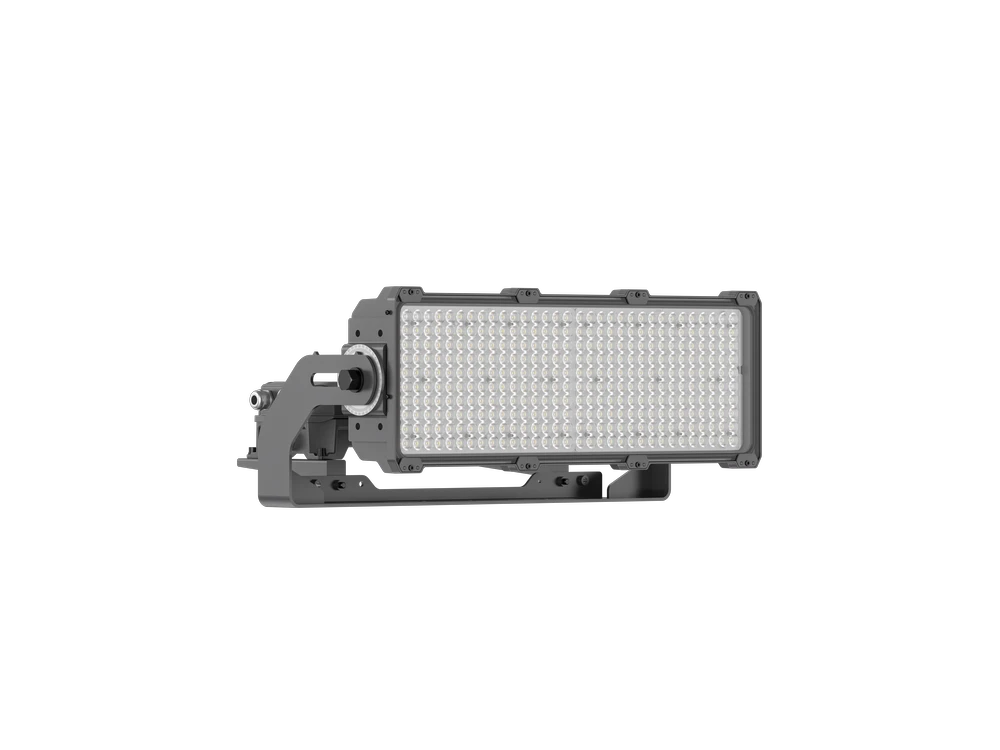

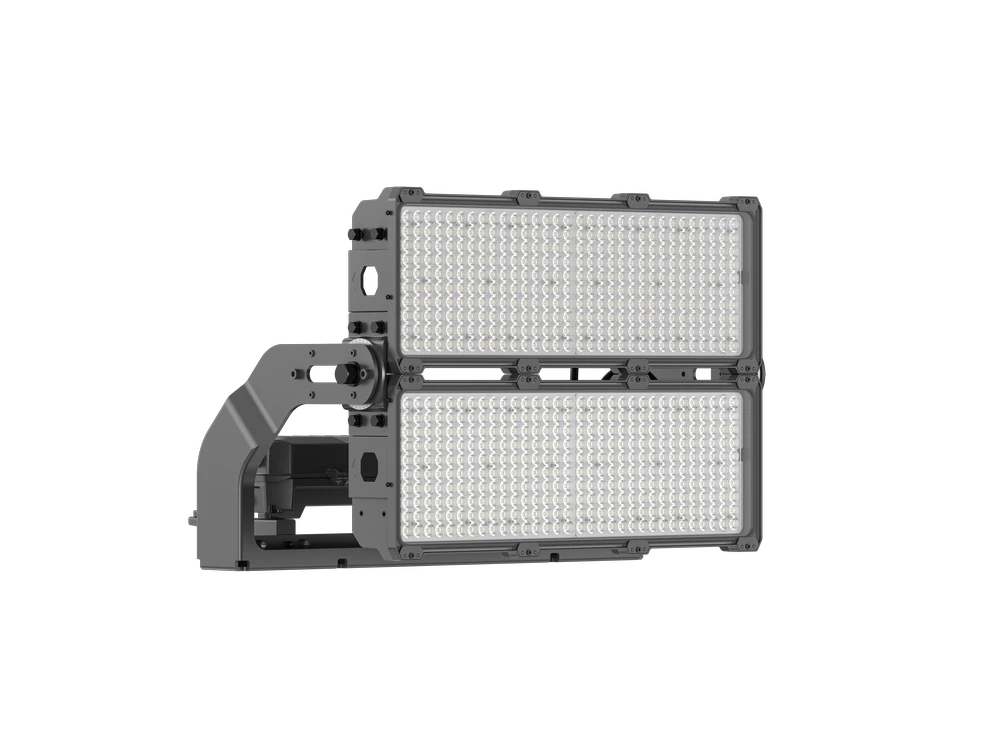

The series offers flexible power configuration based on a modular system, providing a luminous flux ranging from 105,400 lm to an impressive 330,500 lm. Thanks to its high efficiency, the luminaire achieves a luminous efficacy of up to 183 lm/W. Available variants include:

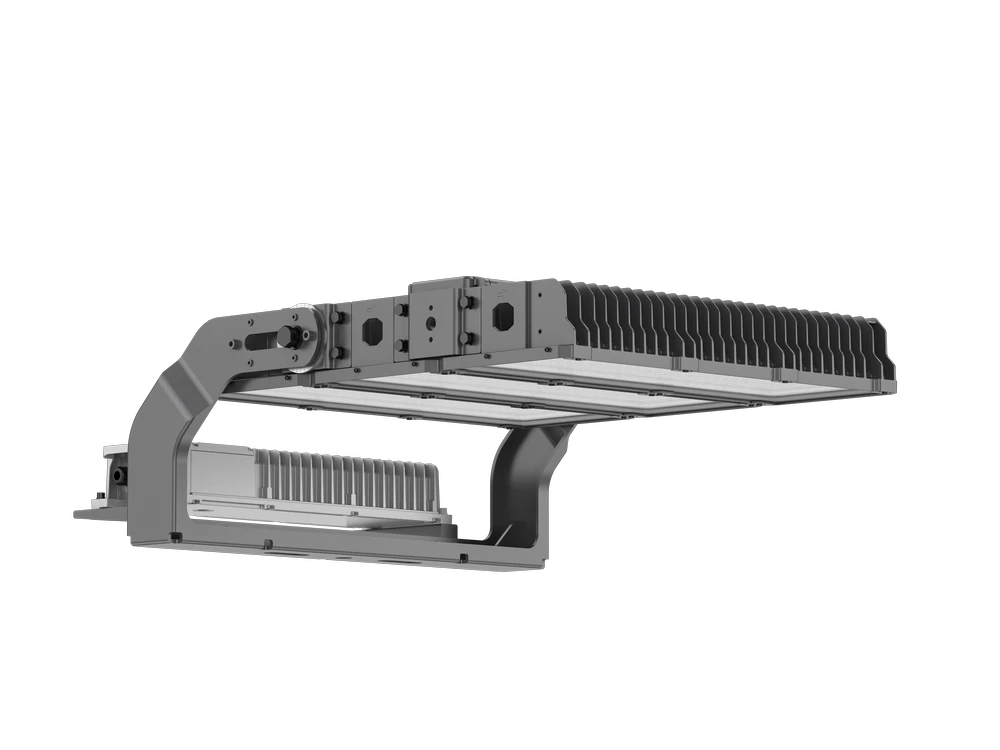

The luminaire is equipped with optical systems with beam angles of 30°x30°, 45°x45°, and 60°x60°, allowing for effective and uniform illumination of work surfaces. DALI wired control is used as standard, enabling integration with lighting management systems. The device operates stably in a wide temperature range from -30°C to +50°C.

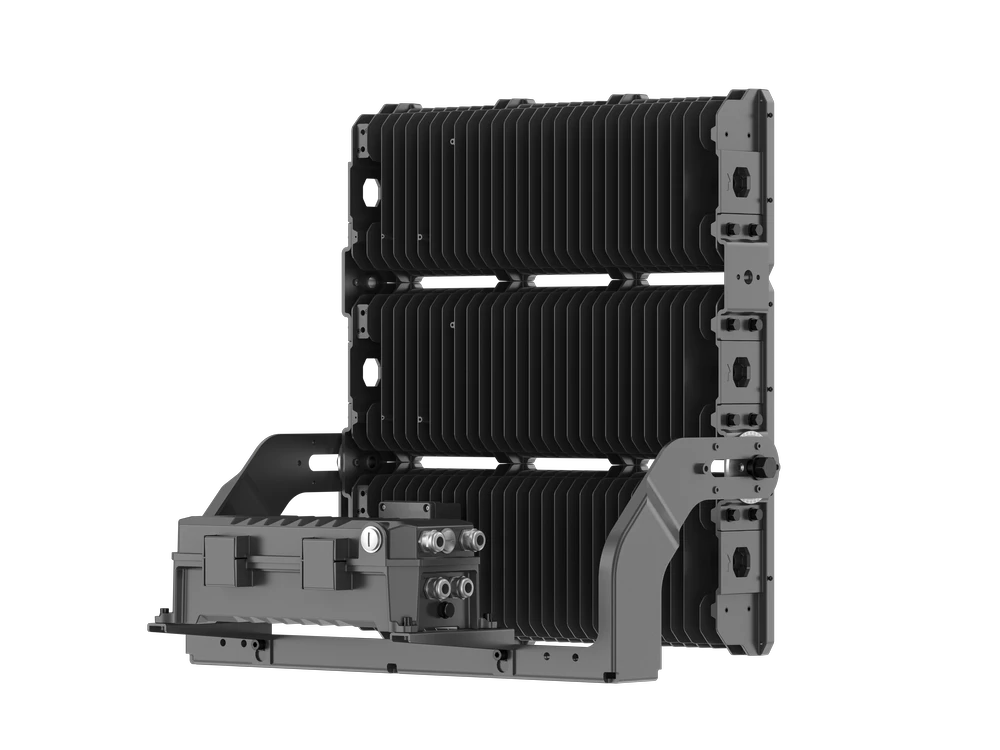

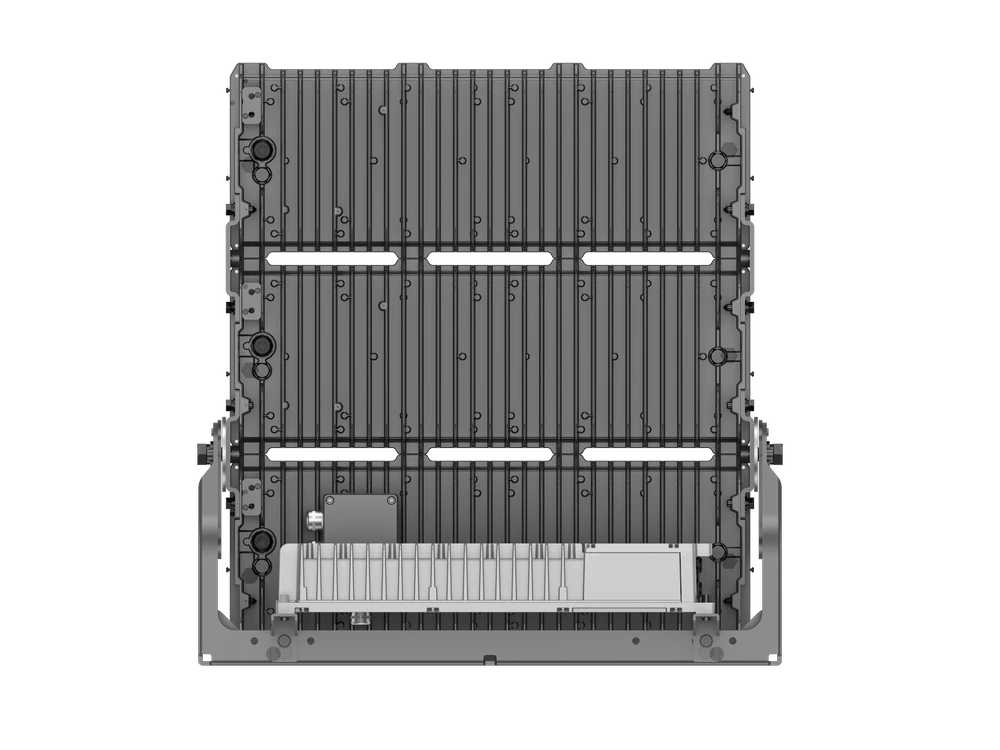

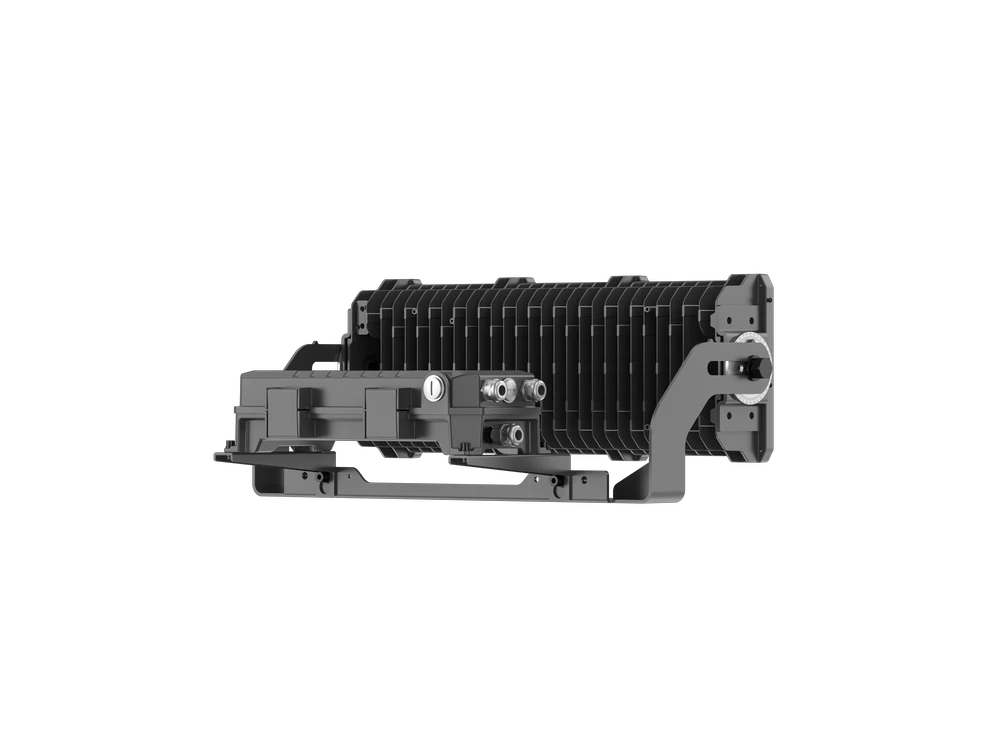

The solid housing made of die-cast aluminum (in gray) ensures IP66-level tightness and IK08 mechanical resistance (tempered glass diffuser). Due to the specific requirements of critical infrastructure and heavy industry, the luminaire is equipped with 20kV surge protection, securing the electronics against lightning strikes and power grid instability.

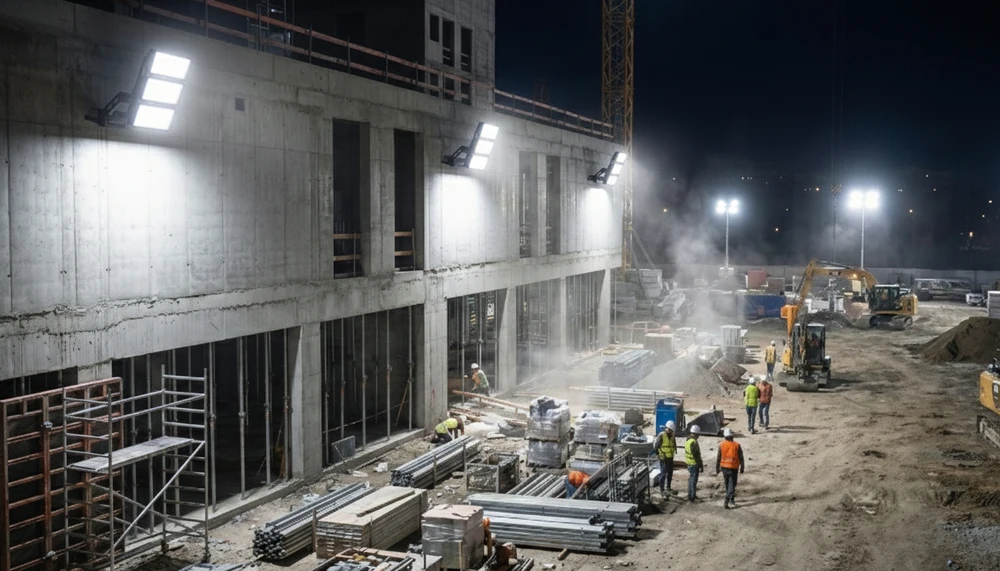

Mechanical resistance IK08 and IP66 protection make this fixture resistant to ubiquitous dust and harsh conditions found on construction sites. Additionally, built-in 20kV protection shields the electronics from voltage surges, guaranteeing reliability even with unstable power supply.

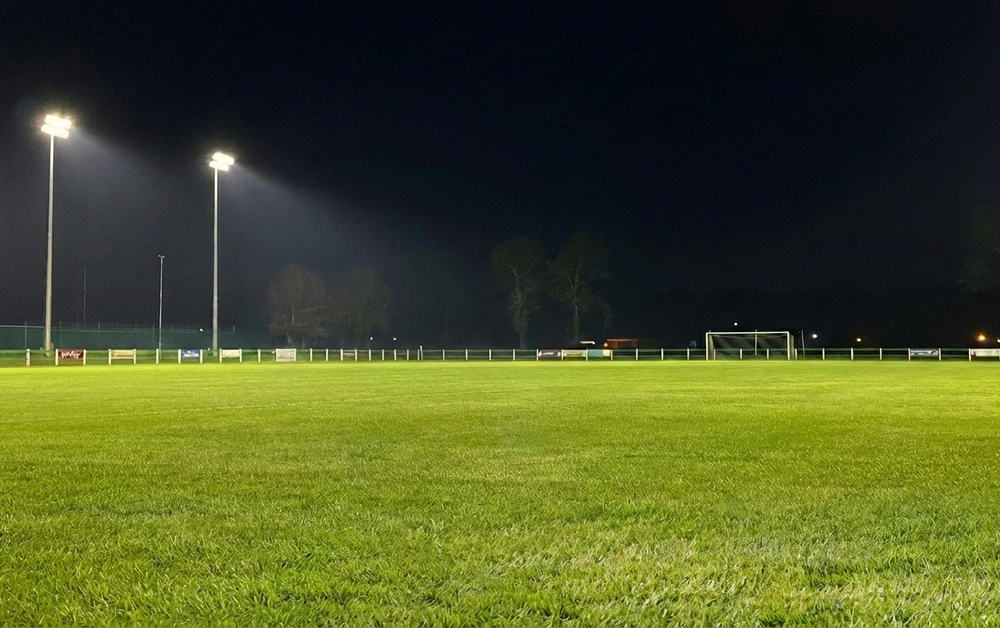

The Modulux LED 1.0 fixture performs excellently at sports facilities thanks to its power output of up to 1800 W, which guarantees effective illumination of the playing field. The use of precise optics ensures the required light uniformity and minimizes glare effect, which is crucial for player comfort.

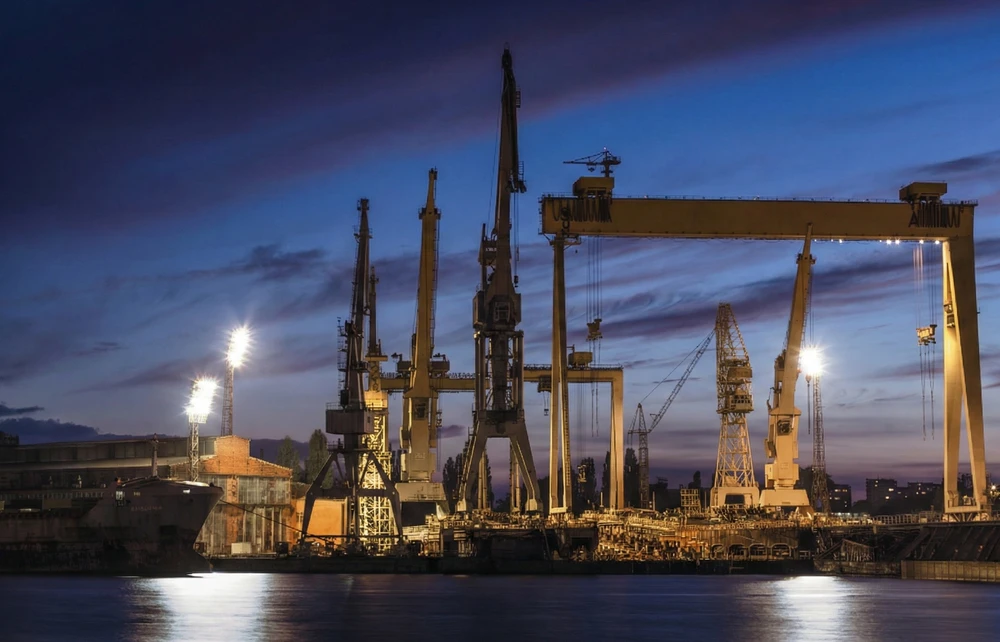

Modulux LED C5 1.0 is a dedicated solution for the maritime industry thanks to its certified class C5 corrosion resistance. The design effectively protects the device against the destructive effects of salt spray and high humidity, which are characteristic of coastal areas.
