Maris LED S 1.0

Maris LED S 1.0

High mechanical impact resistance – IK10 class
No visible light points thanks to matte polycarbonate optics
Available motion sensor optimizing electricity consumption
IP54 protection rating allowing installation in rooms with increased humidity
LED lifespan of up to 100,000 hours
Source of light : LED
CE Certification
Klasa odporności 1
II protection class
IK10 IP54
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

Maris LED S 1.0 is a surface-mounted luminaire designed for efficient lighting of offices, social rooms, corridors, as well as technical zones and underground garages. It is characterized by the highest mechanical impact resistance IK10 and an IP54 protection rating, ensuring full reliability in demanding indoor environments. This model offers a power output of 22W (2480 lm) or 29W (2950 lm) with a luminous efficacy of 112 lm/W. Thanks to the matte polycarbonate diffuser, Maris LED S 1.0 guarantees uniform 120°x120° light distribution with no visible LED hotspots. The availability of a motion sensor version and a 5-year warranty make it an exceptionally durable and cost-effective solution for modern investments.

Maris LED S 1.0

The Maris LED S 1.0 luminaire was designed for demanding spaces such as modern office areas, social rooms, and high-traffic corridors. By utilizing a 4000K color temperature (neutral white) and a high color rendering index (CRI >80), the product provides natural lighting that enhances user concentration and safety. Energy-efficient MidPower LEDs guarantee stable lighting parameters with minimal power consumption.



Durability and Mechanical Resistance

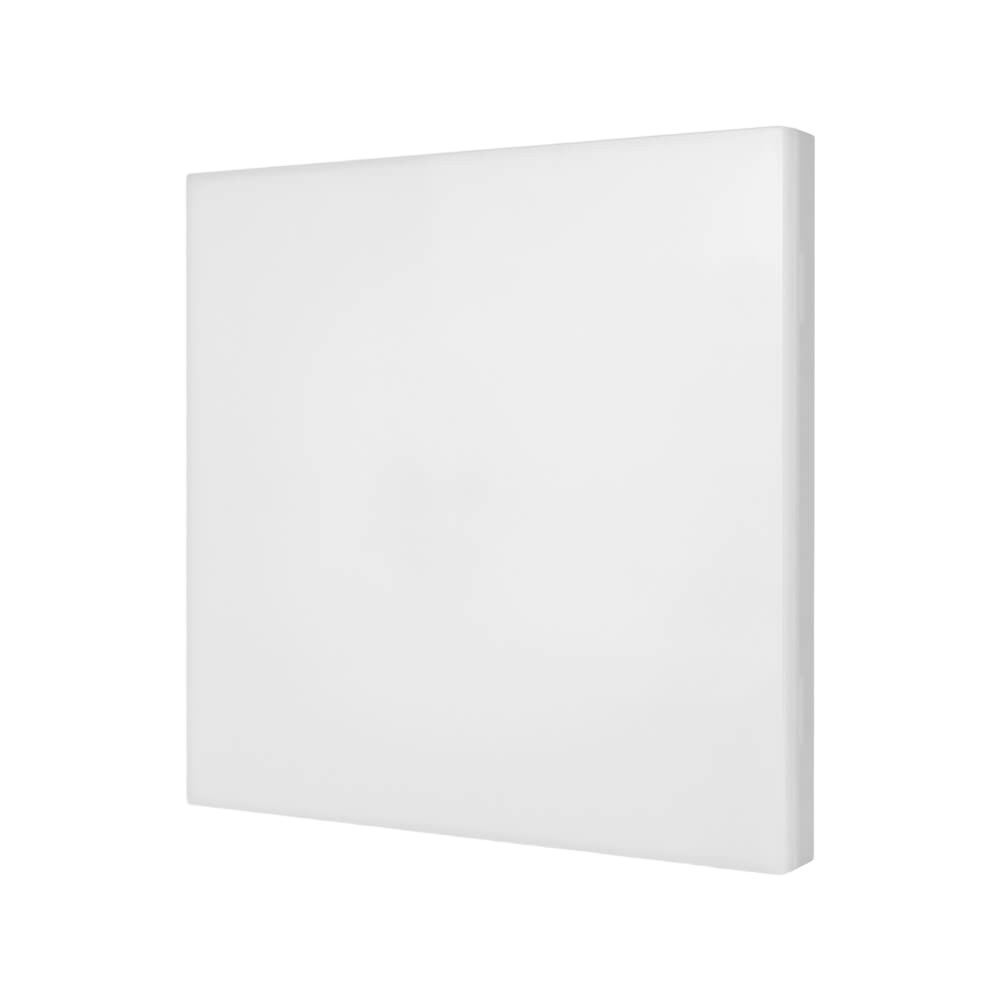

The Maris LED S 1.0 model is built on a durable housing made of high-quality white polycarbonate (PC). A key advantage of this luminaire is its “armored” construction with an IK10 mechanical resistance rating, making it resistant to vandalism and accidental damage. The high IP54 protection level guarantees tightness against dust and water splashes, making the fixture perfect for technical rooms and underground garages.



Advanced Optics and Work Comfort

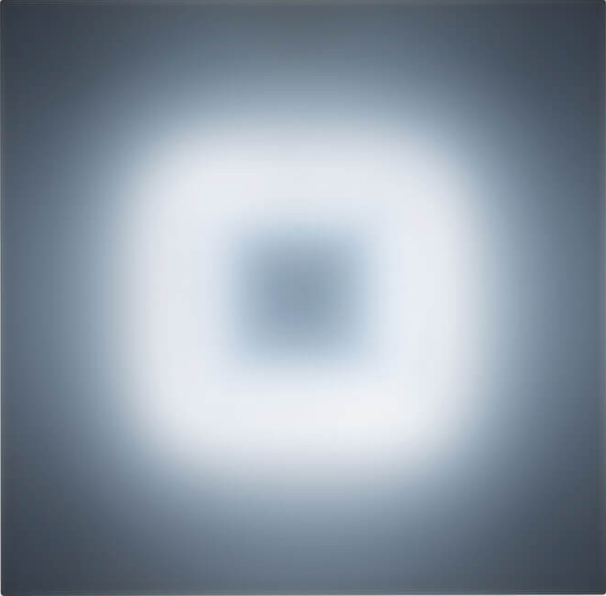

The luminaire uses a matte polycarbonate cover that effectively diffuses light, eliminating the unpleasant glare effect. A specially selected diffuser ensures that individual LED light points are invisible in the Maris LED S 1.0 model, while the wide 120°x120° beam angle evenly fills the space. This allows for excellent visibility without creating deep shadows, which is crucial in corridors and work zones.



Efficiency and Intelligent Management

The Maris LED S 1.0 luminaire features high luminous efficacy at 112 lm/W and is available in two performance variants: 22W (2480 lm) and 29W (2950 lm). To maximize savings, the product is offered in a version with a motion sensor, which optimizes the device’s operating time. With a lifespan reaching 100,000 hours and a wide operating temperature range (0°C to +40°C), this luminaire is a durable and virtually maintenance-free solution for any facility.

Maris LED S 1.0 applications
Office spaces

By using a matte diffuser, the Maris LED S 1.0 model guarantees the highest standard of visual comfort, effectively neutralizing glare and masking individual LEDs. The emitted 4000K neutral light creates a professional atmosphere in offices and social areas, actively supporting focus and user productivity during daily tasks.

Social spaces

Thanks to its robust polycarbonate housing and IP54 protection rating, the Maris LED S 1.0 model performs excellently in kitchens, cloakrooms, and employee cafeterias. The luminaire is fully resistant to moisture, and its design facilitates quick cleaning, which is crucial in high-traffic social zones and areas with intensive employee movement.

Communication routes

The availability of a motion sensor variant makes Maris LED S 1.0 an ideal solution for lighting staircases and corridors. Intelligent control automation allows for significant energy savings by activating the lamp only when a user is detected within the detection field.

Technical rooms

A high IK10 mechanical resistance rating guarantees durability in low-ceiling and confined service zones where there is a risk of accidental impact. Thanks to its wide 120°x120° beam optics, this model provides precise and uniform illumination across the entire work surface without creating dead spots.

Underground garages

Exceptional impact resistance combined with an IP54 rating effectively protects the electronic system from dust and moisture typical of underground parking lots. An extremely long lifespan of up to 100,000 hours reduces the need for frequent maintenance in hard-to-reach places, making the Maris LED S 1.0 a virtually maintenance-free solution.

Product available in multiple configurations
NameProduct-CodeDimensions
W x H x L [mm]		Power [W].Luminosity [lm]Efficiency [lm/W]Color temperature [K]CRI/RaProtection Rating [IP]Light distribution
Maris LED S 1.0 1 MRS1ST.10.022.8A4000
MRS1ST.10.029.8A4000
 280/63/280
280/63/280
 22
29
 2480
2950
 112
101
 4000
4000
 >80
>80
 54
54
120°X120°
120°X120°

120°X120°
120°X120°
Maris LED S 1.0 files
Data sheet Maris LED S 1.0
pdf
Declaration of Conformity Maris LED S 1.0
pdf
Installation instructions Maris LED S 1.0
pdf
Photometric files Maris LED S 1.0
zip
