Maris LED C 1.0

High mechanical impact resistance – IK10 class
No visible light points thanks to matte polycarbonate optics
Available motion sensor optimizing electricity consumption
IP54 protection rating allowing installation in rooms with increased humidity
LED lifespan of up to 100,000 hours
Source of light : LED
CE Certification
Klasa odporności 1
II protection class
IK10 IP54
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

Maris LED C 1.0 is a surface-mounted luminaire designed for lighting traffic routes, staircases, technical rooms, and underground garages. It features high impact resistance at IK10 and an IP54 protection rating, ensuring reliability in demanding indoor environments. The luminaire offers power options of 22W (2600 lm) or 29W (3040 lm) with luminous efficacy reaching up to 118 lm/W. Equipped with a matte polycarbonate diffuser, Maris LED C 1.0 provides a uniform light distribution of 120°x120° without visible light points. Available motion sensor and a 5-year warranty make it an economical and durable solution for modern infrastructure.

Maris LED C 1.0

The Maris LED C 1.0 luminaire was engineered to provide optimal lighting in areas such as staircases, corridors, social rooms, and office spaces. With a neutral color temperature of 4000K and a high color rendering index of CRI >80, the luminaire creates a friendly and safe working environment. The use of high-efficiency MidPower LEDs allows for a stable luminous flux while maintaining low energy consumption.



Durability and Mechanical Resistance

The luminaire’s construction is based on a high-quality white polycarbonate (PC) housing. A key advantage of the Maris LED C 1.0 model is its mechanical strength at the IK10 level, protecting the device against vandalism or accidental impacts. The IP54 protection rating secures the electronics against the ingress of dust and moisture, which is particularly important in underground garages and basements.



Optics and Visual Comfort

The matte PC diffuser used in the luminaire serves a dual purpose: it protects the light source and ensures user comfort. The special structure of the cover means that there are no visible light points in the Maris LED C 1.0, and the light is softly and evenly dispersed at a 120°x120° angle. This helps avoid glare and ensures excellent visibility across the entire illuminated surface.



Control and Performance Parameters

The luminaire is equipped with a precise motion sensor, which significantly reduces operating costs by activating the light only when necessary. The Maris LED C 1.0 model is available in two power variants: 22W with an efficiency of 118 lm/W and 29W with an efficiency of 104 lm/W. The device operates stably in a temperature range from 0°C to +40°C, and its lifespan reaches 100,000 hours, translating into years of maintenance-free use.

Maris LED C 1.0 applications

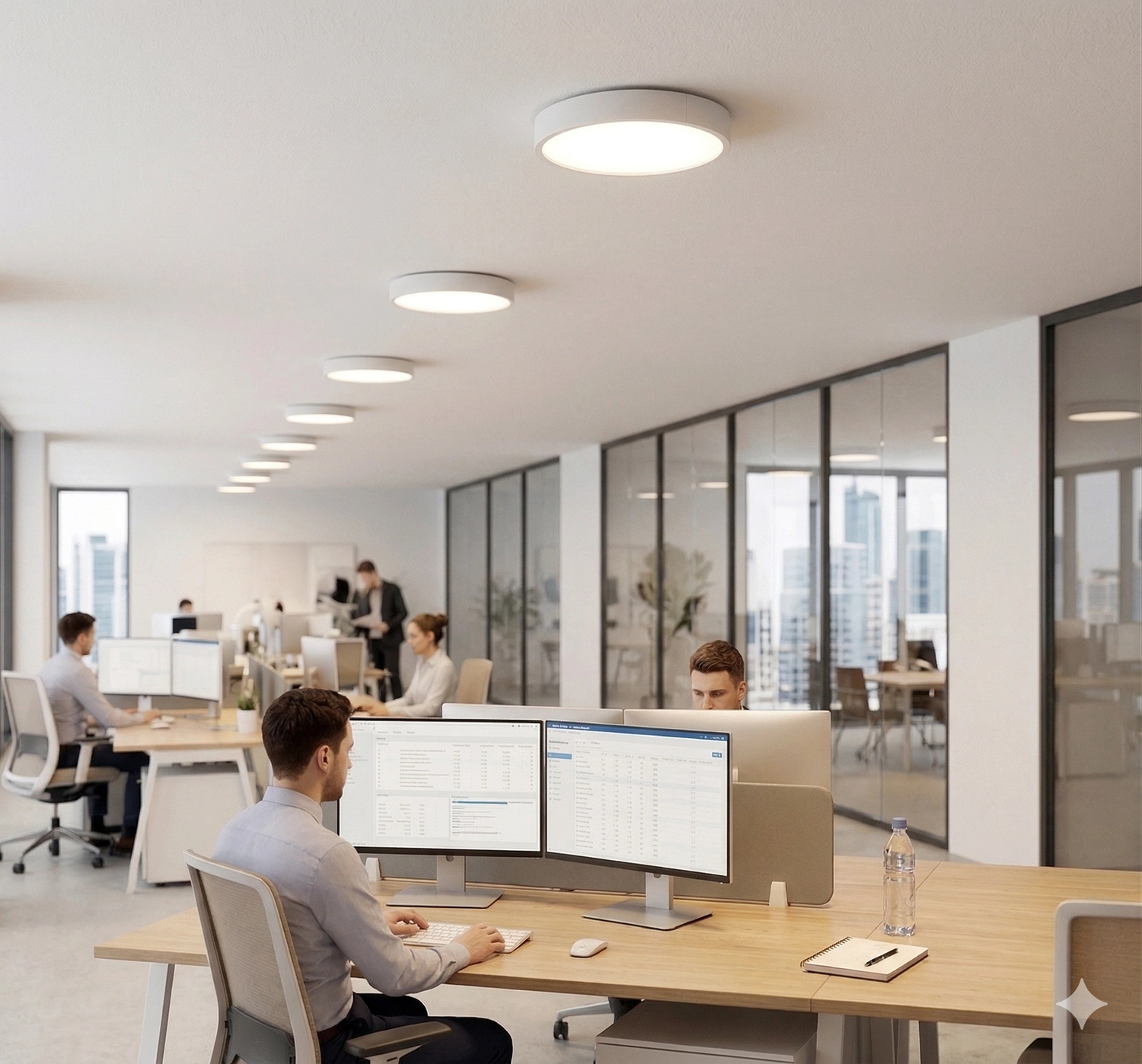

Office spaces

The Maris LED C 1.0 luminaire provides high visual comfort thanks to the matte diffuser, which effectively eliminates glare and hides visible light points. The neutral 4000K color promotes concentration, creating a professional atmosphere in workspaces.

Social spaces

The durable polycarbonate construction and IP54 protection rating make the luminaire ideal for kitchens, locker rooms, and canteens. It is resistant to moisture and easy to keep clean, which is crucial in areas with high employee traffic.

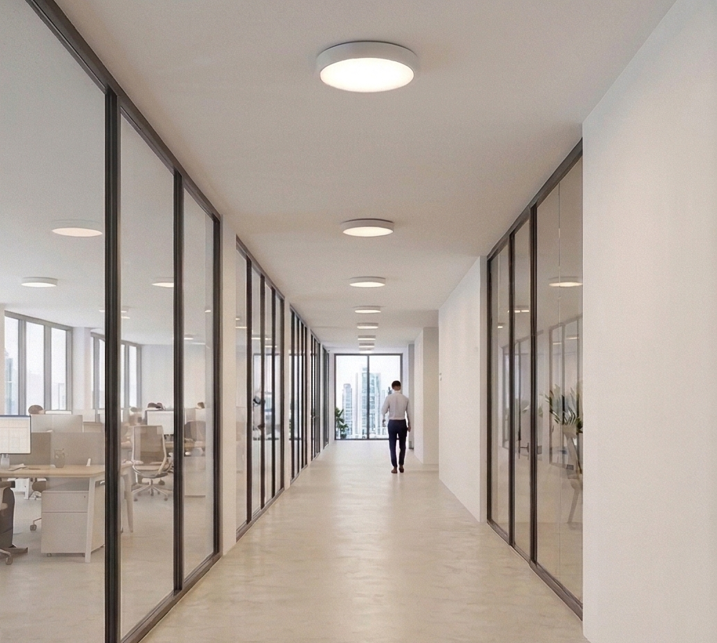

Communication routes

Thanks to the available motion sensor, the luminaire is perfect for lighting corridors and staircases. Control automation allows for significant reduction in energy costs, activating the light only when user presence is detected.

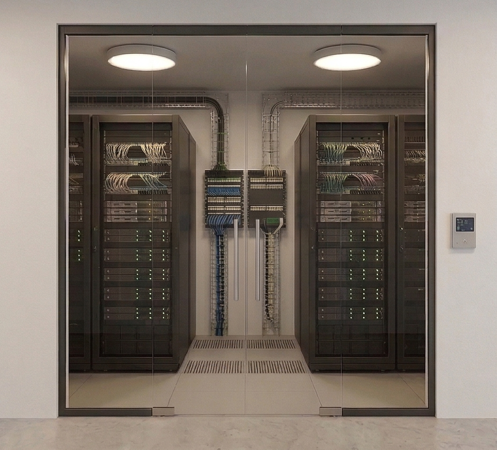

Technical rooms

Mechanical resistance at the IK10 level guarantees safety in low and cramped service spaces where the luminaire may be exposed to accidental impacts. The wide beam angle of 120°x120° ensures even illumination of the entire working surface.

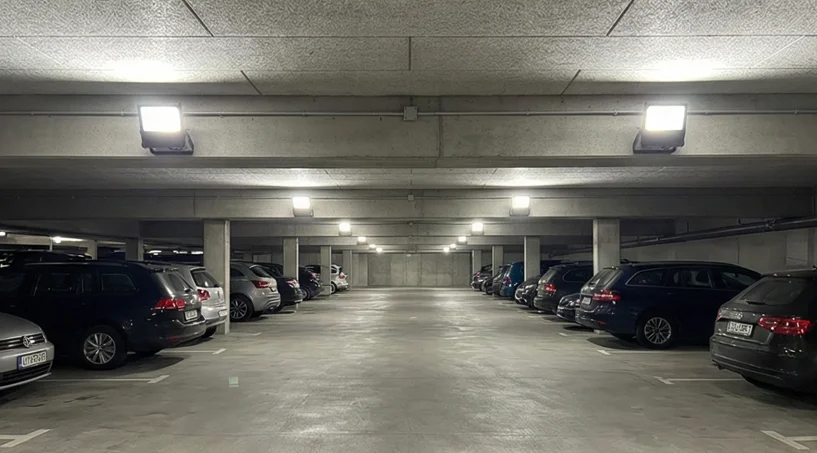

Underground garages

The combination of high impact resistance and IP54 sealing protects the electronics from dust and moisture in garages. A long lifespan of 100,000 hours minimizes the need for frequent maintenance in hard-to-reach places.

Product available in multiple configurations
NameProduct-CodeDimensions
W x H x L [mm]
Power [W].Luminosity [lm]Efficiency [lm/W]Color temperature [K]CRI/RaProtection Rating [IP]Light distribution
Maris LED C 1.0 1 MRC1ST.10.022.8A4000
MRC1ST.10.029.8A4000
280/63/280
280/63/280
22
29
2600
3040
118
104
4000
4000
>80
>80
54
54
120°X120°
120°X120°

120°X120°
120°X120°
