Linvera LED SF 1.0

Linvera LED SF 1.0: Minimalism and Functionality in Interior Lighting

Modern Design and Optical Variety

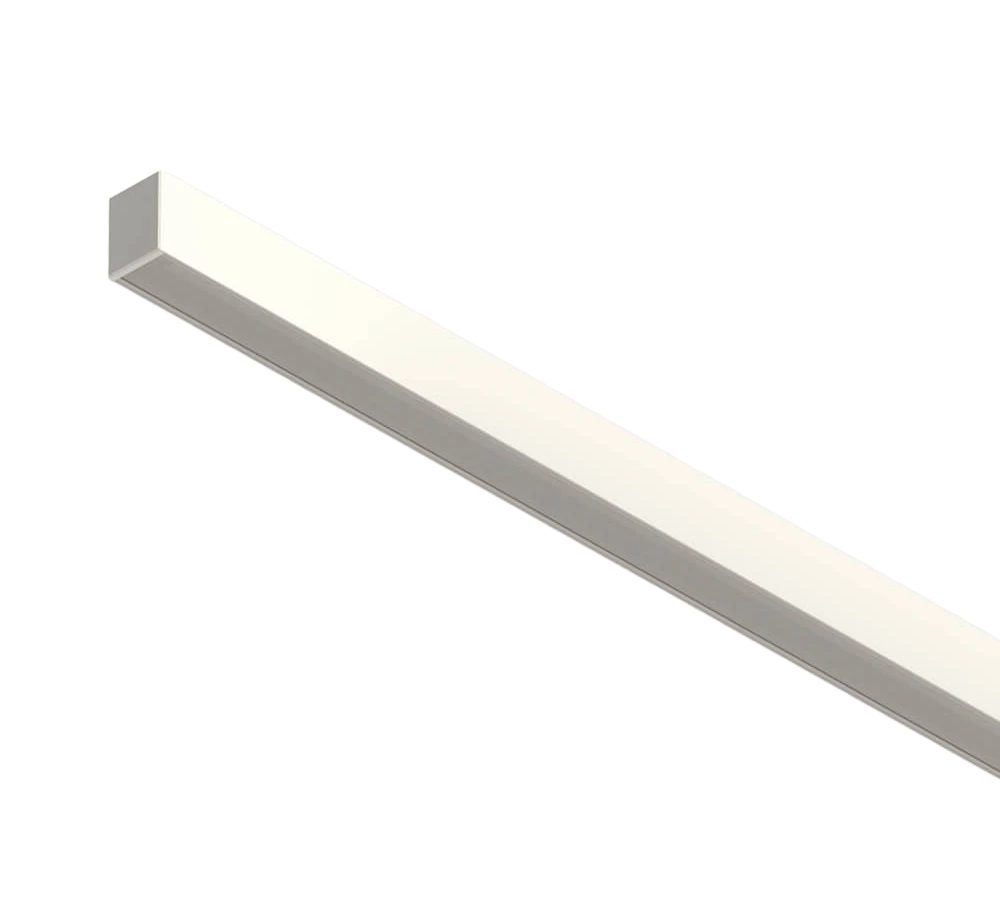

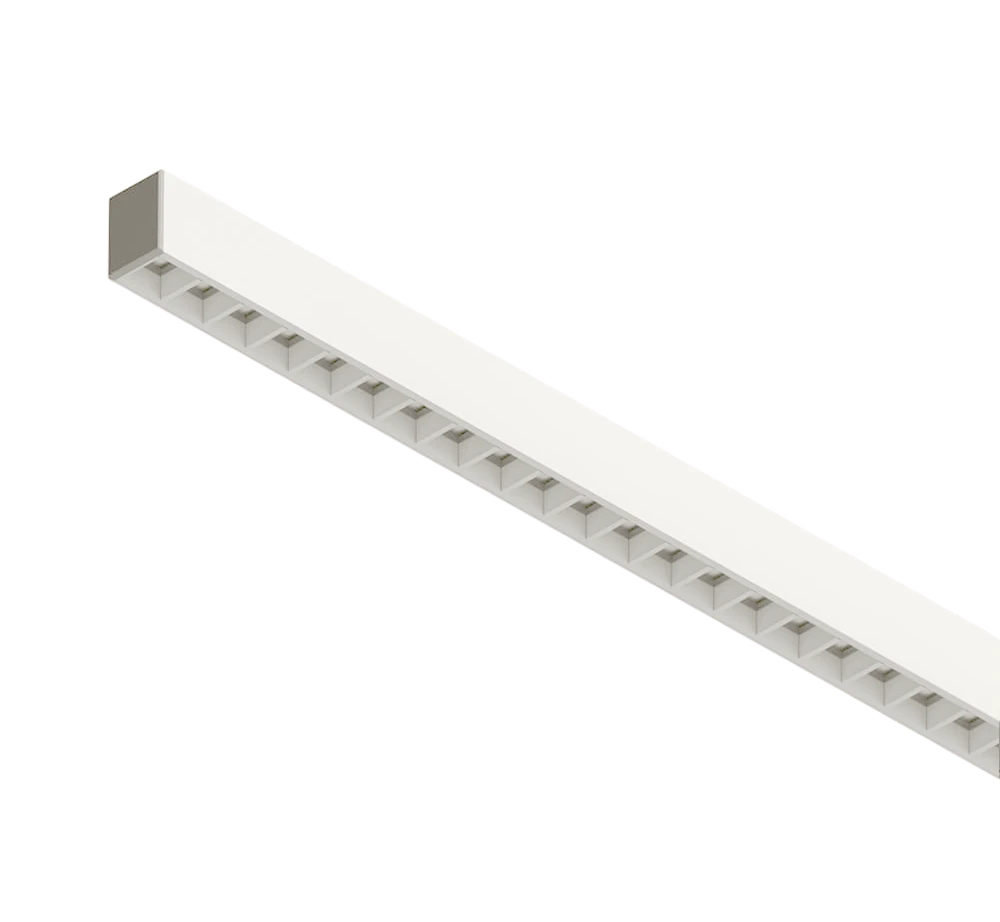

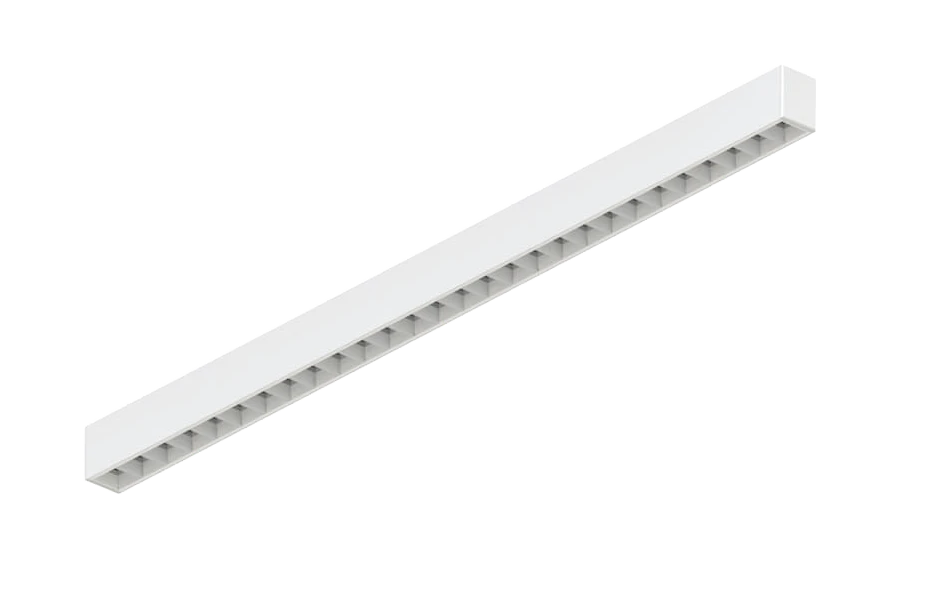

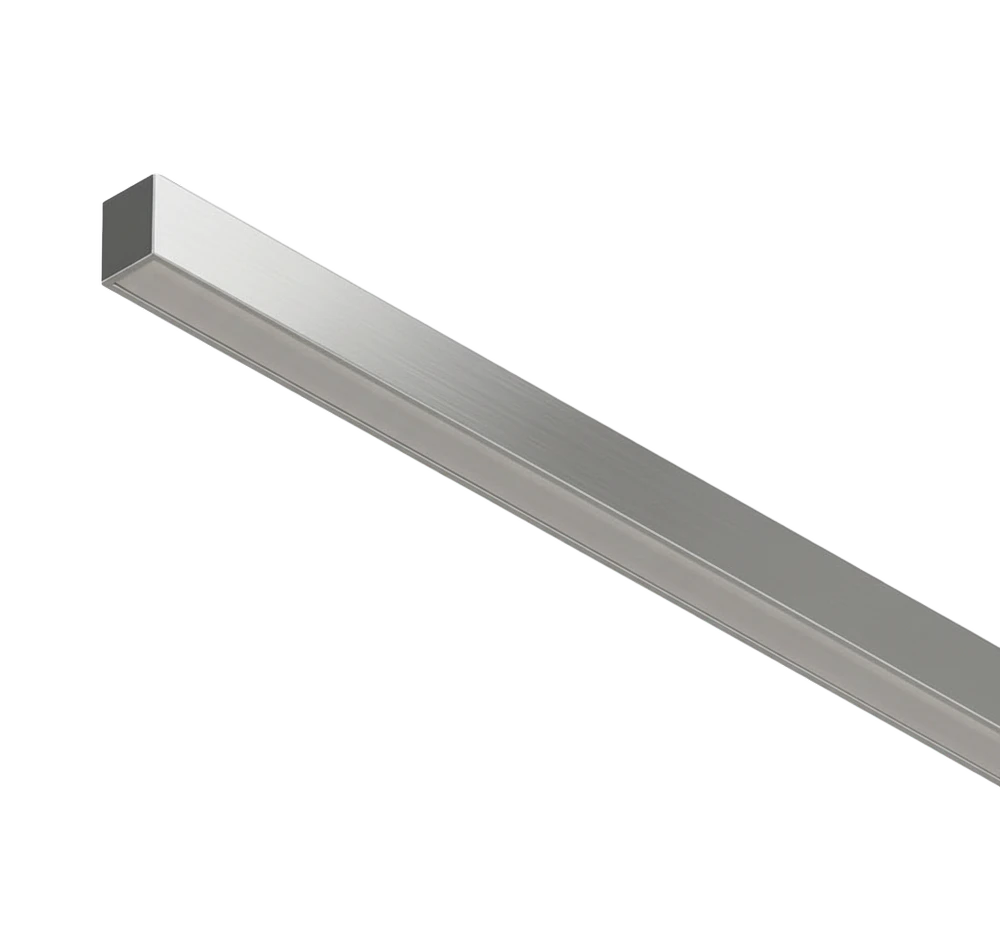

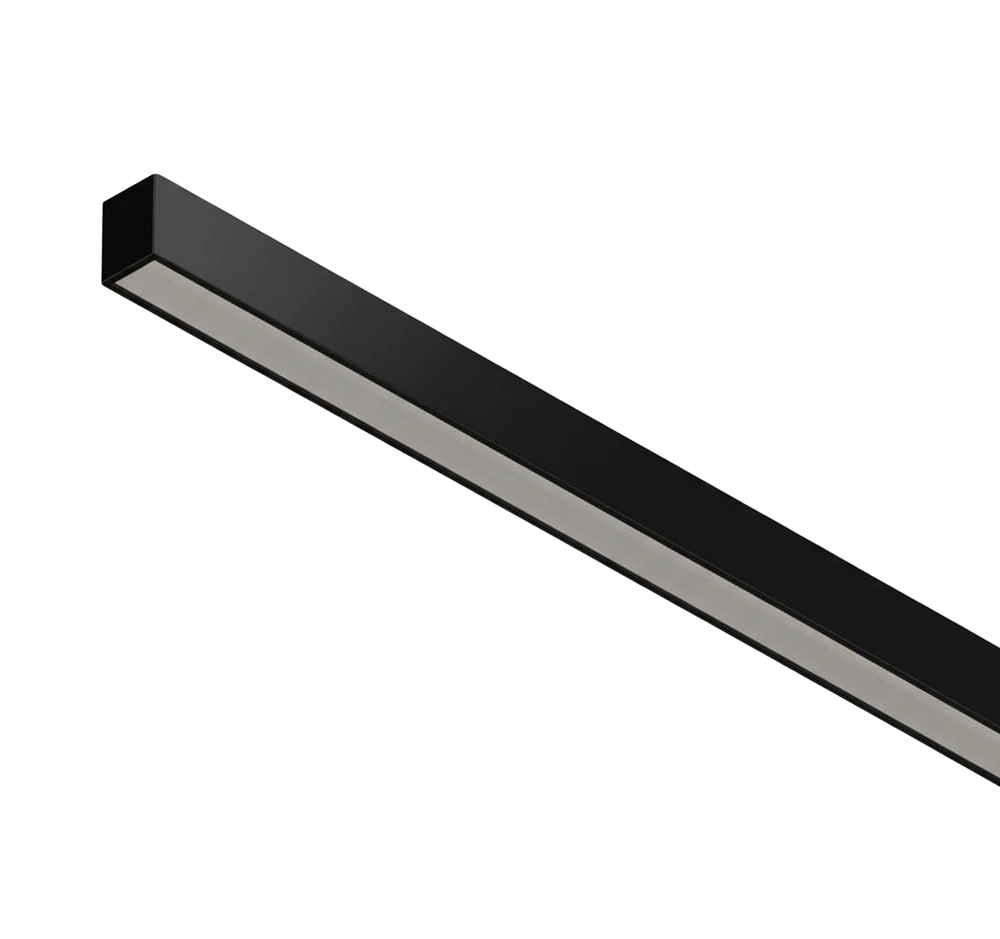

Linvera LED SF 1.0 is a modern surface-mounted luminaire with the option of suspended installation using dedicated accessories (e.g. steel cables). It is also possible to create continuous light lines, allowing the luminaire to function as a linear lighting system. The construction based on an aluminium profile with compact dimensions of 50 × 65 mm highlights the architectural character of interiors. Three diffuser variants – opal, microprismatic, and aluminium louvre – allow achieving the desired lighting effect and a reduced UGR index. The luminaire is available in a standard white version. Black and grey colours are produced on request, subject to a minimum order quantity (MOQ).

Efficiency and Photometric Parameters

The luminaire is available in lengths from 572 mm to 2252 mm and provides luminous flux in the range of 1150–8450 lm. Depending on the configuration, the power ranges from 10–58 W, offering luminous efficacy up to 155 lm/W. Available light colours are 3000 K and 4000 K, with a colour rendering index of CRI ≥80 and colour consistency SDCM ≤3.

Flexible Control and Options

Linvera LED SF 1.0 is available in ON/OFF and DALI versions. This allows the luminaire to be part of intelligent lighting management systems, improving energy efficiency and user comfort.

Durability and Safety

The luminaire features a protection rating of IP40, mechanical resistance IK04, and electrical protection class I. It operates reliably within a temperature range of 0°C to +35°C. The integrated LED modules provide a lifetime of 100 000 h L80B10, ensuring long-lasting and dependable performance.

Versatile Applications

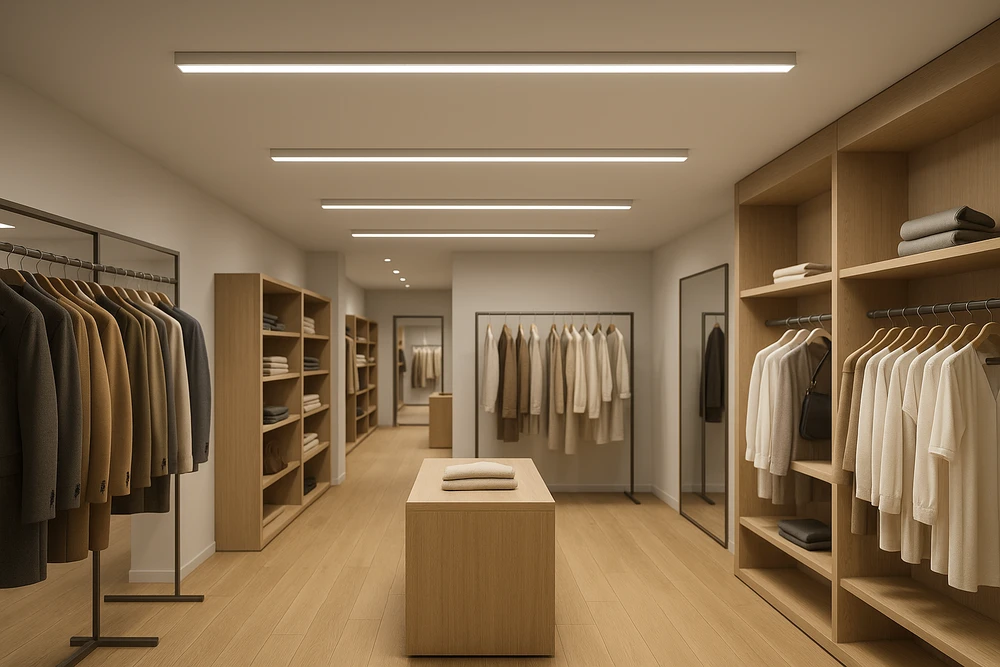

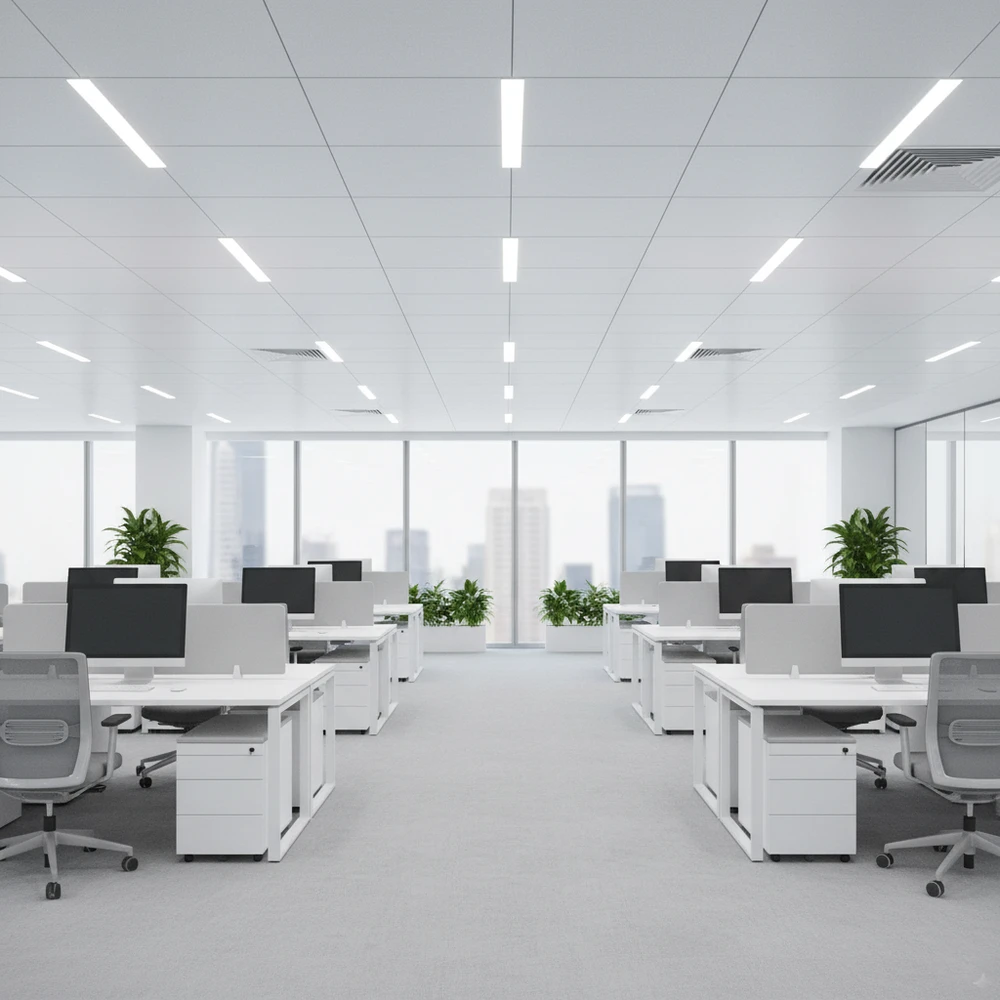

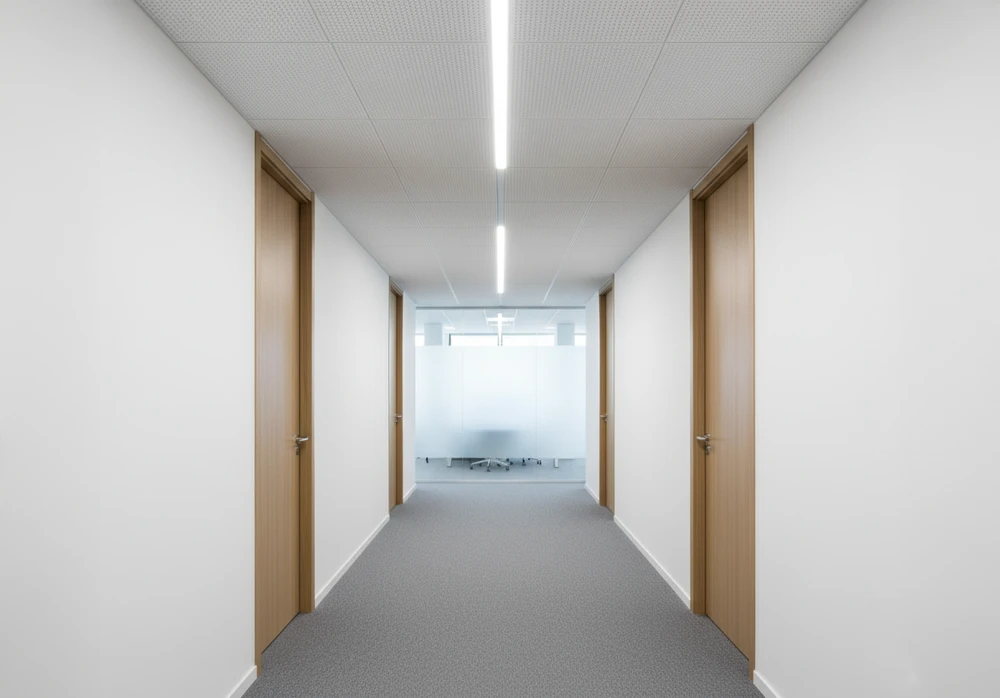

Linvera LED SF 1.0 is suitable for offices, corridors, receptions, galleries and residential interiors. Versions with a microprismatic diffuser or aluminium louvre with a reduced UGR index are ideal for workplaces or classrooms. The aluminium louvre version is also suitable for specialist applications such as board lighting.

Summary

Linvera LED SF 1.0 is an elegant surface-mounted luminaire with the option of suspended installation and linear system configuration. It combines minimalist design with high functionality, offering a wide range of optics, control options, and configurations to ensure reliable and energy-efficient lighting for various interior spaces.
