Intubon LED 3.0 is a durable and highly sealed LED luminaire designed for demanding industrial environments. The IP69K protection rating and IK10 impact resistance make it suitable for areas exposed to moisture, dirt and intensive use. The luminaire is available in power versions ranging from 19 W to 73 W, providing a luminous flux of up to 10,850 lm and an efficacy of up to 150 lm/W. The matt polycarbonate diffuser provides uniform illumination without visible LED light points, while the 135° × 105° light distribution effectively illuminates large areas. Intubon LED 3.0 is suitable for production halls, underground garages, slaughterhouses, technical rooms and food production facilities.

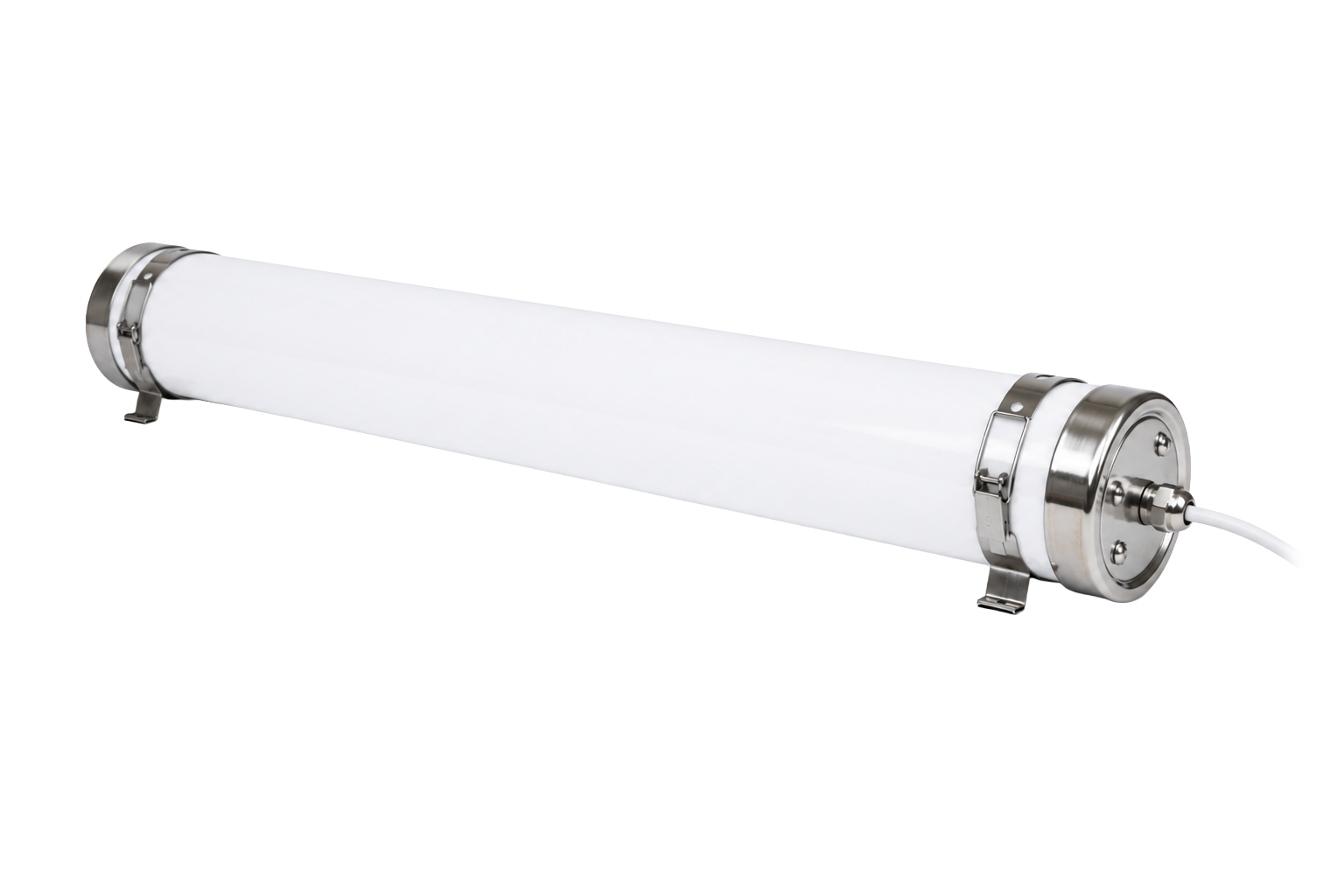

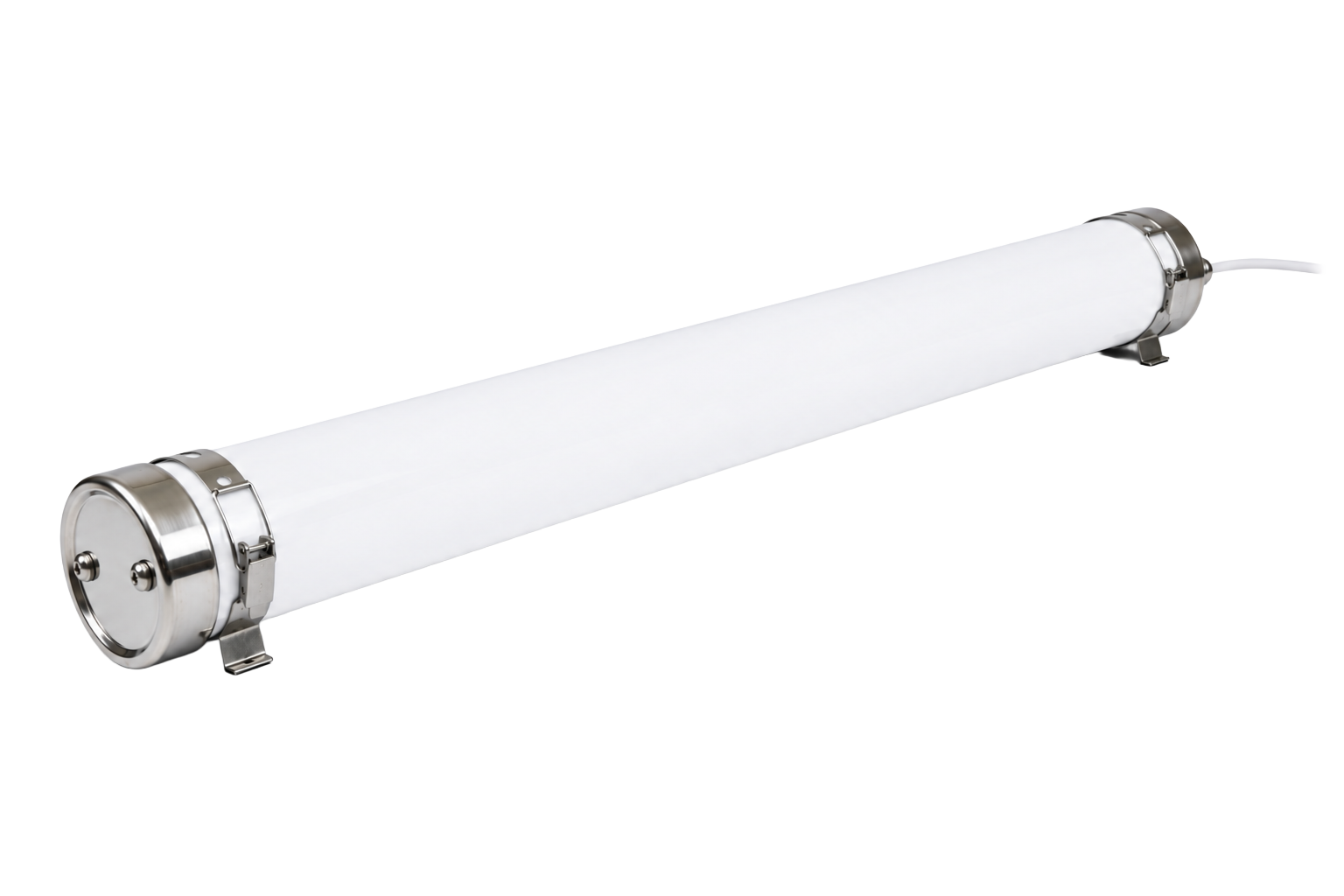

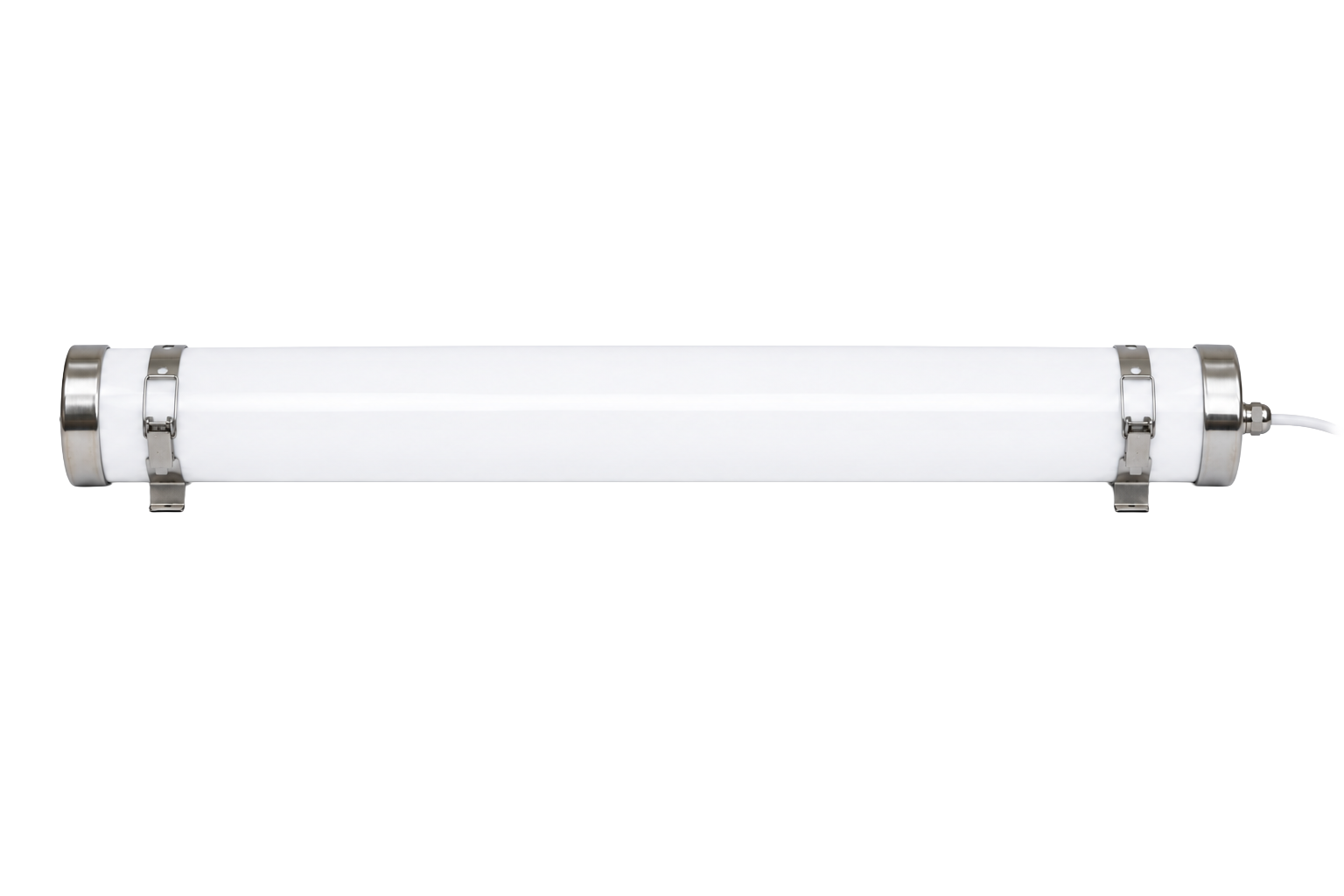

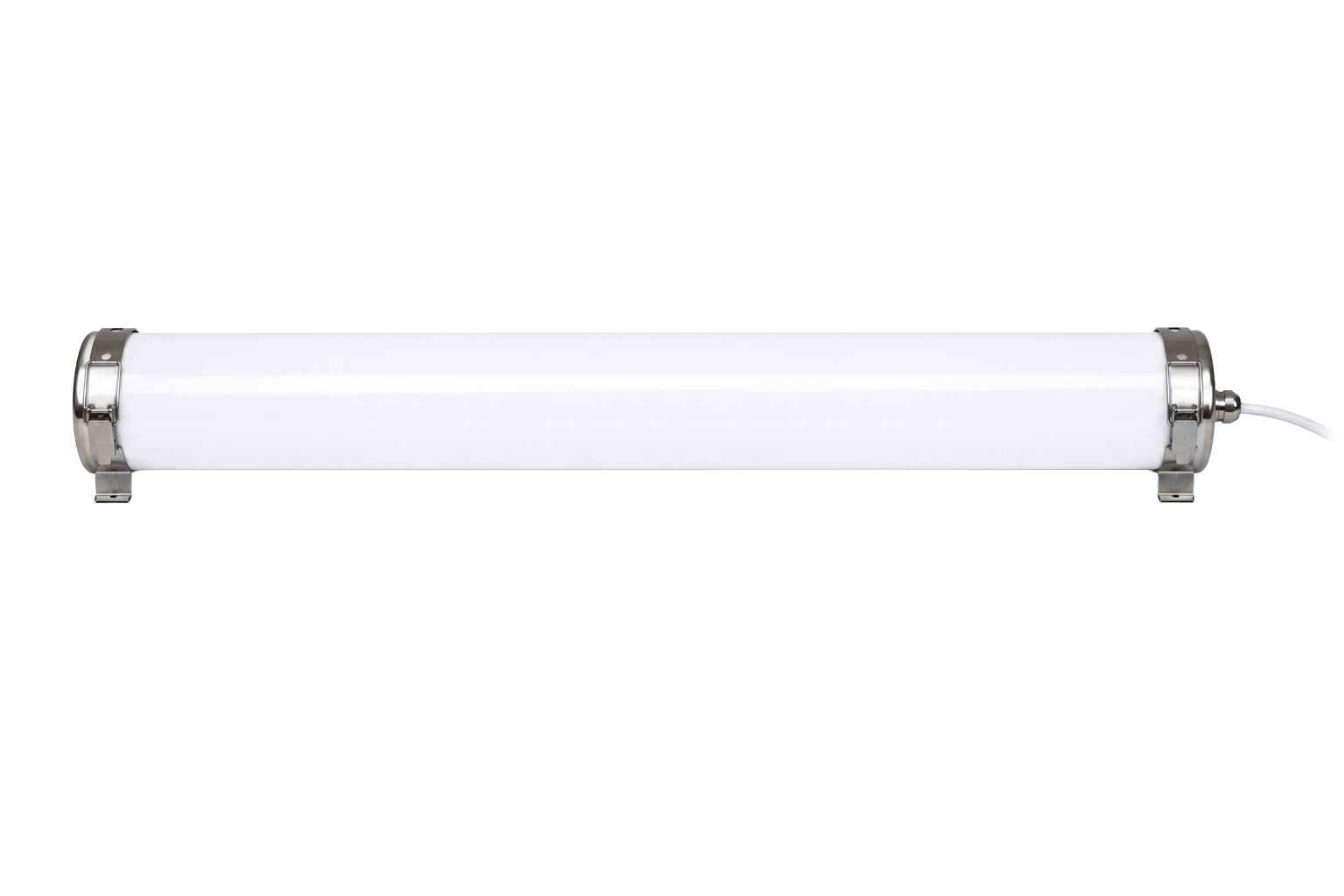

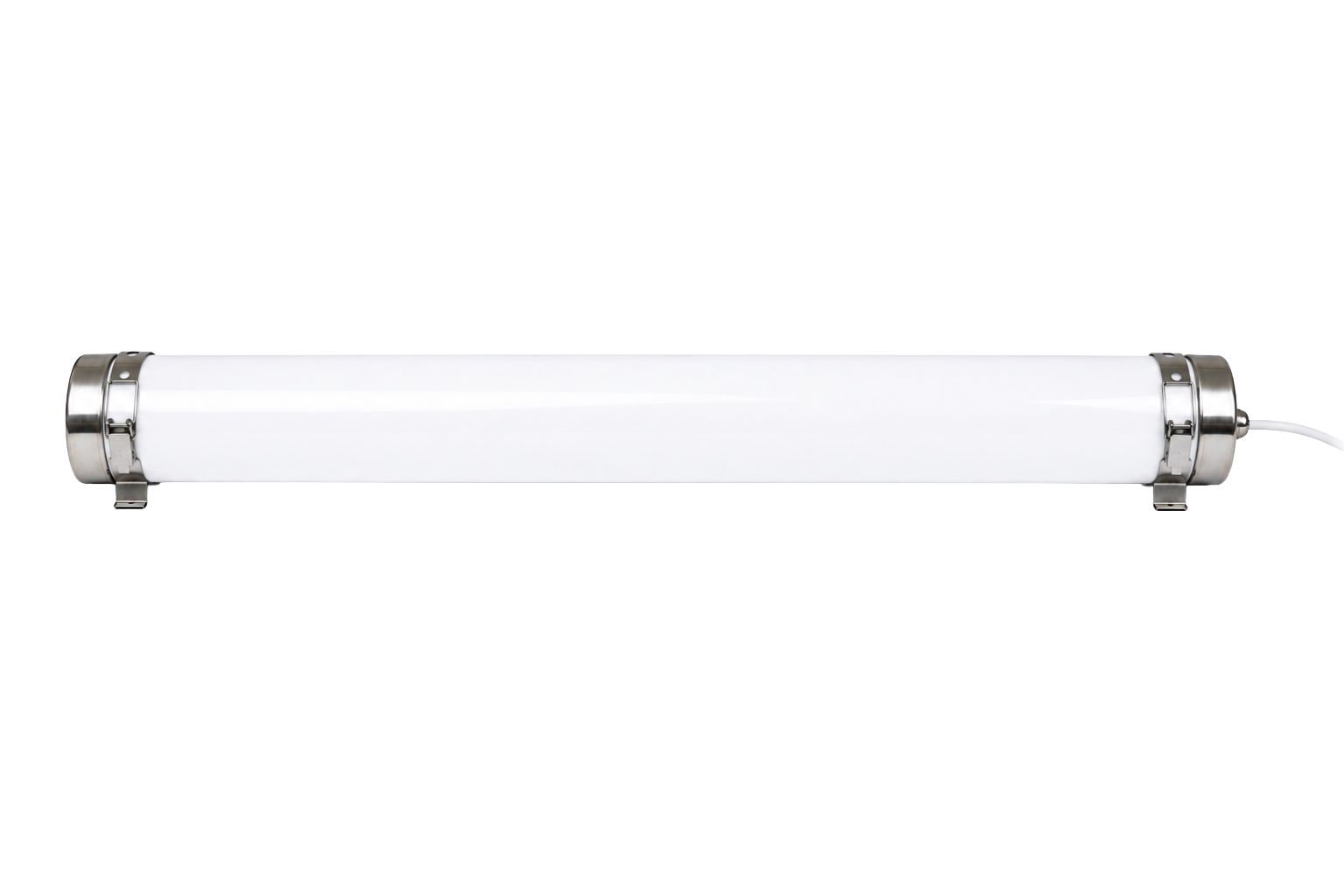

Intubon LED 3.0 is an industrial LED luminaire designed for areas where lighting is exposed to moisture, dirt and intensive use. The durable polycarbonate housing combined with end caps and mounting brackets made of grade 304 stainless steel provides a robust construction suitable for demanding facilities. The luminaire is available in two lengths – 1170 mm and 1495 mm – with a width and height of 73 mm.
One of the key features of Intubon LED 3.0 is its IP69K protection rating, making it suitable for areas requiring a very high level of protection against water and dust. IK10 impact resistance provides additional protection against accidental impacts and mechanical damage. The combination of these parameters makes the luminaire particularly suitable for industrial facilities, technical areas and locations requiring frequent and intensive cleaning.
The luminaire is available in power versions ranging from 19W to 73W and provides a luminous flux from 2850 lm up to 10,850 lm. Luminous efficacy reaches up to 150 lm/W, providing a high light output while maintaining low energy consumption. A neutral 4000K colour temperature and CRI >80 provide suitable visual conditions for everyday work in industrial and technical environments.
The 3 mm thick matt polycarbonate diffuser creates a uniform luminous surface without visible LED light points. The wide 135°×105° light distribution provides effective illumination of large areas and helps reduce noticeable differences in brightness. This solution is particularly suitable for production halls, garages, industrial areas and technical rooms requiring uniform lighting.
Intubon LED 3.0 is available in both standard ON/OFF versions and variants with DALI control, allowing the lighting management method to be adapted to the requirements of the facility. The luminaire can be surface-mounted or suspended, providing flexibility when designing lighting installations. Quick and simple installation also facilitates replacement or modernisation of existing lighting systems.
Depending on the selected version, the luminaire can operate at temperatures from -25°C to +40°C or even from -35°C to +50°C. This allows it to be used both indoors and in demanding environments exposed to significant temperature variations. Versions with 5- or 10-year warranties are also available, making it possible to select the appropriate solution for the requirements of a specific project.
Intubon LED 3.0 is primarily designed for production halls, underground garages, slaughterhouses, technical rooms and food production facilities. High ingress protection, mechanical resistance and PZH and HACCP certification make the luminaire suitable for facilities where hygiene, durability and reliable lighting are particularly important.
Intubon LED 3.0 combines IP69K protection and IK10 impact resistance with luminous efficacy of up to 150 lm/W and luminous flux of up to 10,850 lm. Its durable polycarbonate housing, matt diffuser, stainless steel components and choice of ON/OFF or DALI control make it a functional solution for demanding industrial, technical and food production environments.
High IP69K protection and IK10 impact resistance make the luminaire suitable for industrial areas exposed to dirt and intensive use. A luminous flux of up to 10,850 lm and wide light distribution provide effective illumination of large production areas and workstations.
Durable construction and a high protection rating are well suited to environments with increased humidity and intensive daily use. Wide light distribution helps provide uniform illumination of parking spaces, driveways and circulation areas.
IP69K protection and a durable polycarbonate housing make the luminaire suitable for areas requiring regular cleaning and a high level of hygiene. PZH and HACCP certifications together with stainless-steel mounting components provide additional advantages in this type of environment.
IK10 impact resistance and a wide operating temperature range improve reliability in demanding technical areas. Multiple power versions allow the lighting level to be adapted to the size and purpose of the room.
IP69K protection makes the luminaire suitable for areas where maintaining a high level of cleanliness is particularly important. PZH and HACCP certifications and grade 304 stainless-steel mounting components further support its use in food processing facilities.
