Industrial LED 7.0

High luminous efficiency up to 183Lm/W

IP66 protection rating

Quick and simple assembly

Lifespan of up to 150,000 hours of illumination

Warranty up to 10 years

IK08 IP66 650°C

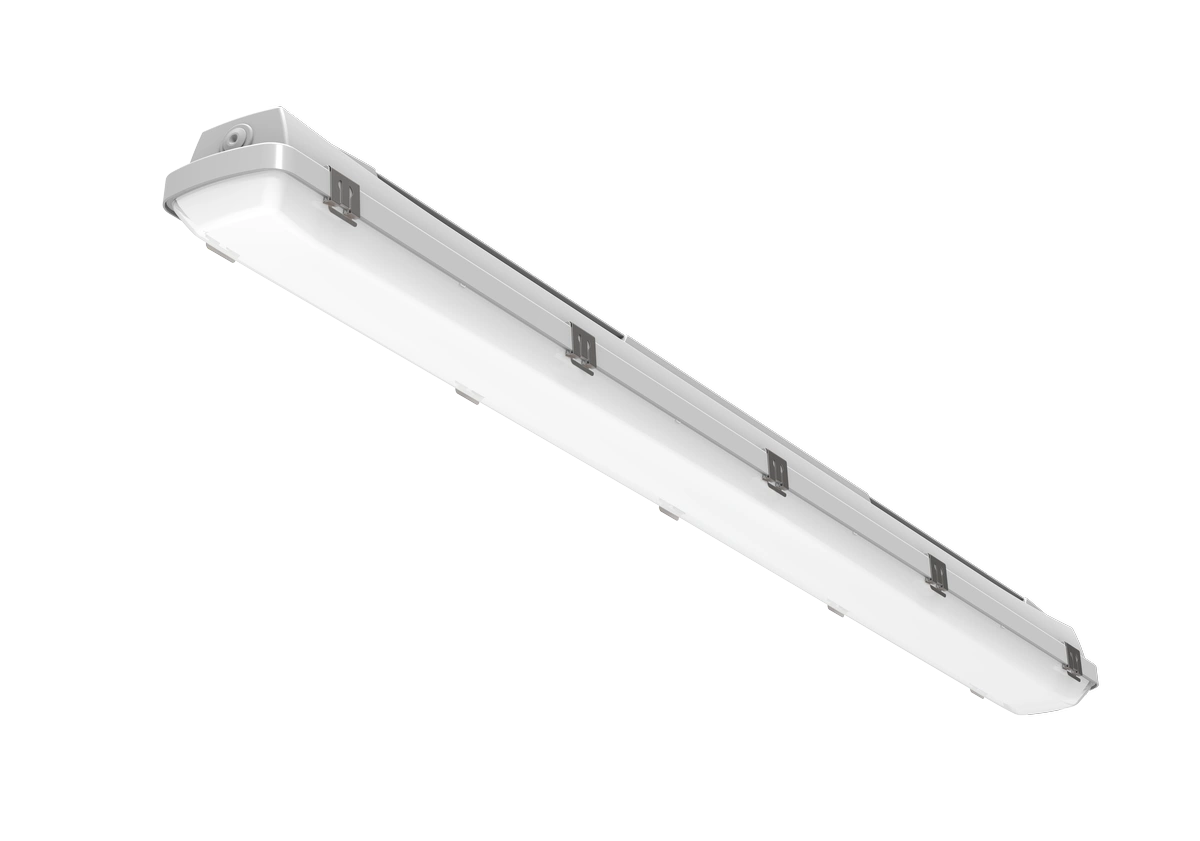

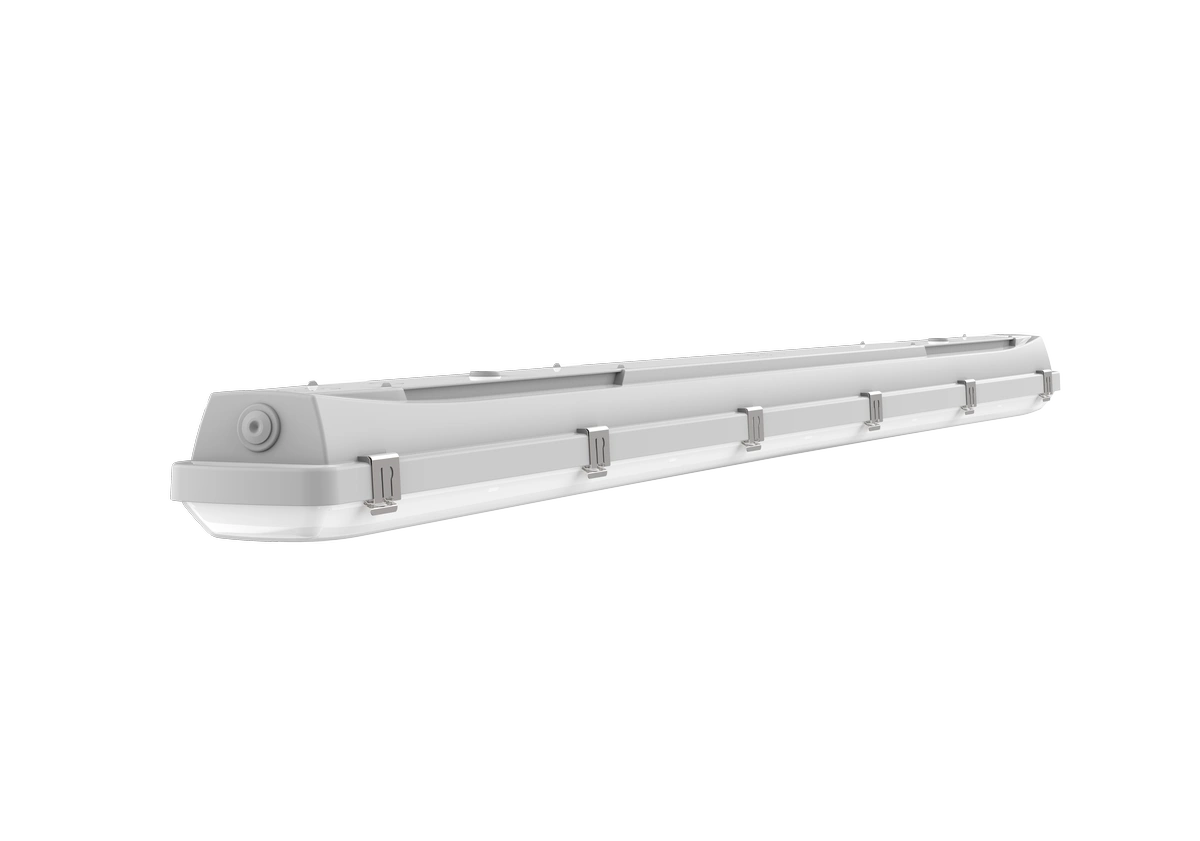

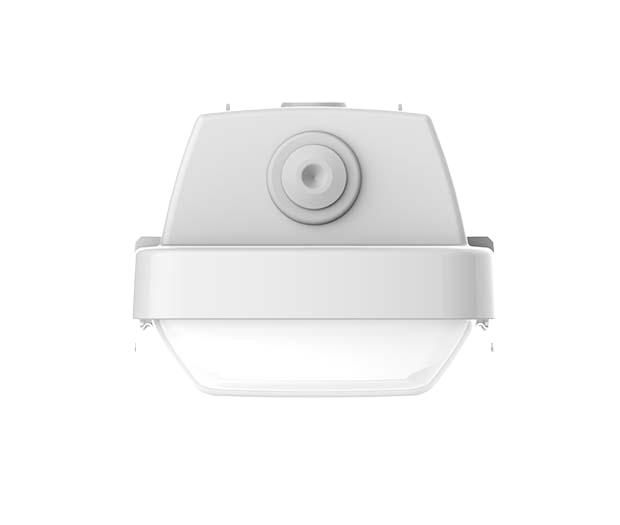

Industrial LED 7.0 is an industrial luminaire designed for lighting production halls, warehouses, and underground garages. The system offers nine power variants from 19W to 91W, allowing for a luminous flux ranging from 3,150 lm to 15,650 lm, with an efficiency exceeding 183 lm/W. The luminaire, with IP66 ingress protection and IK08 impact resistance, is available in two lengths (1265 mm and 1565 mm). Additional configuration options include DALI control, a motion sensor, and a 3h emergency module. The product’s lifespan is 150,000 hours, and the warranty period can be extended up to 10 years.

Industrial LED 7.0: Specialized Lighting for Industry

Industrial LED 7.0 is an industrial luminaire designed for facilities with high technical requirements. The construction combines high luminous efficiency with resistance to harsh environmental conditions, providing an energy-saving alternative to traditional lighting systems.

Performance and Lighting Parameters

The luminaire features an efficiency of up to 183 lm/W, allowing for a significant reduction in electricity consumption. The system is available in 9 power variants (from 19W to 91W), generating a luminous flux ranging from 3,150 lm to 15,650 lm. Thanks to the use of components from renowned manufacturers, the luminaire maintains stable operating parameters over a long period. The LED lifespan is up to 150,000 hours (L80B10).

Durability and Operating Conditions

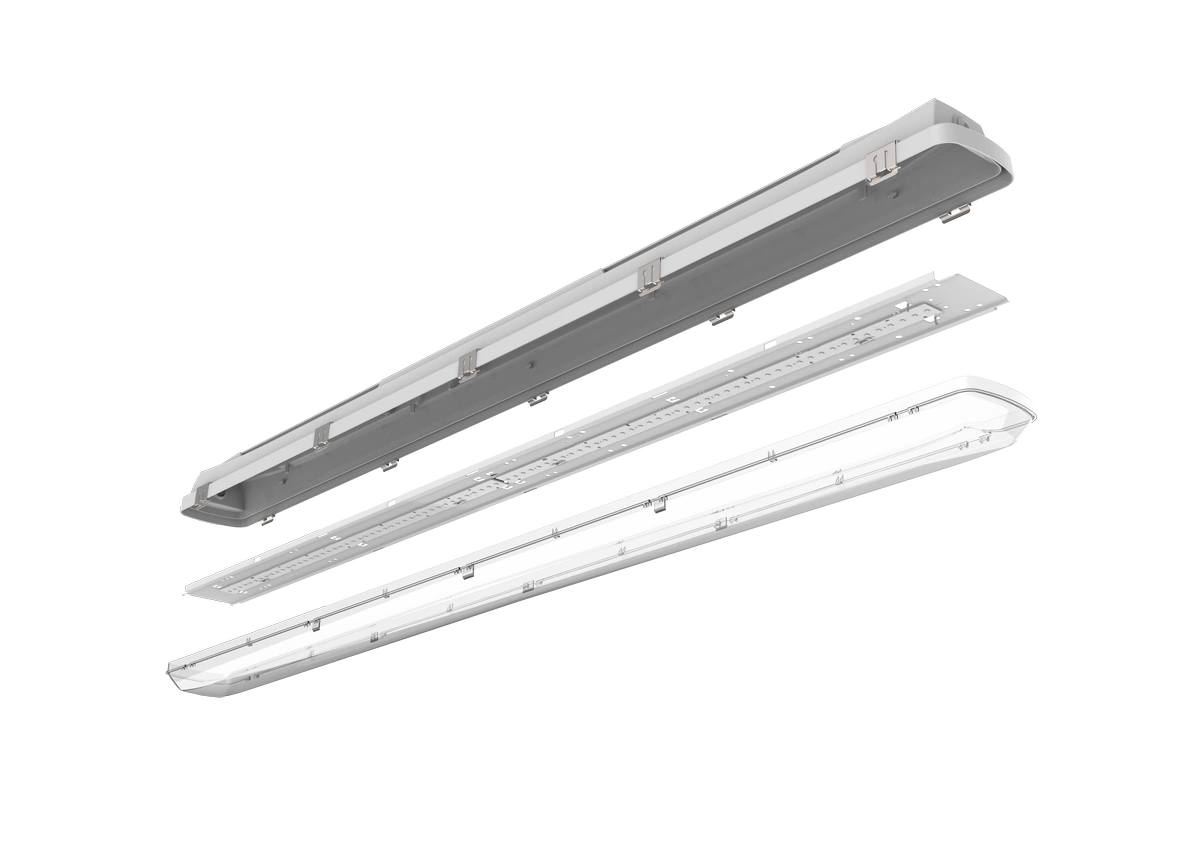

The housing and diffuser made of polycarbonate (PC) provide impact resistance at the IK08 level, and the sealed IP66 construction effectively protects the electronics from dust and moisture. Industrial LED 7.0 is adapted to operate in a wide range of ambient temperatures – from -35°C to +60°C. This ensures full operational efficiency in unheated facilities exposed to significant temperature drops, as well as in areas with elevated technological heat.

Application Areas

Due to its characteristics, the luminaire is suitable for various spaces, such as:

Production and warehouse halls,
Underground garages and parking lots,
Technical and social rooms,
Open spaces and sheds.

Control and Configuration Options

The system offers extensive possibilities for customization to specific project needs. Industrial LED 7.0 can be equipped with:

Standard DALI control,
Motion sensor,
Emergency lighting module with a 3h backup time,
On-Off power supply for standard applications.

Warranty and Reliability

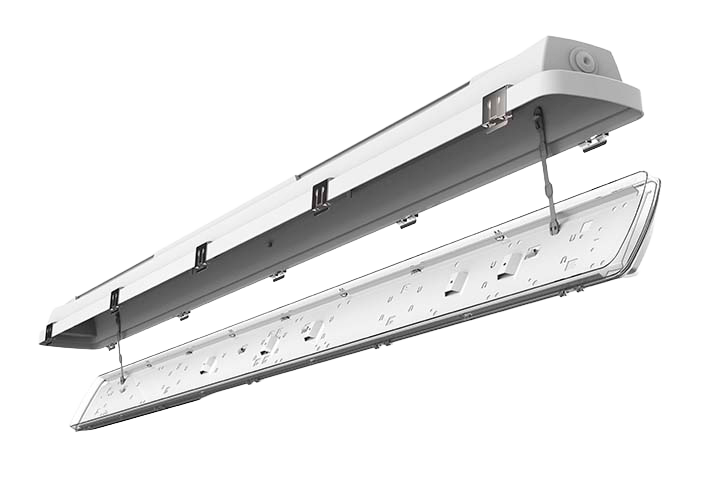

The product is covered by a standard 5-year manufacturer’s warranty, with the possibility of extending the protection period up to 10 years. A simple surface or suspended mounting system allows for quick installation and modernization of existing lighting.

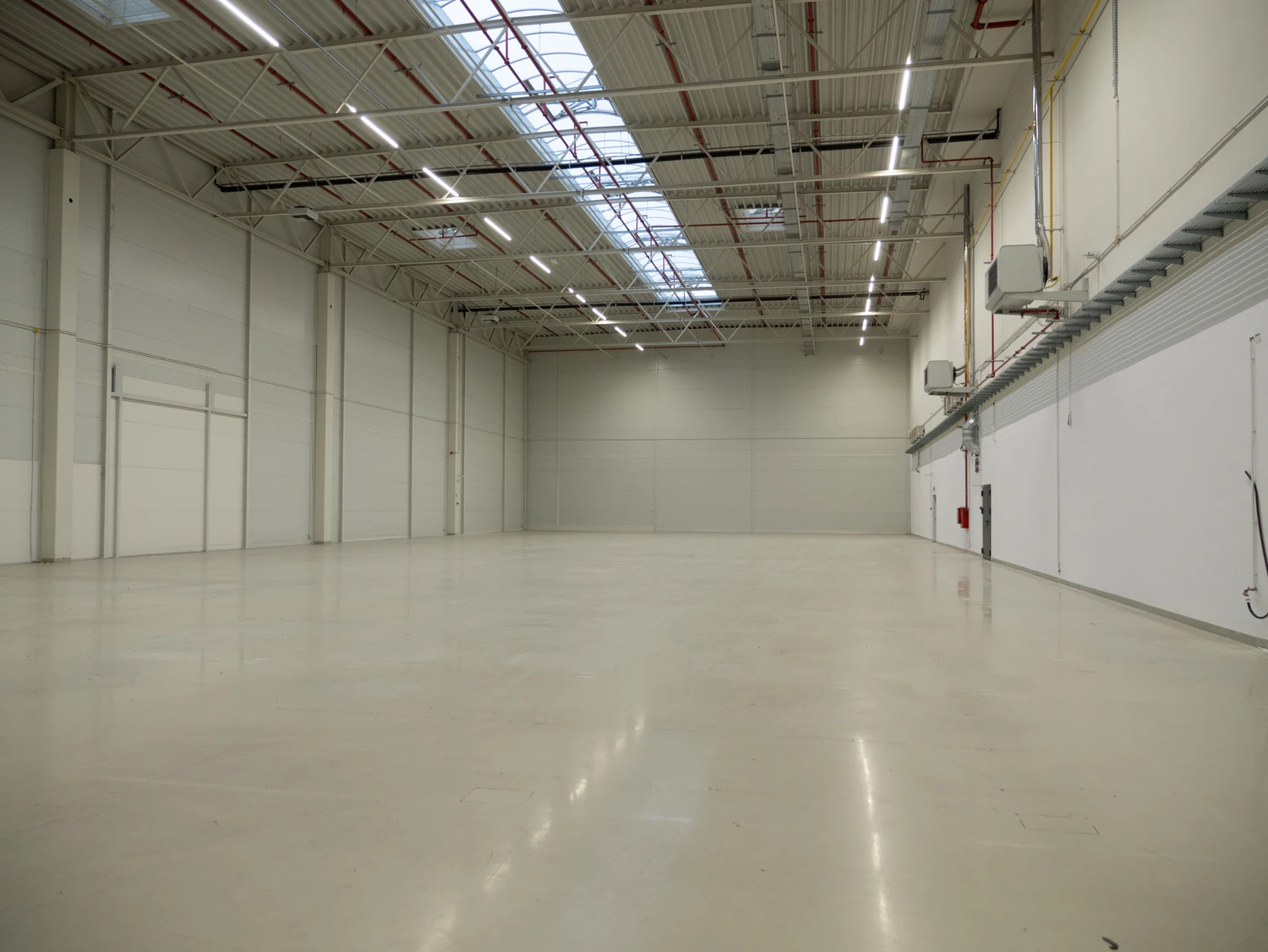

Production Halls

In the automotive, electronics, or food industries, Industrial LED 6.0 can be used above assembly lines, providing uniform lighting crucial for precise manufacturing tasks. Its high shock resistance and tolerance to extreme temperatures ensure reliability in environments with intense production demands.

Warehouses

In the logistics, distribution, and e-commerce industries, Industrial LED 6.0 optimally illuminates warehouses, including those with low to medium storage heights up to 8m, enabling efficient inventory management. Its impact resistance and high light efficiency are crucial for maintaining continuity in warehouse operations.

Social rooms

In corporate facilities, educational institutions, or healthcare facilities, Industrial LED 6.0 provides friendly lighting in social spaces such as rest areas or cafeterias, creating comfortable conditions conducive to employee rejuvenation. Flexibility in selecting color temperature allows for the creation of an optimal atmosphere.

Underground Garages

In the commercial and residential sectors, Industrial LED 6.0 provides safe and clear lighting. Its features allow for use in underground garages, increasing visibility and safety for users. The sturdy construction and high degree of sealing make it resistant to typical garage conditions such as humidity and temperature changes.

Technical Rooms

In the energy, telecommunications, and processing industries, Industrial LED 6.0 provides precise and reliable lighting for technical rooms, where accuracy and durability of lighting support the maintenance of critical infrastructure. The ease of installation and long lifespan minimize the need for service interventions.

Open Spaces

In open space lighting, such as shelters, covered storage areas, or loading ramps, Industrial LED 7.0 provides stable lighting parameters in variable environmental conditions. The high IP66 rating and resistance to temperatures ranging from -35°C to +60°C allow for reliable operation in areas exposed to moisture and low temperatures. A lifespan of up to 150,000 hours significantly reduces the need for frequent maintenance in extensive outdoor installations.

Name	Product-Code	Dimensions W x H x L [mm]	Power [W].	Luminosity [lm]	Efficiency [lm/W]	Color temperature [K]	CRI/Ra	Protection Rating [IP]	Light distribution
INDUSTRIAL LED 7.0 1	IND7ST.10.019.8A3000 IND7ST.10.019.8A4000 IND7ST.10.019.8A5000 IND7ST.10.023.8A3000 IND7ST.10.023.8A4000 IND7ST.10.023.8A5000 IND7ST.10.031.8A3000 IND7ST.10.031.8A4000 IND7ST.10.031.8A5000 IND7ST.10.040.8A3000 IND7ST.10.040.8A4000 IND7ST.10.040.8A5000 IND7ST.10.057.8A3000 IND7ST.10.057.8A4000 IND7ST.10.057.8A5000	101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265 101/84/1265	19 19 19 23 23 23 31 31 31 40 40 40 57 57 57	3150 3350 3400 3850 4100 4150 5300 5600 5650 6750 7150 7200 9350 9900 9950	165 176 178 167 178 180 170 180 182 168 178 180 164 173 174	3000 4000 5000 3000 4000 5000 3000 4000 5000 3000 4000 5000 3000 4000 5000	>80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80	66 66 66 66 66 66 66 66 66 66 66 66 66 66 66	120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105°
INDUSTRIAL LED 7.0 2	IND7ST.20.043.8A3000 IND7ST.20.043.8A4000 IND7ST.20.043.8A5000 IND7ST.20.056.8A3000 IND7ST.20.056.8A4000 IND7ST.20.056.8A5000 IND7ST.20.071.8A3000 IND7ST.20.071.8A4000 IND7ST.20.071.8A5000 IND7ST.20.092.8A3000 IND7ST.20.092.8A4000 IND7ST.20.092.8A5000	101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565 101/84/1565	43 43 43 56 56 56 71 71 71 92 92 92	7400 7850 7900 9650 10200 10250 11800 12500 12550 14750 15600 15650	172 182 183 172 182 183 166 176 176 160 169 170	3000 4000 5000 3000 4000 5000 3000 4000 5000 3000 4000 5000	>80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80 >80	66 66 66 66 66 66 66 66 66 66 66 66	120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105° 120°X105°

Catalog card – Industrial LED 7.0

pdf

Declaration of Conformity Industrial LED 7.0

pdf

HACCP certificate INDUSTRIAL LED 7.0

pdf

Installation instructions Industrial LED 7.0

pdf

Photometric files INDUSTRIAL LED 7.0

zip

Product photos – Industrial LED 7.0

rar

Customize your product variant and download the dedicated technical specification sheet

Already have a quote? Select the product family and then the product code that interests you to download an individual product sheet

BAZA-FORM-Kubatura

Model

Color temperature CCT [K]

Control

Power

Light distribution

Warranty

Product description

Product code SKU

If you are human, leave this field blank.

Cable with plug 1.8 m 3×1.5 mm² AKC.UN.EL.ZLA.001

3×1.5 mm² grey cable with plug (1.8 m).

Cable with plug 3 m 3×1.5 mm² AKC.UN.EL.ZLA.002

3×1.5 mm² grey cable with plug (3 m).

Adjustable universal bracket for linear luminairesAKC.UN.ME.UCR.001

A mechanical accessory designed to fit a wide range of linear luminaires, offering tool-free angle and height adjustment for precise, hassle-free installation.

Universal mechanical anti-theft accessory.AKC.UN.ME.THE.001

A versatile mechanical lock designed to secure a wide range of lighting fixtures against unauthorized removal and tampering, ensuring reliable protection.

Suspension kit: 3 m AKC.UN.ME.ZWI.001

Luminaire suspension kit: 3 m steel rope set (2x ropes, ceiling mounts, and sliders with hooks)

Suspension kit: 5 m AKC.UN.ME.ZWI.002

Luminaire suspension kit: 5 m steel rope set (2x ropes, ceiling mounts, and sliders with hooks)

Industrial protective grid AKC.IN.ME.KRO.001

Industrial protective grid: Galvanized Ø4 mm rod with 50×50 mm mesh for 1.5 m luminaires. Robust and reliable protection.

Industrial protective grid AKC.IN.ME.KRO.002

Industrial protective grid: Galvanized Ø4 mm rod with 50×50 mm mesh for 1.2 m luminaires. Robust and reliable protection.

Industrial protective grid AKC.IN.ME.KRO.003

Industrial protective grid: Galvanized Ø4 mm rod with 40×40 mm mesh for 1.2 m luminaires. Strong and durable shielding.
