LED lighting in the Geberit production area improving efficiency.

LED Luminaries

Highbay LED 5.1

IP66 protection rating

Lifespan of up to 120,000 hours of illumination

Warranty up to 10 years

High impact resistance - PC optics IK10, tempered glass IK08

High operating temperature range from -35°C to +65°C

IK08 IK10 IP66

The Highbay LED 5.0 luminaire is a solution that meets the highest industrial lighting standards, perfect for use in production halls and warehouses. Thanks to its special design, the luminaire effectively dissipates heat, maintains exceptional mechanical resistance, and has an IP66 degree of protection. Produced in Poland, the luminaire housing is made of EN AC 46 000 alloy, which is 100% recycled material.

The Highbay LED 5.0 luminaire stands out with an extraordinary luminous efficiency reaching an impressive 180 lm/W, while offering a wide power range from 78W to an impressive 228W, achieving a maximum luminous flux of up to 42,100 lm. This is lighting you can rely on.

Additionally, versions with DALI control systems are available, allowing for precise lighting management. We offer a warranty of up to 10 years for our products, which reflects our confidence in their durability and quality.

Highbay LED 5.1: A Breakthrough in Industrial and Warehouse Lighting

Advanced Technologies for Maximum Performance

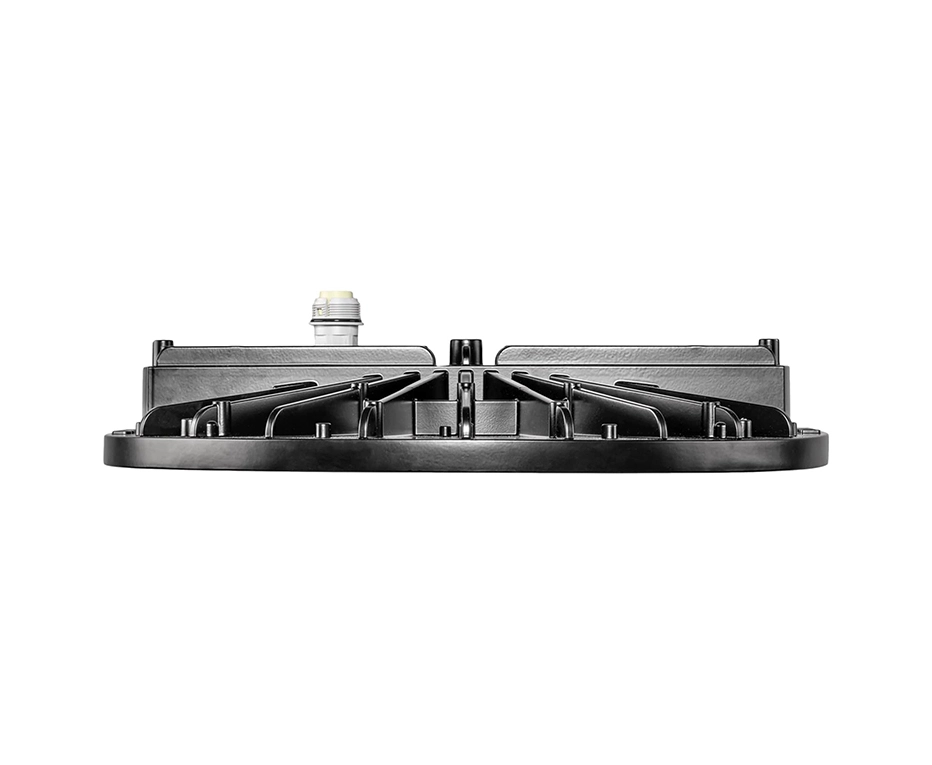

The Highbay LED 5.1 luminaire combines innovation with functionality, offering a lighting solution that meets the highest industrial standards. Made of high-quality, 100% recycled EN AC 46 000 aluminum alloy, this luminaire not only contributes to environmental protection but also provides impressive mechanical resistance. Its special design allows for effective heat dissipation, which, combined with the IP66 ingress protection rating, makes the Highbay LED 5.1 an ideal choice for environments exposed to challenging conditions, such as production halls, where resistance to dust and moisture is crucial.

Luminous Efficiency and Energy Savings
With remarkable luminous efficacy reaching 180 lm/W and a power range from 78W to 228W, along with the ability to achieve a maximum luminous flux of 42,100 lm, the Highbay LED 5.1 is an excellent solution for illuminating high warehouses and open spaces where a strong yet energy-efficient light source is needed. The availability of versions with DALI control system enables precise lighting management, which is especially important in warehouse facilities where different zones require different lighting levels.

Durability and Reliability in Any Conditions
The solid luminaire housing, high impact resistance (PC optics: IK10, tempered glass: IK08), and wide operating temperature range from -35°C to +65°C ensure that the Highbay LED 5.1 can be reliably used even in extreme industrial conditions, such as production halls with demanding technological processes. Its long lifespan of up to 120,000 hours and a warranty of up to 10 years testify to the trust in its quality and durability.

Summary
The Highbay LED 5.1 luminaire is not just a light source but a comprehensive solution for modern industry and logistics, combining unmatched performance with durability and an ecological approach. Its advanced control options, high luminous efficiency, and resistance to challenging conditions make it the perfect choice for any production hall, high-storage warehouse, or open space where reliable lighting plays a crucial role in daily operations.

Industrial halls

The round and low-profile design of the Highbay LED 5.1 luminaire makes it an ideal replacement for traditional 250W or 400W sodium luminaires, especially in heavy industries where it can be installed directly above cranes. It provides intense light necessary for precise work, and its advanced heat dissipation and resistance to challenging industrial conditions ensure reliability in any environment.

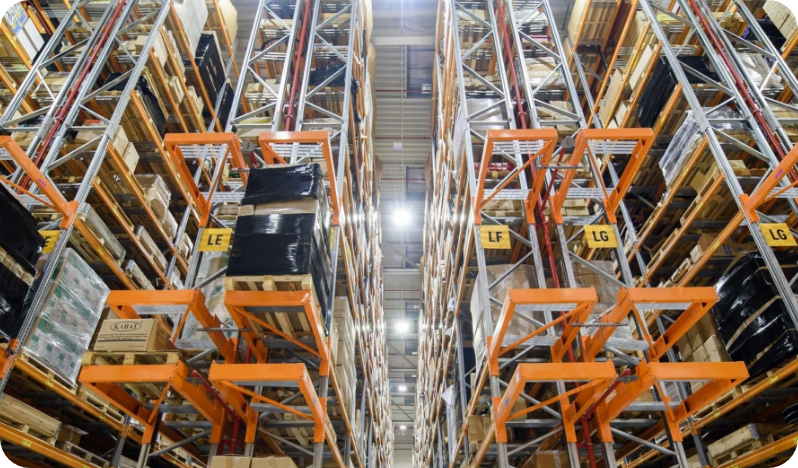

Warehouses

In high-storage warehouses, the Highbay LED 5.1 provides efficient lighting with a maximum luminous flux of up to 42,100 lm, making it an excellent alternative to sodium luminaires. Its compact design facilitates installation in hard-to-reach areas, while high luminous efficiency and long lifespan significantly reduce operating costs.

High open spaces

The Highbay LED 5.1 luminaire, with its round and low-profile design, is an exceptionally practical solution for illuminating open spaces such as loading docks. It serves as an excellent alternative to sodium luminaires, offering better light efficiency and lower energy consumption. Its resistance to changing weather conditions and ability to precisely control light make it an ideal choice for ensuring safety and visibility outdoors.

Name	Product-Code	Dimensions W x H x L [mm]	Power [W].	Luminosity [lm]	Efficiency [lm/W]	Color temperature [K]	CRI/Ra	Protection Rating [IP]	Light distribution
HIGHBAY LED 5.1 1	HBY5ST.11.078.8A3000 HBY5ST.11.078.8A4000 HBY5ST.11.078.8A5000	434/117/434 434/117/434 434/117/434	78 78 78	11500 – 13500 11950 – 14000 11950 – 14000	147 – 173 153 – 179 153 – 179	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°
HIGHBAY LED 5.1 2	HBY5ST.21.097.8A3000 HBY5ST.21.097.8A4000 HBY5ST.21.097.8A5000	434/117/434 434/117/434 434/117/434	97 97 97	14350 – 16800 14900 – 17500 14900 – 17500	147 – 173 153 – 180 153 – 180	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°
HIGHBAY LED 5.1 3	HBY5ST.31.114.8A3000 HBY5ST.31.114.8A4000 HBY5ST.31.114.8A5000	434/117/434 434/117/434 434/117/434	114 114 114	16850 – 19750 17500 – 20550 17500 – 20550	147 – 173 153 – 180 153 – 180	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°
HIGHBAY LED 5.1 4	HBY5ST.41.154.8A3000 HBY5ST.41.154.8A4000 HBY5ST.41.154.8A5000	434/117/434 434/117/434 434/117/434	154 154 154	22600 – 26550 23600 – 27600 23600 – 27600	146 – 172 153 – 179 153 – 179	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°
HIGHBAY LED 5.1 5	HBY5ST.51.193.8A3000 HBY5ST.51.193.8A4000 HBY5ST.51.193.8A5000	434/117/434 434/117/434 434/117/434	193 193 193	28200 – 33100 24750 – 34450 24750 – 34450	146 – 171 128 – 178 128 – 178	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°
HIGHBAY LED 5.1 6	HBY5ST.61.228.8A3000 HBY5ST.61.228.8A4000 HBY5ST.61.228.8A5000	434/117/434 434/117/434 434/117/434	228 228 228	33050 – 38750 34500 – 40400 34500 – 40400	144 – 169 151 – 177 151 – 177	3000 4000 5000	>80 >80 >80	66 66 66	105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45° 105°X105° 95°X95° 45°X45°

Catalog card – Highbay LED 5.1

pdf

Declaration of Conformity Highbay LED 5.1

pdf

Diode catalog card Highbay LED 5.1

pdf

Installation instructions Highbay LED 5.1

pdf

Photometric files HIGHBAY LED 5.1

zip

Product photos – Highbay LED 5.1

zip

Customize your product variant and download the dedicated technical specification sheet

Already have a quote? Select the product family and then the product code that interests you to download an individual product sheet

BAZA-FORM-Kubatura

Model

Color temperature CCT [K]

Control

Power

Light distribution

Warranty

Product description

Product code SKU

If you are human, leave this field blank.

Cable with plug 1.8 m 3×1.5 mm² AKC.UN.EL.ZLA.001

3×1.5 mm² grey cable with plug (1.8 m).

Cable with plug 3 m 3×1.5 mm² AKC.UN.EL.ZLA.002

3×1.5 mm² grey cable with plug (3 m).

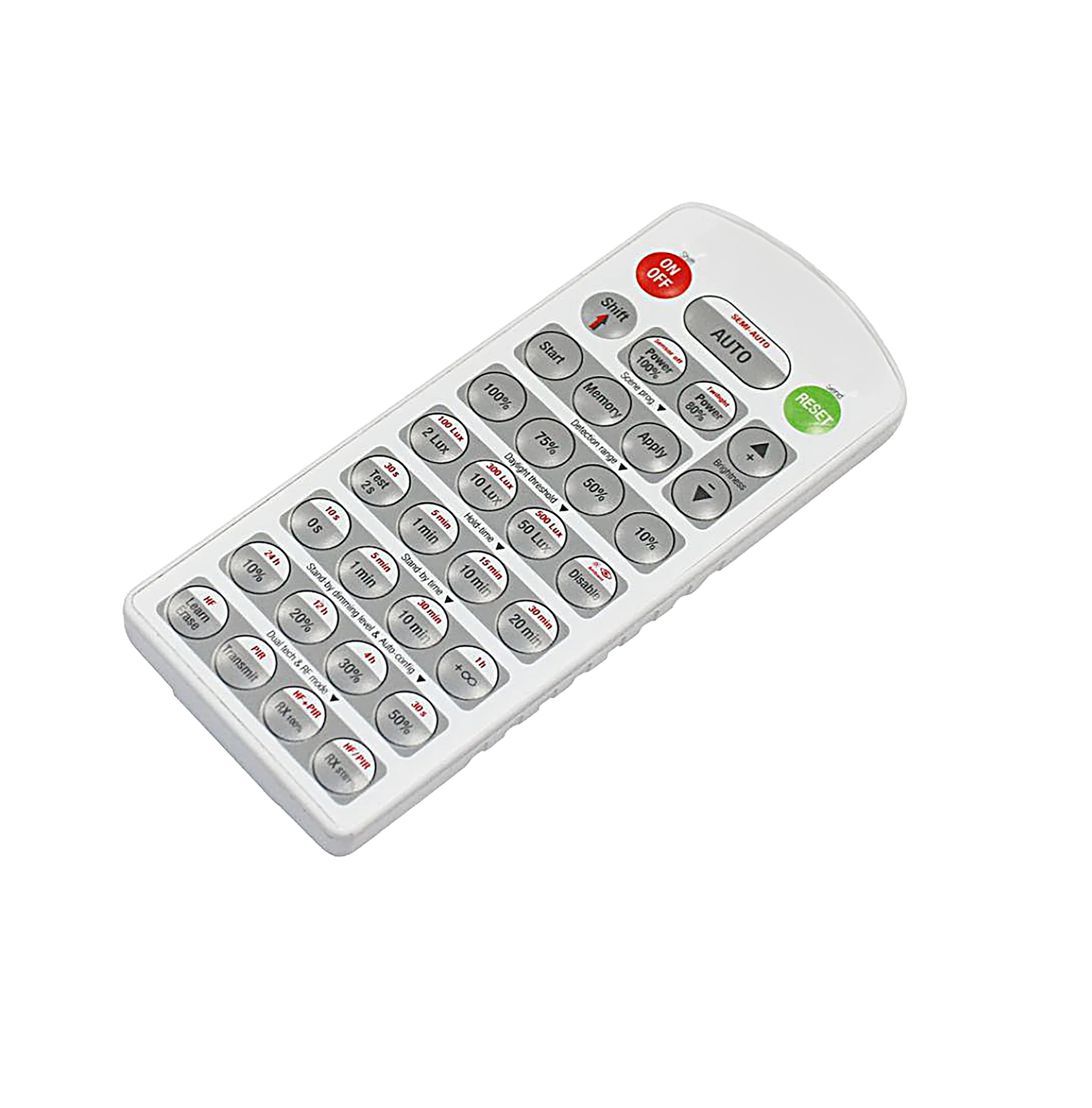

Remote control for motion sensors AKC.UN.EL.REM.001

HRC-11 remote control for motion sensors.

Suspension module 1 m AKC.UN.ME.ZWI.011

Hilti suspension set 1 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

Suspension module 2 m AKC.UN.ME.ZWI.012

Hilti suspension set 2 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

Suspension module 3 m AKC.UN.ME.ZWI.013

Hilti suspension set 3 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

Suspension module 5 m AKC.UN.ME.ZWI.014

Hilti suspension set 5 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

Suspension module 10 m AKC.UN.ME.ZWI.015

Hilti suspension set 10 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

Mounting anchor HUS3-I AKC.UN.ME.ZWI.016

Hilti HUS3-I screw anchor with M8 locknut – for steel cables Ø2 mm with eye bolt

Loop module 1 m AKC.UN.ME.ZWI.021

Hilti suspension set 1 m with loop – steel cable Ø2 mm + MW-L lock

Loop module 2 m AKC.UN.ME.ZWI.022

Hilti suspension set 2 m with loop – steel cable Ø2 mm + MW-L lock

Loop module 3 m AKC.UN.ME.ZWI.023

Hilti suspension set 3 m with loop – steel cable Ø2 mm + MW-L lock

Loop module 5 m AKC.UN.ME.ZWI.024

Hilti suspension set 5 m with loop – steel cable Ø2 mm + MW-L lock

Loop module 10 m AKC.UN.ME.ZWI.025

Suspension set 10 m with loop – steel cable Ø2 mm + MW-L lock

Clamp MW-C AKC.UN.ME.ZWI.026

Loop clamp – for steel cable Ø2 mm with loop

Hook MW-DH AKC.UN.ME.ZWI.027

Hilti deck hook – for steel cable Ø2 mm with loop

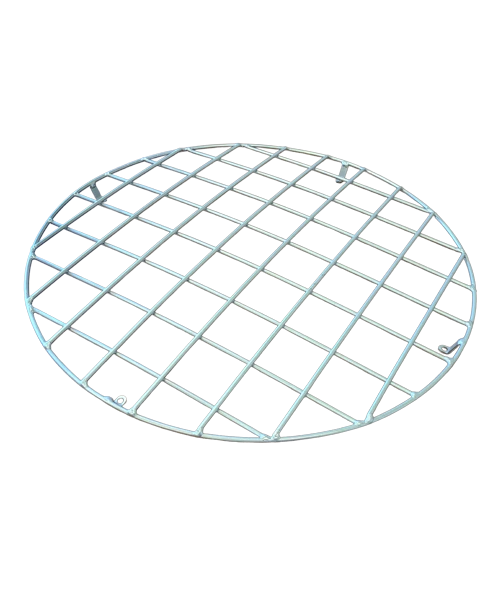

Protective grid (4 mm rod, 50×50 mm mesh) for highbay fixtures.AKC.HB.ME.KRO.001

A galvanized mechanical guard that shields highbay luminaires using sturdy 4 mm rods arranged in a 50×50 mm mesh.

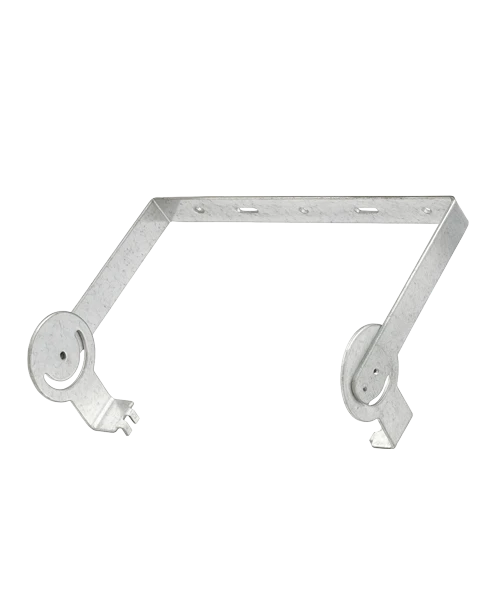

Galvanized adjustable holder for highbay fixtures AKC.HB.ME.UCR.001

Galvanized adjustable holder for highbay fixtures – robust mechanical mount for precise, customizable positioning.
