Case study Geberit

Lighting with Intelligent Control for the European Market Leader in Sanitary Products

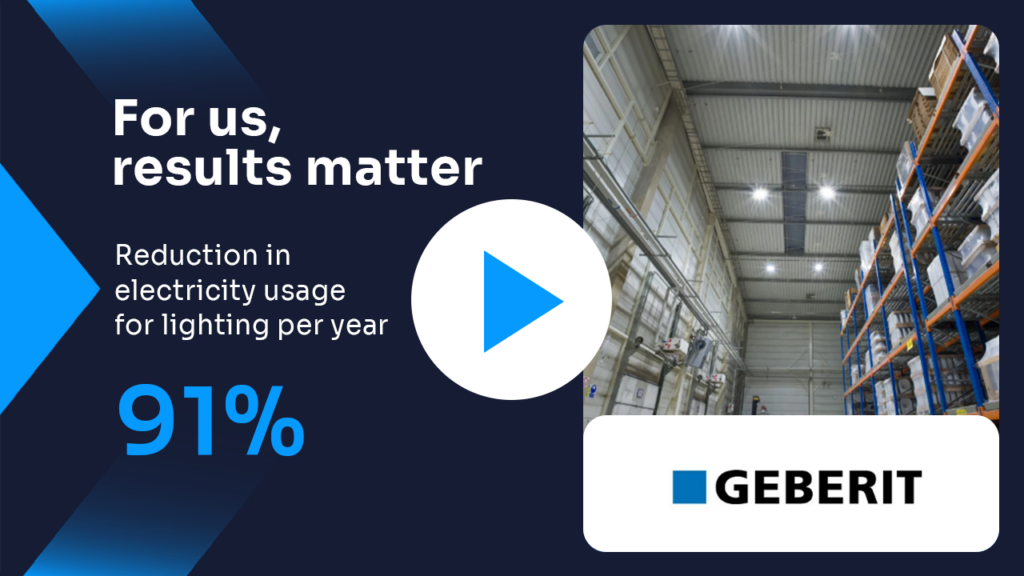

Oprawa Inustrial i oprawa Highbay w zmodernizowanym magazynie firmy Geberit - Luxon LED

Geberit is a company specializing in sanitary technology. Currently, it owns 29 factories worldwide and a network of warehouses, including those in Poland, where we have installed new lighting with intelligent control. One of the main values of the company is sustainable development, which is implemented by offering solutions to reduce water consumption, energy-saving pipelines, and modern logistics systems. Geberit sought to reduce electricity consumption in its warehouses in Włocławek while significantly enhancing employee work comfort. After assessing the on-site situation and discussing with decision-makers, we proposed a lighting solution tailored to the company’s needs and subsequently installed it in the warehouses, redistribution area, and technical storage.

Client:

Geberit

Type of object:

In the warehouses, redistribution area, and technical storage

Requirements

Long corridors and installation height

Height

12 meters

Besonderheiten des Betriebs

Operational characteristics: Crossdock with wide light distribution and an illumination level of 300 lx

Challenges:

Long corridors and installation height

High temperatures up to 60°C

Remote-controlled lights

Crossdock with wide light distribution and an illumination level of 300 lx

The client’s requirement was to replace the lights with more environmentally friendly and energy-efficient products that could be remotely controlled. The client had specific expectations and a vision, to which we adapted the lights. They had to meet the PN-EN standard and be powerful enough to adequately illuminate the large area from a height. One of the rooms was a high-temperature warehouse, so the applied lights had to be heat-resistant accordingly. Long corridors with a height of 5 meters and storage areas with an installation height of 12 meters were also challenging. In the redistribution area, lighting with wide light distribution and higher illumination levels of 300 lx was necessary.

The project was completed successfully because the solutions were precisely tailored to the client’s requirements. Geberit has been our strategic partner for years, and thanks to trust and partnership, joint projects are much more efficient.
Kamil Frątczak

Expert in Industrial Lighting

Lighting design concept

To reduce this value, Ultima 2.0 lights with a high luminous efficacy of 140 lm/W and the ability to operate at temperatures up to 65°C were installed in the rooms. Additionally, INDUSTRIAL 4.0 lights with various optics to control light distribution and Highbay 3.0 lights with an optical system that allows use at greater heights were applied. The lights were designed by us considering the existing cable routes, supplemented with the DALI control system, which automatically adjusts the illumination level when employees are present in the room. The modernization was carried out during ongoing operations, allowing for the continuation of current projects.

Highbay 3.0

An excellent alternative to sodium vapor lamps in high-bay areas. It offers impressive light efficiency of up to 180 lm/W and a wide power range from 78W to 228W, with a guarantee of up to 10 years.

Ultima 2.0 140 lm/W, zu 65° C do 70oC, 170 lm/W

140 lm/W, up to 65°C It is an excellent alternative to traditional fluorescent lamps with 2x58W. Available in power ranges from 17W to an impressive 97W, it features a light efficiency of up to 180 lm/W.

INDUSTRIAL 4.0 140 lm/W, zu 65° C

For the lighting concept, we developed a detailed financial analysis of the investment, which showed, among other things, an estimated return on investment in 1.5 years and a 65% cost reduction

LED investment analysis

For the lighting concept, we developed a detailed financial analysis of the investment, which showed, among other things, an estimated return on investment in 1.5 years and a 65% cost reduction.

Less energy consumption
Annual reduction of CO2 emissions from 161 tons to 13.5 tons

Scope of cooperation:

Lighting audit
Lighting project
LED luminaires
Control system
Installation

Luminaires with wide light distribution, high performance, and low installation costs. In the warehouses, redistribution areas, and technical storage, Luxon LED conducted a detailed analysis of the lighting and calculated the savings.

Based on this, appropriate lights were selected to meet the client’s requirements – reducing energy consumption, increasing illumination levels, and reducing CO2 emissions. Before modernization, the client consumed 24 kWh of energy.

Implementation effects

147.5 tons

CO2 emissions reduced

17,276 €

Annual reduction in allocated power for lighting

20 kWh

Energy consumption reduced from 24 kWh to approximately 2 kWh

Check the client testimonials

At the beginning of the project, a representative from Luxon helped us efficiently and professionally identify the areas that required lighting. All suggestions proved to be very accurate. Thanks to the change in the lighting system, we achieved three very important indicators: comfort, work safety, and economy.

Roman Budny

Distribution Supervisor Geberit

Luxon LED expert Maciej Szott
