LED lighting in the Geberit production area improving efficiency.

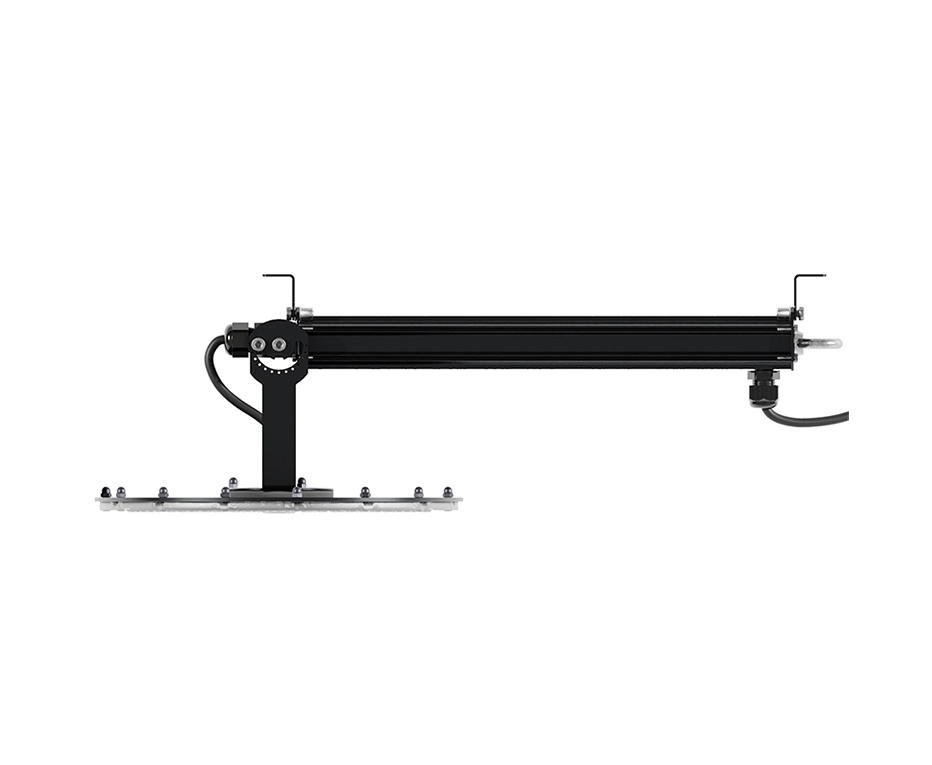

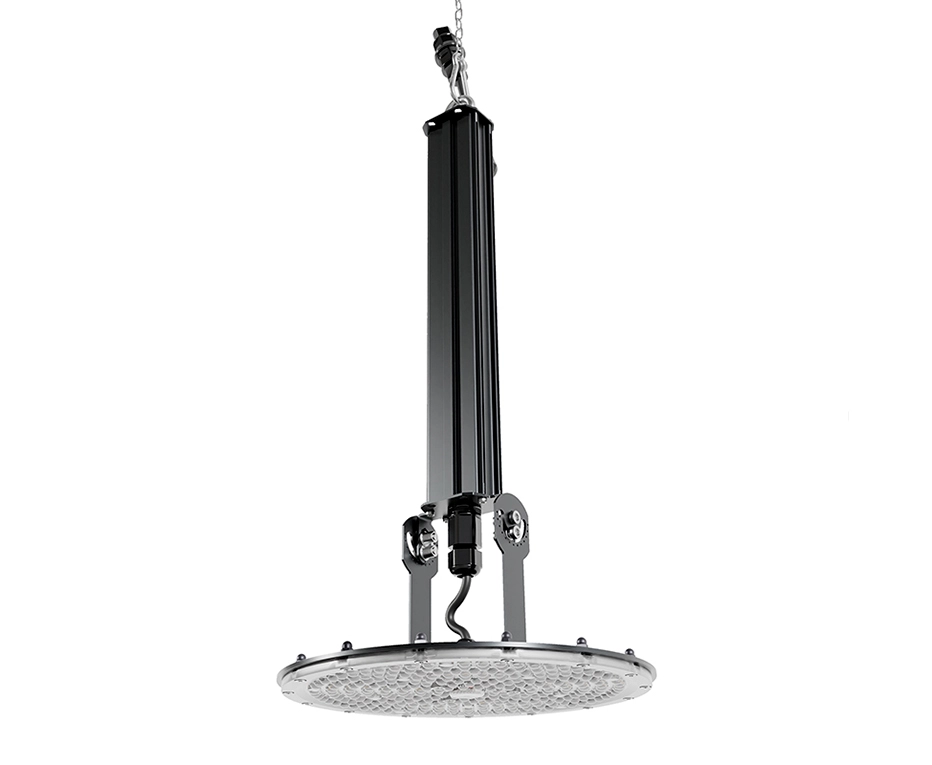

Draft LED 1.0

IP65 protection rating
High efficiency up to 170 lm/W) and quick and convenient installation
Lifespan of up to 105,000 hours of illumination
Operating temperature range from -25°C to +55°C
Possibility of directing the light beam in any direction

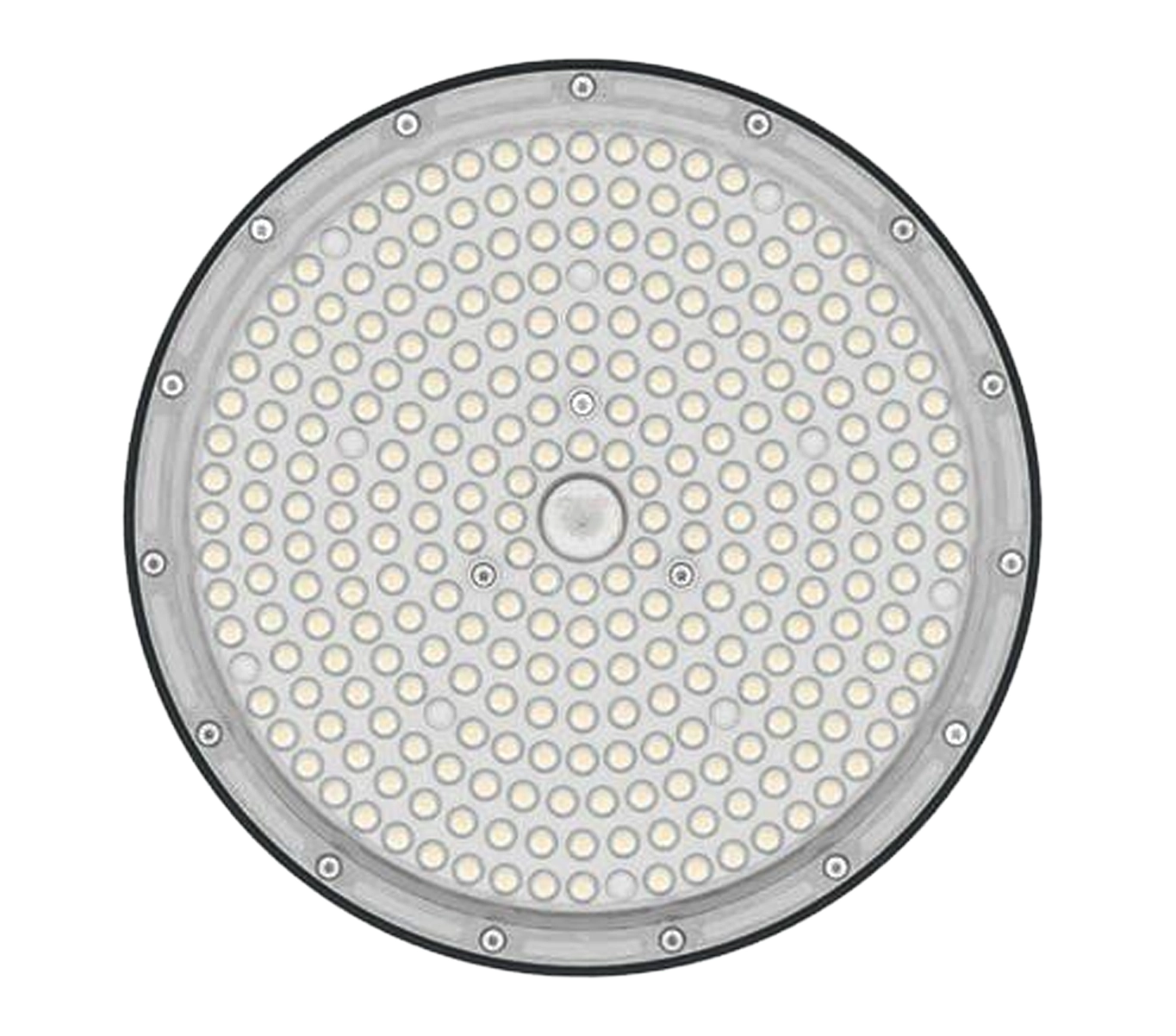

Source of light : LED
CE Certification
Klasa odporności 0
I protection class
IP65 IK08
Impact Protection/Ingress Protection
220-240V 50/60Hz power supply

The Draft LED 1.0 fixture is a modern and cost-effective solution with outstanding luminous efficiency of 170 lm/W. It is versatile thanks to its flexible power adjustment options and is available in three different beam angle variants. The power versions range from 86W to 134W, achieving a luminous flux of up to 21,100 lm, making it ideal for industrial production halls and warehouses.

Despite its lightweight design, weighing approximately 2.3 kg, Draft LED 1.0 is durable and operates reliably even at temperatures up to +55°C. It comes with a five-year warranty, emphasizing its quality and long-term performance. With DALI control compatibility, it offers precise lighting management. Its lifetime of up to 100,000 hours makes it a reliable and energy-efficient industrial lighting solution for your facility.

Draft LED 1.0: Where Economy Meets Innovation



Premium Efficiency Within Reach

Draft LED 1.0 is a modern industrial luminaire that combines advanced technology with excellent efficiency at a competitive price. With luminous efficacy of **170 lm/W** and power options from **86W to 134W**, it is ideal for production halls, warehouses, and large spaces requiring reliable, energy-saving lighting.



Flexibility and Adaptability in Lighting

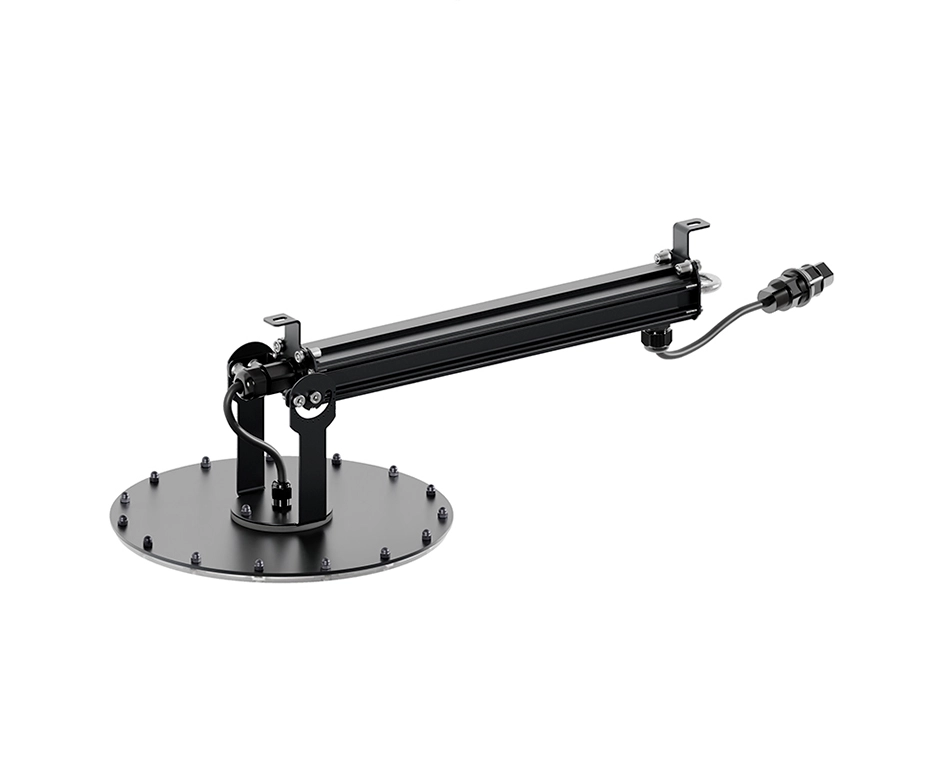

A key feature of Draft LED 1.0 is its **tiltable diffuser**, which allows precise light direction, even in hard-to-reach areas such as beneath girders or above cranes. This flexibility enhances lighting efficiency in work zones, improving both safety and visibility.



Durability and Cost Savings in a Modern Design

A robust **aluminum housing** and **IP65 protection rating** make the fixture resistant to dust, moisture, and demanding industrial conditions. With a **lifetime of up to 105,000 hours** and a **5-year warranty**, Draft LED 1.0 minimizes maintenance costs and downtime.



Summary

Draft LED 1.0 delivers the performance of a premium product with the cost efficiency businesses expect. Its tiltable diffuser and durable construction make it a perfect lighting solution for demanding industrial environments — reliable, efficient, and built to last.

Draft LED 1.0 Applications
Production halls

The Draft LED 1.0 luminaire, with its exceptional luminous efficiency of 170 lm/W and tiltable diffuser, is an excellent solution for production halls in sectors such as automotive, electronics, or pharmaceuticals. Its ability to precisely direct light provides optimal conditions for complex production processes while enhancing safety and comfort at work. The durable construction and long lifespan of the Draft LED 1.0 luminaire guarantee reduced downtimes and savings in long-term operation.

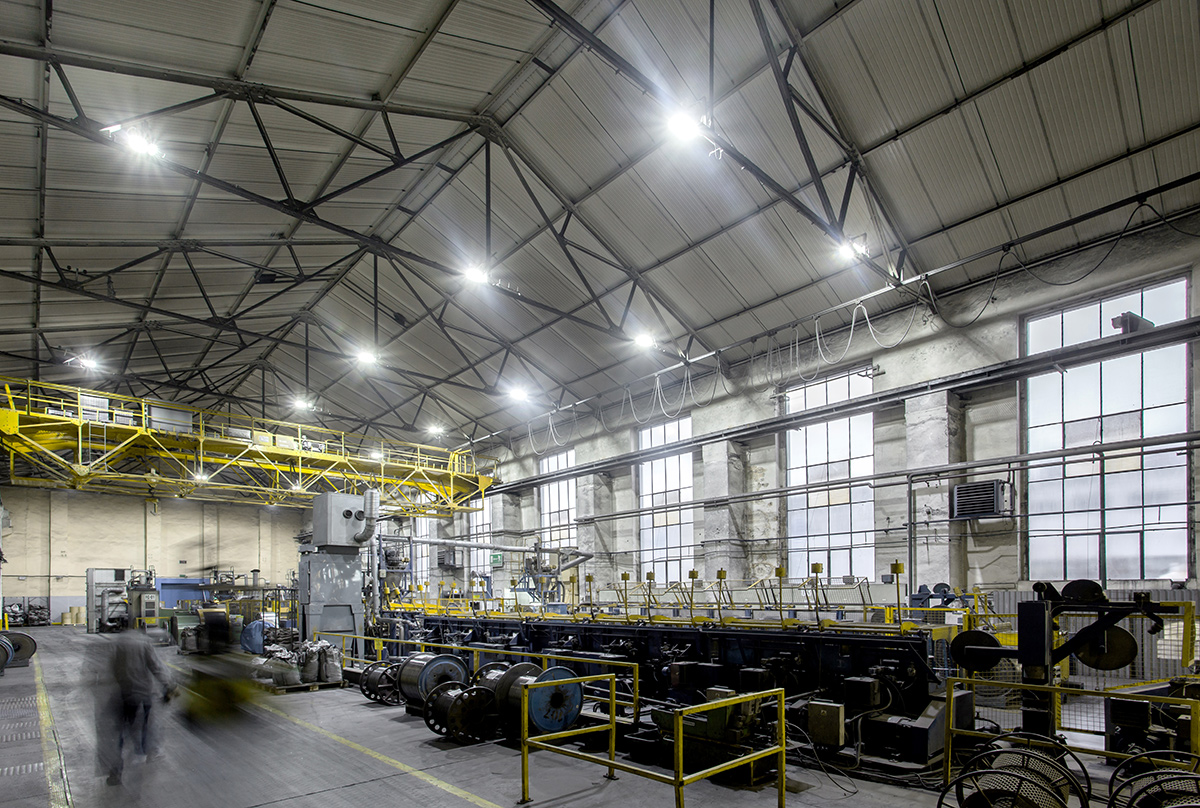

LED lighting modernization at the Geberit facility.
High storage warehouses

In high-storage warehouses, the Draft LED 1.0 luminaire with its tiltable diffuser and impressive luminous flux of up to 21,100 lm becomes a crucial lighting element, ensuring brightness and visibility even in the highest parts of the racks. With a luminous efficiency of 170 lm/W, this luminaire guarantees significant energy savings, which are invaluable in spaces with continuous, 24-hour operation. The robust construction and resistance to challenging working conditions, backed by a 5-year warranty, make the Draft LED 1.0 a reliable solution for dynamic warehouse environments.

Open spaces

Inside warehouses, especially in areas like loading docks where accuracy and operational safety are crucial, the Draft LED 1.0 luminaire with its tiltable diffuser and impressive luminous efficiency of 170 lm/W provides optimal lighting conditions. Its ability to precisely direct light enables clear illumination of loading and unloading zones, essential for smooth flow of goods and minimizing the risk of accidents. The robust construction and durability of the luminaire, even in challenging indoor warehouse conditions, ensure reliability and long-term savings.

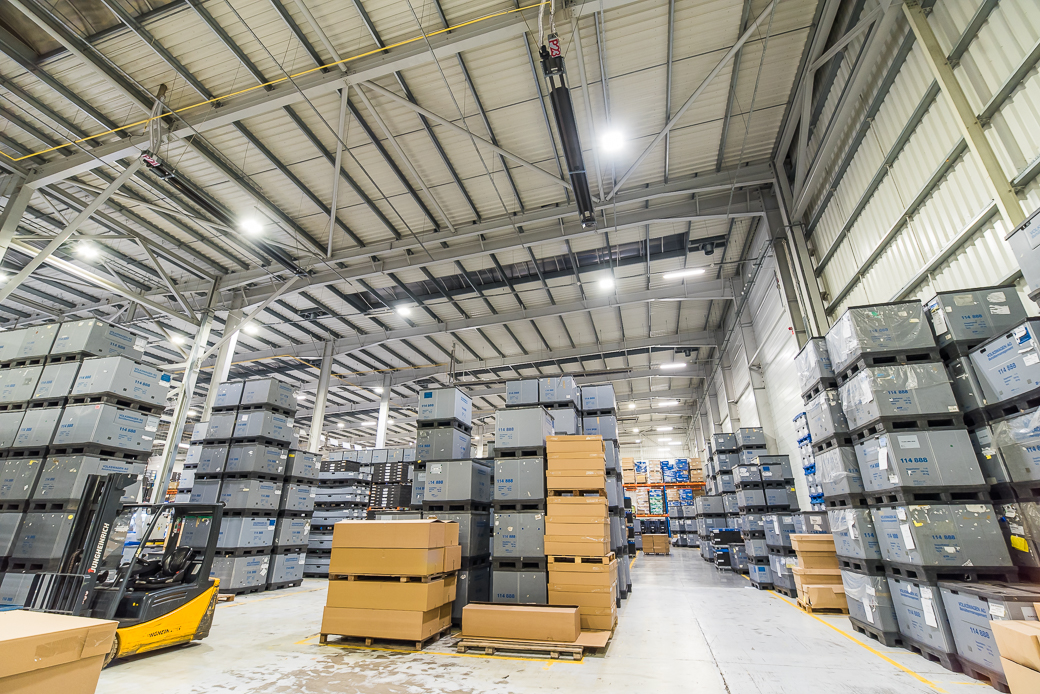

Modern LED luminaires in the Geberit warehouse.
Storage halls

In warehouse facilities, the Draft LED 1.0 luminaire, available in wattages up to 134W and boasting a luminous efficiency of 170 lm/W, provides an ideal solution for illuminating large warehouse spaces. Its tiltable diffuser allows for effective lighting of both warehouse aisles and high shelves, ensuring excellent visibility and work safety. Additionally, its high lifespan of up to 105,000 hours and robust construction guarantee minimal maintenance costs and long-term efficiency, which are crucial for optimizing warehouse operations.

Product available in multiple configurations
NameProduct-CodeDimensions
W x H x L [mm]
Power [W].Luminosity [lm]Efficiency [lm/W]Color temperature [K]CRI/RaProtection Rating [IP]Light distribution
DRAFT LED 1.0 1 DRF1ST.10.067.8A3000
DRF1ST.10.067.8A4000
DRF1ST.10.067.8A5000
0/560/270
0/560/270
0/560/270
67
67
67
10450
11250 – 11400
11300 – 11450
155
167 – 170
168 – 170
3000
4000
5000
>80
>80
>80
65
65
65
80°X80° 110°X110°
80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

DRAFT LED 1.0 2 DRF1ST.20.086.8A3000
DRF1ST.20.086.8A4000
DRF1ST.20.086.8A5000
0/560/270
0/560/270
0/560/270
86
86
86
12950 – 13150
14100 – 14350
14150 – 14400
150 – 152
163 – 166
164 – 167
3000
4000
5000
>80
>80
>80
65
65
65
50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

DRAFT LED 1.0 3 DRF1ST.30.115.8A3000
DRF1ST.30.115.8A4000
DRF1ST.30.115.8A5000
0/560/270
0/560/270
0/560/270
115
115
115
16700 – 16950
18200 – 18500
18250 – 18550
145 – 147
158 – 160
158 – 161
3000
4000
5000
>80
>80
>80
65
65
65
50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

DRAFT LED 1.0 4 DRF1ST.40.134.8A3000
DRF1ST.40.134.8A4000
DRF1ST.40.134.8A5000
0/560/270
0/560/270
0/560/270
134
134
134
19050 – 19300
20750 – 21050
20800 – 21100
142 – 144
154 – 157
155 – 157
3000
4000
5000
>80
>80
>80
65
65
65
50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

50°X50° 80°X80° 110°X110°
50°X50° 80°X80° 110°X110°

Customize your product variant and download the dedicated technical specification sheet

Already have a quote? Select the product family and then the product code that interests you to download an individual product sheet

BAZA-FORM-Kubatura
Check available accessories
Cable with plug 1.8 m 3×1.5 mm² AKC.UN.EL.ZLA.001
3×1.5 mm² grey cable with plug (1.8 m).
Cable with plug 3 m 3×1.5 mm² AKC.UN.EL.ZLA.002
3×1.5 mm² grey cable with plug (3 m).

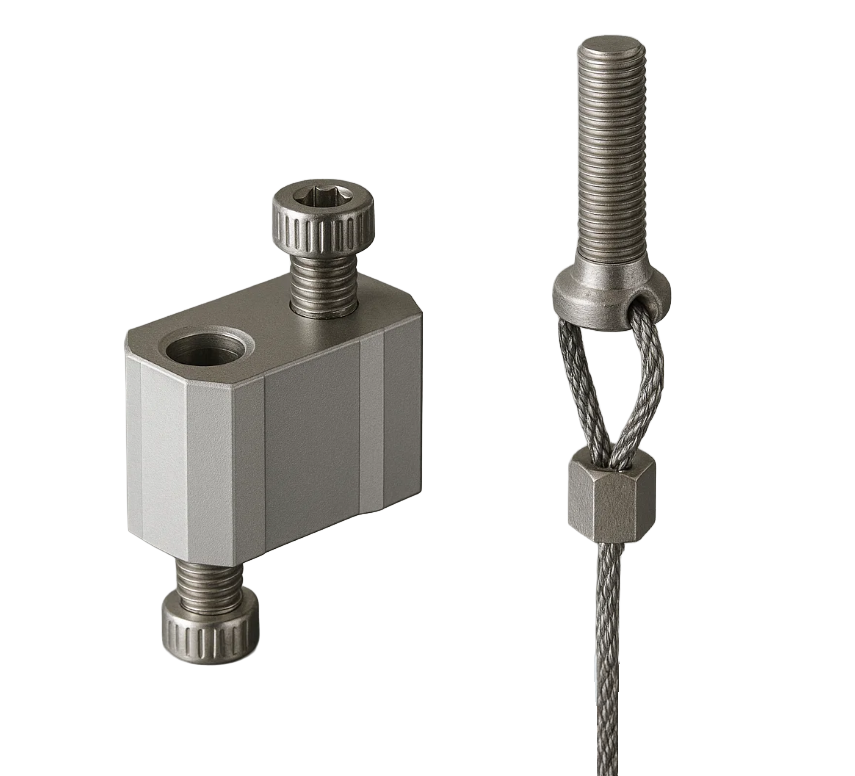

Suspension module 1 m AKC.UN.ME.ZWI.011
Hilti suspension set 1 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock
Suspension module 2 m AKC.UN.ME.ZWI.012
Hilti suspension set 2 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock
Suspension module 3 m AKC.UN.ME.ZWI.013
Hilti suspension set 3 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock
Suspension module 5 m AKC.UN.ME.ZWI.014
Hilti suspension set 5 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock
Suspension module 10 m AKC.UN.ME.ZWI.015
Hilti suspension set 10 m – steel cable Ø2 mm, M8 eye bolt + MW-L lock

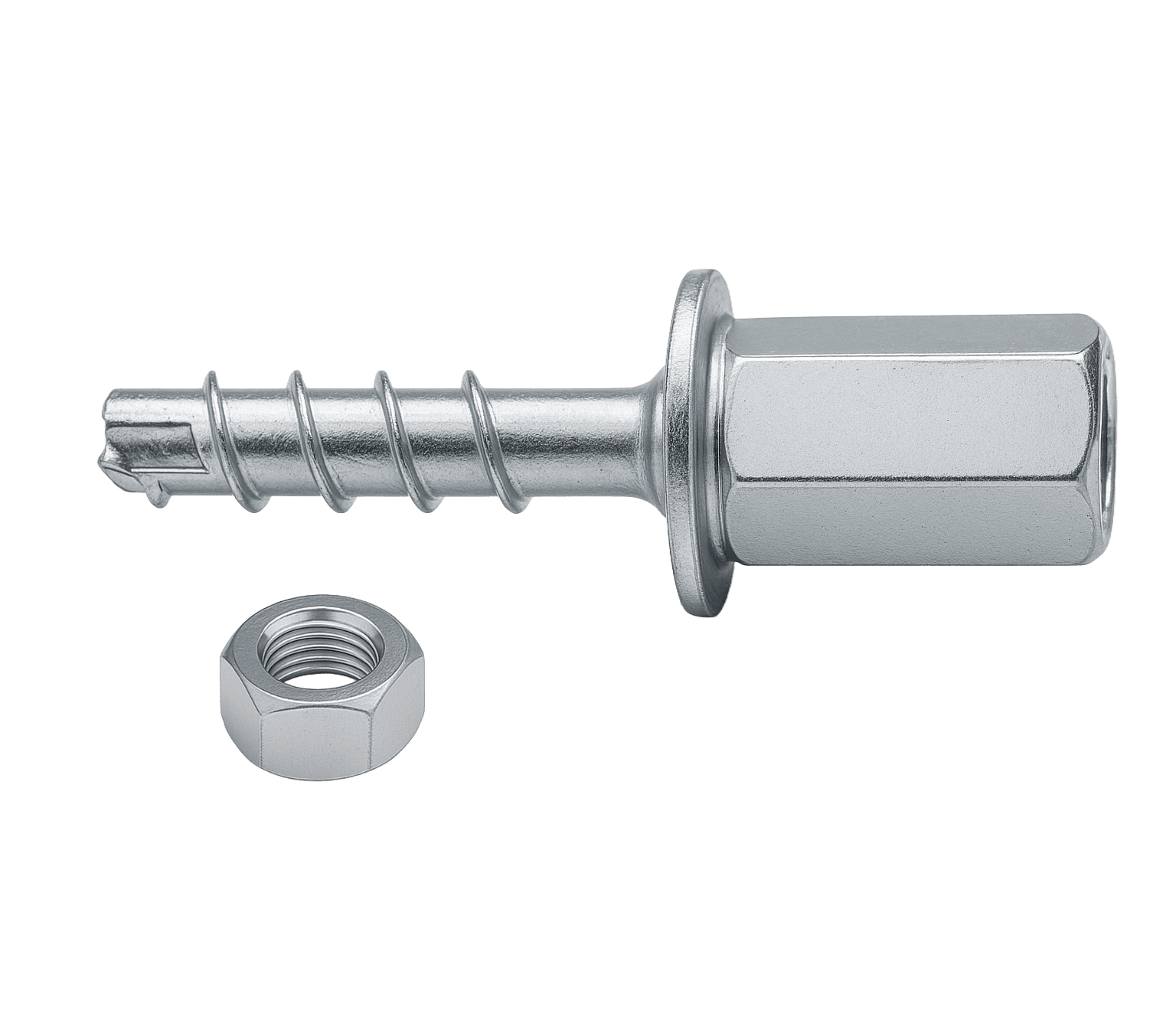

Mounting anchor HUS3-I AKC.UN.ME.ZWI.016
Hilti HUS3-I screw anchor with M8 locknut – for steel cables Ø2 mm with eye bolt

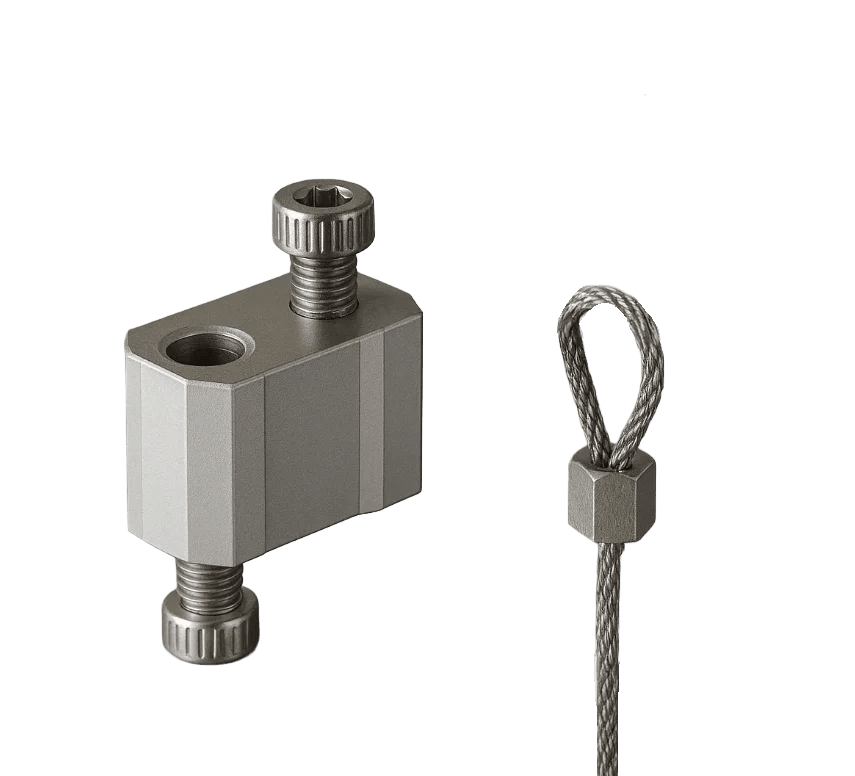

Loop module 1 m AKC.UN.ME.ZWI.021
Hilti suspension set 1 m with loop – steel cable Ø2 mm + MW-L lock
Loop module 2 m AKC.UN.ME.ZWI.022
Hilti suspension set 2 m with loop – steel cable Ø2 mm + MW-L lock
Loop module 3 m AKC.UN.ME.ZWI.023
Hilti suspension set 3 m with loop – steel cable Ø2 mm + MW-L lock
Loop module 5 m AKC.UN.ME.ZWI.024
Hilti suspension set 5 m with loop – steel cable Ø2 mm + MW-L lock

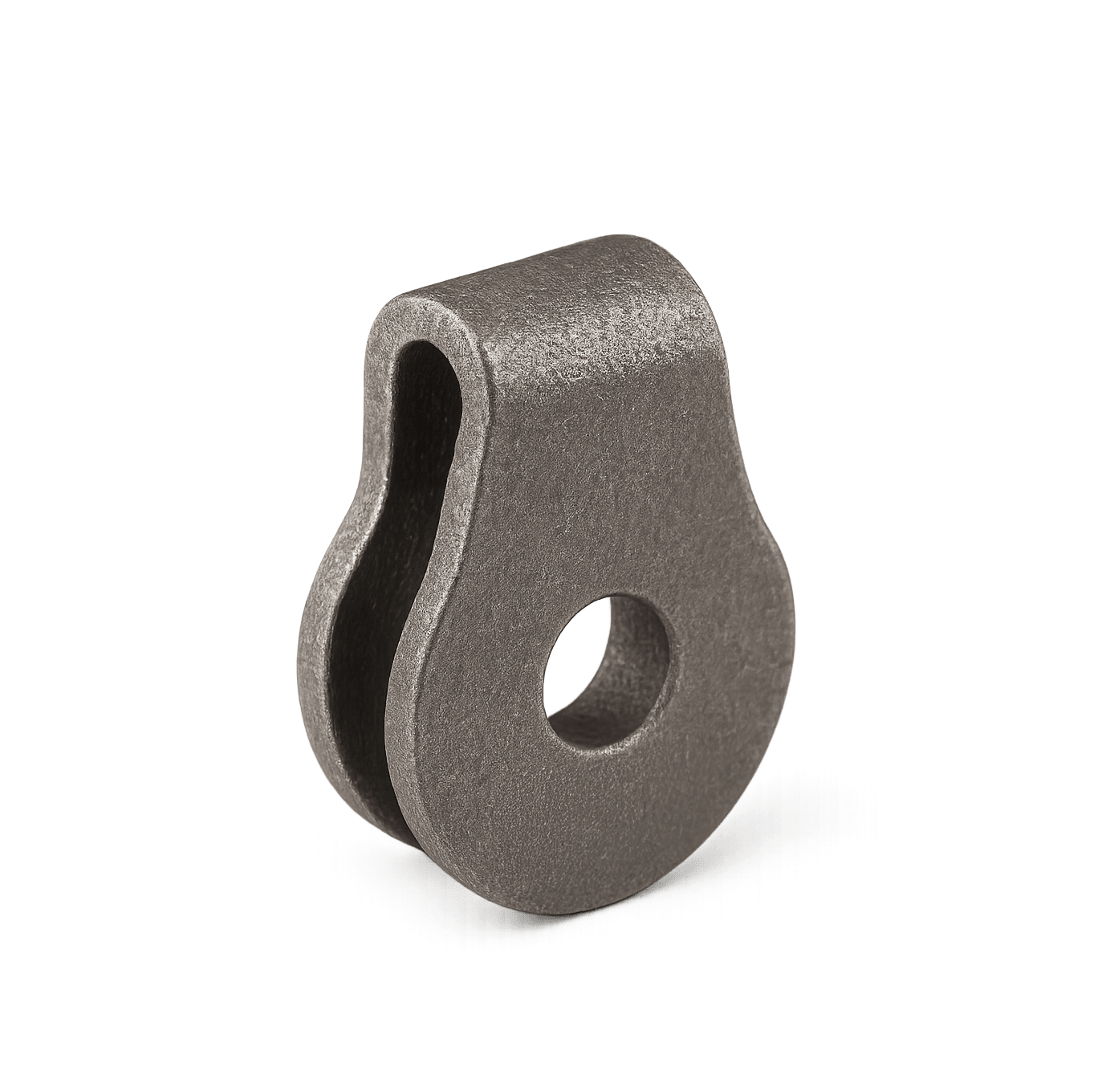

Loop module 10 m AKC.UN.ME.ZWI.025
Suspension set 10 m with loop – steel cable Ø2 mm + MW-L lock
Clamp MW-C AKC.UN.ME.ZWI.026
Loop clamp – for steel cable Ø2 mm with loop

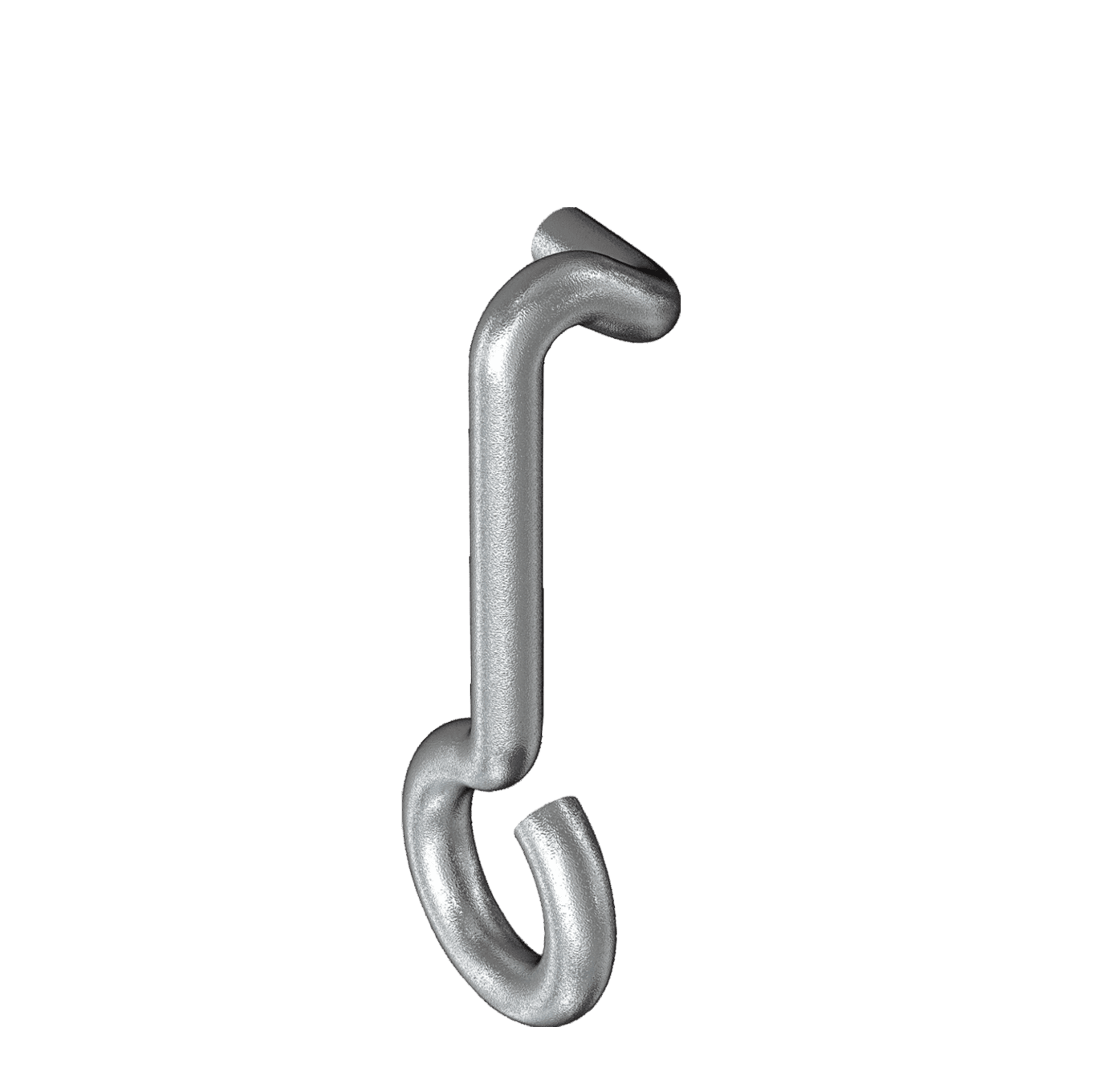

Hook MW-DH AKC.UN.ME.ZWI.027
Hilti deck hook – for steel cable Ø2 mm with loop

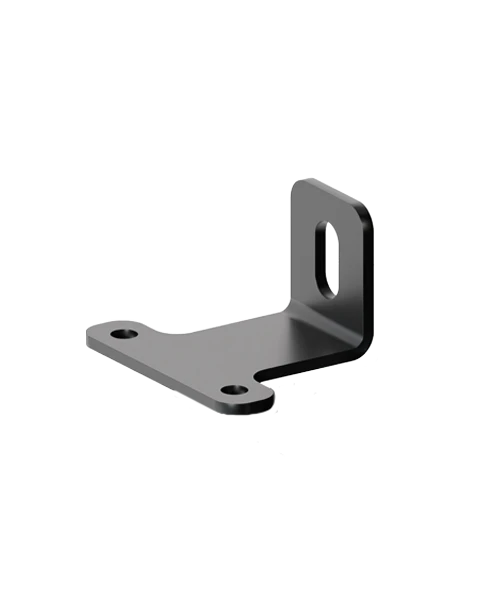

Fixed mechanical holder for surface-mounted Draft fixtures AKC.DR.ME.UCS.001
Fixed mechanical holder for surface-mounted Draft fixtures – durable support for effortless, stable installation.
