SQLight LED MP 1; Power version 1; Lift 0; 32W; CRI80; Midpower; 4000K; Lens PMMA; Diffuser PMMA microprismatic; 90°x90°; Ta 0/+40°C; Warranty 5 years
32
5550
173
4000
>80

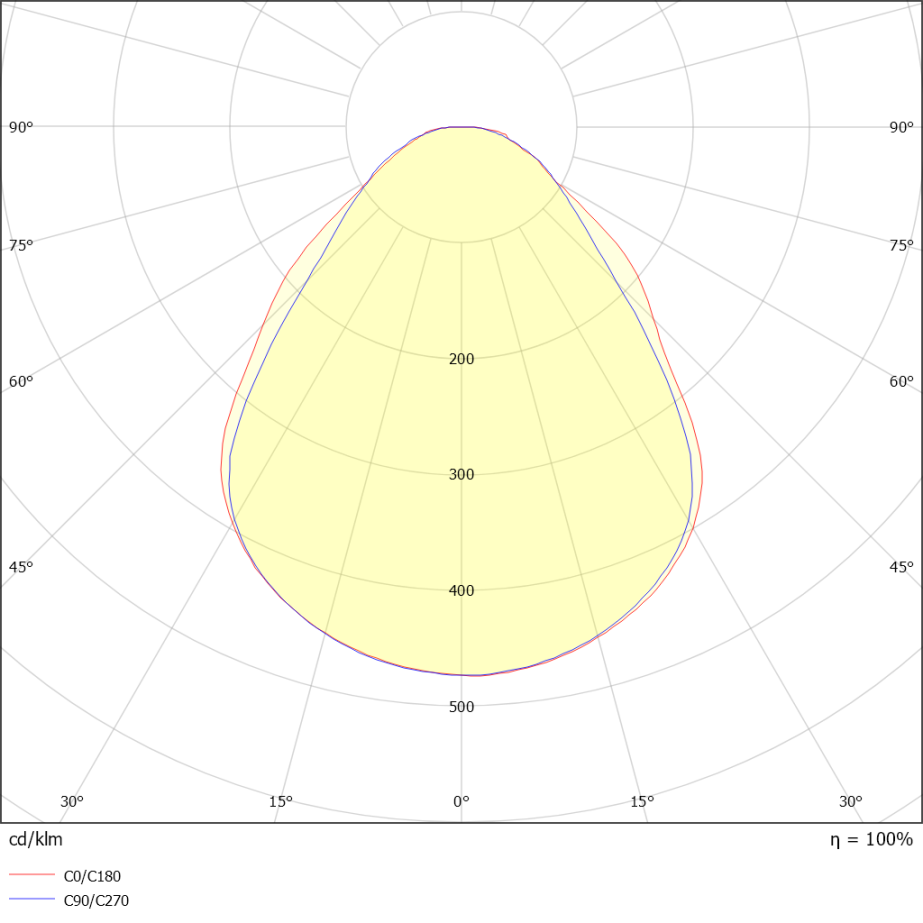

90°X90°
1,8
Power consumption 32 W. Luminous efficacy 173 lm/W. Luminous flux of 5550 lm. Spread of light 90°X90°. Luminaire intended for use in: Office spaces / Office rooms, Retail facilities, Technical rooms / Technical spaces, Social spaces / Social rooms, Public facilities
Luminaire IP rating 40. Mechanical resistance IK nie dotyczy. Acceptable ambient temperature Ta min -00°C - Ta max +40°C. Optical system made of PMMA. Colour temperature 4000 K. Average rated life of L80B10 at 50 000 hours at Ta = 25°C. Average rated life of L80B10 at 35 000 hours at Ta = 35⁰C.
Average rated life of L80B50 at 55 000 hours at Ta = 25°C. Average rated life of L90B10 at 20 000 hours at Ta = 25°C. The product is classified for photobiological risk RG1. Colour rendering index (CRI) > >80 Ra.
The operating time of the power supply is 50 000 hours at Ta = 25°C. Power Factor (PF) 0,98. Total harmonic distortions (THD) 7%. The luminaire operates on a 198-264V 50-60Hz power supply. Output current ripple 3%. The lifetime of the luminaire is 50 000 h at 25°C. It can be controlled by ON/OFF.
Dimensions: 35 mm height 595 mm length 595 mm width. Housing material Powder-coated steel, in white color - RAL 9003. The weight of the luminaire is 1,8 kg. Maxnumber of luminaires in one circuit for: B10 = 25 B16 = 40 C10 = 42 C16 = 68.
| General information | |
|---|---|
| Warranty [Y] | 5Y |
| Battery Warranty [M] | does not apply |
| Quick connector | NO |
| Montage System | surface-mounted, recessed, modular ceiling, suspended |
| External installation | NO |
| Protection rating | II |
| Internal installation | YES |
| IP protection class | 40 |
| Control system | ON/OFF |
| Through wiring system | NO |
| Luminaire operating temperature | -00 ÷ +40 |
| Electrical data | |
|---|---|
| THD [%] | 7 |
| Power | 198-264V 50-60Hz |
| Rated power [W] | 32 |
| Inrush current [A] | 23 |
| Max. number of luminaires in a single B10 circuit | 25 |
| Max. number of luminaires in a single B16 circuit | 40 |
| Max. number of luminaires in a single C10 circuit | 42 |
| Max. number of luminaires in a single C16 circuit | 68 |
| Power Supply System Data | |
|---|---|
| Power supply version | ON/OFF |
| Current ripple [%] | 3% |
| Overvoltage protection (L-N)/(L/N-PE) [kV] | 1kV/2kV |
| Power supply lifetime for Ta=25°C [h] | 50 000 |
| Light source data | |
|---|---|
| L80B10; Ta=25°C [h] | 50 000 |
| L80B10; Ta=35°C [h] | 35 000 |
| L80B10; Ta=40°C [h] | 22 000 |
| L80B50; Ta=25°C [h] | 55 000 |
| L90B10; Ta=25°C [h] | 20 000 |
| Photobiological safety | RG1 |
| Driving current [mA] | 700 |
| Materials | |
|---|---|
| Housing color | white |
| Lens material | PMMA |
| Housing material | Powder-coated steel |
| Diffuser material | Microprismatic PMMA |
| Housing RAL | 9003 |
| Impact resistance (IK) | does not apply |
| Diffuser thickness [mm] | 1 |
| Luminaire photometric data | |
|---|---|
| UGR min. - max | 17 - 23 |
| Efficacy [lm/W] | 173 |
| Luminous flux [lm] | 5550 |
| Color rendering index (Ra) | >80 |
| Light beam angle | 90°X90° |
| Color temperature CCT [K] | 4000 |
| Dimensions | |
|---|---|
| Width [W] | 595 |
| Height [H] | 35 |
| Length [L] | 595 |
