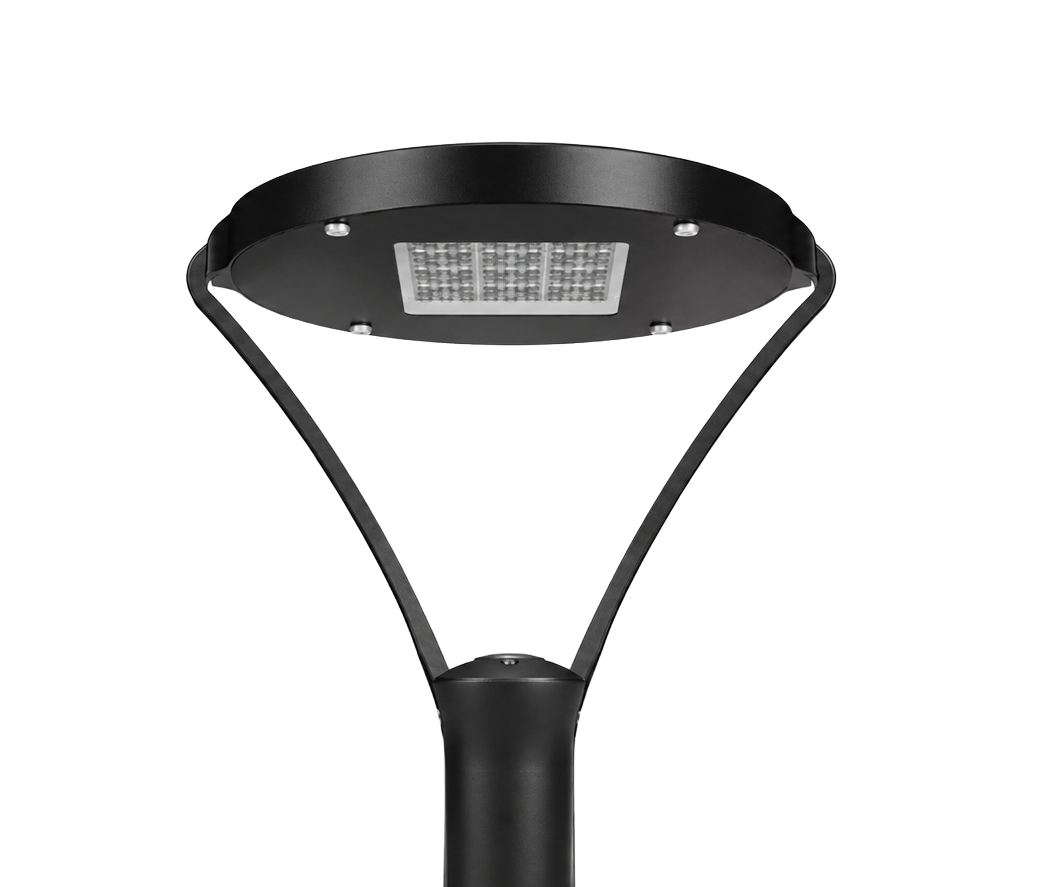

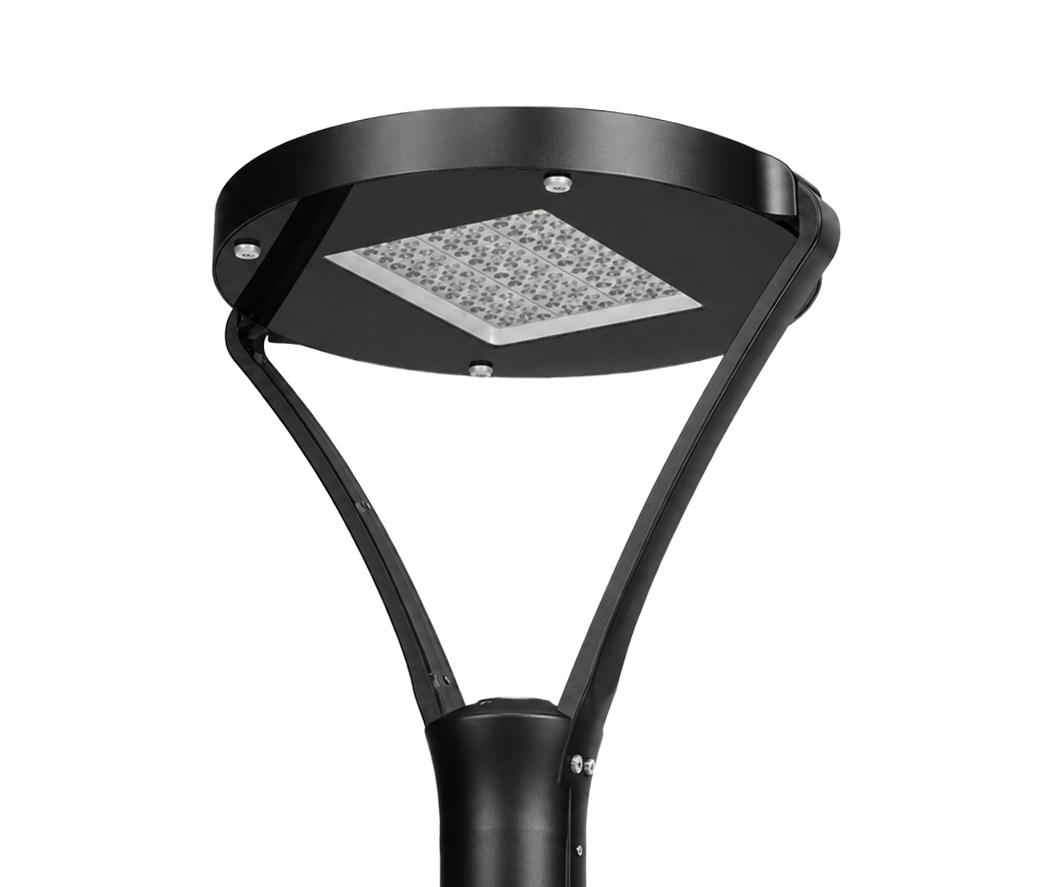

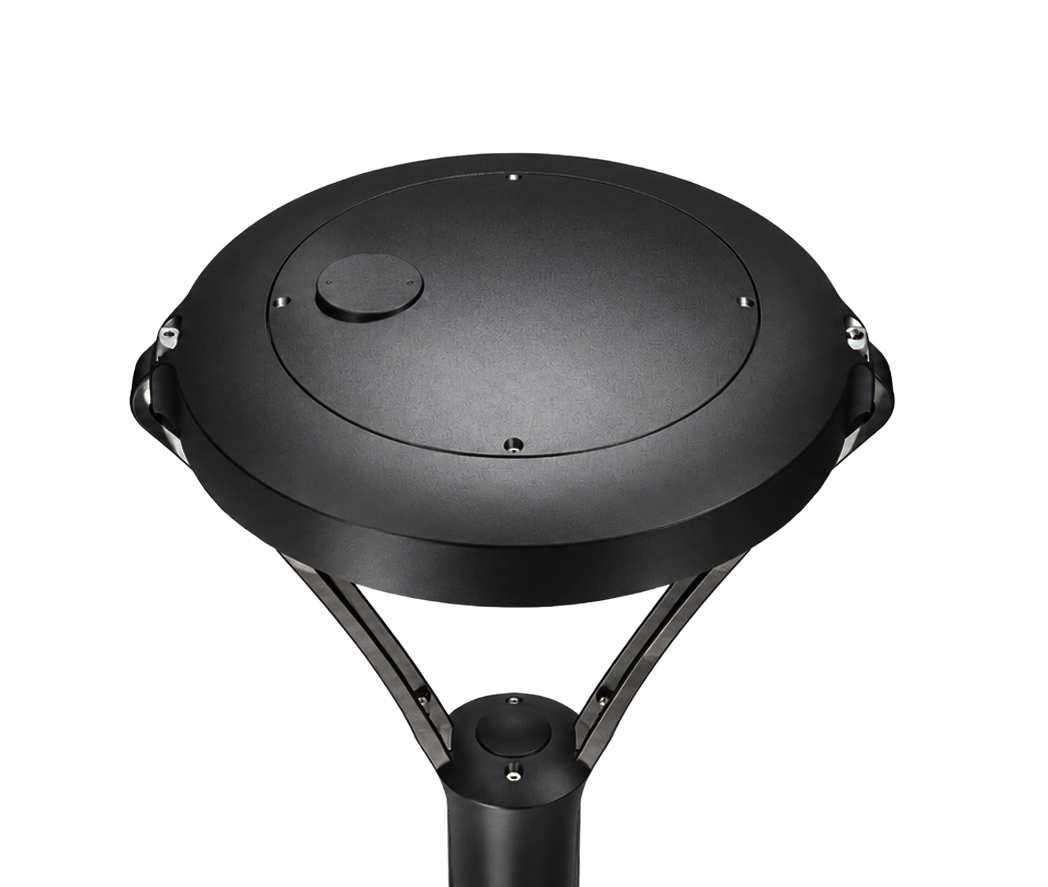

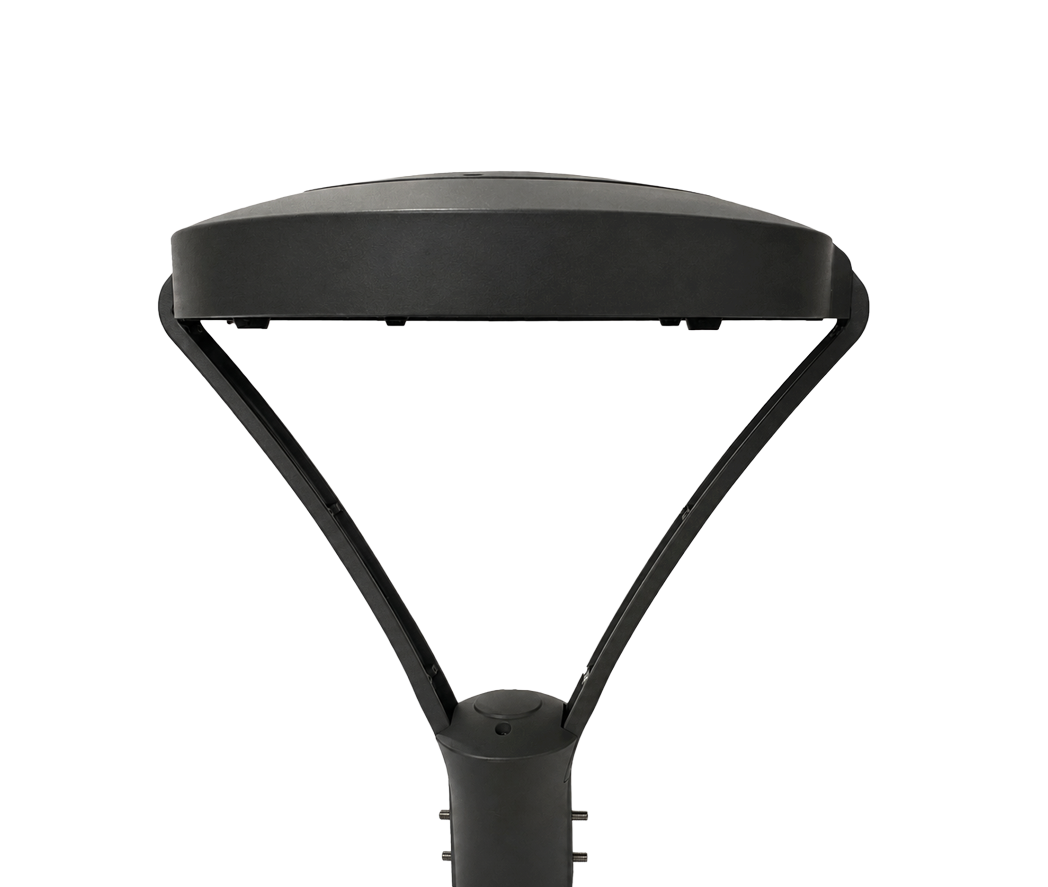

Madrid LED A 2; Power version 1; Lift 0; 30W; CRI80; Midpower; 3000K; Lens PC; Diffuser tempered glass transparent; 120°x120°; Zhaga up socket; Ta -30/+50°C; Warranty 5 years; 10kV
30
4450
148
3000
>80
120°X120°
7,1
Power consumption 30 W. Luminous efficacy 148 lm/W. Luminous flux of 4450 lm. Spread of light 120°X120°. Luminaire intended for use in: Outdoor areas, Car parks / Parking lots, Parks
Luminaire IP rating 66. Mechanical resistance IK 08. Acceptable ambient temperature Ta min -30°C - Ta max +50°C. Optical system made of PC. Colour temperature 3000 K. Average rated life of L80B10 at 100 000 hours at Ta = 25°C. Average rated life of L80B10 at 100 000 hours at Ta = 35⁰C.
Average rated life of L80B50 at 100 000 hours at Ta = 25°C. The product is classified for photobiological risk RG0. Colour rendering index (CRI) > >80 Ra.
The operating time of the power supply is 100 000 hours at Ta = 25°C. Power Factor (PF) 0,96. Total harmonic distortions (THD) 7%. The luminaire operates on a 176-305V 47-63Hz 171-275V DC power supply. Output current ripple 2%. The lifetime of the luminaire is 100 000 h at 25°C. It can be controlled by DALI.
Dimensions: 526 mm height 465 mm length 465 mm width. Housing material High-pressure powder-coated aluminum casting, in anthracite color - RAL 7016. The weight of the luminaire is 7,1 kg. Maxnumber of luminaires in one circuit for: B10 = 7 B16 = 11 C10 = 7 C16 = 11.
| General information | |
|---|---|
| Warranty [Y] | 5Y |
| Battery Warranty [M] | does not apply |
| Quick connector | YES |
| Montage System | column Ø60 |
| External installation | YES |
| Protection rating | I |
| Internal installation | NO |
| IP protection class | 66 |
| Control system | DALI |
| Through wiring system | NO |
| Luminaire operating temperature | -30 ÷ +50 |
| Electrical data | |
|---|---|
| THD [%] | 7 |
| Power | 176-305V 47-63Hz 171-275V DC |
| Rated power [W] | 30 |
| Inrush current [A] | 111 |
| Max. number of luminaires in a single B10 circuit | 7 |
| Max. number of luminaires in a single B16 circuit | 11 |
| Max. number of luminaires in a single C10 circuit | 7 |
| Max. number of luminaires in a single C16 circuit | 11 |
| Power Supply System Data | |
|---|---|
| Power supply version | DALI |
| Current ripple [%] | 2% |
| Overvoltage protection (L-N)/(L/N-PE) [kV] | 6kV/10kV |
| Power supply lifetime for Ta=25°C [h] | 100 000 |
| Additional power supply features | NFC, DALI-2, D4i, AC DIM, CLO, EOL, 3-Timer Modes Dimmable |
| Light source data | |
|---|---|
| L80B10; Ta=25°C [h] | 100 000 |
| L80B10; Ta=35°C [h] | 100 000 |
| L80B10; Ta=40°C [h] | 100 000 |
| L80B50; Ta=25°C [h] | 100 000 |
| Photobiological safety | RG0 |
| Driving current [mA] | 560 |
| Materials | |
|---|---|
| Housing color | anthracite |
| Lens material | PC |
| Housing material | High-pressure powder-coated aluminum casting |
| Diffuser material | tempered transparent glass |
| Housing RAL | 7016 |
| Impact resistance (IK) | 08 |
| Luminaire photometric data | |
|---|---|
| UGR min. - max | does not apply - does not apply |
| Efficacy [lm/W] | 148 |
| Luminous flux [lm] | 4450 |
| Color rendering index (Ra) | >80 |

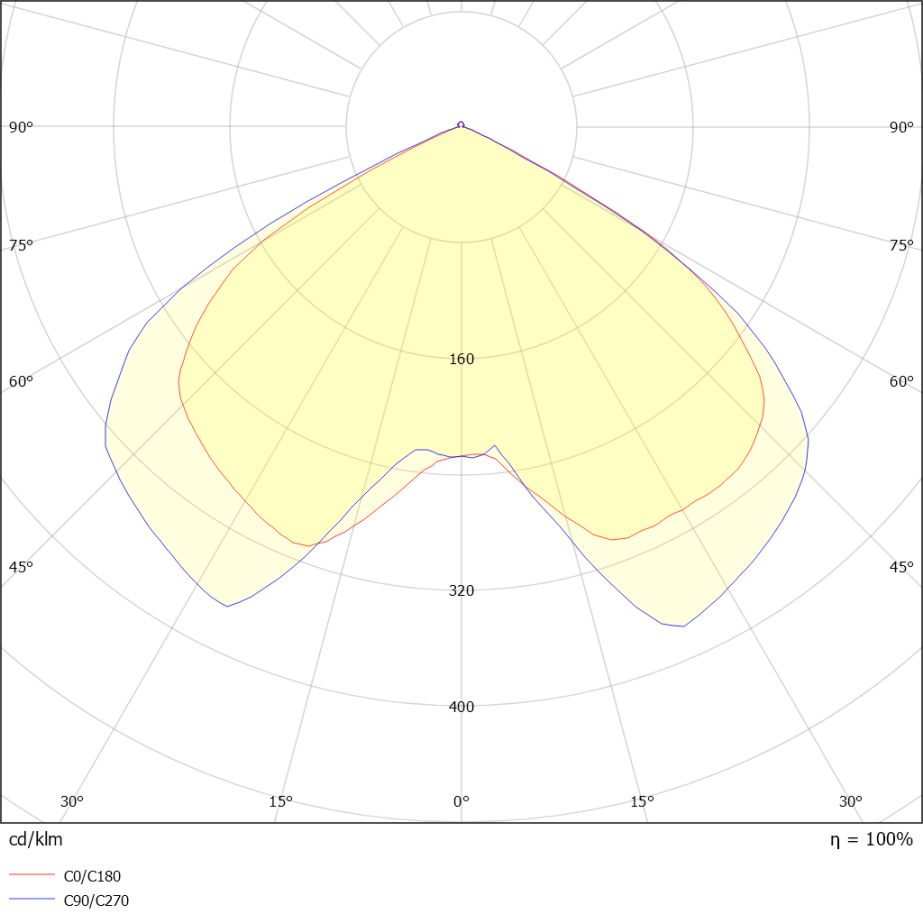

| Light beam angle | 120°X120° |
| Color temperature CCT [K] | 3000 |
| Dimensions | |
|---|---|
| Width [W] | 465 |
| Height [H] | 526 |
| Length [L] | 465 |
