LED lighting in the Geberit production area improving efficiency.

DL1 LED

Tool-free, easy, and fast installation
Luminous efficacy up to 113 lm/W ensuring low energy consumption
Use of LED diodes from renowned manufacturers
Light source lifespan of up to 100,000 hours (L80B10)
5-year warranty
Source of light : LED
Manufacturer and our partner
CE Certification
Klasa odporności 1
II protection class
IK04 IP44/40
Impact protection: / Ingress Protection rating
220-240V 50/60Hz power supply

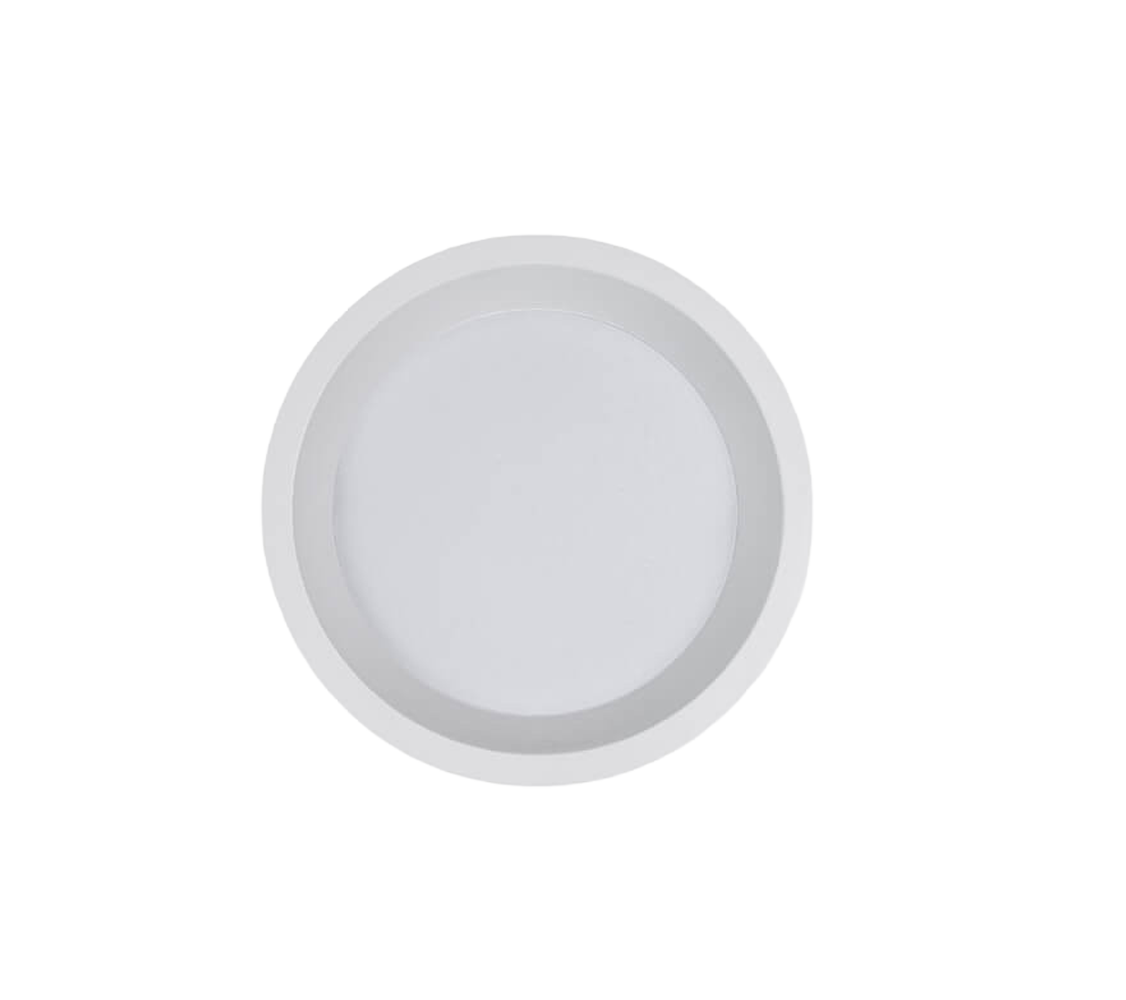

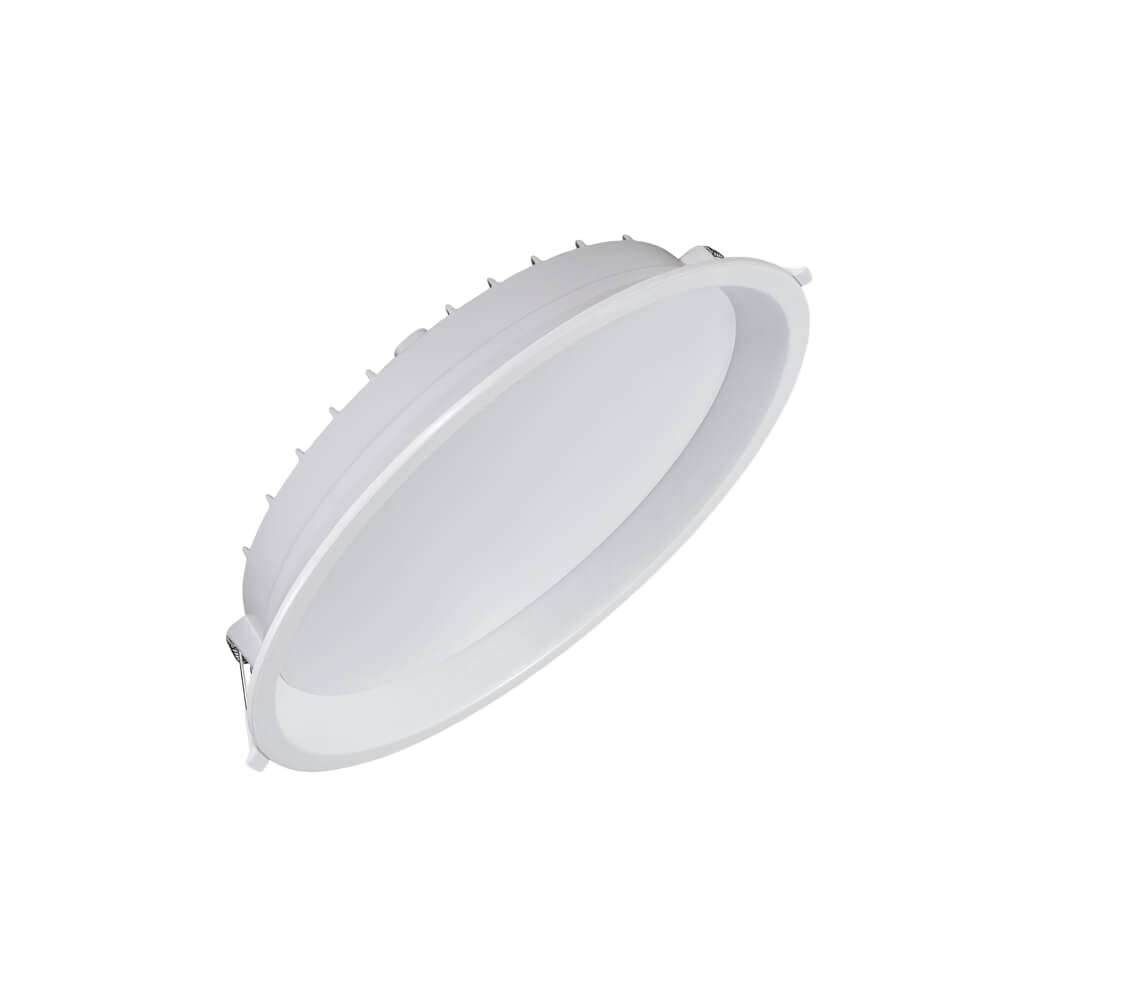

DL1 is a modern LED recessed luminaire designed for installation in suspended ceilings where limited mounting space is a key factor. Thanks to its low body height of just 40 mm, the luminaire can be installed even in very narrow ceiling voids. This model features a luminous efficacy of 113 lm/W and is available in two power variants: 19W and 27W. Its robust construction, featuring a die-cast aluminum housing, ensures an IP40/44 protection rating and a light source lifespan of 100,000 h (L80B10). The luminaire comes with a 5-year warranty.

DL1 – Compact design and low profile

The DL1 luminaire was designed to maximize ease of installation in low ceiling voids. A body height of only 40 mm makes it one of the most compact Downlight solutions on the market. The robust die-cast aluminum housing, powder-coated in white (RAL 9016), guarantees excellent heat dissipation and an aesthetic appearance in plasterboard ceilings.



Optics and light distribution

A key element of the DL1 luminaire’s optics is the opal diffuser, which provides soft, evenly distributed light without glare. The wide 120° beam angle allows for effective illumination of large areas while maintaining high uniformity.



Safety and control

Despite its simple and slim design, the DL1 offers a high IP44/40 protection rating, which protects the device against dust ingress, expanding its range of applications. The luminaire’s electronics are based on power supplies from proven manufacturers.

DL1 LED Applications
Office spaces

The DL1 luminaire provides uniform, glare-free lighting essential for productivity in workstations. Its sleek white finish and recessed design allow it to blend seamlessly into modern office aesthetics

Markets and retail

The wide 120° beam angle ensures excellent illumination of shelves and store aisles.

Communication routes and halls

Fast, tool-free installation using spring clips is invaluable when installing a large number of light points in corridors.

Conference rooms

The aesthetic white housing (RAL 9016) blends perfectly with modern ceilings.

Classrooms and educational facilities

A lifespan of 100,000 hours ensures years of maintenance-free operation in schools. The opalized diffuser provides a soft light that reduces eye strain for students and teachers alike.

Product available in the following configurations
Name Product Code Power [W] Luminous Flux [lm] Efficacy [lm/W] Control Color Temp [K]
DL1 AWX.DL1/M1/2100/840/OP/ED/WH/ST/4 19 2150 113 ON/OFF 4000
AWX.DL1/M1/2800/840/OP/ED/WH/ST/4 27 2890 108 ON/OFF 4000
DL1 / S1 / 800 / 840 / OP / ED / WH / ST / 2 LUMINAIRE FAMILYAND GENERATION LUMINOUS FLUXMARKING DIFFUSER COLOR EFFICIENCY SIZE CRI COLORTEMPERATURE DRIVER VERSION
Legend

Name

DL
Downlight

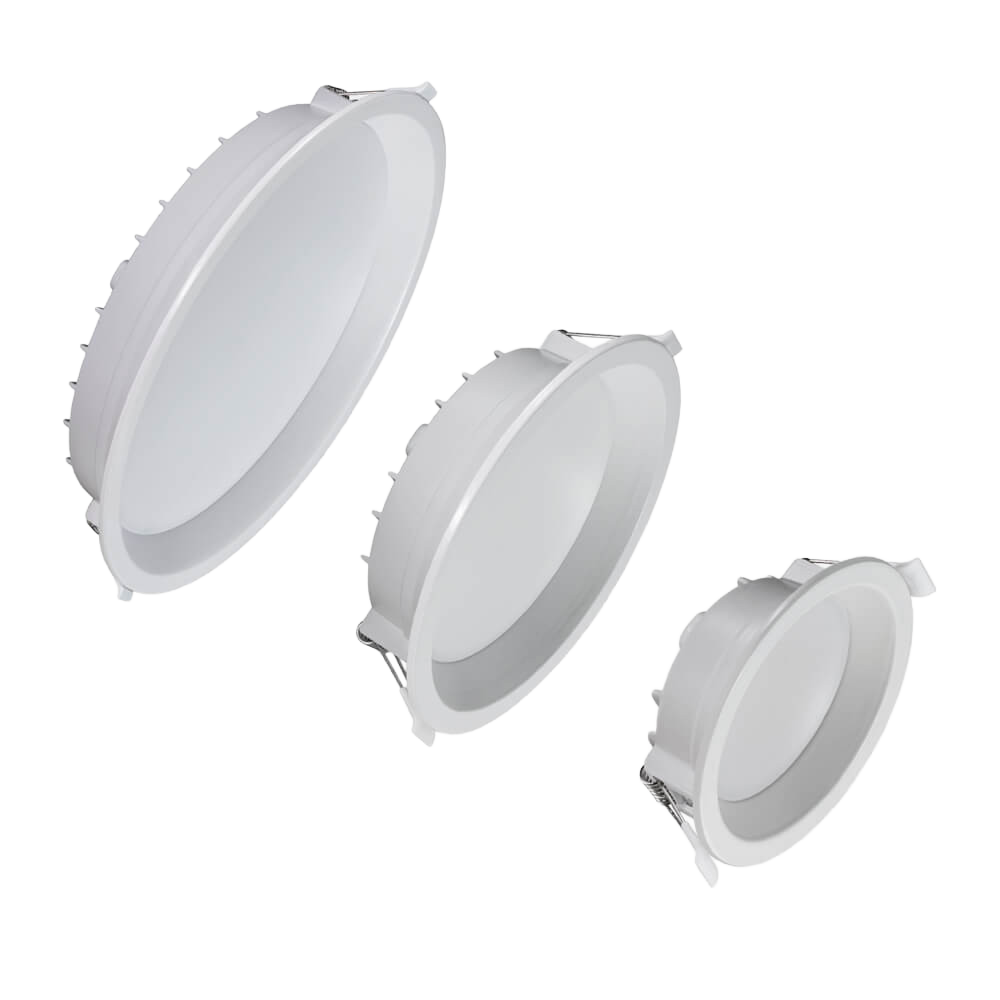

Size

S1
diameter 90 mm
M1
diameter 145 mm
L1
diameter 220 mm

CRI Rating

8
CRI ≥ 80

Color Temperature

30
3000 K
40
4000 K

Diffuser

OP
opal

Driver

ED
on / off
DA
DALI

Color

WH
white

Version

ST
STANDARD

Efficiency

2
eco
4
standard
