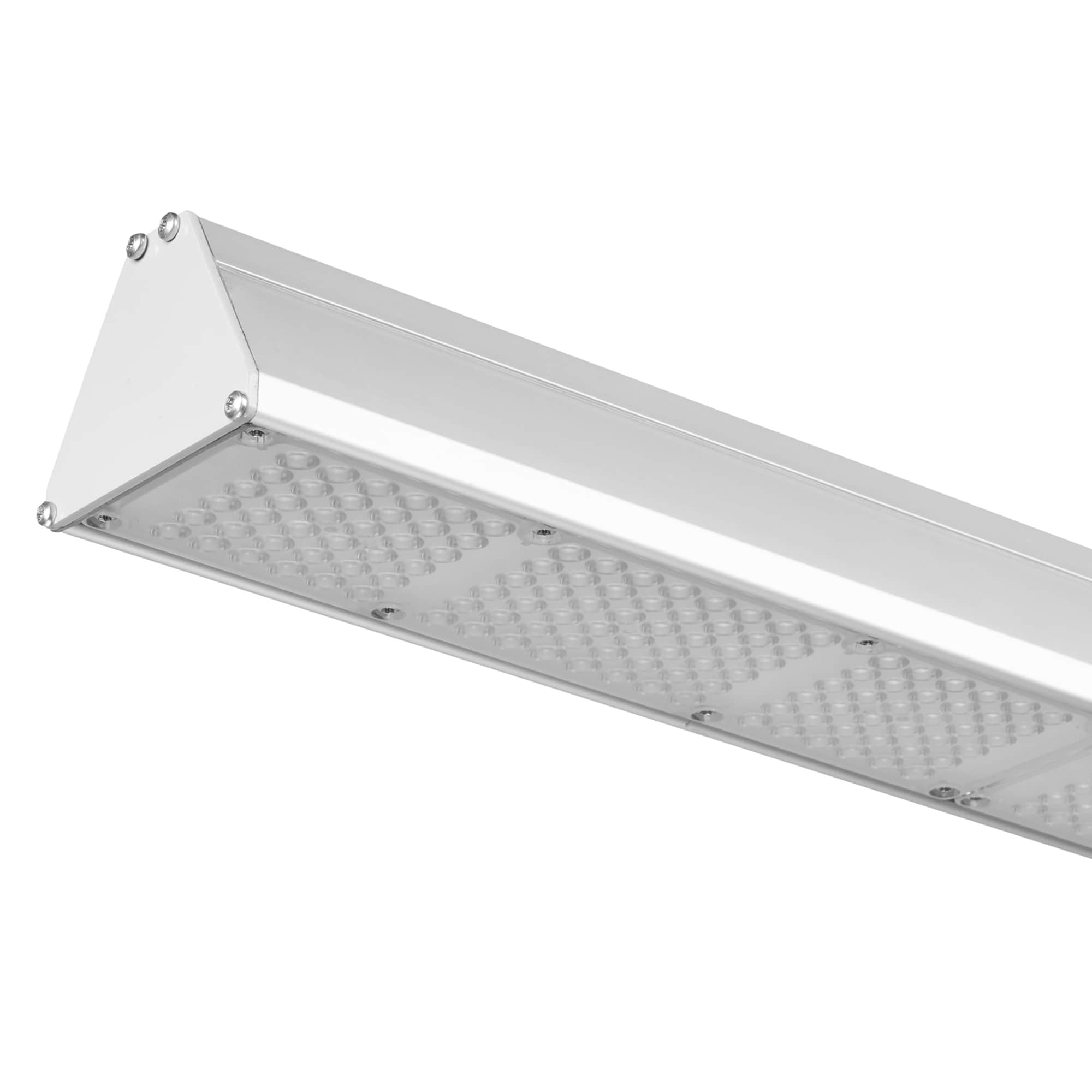

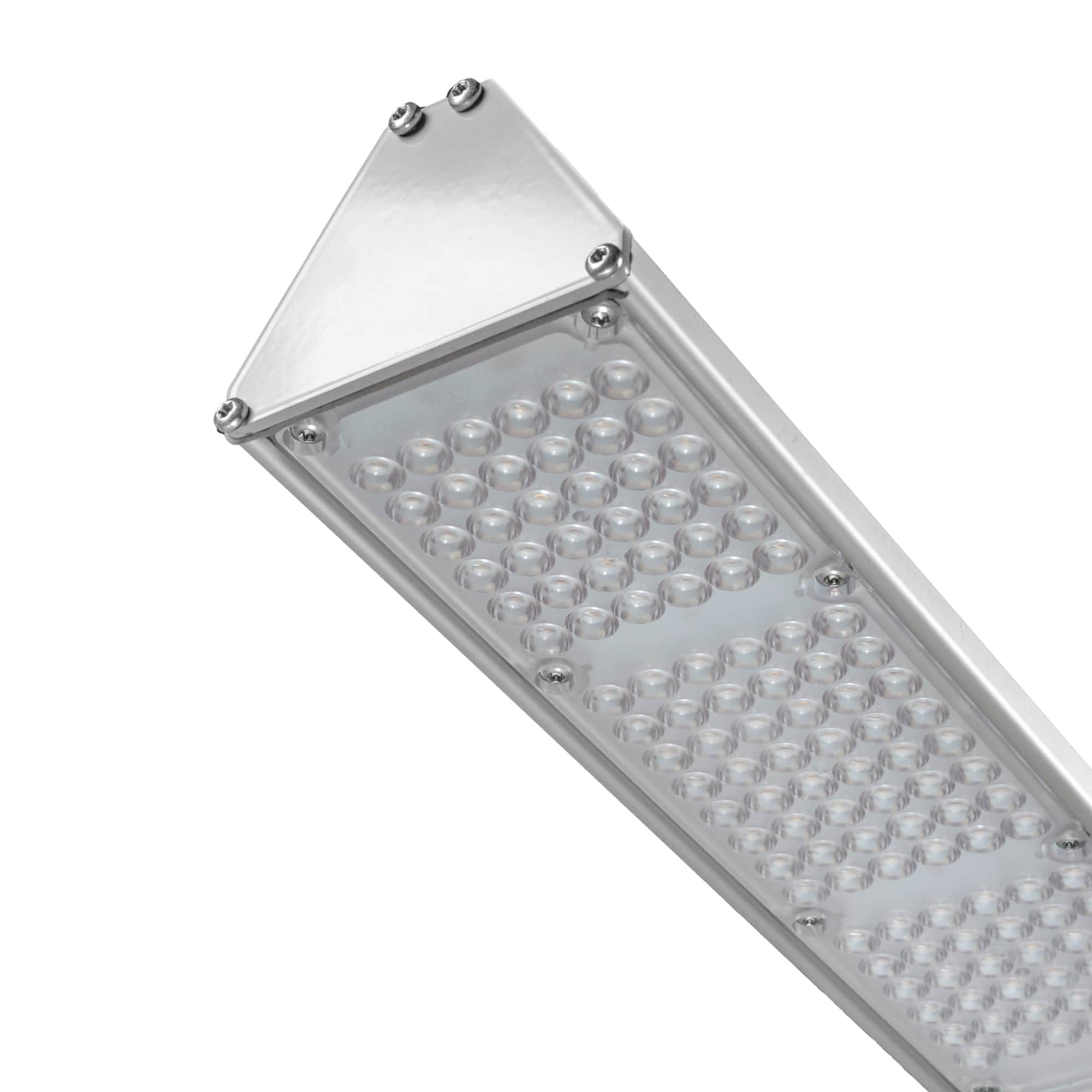

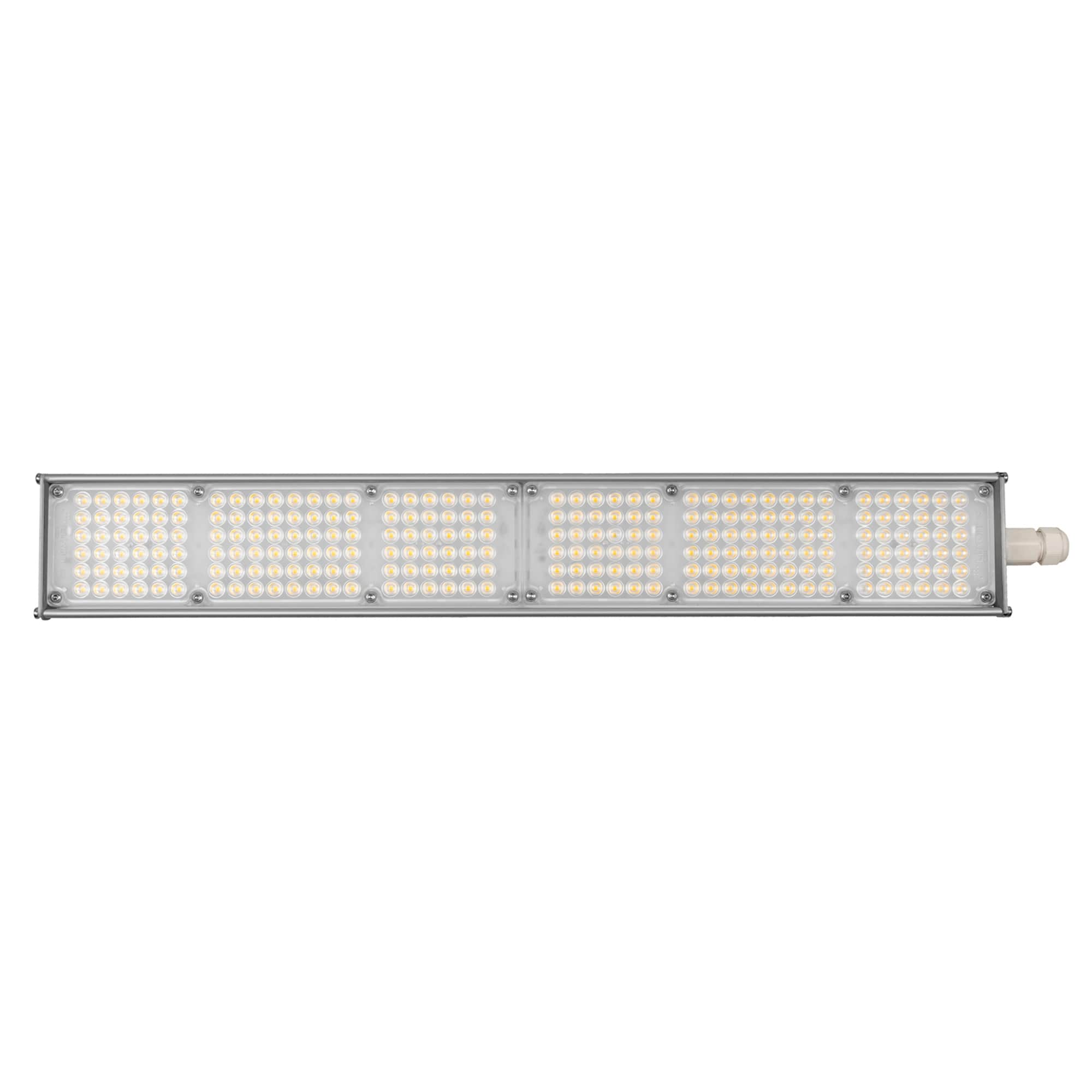

Ultra LED 1; Power version 1; Lift 1; 36W; CRI80; Midpower; 4000K; Lens PC; 40°x40°; Ta -25/+45°C; Warranty 5 years
36
6400
177
4000
>80
40°X40°
1,4
Power consumption 36 W. Luminous efficacy 177 lm/W. Luminous flux of 6400 lm. Spread of light 40°X40°. Luminaire intended for use in: Production halls, high-bay warehouse / high storage warehouse, Open space, Technical rooms / Technical spaces
Luminaire IP rating 66. Mechanical resistance IK 10. Acceptable ambient temperature Ta min -25°C - Ta max +45°C. Optical system made of PC. The luminaire uses Cree LEDs with colour temperature tolerance (acc. to MacAdam ellipses) SDCM 3. Colour temperature 4000 K. Average rated life of L80B10 at 257 000 hours at Ta = 25°C. Average rated life of L80B10 at 257 000 hours at Ta = 35⁰C.
Average rated life of L80B50 at 257 000 hours at Ta = 25°C. Average rated life of L90B10 at 257 000 hours at Ta = 25°C. The product is classified for photobiological risk RG1. Colour rendering index (CRI) > >80 Ra.
The operating time of the power supply is 100 000 hours at Ta = 25°C. Power Factor (PF) 0,96. Total harmonic distortions (THD) 9%. The luminaire operates on a 198-264V 50-60Hz 176-280V DC power supply. Output current ripple 2%. The lifetime of the luminaire is 100 000 h at 25°C. It can be controlled by ON/OFF.
Dimensions: 74 mm height 331 mm length 98 mm width. Housing material Extruded anodized aluminum, in gray color - RAL 7038. The weight of the luminaire is 1,4 kg. Maxnumber of luminaires in one circuit for: B10 = 18 B16 = 29 C10 = 30 C16 = 49.
| General information | |
|---|---|
| Warranty [Y] | 5Y |
| Battery Warranty [M] | does not apply |
| Quick connector | YES |

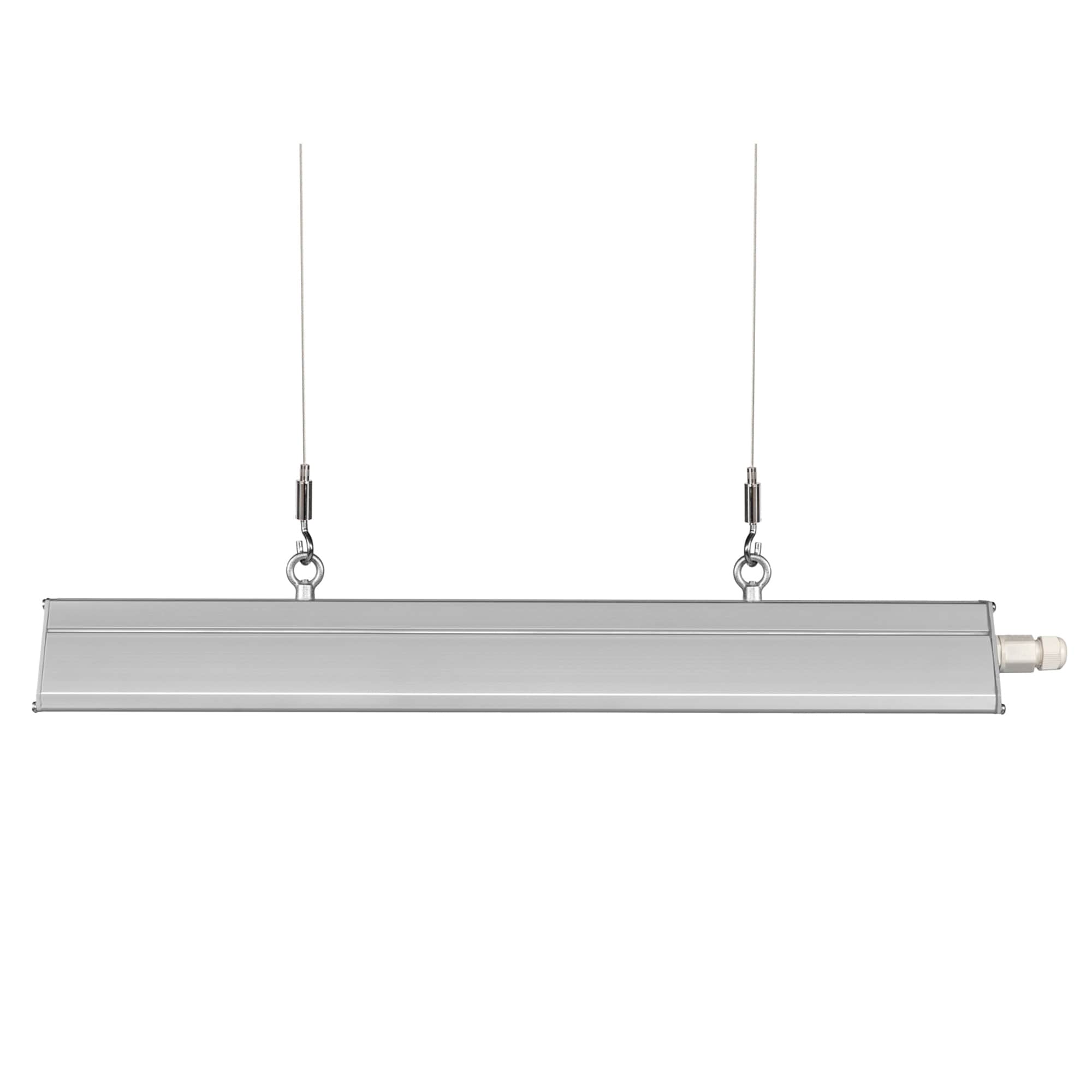

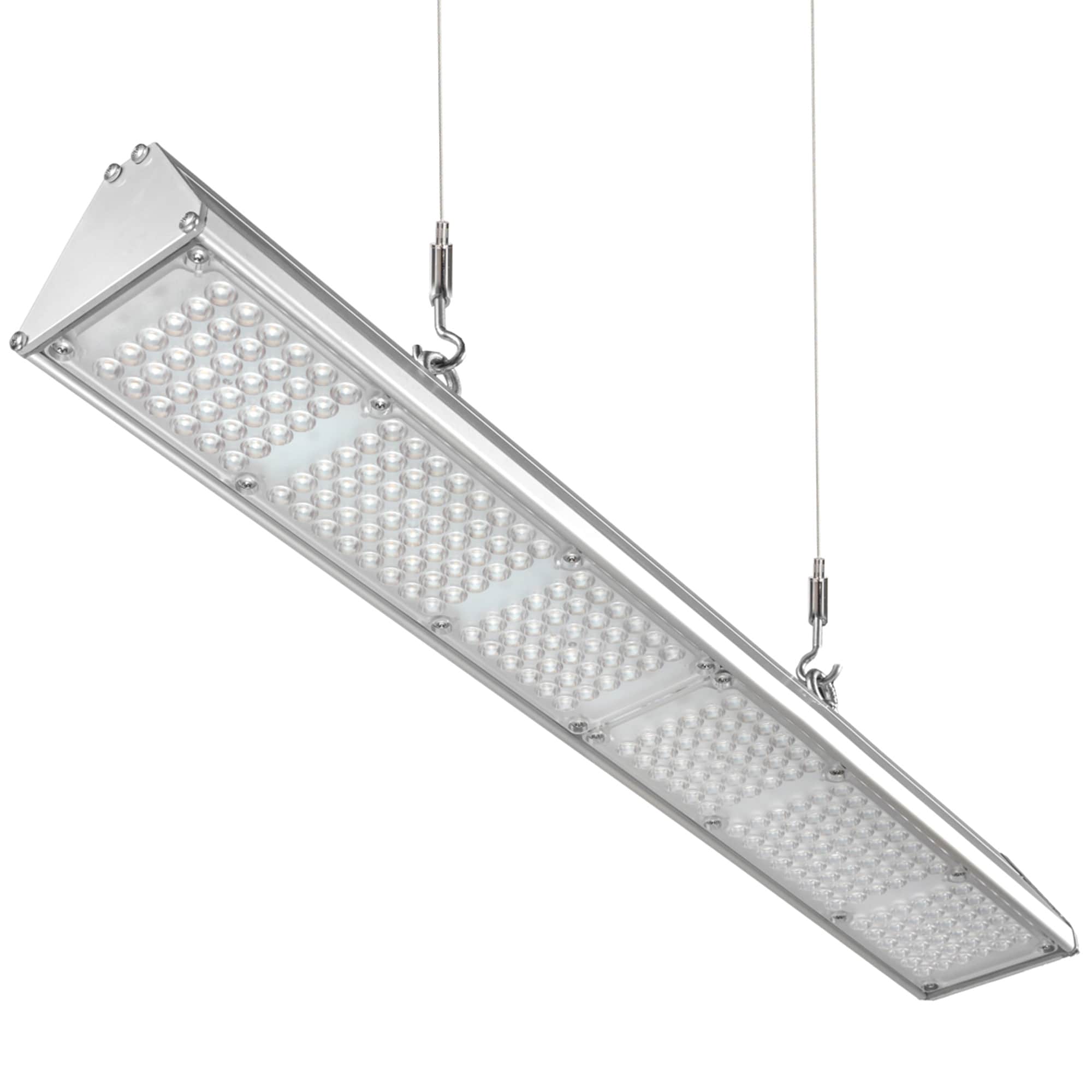

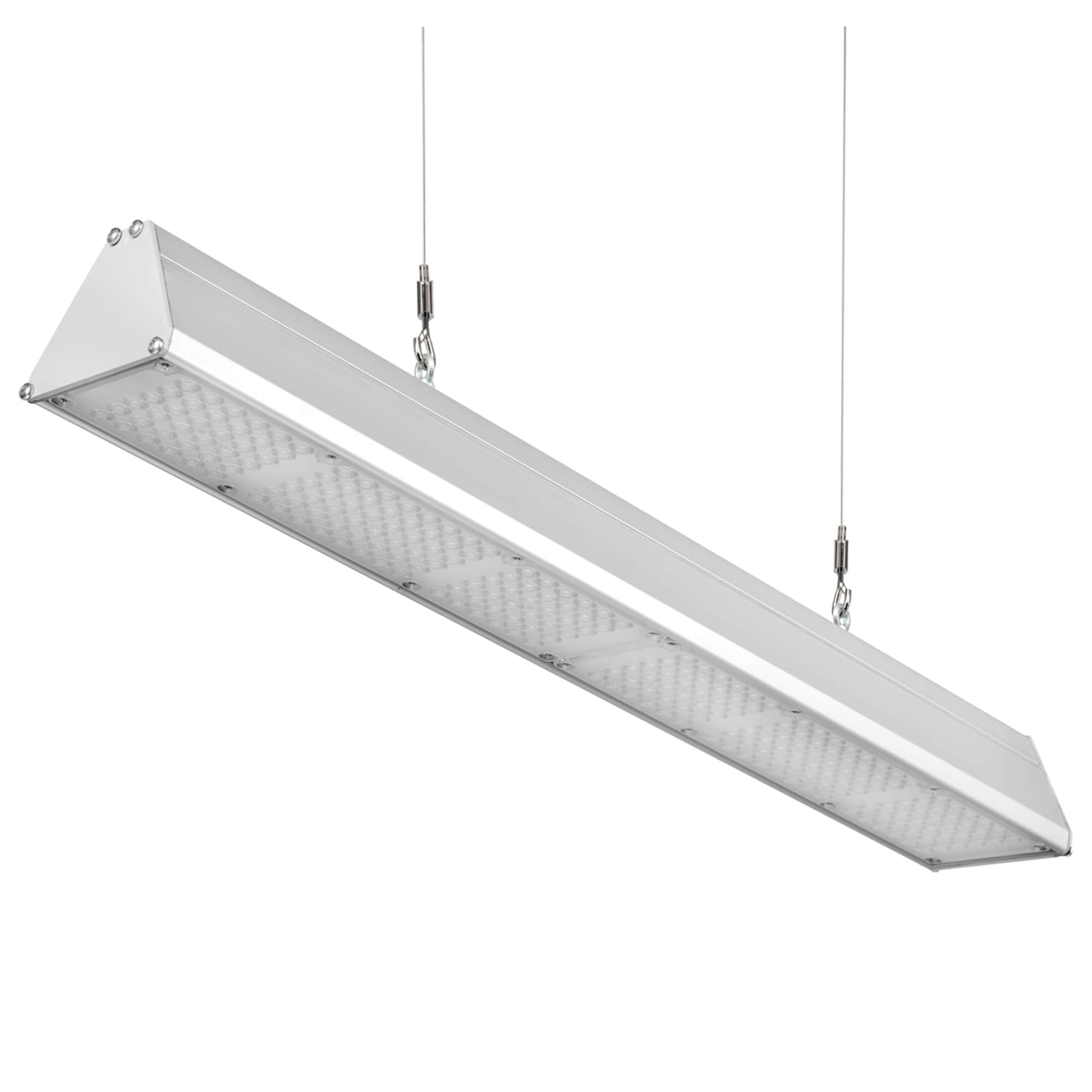

| Montage System | surface-mounted, suspended |
| External installation | NO |
| Protection rating | I |
| Internal installation | YES |
| IP protection class | 66 |
| Control system | ON/OFF |
| Through wiring system | NO |
| Luminaire operating temperature | -25 ÷ +45 |
| Electrical data | |
|---|---|
| THD [%] | 9 |
| Power | 198-264V 50-60Hz 176-280V DC |
| Rated power [W] | 36 |
| Inrush current [A] | 22 |
| Max. number of luminaires in a single B10 circuit | 18 |
| Max. number of luminaires in a single B16 circuit | 29 |
| Max. number of luminaires in a single C10 circuit | 30 |
| Max. number of luminaires in a single C16 circuit | 49 |
| Power Supply System Data | |
|---|---|
| Power supply version | ON/OFF |
| Current ripple [%] | 2% |
| Overvoltage protection (L-N)/(L/N-PE) [kV] | 1kV/2kV |
| Power supply lifetime for Ta=25°C [h] | 100 000 |
| Light source data | |
|---|---|
| LED brand Samsung | Cree |
| L80B10; Ta=25°C [h] | 257 000 |
| L80B10; Ta=35°C [h] | 257 000 |
| L80B10; Ta=40°C [h] | 257 000 |
| L80B50; Ta=25°C [h] | 257 000 |
| L90B10; Ta=25°C [h] | 257 000 |
| Photobiological safety | RG1 |
| LED thermal resistance [K/W] | 4,5 |
| LED efficiency [lm/W] Ta=25°C | 219 |
| Driving current [mA] | 600 |
| Materials | |
|---|---|
| Housing color | gray |
| Lens material | PC |
| Housing material | Extruded anodized aluminum |
| Diffuser material | not available |
| Housing RAL | 7038 |
| Impact resistance (IK) | 10 |
| Diffuser thickness [mm] | does not apply |
| Luminaire photometric data | |
|---|---|
| UGR min. - max | 15 - 19 |
| Efficacy [lm/W] | 177 |
| Luminous flux [lm] | 6400 |
| Color rendering index (Ra) | >80 |

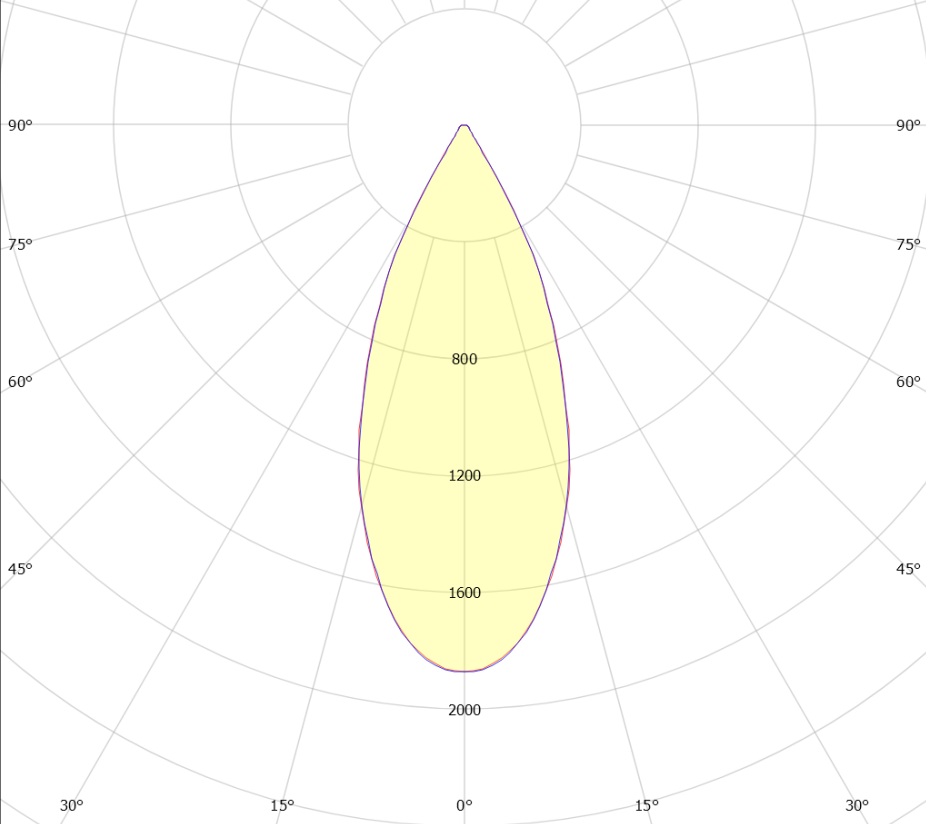

| Light beam angle | 40°X40° |
| Color temperature CCT [K] | 4000 |
| Standard deviation of color matching | 3 |
| Dimensions | |
|---|---|
| Width [W] | 98 |
| Height [H] | 74 |
| Length [L] | 331 |
