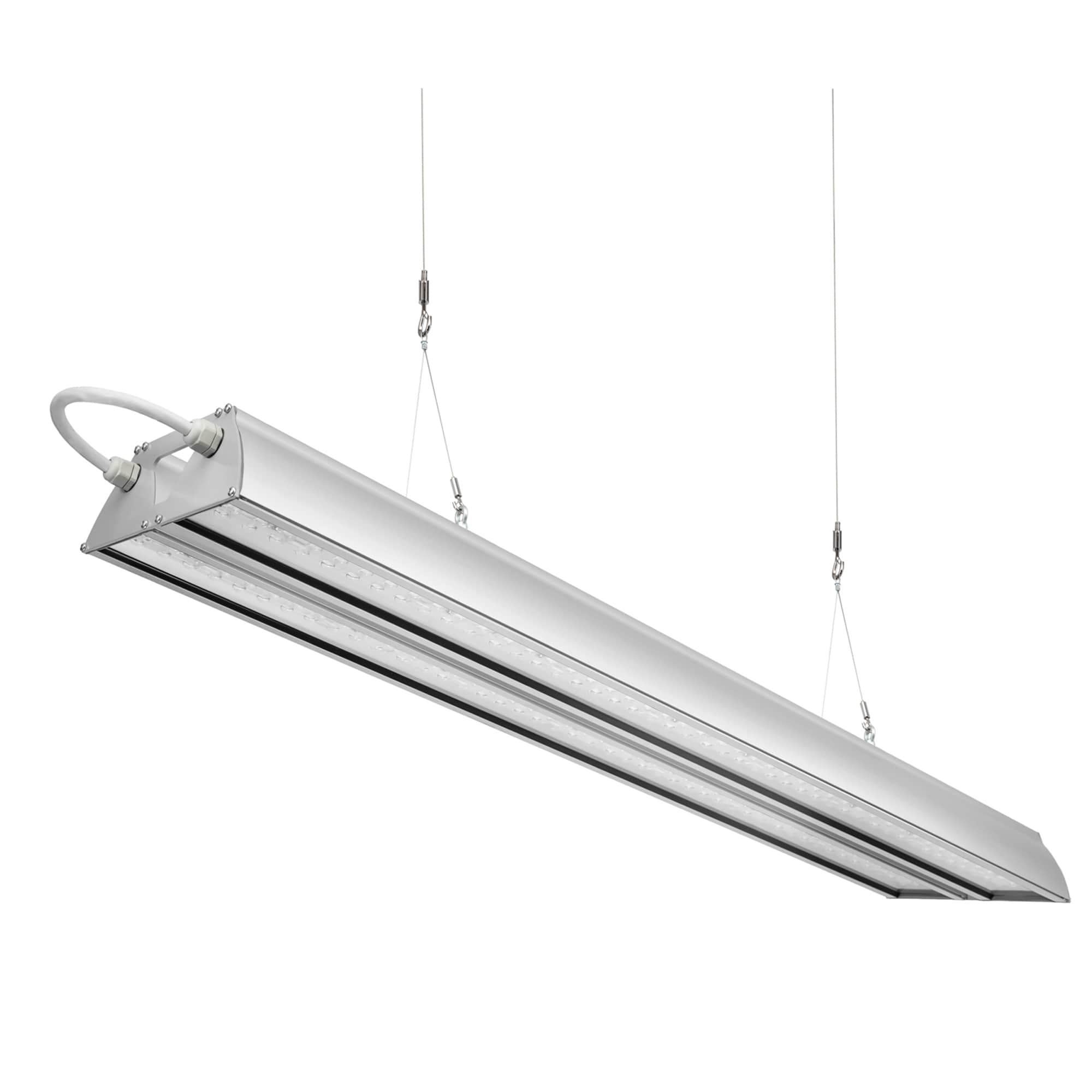

Ultima LED DB 3; Power version 1; Lift 0; 222W; CRI80; Midpower; 4000K; Lens PMMA; Diffuser tempered glass transparent; 65°x60°; Ta -25/+45°C; Warranty 5 years
222
36400
163
4000
>80
65°X60°
11,2
Power consumption 222 W. Luminous efficacy 163 lm/W. Luminous flux of 36400 lm. Spread of light 65°X60°. Luminaire intended for use in: Production halls, high-bay warehouse / high storage warehouse, Open space, Production halls, Warehouses

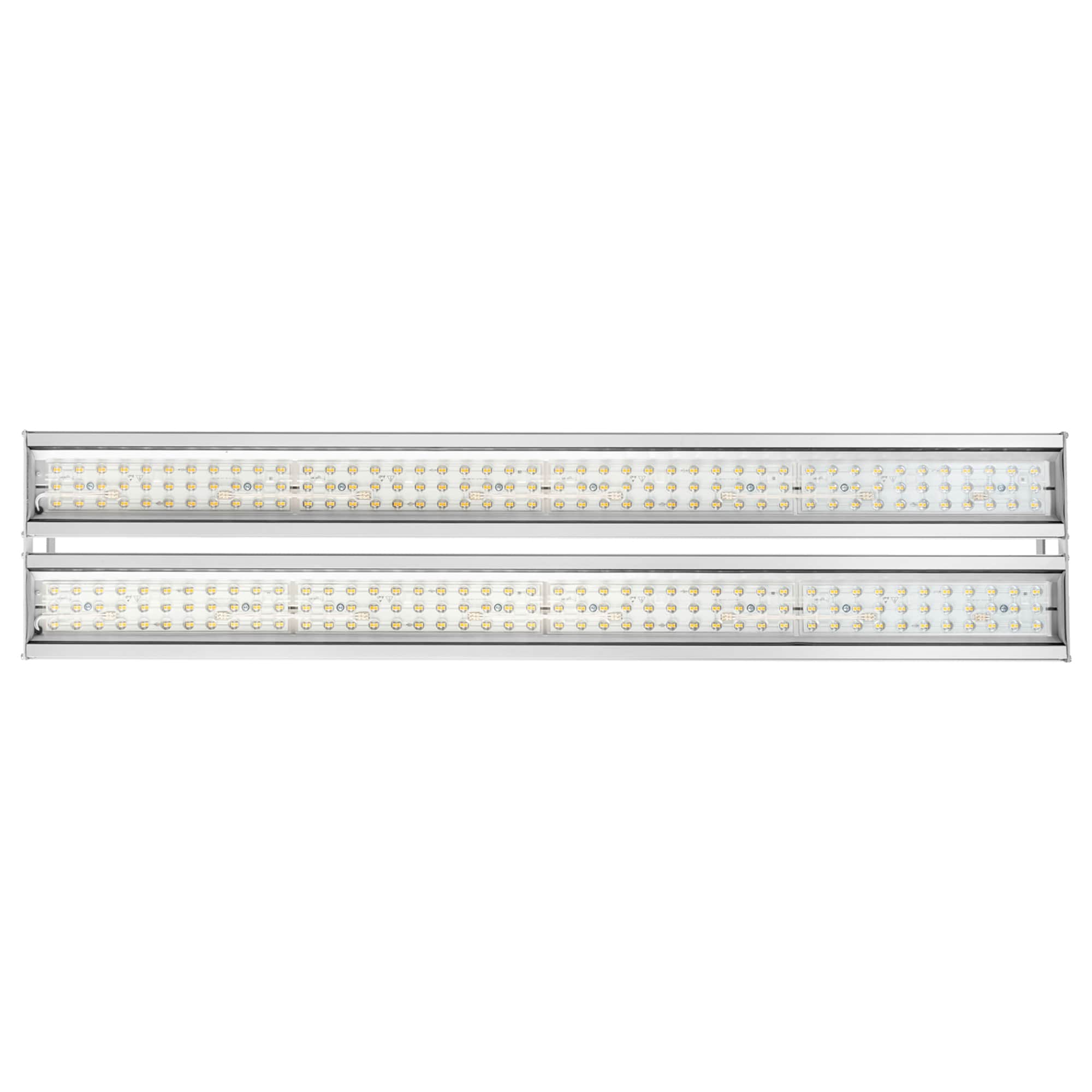

Luminaire IP rating 65. Mechanical resistance IK 06. Acceptable ambient temperature Ta min -25°C - Ta max +45°C. Optical system made of PMMA. The luminaire uses Samsung LEDs with colour temperature tolerance (acc. to MacAdam ellipses) SDCM 3. Colour temperature 4000 K. Average rated life of L80B10 at 90 000 hours at Ta = 25°C. Average rated life of L80B10 at 90 000 hours at Ta = 35⁰C.
Average rated life of L80B50 at 90 000 hours at Ta = 25°C. Average rated life of L90B10 at 40 000 hours at Ta = 25°C. The product is classified for photobiological risk RG1. Colour rendering index (CRI) > >80 Ra.
The operating time of the power supply is 100 000 hours at Ta = 25°C. Power Factor (PF) 0,99. Total harmonic distortions (THD) 8%. The luminaire operates on a 198-264V 50-60Hz 176-280V DC power supply. Output current ripple 2%. The lifetime of the luminaire is 90 000 h at 25°C. It can be controlled by ON/OFF.

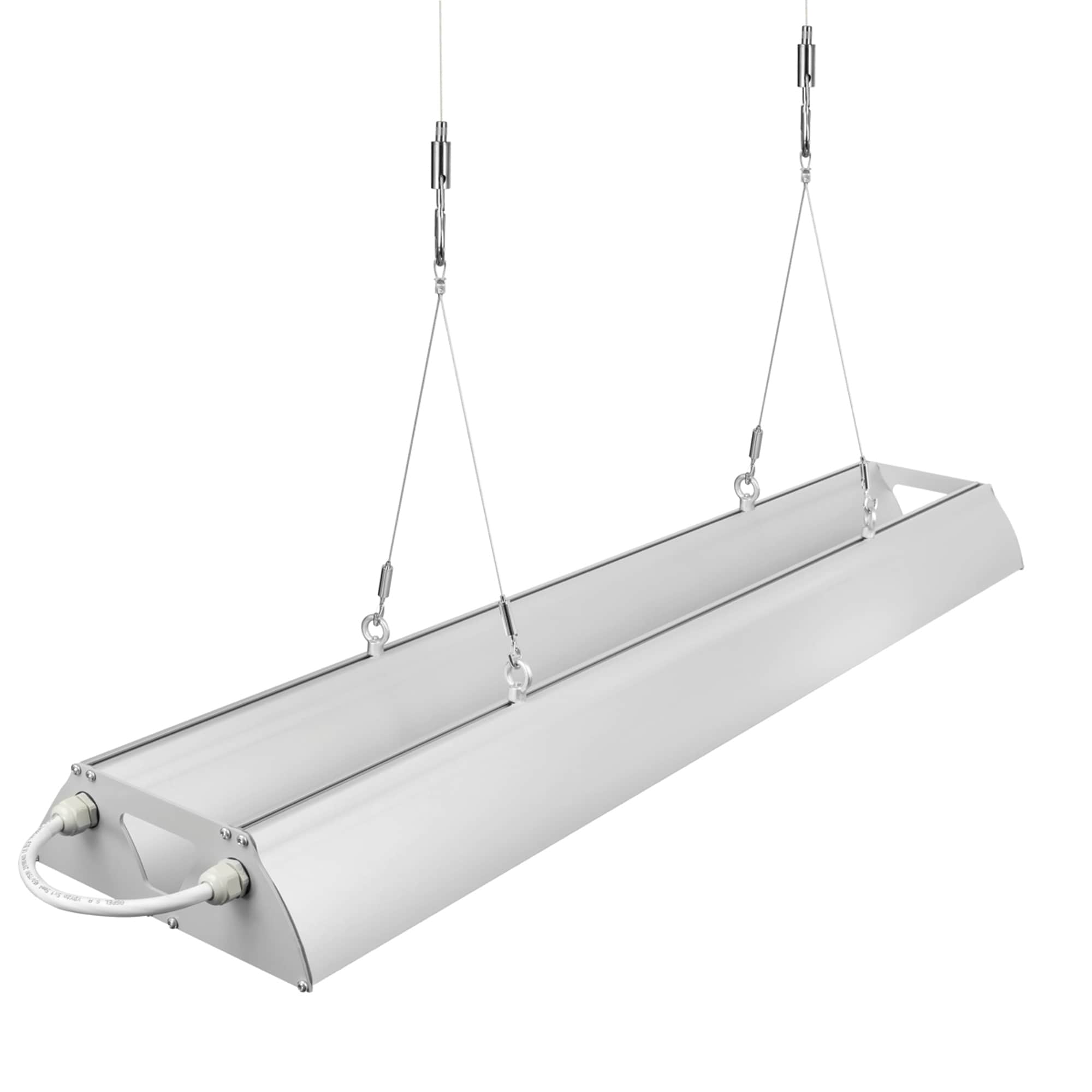

Dimensions: 91 mm height 1375 mm length 270 mm width. Housing material Extruded anodized aluminum, in gray color - RAL 7038. The weight of the luminaire is 11,2 kg. Maxnumber of luminaires in one circuit for: B10 = 4 B16 = 6 C10 = 6 C16 = 11.
| General information | |
|---|---|
| Warranty [Y] | 5Y |
| Battery Warranty [M] | does not apply |

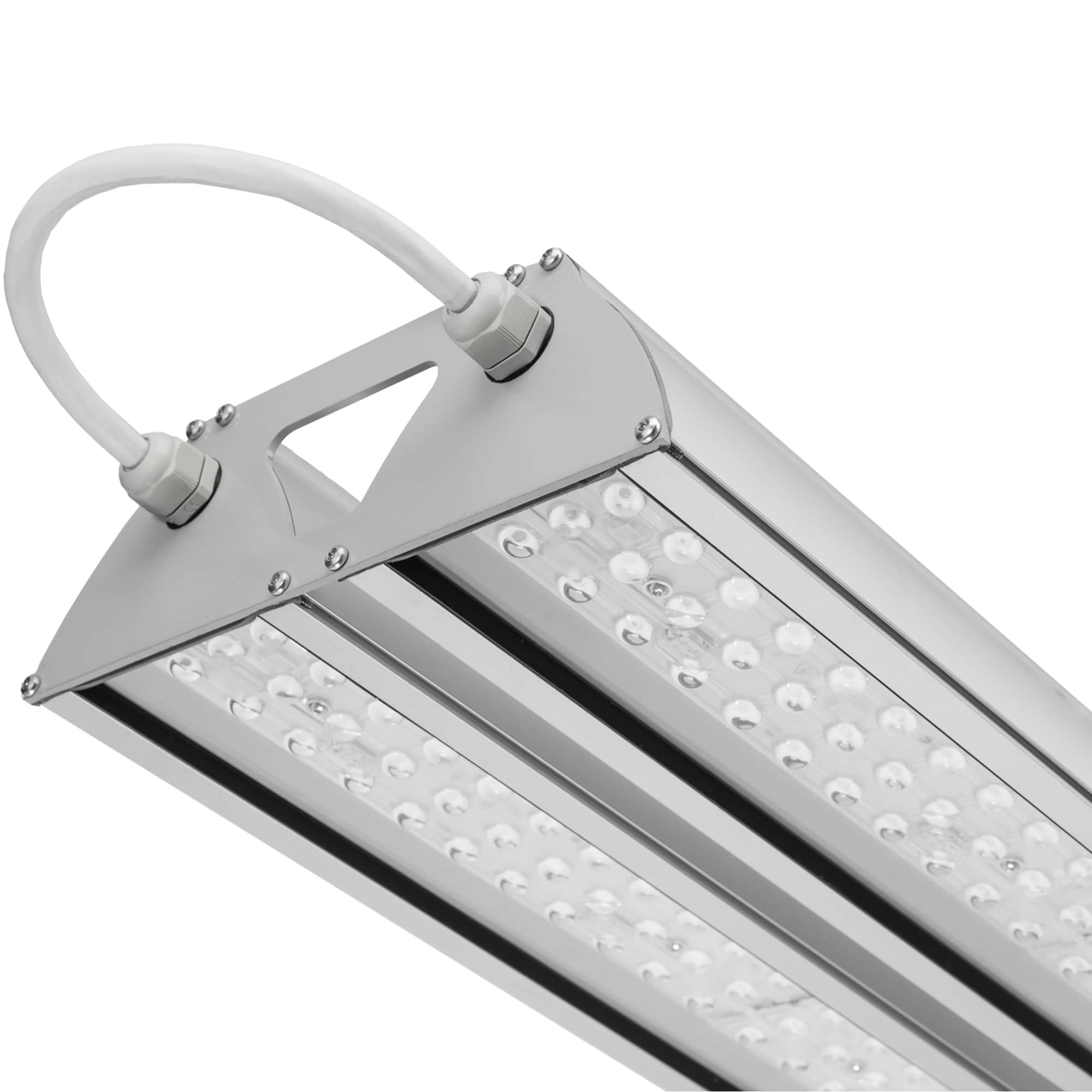

| Quick connector | YES |

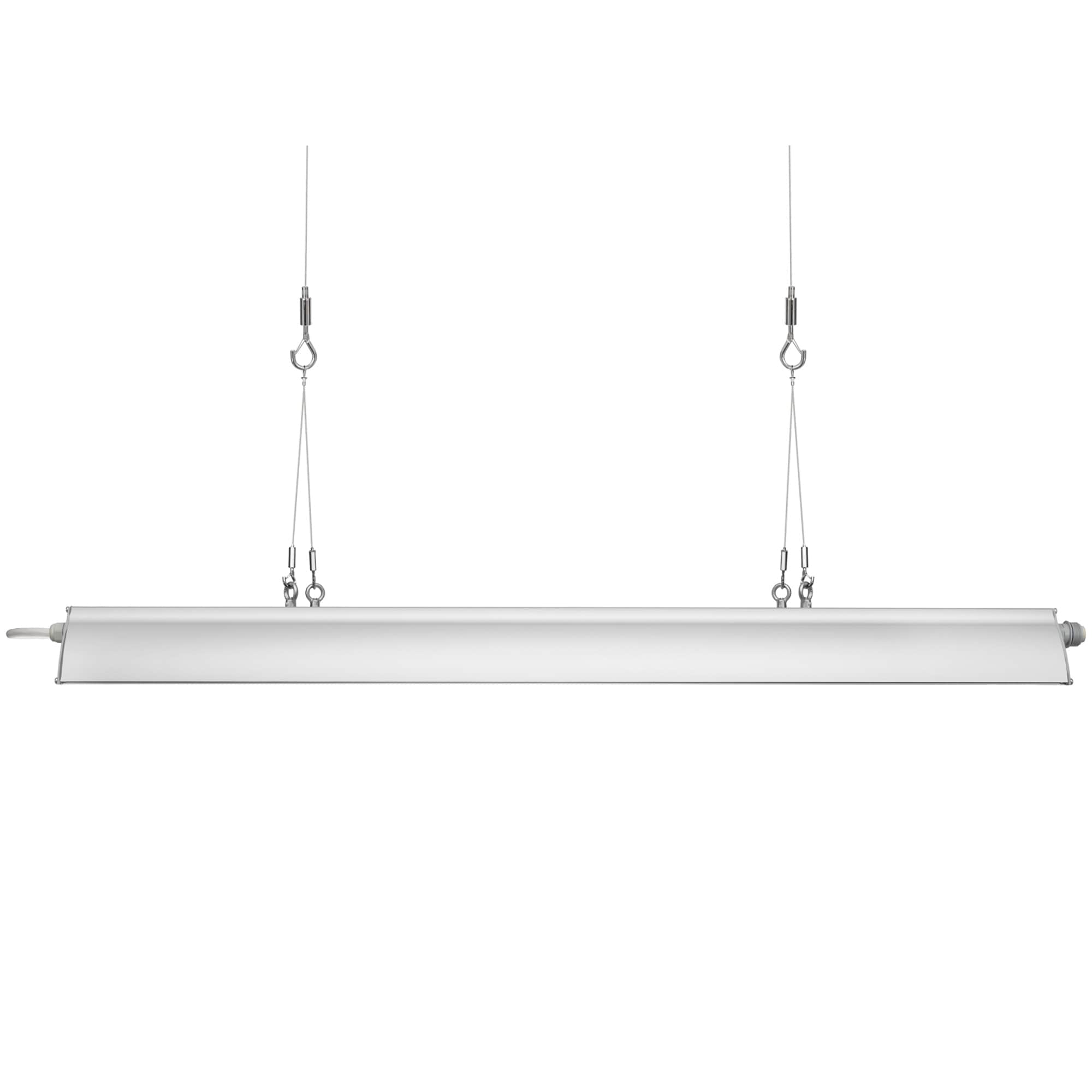

| Montage System | surface-mounted, suspended |
| External installation | NO |
| Protection rating | I |
| Internal installation | YES |
| IP protection class | 65 |
| Control system | ON/OFF |
| Through wiring system | NO |
| Luminaire operating temperature | -25 ÷ +45 |
| Electrical data | |
|---|---|
| THD [%] | 8 |
| Power | 198-264V 50-60Hz 176-280V DC |
| Rated power [W] | 222 |
| Inrush current [A] | 82 |
| Max. number of luminaires in a single B10 circuit | 4 |
| Max. number of luminaires in a single B16 circuit | 6 |
| Max. number of luminaires in a single C10 circuit | 6 |
| Max. number of luminaires in a single C16 circuit | 11 |
| Power Supply System Data | |
|---|---|
| Power supply version | ON/OFF |
| Current ripple [%] | 2% |
| Overvoltage protection (L-N)/(L/N-PE) [kV] | 1kV/2kV |
| Power supply lifetime for Ta=25°C [h] | 100 000 |
| Light source data | |
|---|---|
| LED brand Samsung | Samsung |
| L80B10; Ta=25°C [h] | 90 000 |
| L80B10; Ta=35°C [h] | 90 000 |
| L80B10; Ta=40°C [h] | 85 000 |
| L80B50; Ta=25°C [h] | 90 000 |
| L90B10; Ta=25°C [h] | 40 000 |
| Photobiological safety | RG1 |
| LED thermal resistance [K/W] | 7,5 |
| LED efficiency [lm/W] Ta=25°C | 191 |
| Driving current [mA] | 420 |
| Materials | |
|---|---|
| Housing color | gray |
| Lens material | PMMA |
| Housing material | Extruded anodized aluminum |
| Diffuser material | tempered transparent glass |
| Housing RAL | 7038 |
| Impact resistance (IK) | 06 |
| Diffuser thickness [mm] | 3 |
| Luminaire photometric data | |
|---|---|
| UGR min. - max | 18 - 20 |
| Efficacy [lm/W] | 163 |
| Luminous flux [lm] | 36400 |
| Color rendering index (Ra) | >80 |
| Light beam angle | 65°X60° |
| Color temperature CCT [K] | 4000 |
| Standard deviation of color matching | 3 |
| Dimensions | |
|---|---|
| Width [W] | 270 |
| Height [H] | 91 |
| Length [L] | 1375 |
