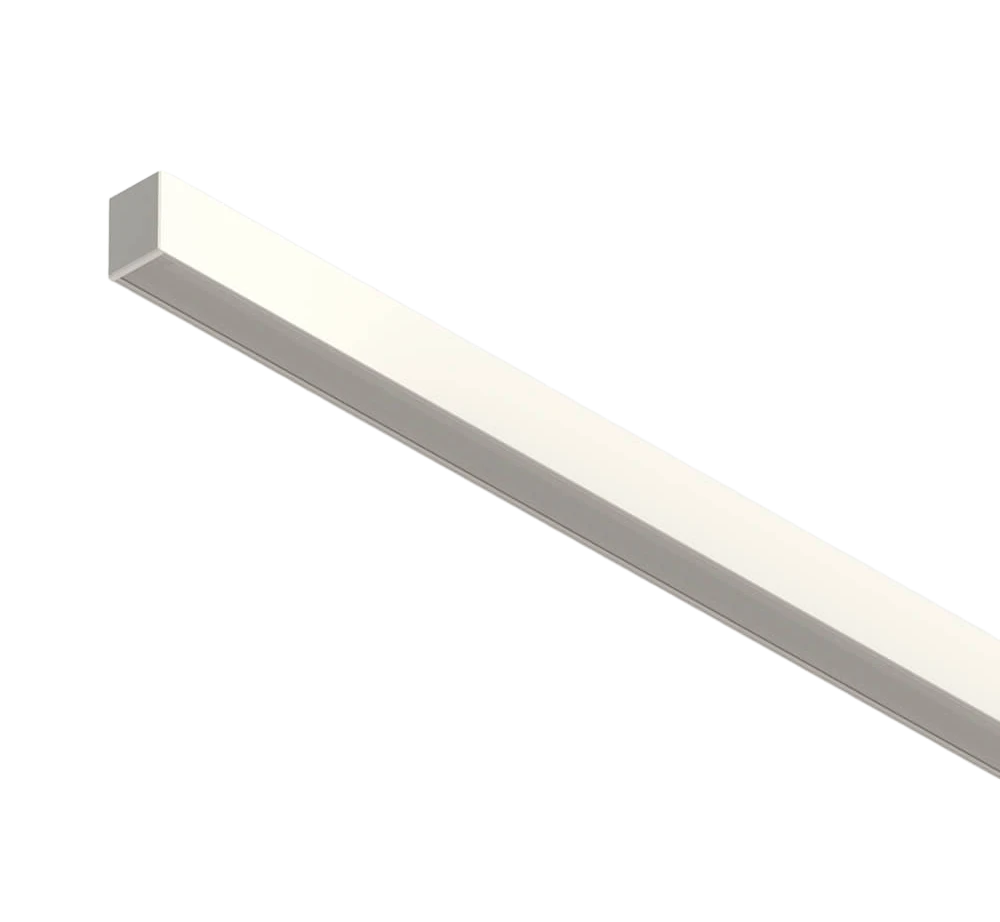

Linvera LED SF 1; Power version 1; Lift 0; 10W; CRI80; Midpower; 3000K; Diffuser PMMA matt; 115°x115°; Ta 0/+35°C; Warranty 5 years; White, RAL9016
10
1150
115
3000
>80
115°X115°
1
Power consumption 10 W. Luminous efficacy 115 lm/W. Luminous flux of 1150 lm. Spread of light 115°X115°. Luminaire intended for use in: Office spaces / Office rooms, Social spaces / Social rooms, Communication routes
Luminaire IP rating 40. Mechanical resistance IK 04. Acceptable ambient temperature Ta min -00°C - Ta max +35°C. Optical system made of not available. The luminaire uses Osram LEDs with colour temperature tolerance (acc. to MacAdam ellipses) SDCM 3. Colour temperature 3000 K. Average rated life of L80B10 at 100 000 hours at Ta = 25°C. The product is classified for photobiological risk RG0. Colour rendering index (CRI) > >80 Ra. It can be controlled by ON/OFF.
Dimensions: 65 mm height 572 mm length 50 mm width. Housing material Powder-coated extruded aluminum, in white color - RAL 9016. The weight of the luminaire is 1 kg. Maxnumber of luminaires in one circuit for: B10 = 40 B16 = 64 C10 = 65 C16 = 105.
| General information | |
|---|---|
| Warranty [Y] | 5Y |
| Battery Warranty [M] | does not apply |
| Quick connector | NO |
| Montage System | surface-mounted, suspended |
| External installation | NO |
| Protection rating | I |
| Internal installation | YES |
| IP protection class | 40 |
| Control system | ON/OFF |
| Through wiring system | NO |
| Luminaire operating temperature | -00 ÷ +35 |
| Electrical data | |
|---|---|
| Rated power [W] | 10 |
| Inrush current [A] | 7,5 |
| Max. number of luminaires in a single B10 circuit | 40 |
| Max. number of luminaires in a single B16 circuit | 64 |
| Max. number of luminaires in a single C10 circuit | 65 |
| Max. number of luminaires in a single C16 circuit | 105 |
| Power Supply System Data | |
|---|---|
| Power supply version | ON/OFF |
| Light source data | |
|---|---|
| LED brand Samsung | Osram |
| L80B10; Ta=25°C [h] | 100 000 |
| Photobiological safety | RG0 |
| Driving current [mA] | 200 |
| Materials | |
|---|---|
| Housing color | white |
| Lens material | not available |
| Housing material | Powder-coated extruded aluminum |
| Diffuser material | Matte PMMA |
| Housing RAL | 9016 |
| Impact resistance (IK) | 04 |
| Diffuser thickness [mm] | 2 |
| Luminaire photometric data | |
|---|---|
| Efficacy [lm/W] | 115 |
| Luminous flux [lm] | 1150 |
| Color rendering index (Ra) | >80 |

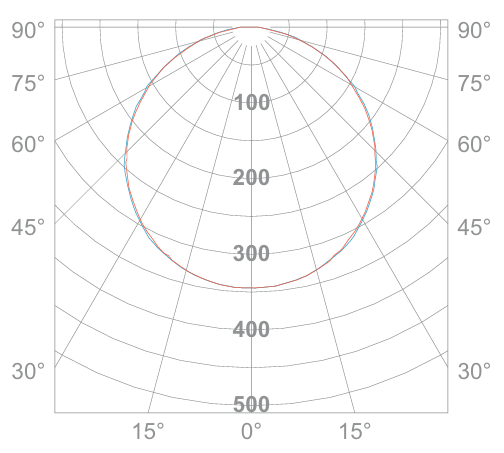

| Light beam angle | 115°X115° |
| Color temperature CCT [K] | 3000 |
| Standard deviation of color matching | 3 |
| Dimensions | |
|---|---|
| Width [W] | 50 |
| Height [H] | 65 |
| Length [L] | 572 |
| File Name | |
|---|---|
| LED datasheet | Download |
| Photometric files | Download |
| Datasheet of the luminaire family | Download |
| Declaration of conformity CE | Download |
| Installation instructions | Download |
