InTUBON LED 24VDC 2; Power version 1; Lift 0; 17W; CRI80; Midpower; 4000K; Lens PC; Diffuser PC transparent; 60°x60°; Ta -25/+40°C; Warranty 3 years
.png)
17
2950
173
4000
>80

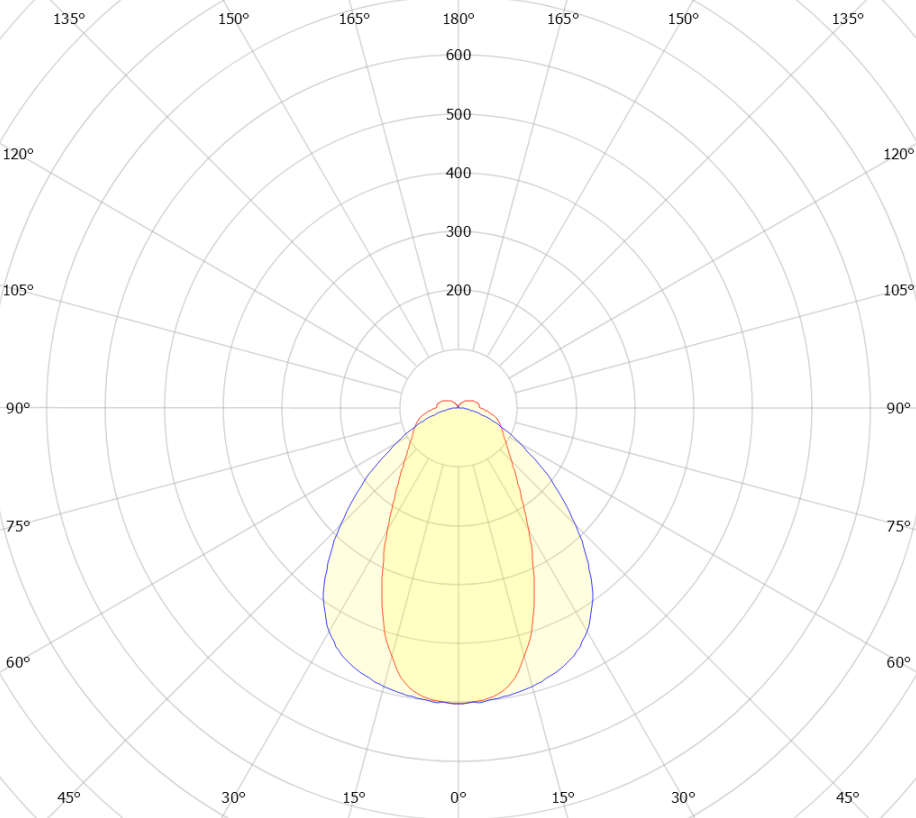

60°X60°
1,8
Power consumption 17 W. Luminous efficacy 173 lm/W. Luminous flux of 2950 lm. Spread of light 60°X60°. Luminaire intended for use in: Production halls, Underground garages, #N/A, Underground garages, Technical rooms / Technical spaces, Food production
Luminaire IP rating 69K. Mechanical resistance IK 10. Acceptable ambient temperature Ta min -25°C - Ta max +40°C. Optical system made of PC. The luminaire uses Cree LEDs with colour temperature tolerance (acc. to MacAdam ellipses) SDCM 3. Colour temperature 4000 K. Average rated life of L80B10 at 108000 hours at Ta = 25°C. Average rated life of L80B10 at 108000 hours at Ta = 35⁰C.
Average rated life of L80B50 at 108 000 hours at Ta = 25°C. Average rated life of L90B10 at 51000 hours at Ta = 25°C. The product is classified for photobiological risk RG1. Colour rendering index (CRI) > >80 Ra.
The operating time of the power supply is 50 000 hours at Ta = 25°C. Power Factor (PF) 1. The luminaire operates on a 18-32VDC power supply. Output current ripple 2%. The lifetime of the luminaire is 50 000 h at 25°C. It can be controlled by ON/OFF.
Dimensions: 70 mm height 720 mm length 70 mm width. Housing material Polycarbonate (PC), in n/a color - RAL nie dotyczy. The weight of the luminaire is 1,8 kg. Max
| General information | |
|---|---|
| Warranty [Y] | 3Y |
| Battery Warranty [M] | does not apply |
| Quick connector | NO |
| Montage System | surface-mounted, suspended |
| External installation | YES |
| Protection rating | III |
| Internal installation | YES |
| IP protection class | 69K |
| Control system | ON/OFF |
| Through wiring system | NO |
| Luminaire operating temperature | -25 ÷ +40 |
| Electrical data | |
|---|---|
| Power | 18-32VDC |
| Rated power [W] | 17 |
| Power Supply System Data | |
|---|---|
| Power supply version | ON/OFF |
| Current ripple [%] | 2% |
| Power supply lifetime for Ta=25°C [h] | 50 000 |
| Additional power supply features | PWM, Analog dim |
| Light source data | |
|---|---|
| LED brand Samsung | Cree |
| L80B10; Ta=25°C [h] | 108000 |
| L80B10; Ta=35°C [h] | 108000 |
| L80B10; Ta=40°C [h] | 108000 |
| L80B50; Ta=25°C [h] | 108 000 |
| L90B10; Ta=25°C [h] | 51000 |
| Photobiological safety | RG1 |
| LED thermal resistance [K/W] | 4,5 |
| LED efficiency [lm/W] Ta=25°C | 216 |
| Driving current [mA] | 350 |
| Materials | |
|---|---|
| Housing color | n/a |
| Lens material | PC |
| Housing material | Polycarbonate (PC) |
| Diffuser material | Transparent PC |
| Housing RAL | does not apply |
| Impact resistance (IK) | 10 |
| Diffuser thickness [mm] | does not apply |
| Luminaire photometric data | |
|---|---|
| UGR min. - max | 22 - 29 |
| Efficacy [lm/W] | 173 |
| Luminous flux [lm] | 2950 |
| Color rendering index (Ra) | >80 |
| Light beam angle | 60°X60° |
| Color temperature CCT [K] | 4000 |
| Standard deviation of color matching | 3 |
| Dimensions | |
|---|---|
| Width [W] | 70 |
| Height [H] | 70 |
| Length [L] | 720 |
